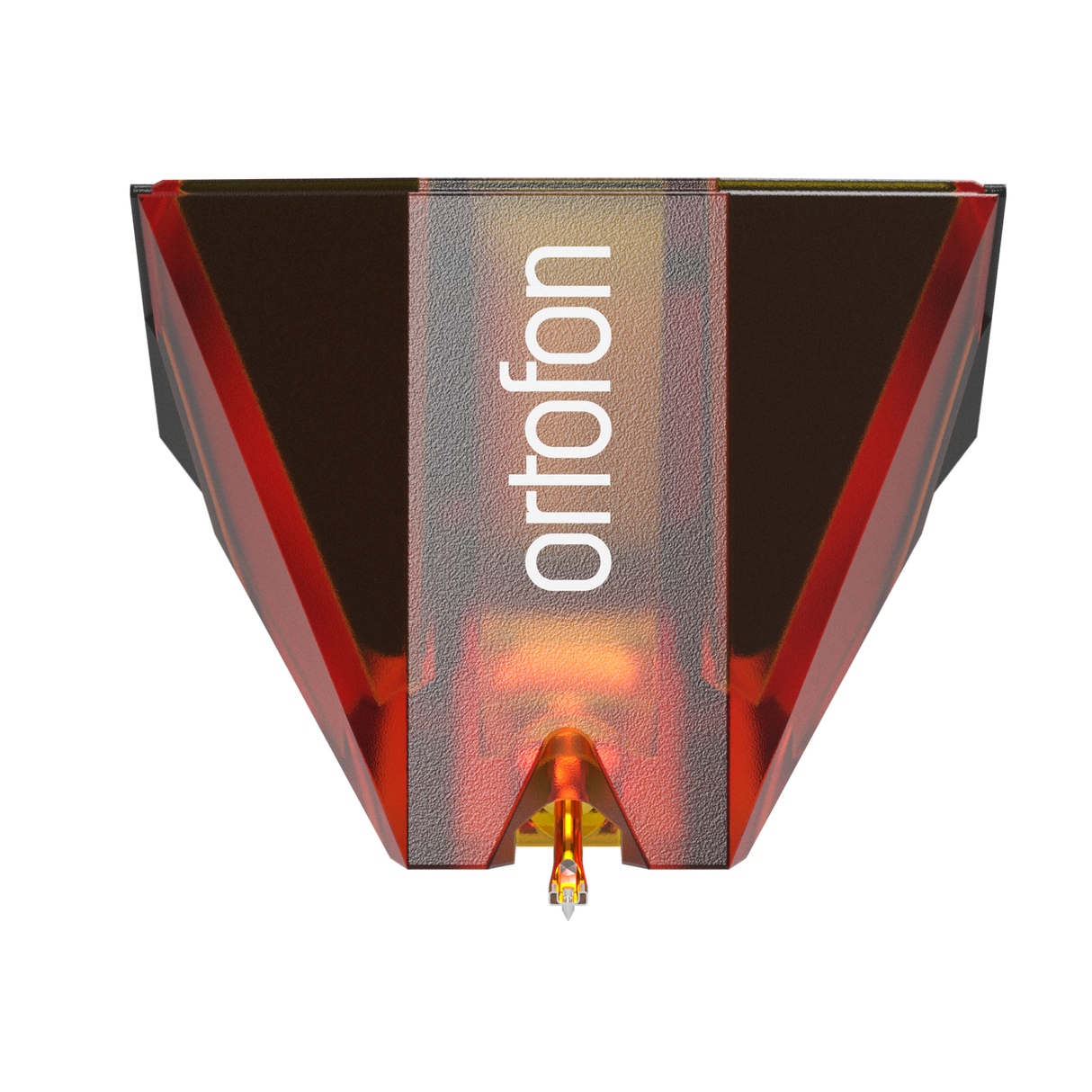

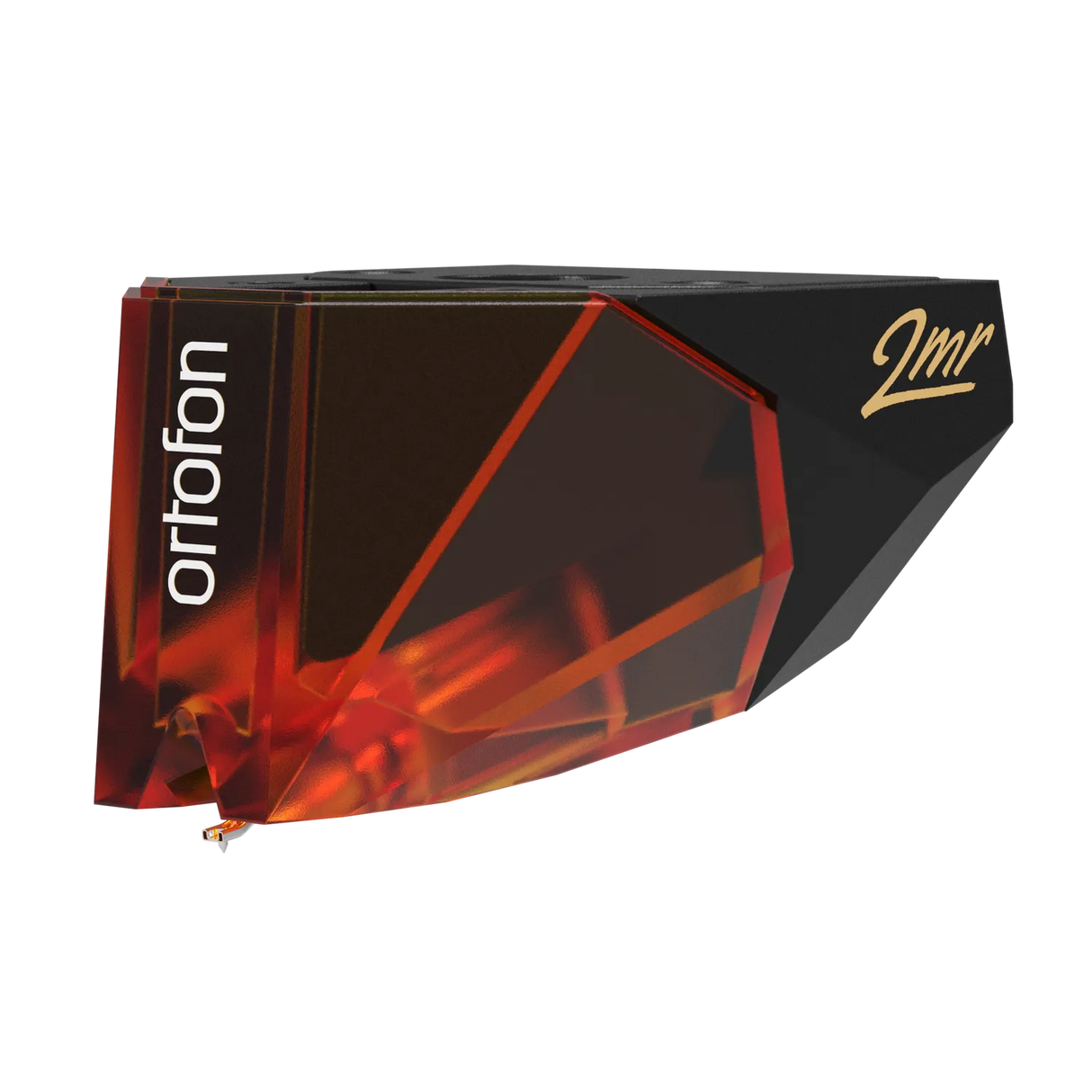

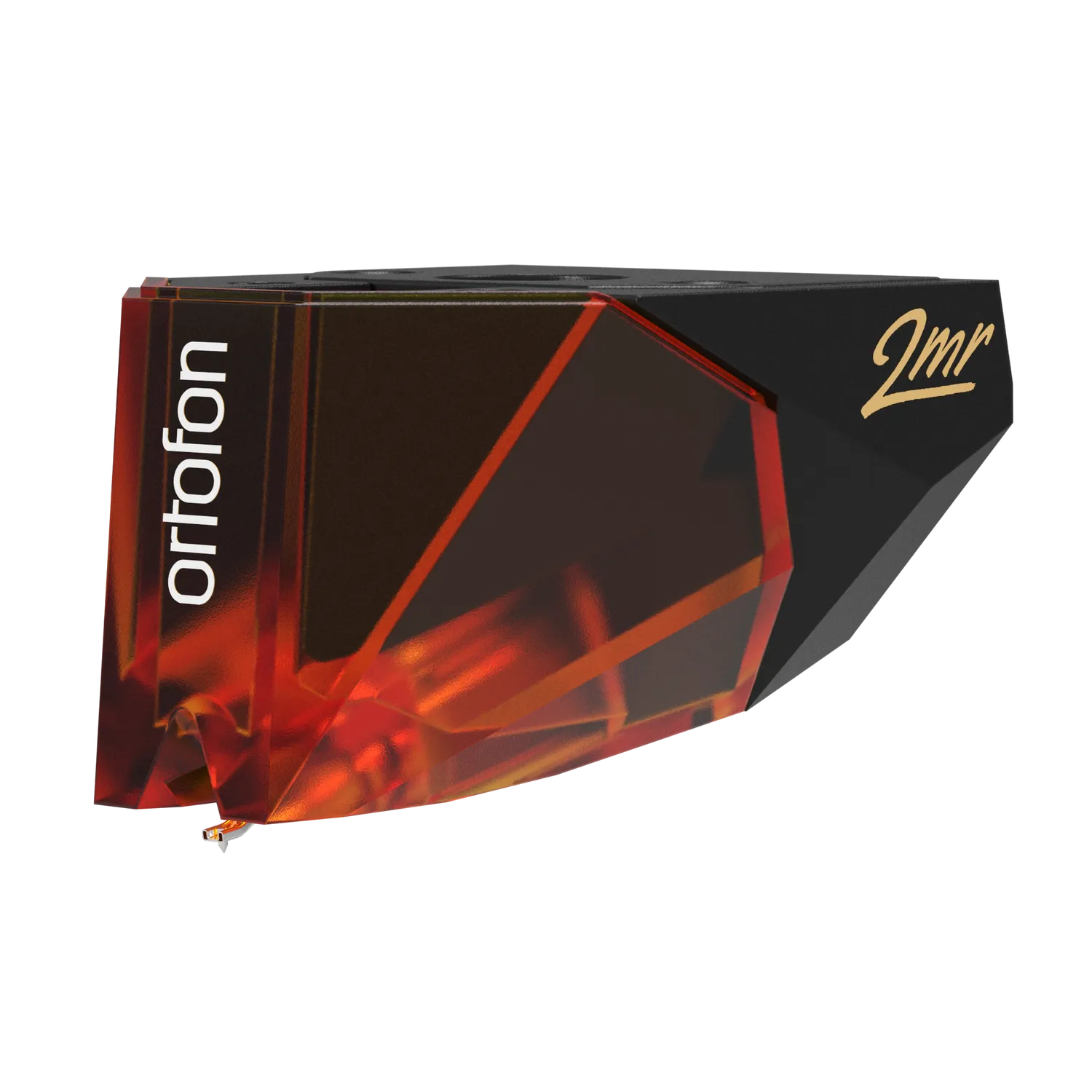

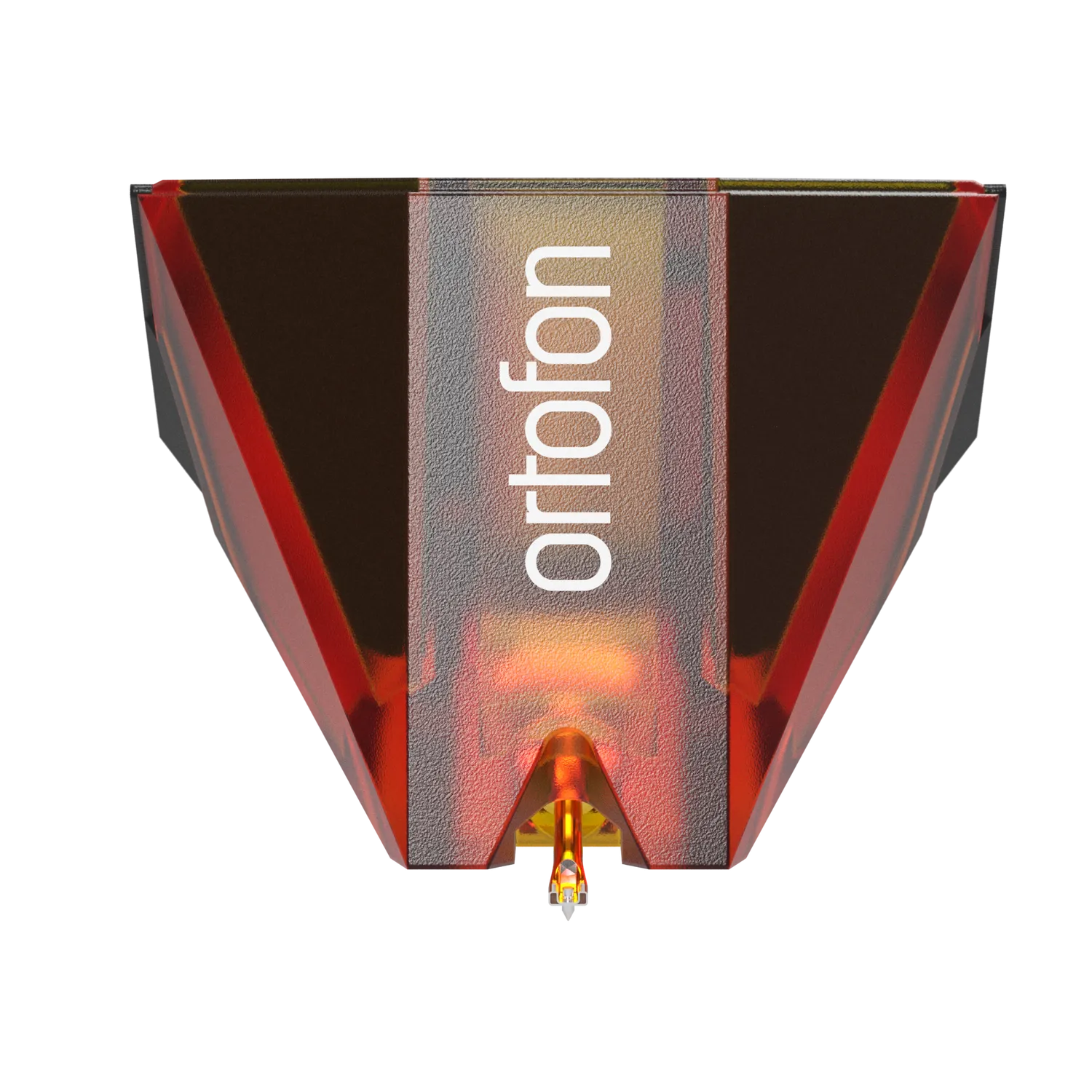

Ortofon 2MR Bronze, cartridge

The Ortofon 2MR series is designed with a newly designed cartridge body for optimal attachment to low-profile turntables.

• Output voltage at 1 kHz, 5 cm/sec. 5 mV.

• Tracking capability at 315 Hz and a recommended tracking force of 80 μm.
• Compliance, dynamic, lateral20 μm/mN Nib type "Nude Fine Line" on aluminum cantilever.

• The recommended tracking force is 1.5 g.

The Ortofon 2MR series is designed with a newly developed cartridge housing for optimized fitting on low-profile turntables. With its ultra-slim 3mm height reduction, seamless integration is guaranteed. The cartridge's slimline body eliminates the need for spacers or modifications, ensuring quick, easy mounting with just two screws.

Experience unmatched compatibility with all 2M styles and revel in the high-performance motor system featuring quad coils and split pole pins, exclusive to genuine Ortofon cartridges.

Traveling to the moment the music was recorded

Accuracy level

The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Designed for optimized fitting on low-profile turntables

Compatibility

The Ortofon 2MR series boasts a newly developed cartridge housing tailored for low-profile turntables. Its ultra-slim 3mm height reduction ensures seamless integration without the need for spacers or modifications, allowing for quick, easy mounting with just two screws.

SPECIFICATIONS

• Output voltage at 1 kHz, 5cm/sec 5 mV
• Tracking ability at 315Hz at recommended tracking force 80 μm
• Compliance, dynamic, lateral 20 μm/mN
• Stylus type Nude Fine Line on an Aluminum cantilever
• Tracking force, recommended 1.5 gr
• Coil wire material Silver-plated OFC
• Cartridge weight 6 g
• Stylus color Bronze
• Recommended load capacitance 150 - 300 pF

INSTRUCTIONS

User Manual (EN).
