Ortofon

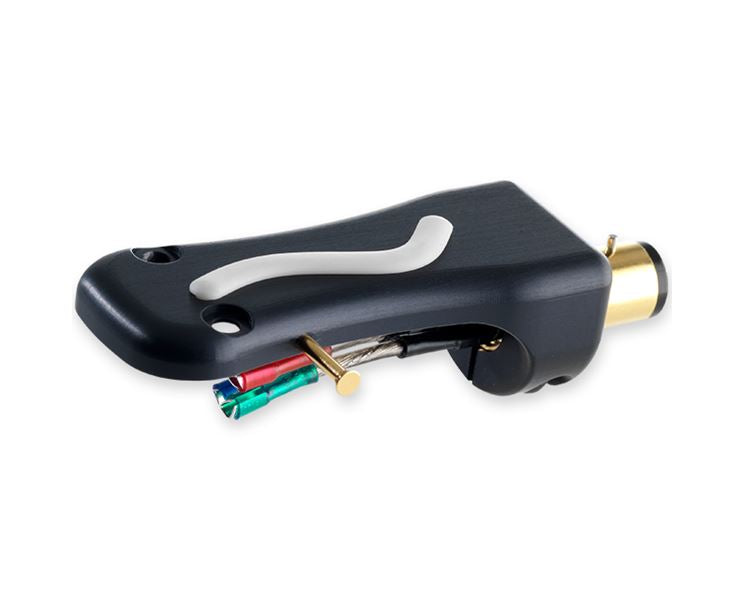

Ortofon LH-10000, head cap

€499.00 EUR

Ortofon LH-10000, head cap is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The LH-10000 is an exceptionally high-quality head, manufactured using a high-quality aluminum alloy with zinc as the main alloying element.

Materials and features

The LH-10000 is an exceptionally high quality headshell made using a high performance Aluminum alloy with Zinc as the primary alloying element. The Aluminum alloy used for LH-10000 is strong, with strength comparable to steel. It has good fatigue strength and machinability, but offers more resistance to corrosion than many other aluminum alloys.

LH-10000 features a precision machined slit on the top plate. A piece of Ortofon's special proprietary TPE (Thermo-Plastic Elastomer) compound with excellent damping properties is integrated into the slit. The LH-10000 incorporates damping technology similar to that the Ortofon TA-110 / TA-210 tonearms and the Xpression cartridge, promoting a further reduction in unwanted resonances.


LH-10000 applications

LH-10000 is fitted with the set of the most sophisticated lead wires identical to it Ortofon LW-800S, composed of pure silver and silver coated wire. Silver coated wire transmits the very clear high tone signals, which brings the brilliant tonality.

LH-10000 is perfect for a variety of high-end cartridges, including the MC Anna, MC Anna Diamond, MC A95, MC Windfeld Ti, Cadenza Series, eg Cadenza Bronze as well as the historical MC A90, MC Windfeld, MC Century, Kontrapunkt series and MC Jubilee .

The design and mechanical dimensions of LH-10000 offer an elegant and virtually plug and play solution between one of these Ortofon High-End cartridges and our For TA-110 / TA-210 toners.

LH-10000 is azimuth adjustable, which is beneficial for optimal channel separation.



SPECIFICATIONS

LH-1000 technical data

  • High performance Aluminum alloy with zinc
  • Mounting holes diam. - 2.7 mm
  • Weight without screws - 14.5 grams
  • Mounting distance - 42 mm
  • Headshell length - 52.0 mm
  • Headshell width - 19.4 mm

HEADSHELL MODEL A
Headshell length
 		B
Headshell width
 		C
Mounting distance max.
 		D
Mounting distance min.
 		E
Screw diameter max.
SH-4 51.5 mm 20.0 mm 45.4 mm 36.4 mm 3.0 mm
LH-2000 50.3 mm 20.0 mm 43.4 mm 35.3 mm N/A
LH-4000 51.9 mm 19.1 mm 45.6 mm 39.5 mm N/A
LH-6000 47.5 mm 19.1 mm 42.4 mm 36.6 mm N/A
LH-8000 50.3 mm 18.8 mm 42.2 mm 33.0 mm N/A
LH-9000 52.0 mm 20.0 mm 44.9 mm 38.1 mm N/A
LH-10000 50.0 mm 19.4 mm 42.4 mm 42.4 mm 2.7 mm
