Ortofon

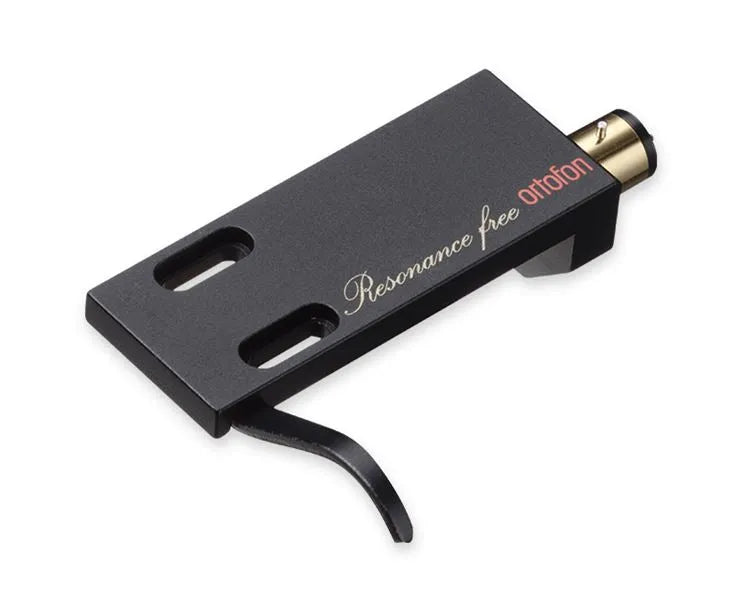

Ortofon LH-9000, head cap

€199.00 EUR

Ortofon LH-9000, head cap is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

An exceptionally high-quality carbon fiber body, the LH-9000 is made using carbon fiber resin to eliminate unwanted resonances.

Ortofon LH-9000 headshell

Exceptionally high quality carbon fiber headshell, the LH-9000 is made using carbon fiber resin for the elimination of unwanted resonances. The LH-9000 is perfect for a variety of high-end cartridges, eg Cadenza Series, MC A95, MC Anna Diamond, MC Anna and MC Windfeld Ti.

Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align the cartridge and tonearm correctly. Please scroll to the bottom of the page to see the headshell mounting dimensions chart.


The LH-9000 comes with leadwires for easy and convenient connection

All Ortofon cartridges have a color coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.


SPECIFICATIONS

Features and Technical data

  • Universal mount
  • Magnesium with carbon fiber
  • High Purity Copper headshell leads (LW-7N) included
  • Weight without screws - 16.8 grams
  • Mounting distance min. - 38.1 mm
  • Mounting distance max. - 44.9 mm
  • Headshell length - 52.0 mm
  • Headshell width - 20.0 mm

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

HEADSHELL MODEL A
Headshell length
 		B
Headshell width
 		C
Mounting distance max.
 		D
Mounting distance min.
 E
Screw diameter max.
SH-4 51.5 mm 20.0 mm 45.4 mm 36.4 mm 3.0 mm
LH-2000 50.3 mm 20.0 mm 43.4 mm 35.3 mm N/A
LH-4000 51.9 mm 19.1 mm 45.6 mm 39.5 mm N/A
LH-6000 47.5 mm 19.1 mm 42.4 mm 36.6 mm N/A
LH-8000 50.3 mm 18.8 mm 42.2 mm 33.0 mm N/A
LH-9000 52.0 mm 20.0 mm 44.9 mm 38.1 mm N/A
LH-10000 50.0 mm 19.4 mm 42.4 mm 42.4 mm 2.7 mm
