Ortofon

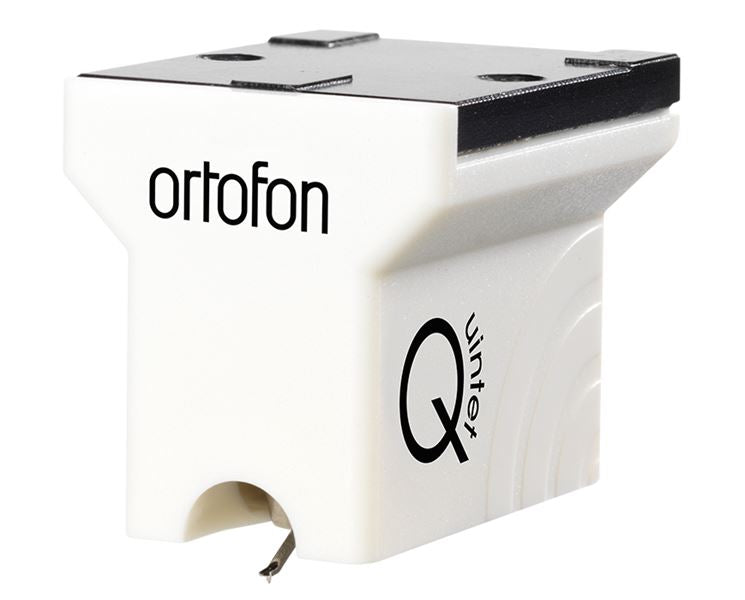

Ortofon MC Quintet Mono, turntable head

€549.00 EUR

Ortofon MC Quintet Mono, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.


Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

MC Quintet Mono is faithful to the music and has remarkable clarity.

  • Stylus type: Nude Elliptical .
  • Frequency band: 20 Hz - 20 kHz - +/-2.0 dB .
  • Pressure power: 2.1-2.5 g (21-25 mN) .

A True Mono from Ortofon

It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.

Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

MC Quintet Mono is for playing mono microgroove vinyl records. Read more about Ortofon True Mono cartridges range ».

The ST-7 transformer will be a perfect match for the MC Quintet Mono cartridge.

LH-4000 headshell is specially recommended for MC Quintet cartridges series.


SPECIFICATIONS

  • Output voltage at 1 kHz 5 cm/sec - 0.3 mV
  • Frequency response 20 Hz - 20 kHz - +/-2.0 dB
  • Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
  • Compliance, dynamic, lateral - 15 μm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 μm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force recommended - 2.3 g (23 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - >20 Ohm
  • Cartridge body material - ABS/Aluminium
  • Coil wire material - Pure 4-nines silver/Ag
  • Cartridge color - White
  • Cartridge weight - 9 g

INSTRUCTIONS

User Manual (EN).
