Ortofon

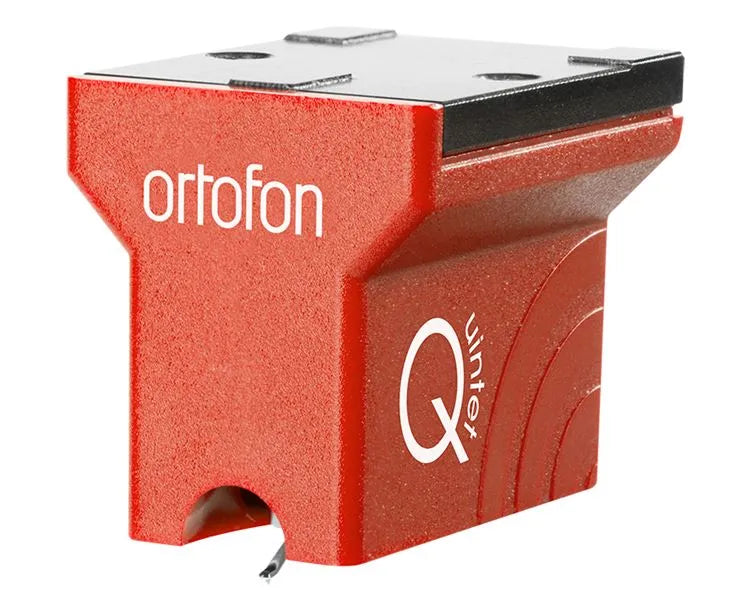

Ortofon MC Quintet Red, turntable head

€349.00 EUR

Ortofon MC Quintet Red, turntable head is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Enter the exclusive world of the famous Ortofon moving coil sound!

  • Stylus type: Elliptical .
  • Frequency band: 20-20.000 Hz - +/-2.5 dB .
  • Pressure power: 2.1-2.5 g (21-25 mN) .

Enter the Exclusive world of Ortofon's famous moving coil sound!

The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon's standards.

This entry-level MC cartridge has a very high price-to-performance ratio and is a perfect all-rounder for newcomers to the world of Moving Coil cartridges.

MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.


SPECIFICATIONS

  • Output voltage at 1 kHz 5 cm/sec - 0.5 mV
  • Channel balance - < 1.5 dB
  • Channel separation at 1 kHz - > 21 dB
  • Channel separation at 15 kHz - > 14 dB
  • Frequency response 20-20,000 Hz - +/-2.5 dB
  • Tracking ability at 315 Hz at recommended tracking force *) - 65 μm
  • Compliance, dynamic, lateral - 15 μm/mN
  • Stylus type - Elliptical
  • Stylus tip radius - r/R 8/18 μm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force recommended - 2.3 g (23 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 7 Ohm
  • Recommended load impedance - >20 Ohm
  • Cartridge body material - ABS/Aluminium
  • Coil wire material - Copper
  • Cartridge color - Ed
  • Cartridge weight - 9 g
    *) Typical value

INSTRUCTIONS

User Manual (EN).
