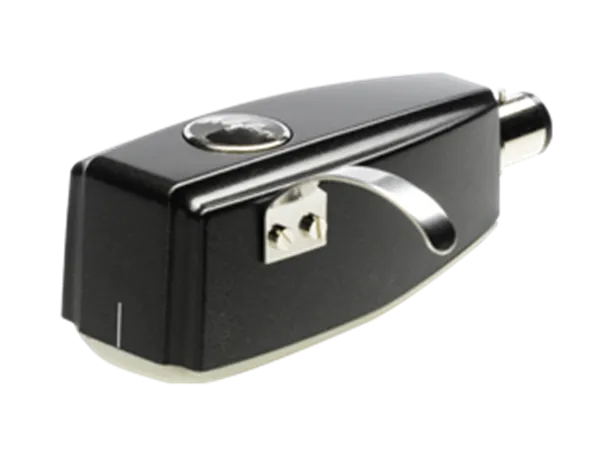

Ortofon SPU Classic GE MkII, turntable head

€1,199.00 EUR

Ortofon SPU Classic GE MkII, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The SPU Classic GE MkII is a moving roller cartridge with an elliptical pen profile. The SPU Classic series cartridges embody the essence of the original Moving Coil cartridges and are the perfect solution for playing back both early and modern and contemporary stereo recordings.

  • Frequency range - 20-20,000 Hz + 3/- 2 dB.
  • Stylus type- Nude Elliptical .
  • The recommended tracking force is 3.0-5.0 g (30-50 mN) .
  • Tracking angle - 20°.

The SPU Classic GE MkII is known for its dynamic and powerful sound reproduction

The SPU Classic GE MkII is a Moving Coil cartridge with an elliptical stylus profile. The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The SPU Classic GE MkII's elliptical stylus profile provides more detailed sound reproduction and expansive imaging.

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel balance at 1 kHz < 1 dB
  • Channel separation at 1 kHz > 20 dB
  • Channel separation at 15 kHz > 10 dB
  • Frequency response - 20-20,000 Hz + 3/- 2 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 3.0-5.0 g (30-50 mN)
  • Tracking force, recommended - 4.0 g (40 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 2 ohm
  • Recommended load impedance > 10 ohm
  • Cartridge body material - Ground wood and resin composite
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge color - Black matte
  • Cartridge weight - 28 g

INSTRUCTIONS

User Manual (EN).
