Ortofon

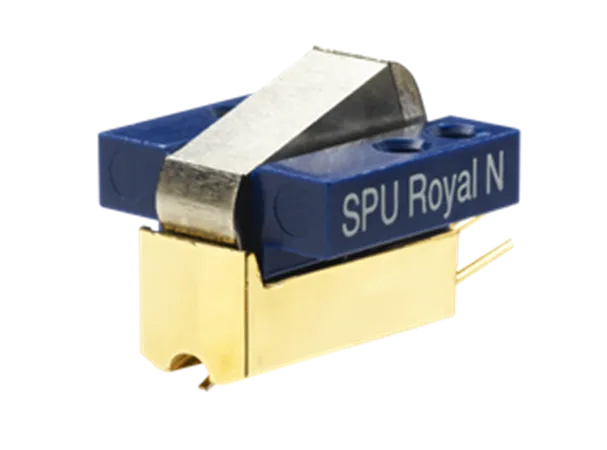

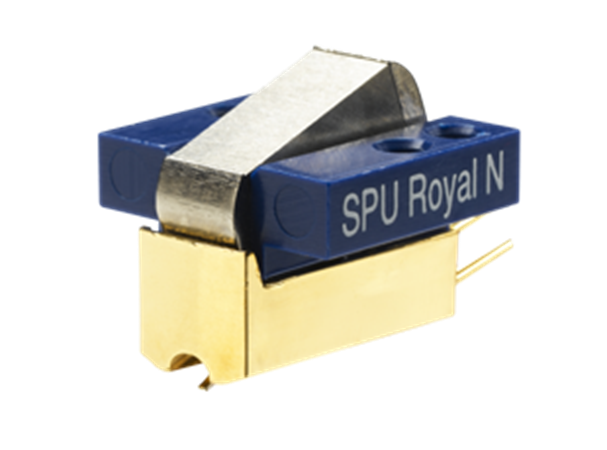

Ortofon SPU Royal N, turntable head

€2,399.00 EUR

Ortofon SPU Royal N, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The addition of Ortofon's unique Replicant 100 stylus and reduced tip mass ensure open and detailed sound reproduction for an exceptional listening experience.

  • Frequency range - 20-20,000 Hz + 1.5/- 0 dB.
  • Stylus type- "Nude Ortofon Replicant 100.
  • The recommended tracking force is 3.0 g (30 mN).
  • Tracking angle - 20°.

The addition of Ortofon's unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provide uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel balance at 1 kHz < 1 dB
  • Channel separation at 1 kHz > 25 dB
  • Channel separation at 15 kHz > 20 dB
  • Frequency response - 20-20,000 Hz + 1.5/- 0 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Ortofon Replicant 100
  • Stylus tip radius - r/R 5/100 µm
  • Tracking force range - 2.5-3.5 g (25-35 mN)
  • Tracking force, recommended - 3.0 g (30 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 7 ohm
  • Recommended load impedance > 100 ohm
  • Coilwire material - Gold plated silver
  • Cartridge color - Shiny black
  • Cartridge weight - 13 g

INSTRUCTIONS

User Manual (EN).
