Ortofon

Ortofon Stylus MFS, replacement stylus

€59.00 EUR

Ortofon Stylus MFS, replacement stylus - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

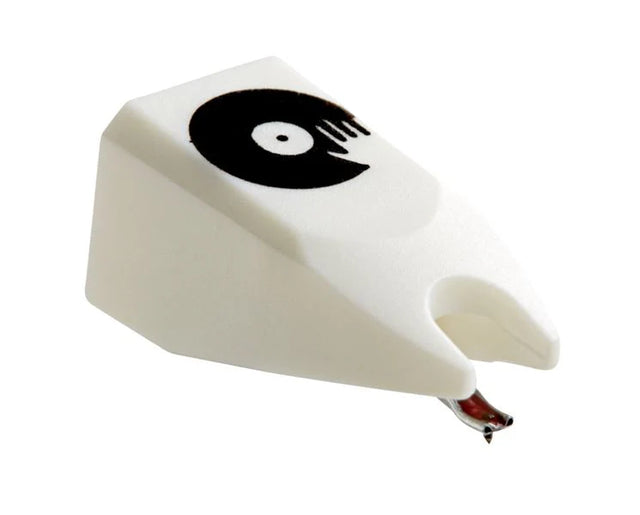

The Ortofon Stylus MFS is a replacement stylus designed with a "Made From Scratch" concept, featuring a spherical shape that can withstand intense back-cueing. The stylus delivers high output voltage, clear sound through a mixer or preamp, and energetic sound quality without compromise.

  • The spherical needle shape is ideal for intensive back-cueing.
  • High output voltage ensures clear and energetic sound.
  • Robust construction for professional use.

Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5 cm/sec 7 mV
Channel separation at 1 kHz 25 dB
Tracking ability at 315Hz 80 μm
Compliance, dynamic, lateral 6 μm/m N
Stylus type Spherical
Stylus tip radius R 18 μm
Tracking force range 3.0-5.0 g (30-50 mN)
Tracking force, recommended 4.0 g (40 mN)
Tracking angle - 20°
Internal impedance, DC resistance 750 Ohm
Cartridge weight 18.5 g
Recommended load resistance 47 kOhm
Internal inductance 450 mH
Recommended load capacitance 200-600 pF
