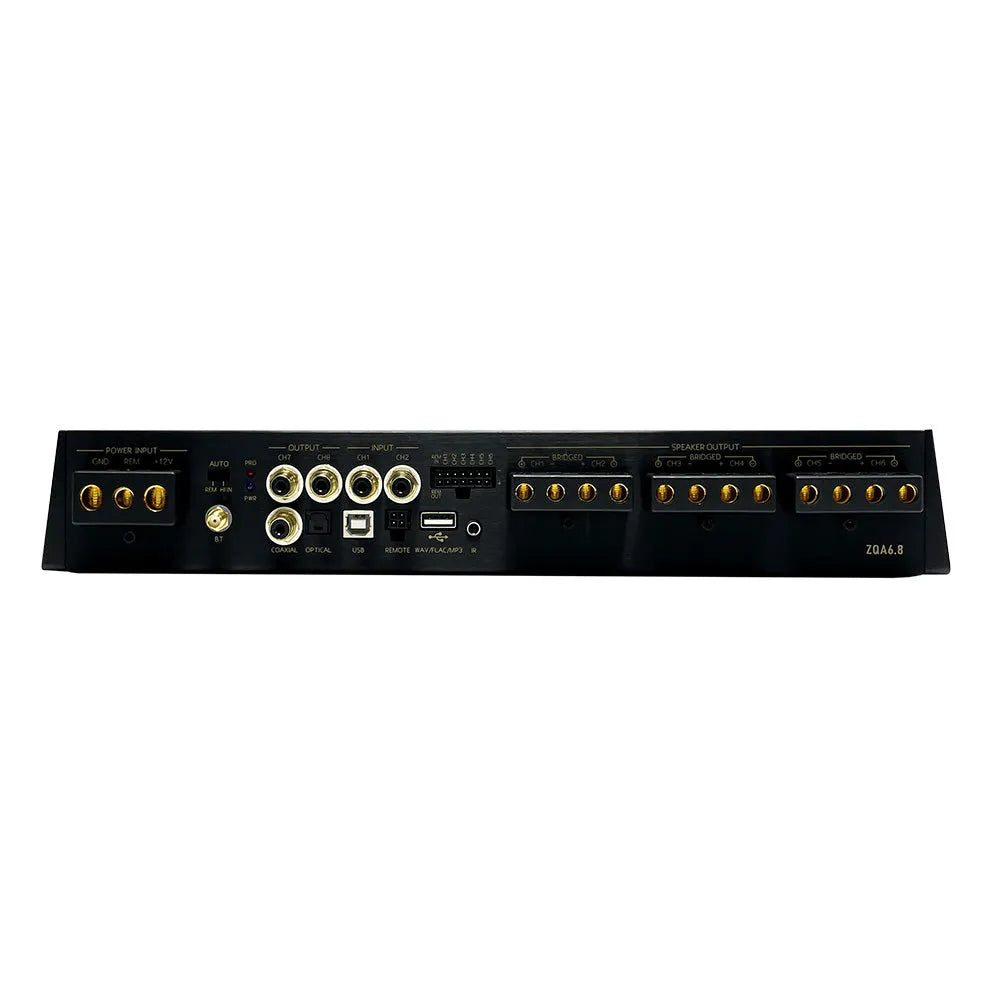

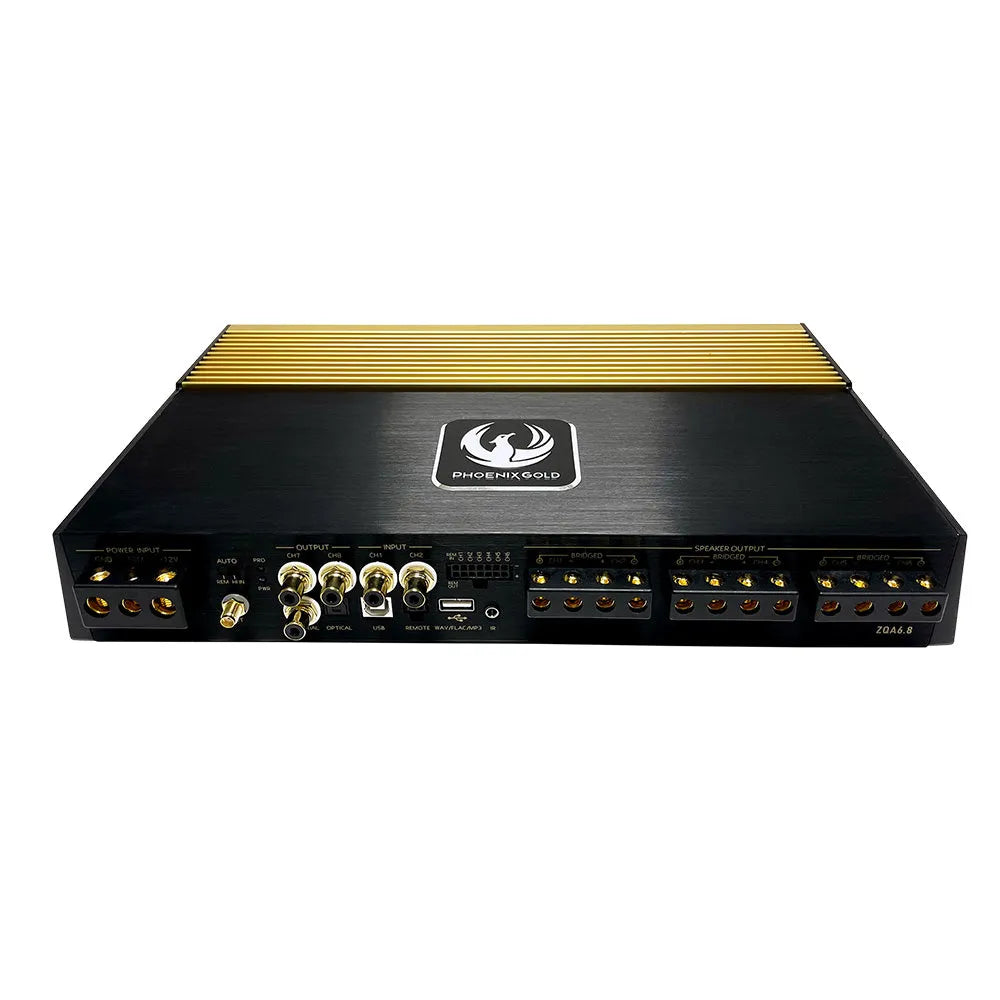

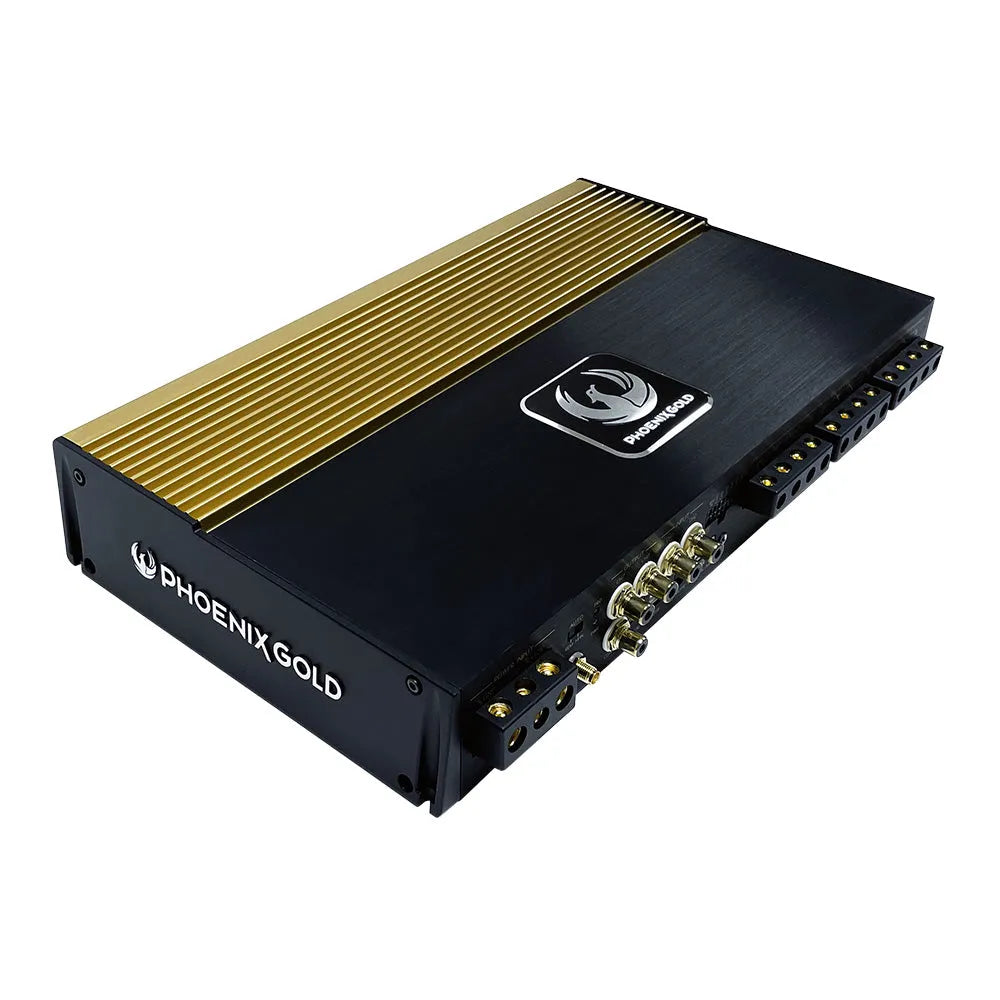

Phoenix Gold ZQA6.8, Power Amplifier

The ZXM500.1 is an impressive class-D monophonic mini-amplifier. ZXM amplifiers are designed to be as small as possible without compromising on sound quality, power and functionality.

• Power: 6x 130W.
• Frequency band: 10Hz - 22kHz .
• Signal to noise ratio: > 100 dB.

The impressive ZQA6.8 is a high-end amplifier and Digital Sound Processor offering amazing audio quality and adjustability to give you the sound you want. With both optical and digital inputs this product emphasizes usability allowing you to install the amplifier into your system with ease.

The ZQA6.8 is also USB and Bluetooth compatible making it even easier to take control of your amplifier.

The ZQ Series of amplifiers feature award winning technology that not only offers a natural uncompromising sound but also a design that represents Phoenix Gold's past, present, and future all in one.

Highly sought after by PG enthusiasts and audiophiles alike, the ZQ Series is a rebirth of PG's original core values ​​offering premium high-end technology that brings the purest audio sound to the masses.

The Gold Treated PCB's of the ZQA6.8 feature a unique two layered, gold immersion treatment along with 24K gold plated terminals offering superior connectivity.

The dual power supply has been optimized to efficiently feed the amp and only the best Nichicon (Japan) & Wima (Germany) capacitors are used to provide the best possible uninterrupted power supply.

High end polymer gain potentiometers are used to aid amplification and the shielded transformer cores which are manufactured in Germany ensure a pure feed of power throughout the amp.

The dual color extrusion heatsink with heat transfer optimization ensures that the amp stays cool even when under the highest most strenuous usage.

SPECIFICATIONS

• Power Ratings (RMS)
• 85W x 6 @ 4Ohms
• 130W x 6 @ 2Ohm
• 95W x 4 + 280W x 1 @ 4Ohm (bridged)
• Frequency Response: 10Hz - 22kHz
• Signal to Noise Ratio: >100dB
• Crossover Range: 20Hz - 20kHz
• 8-Channel in-built DSP
• Gain output signal: -15dB to +15dB
• Optical and digital coaxial inputs
• USB and Bluetooth compatible
• Dimensions (LxWxH): 341 x 200 x 56mm

INSTRUCTIONS

User Manual (EN).
