Pioneer  |  Bar code: 884938302869

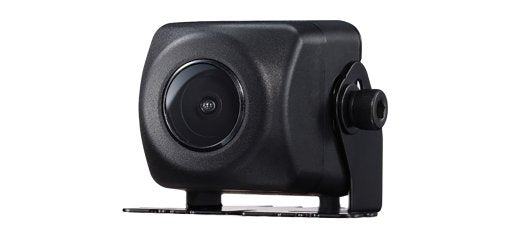

Pioneer ND-BC8, universal reversing camera

€129.00 EUR

Pioneer ND-BC8, universal reversing camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

Universal rear view camera for your car.

  • Resolution: 0.31 million dots 1/4" CMOS sensor.
  • Cable: 10 m (3 m + 7 m).
  • Viewing angle: horizontal: 129°, vertical: 105°.

Don't miss a thing in reverse.

This high-quality, NTSC universal camera displays a mirror-image on your tuner's screen, giving you a full view of everything the rear-view mirror fails to show.
The high-sensitivity camera has a 129° wide viewing angle. The embedded CMOS sensor automatically adjusts brightness in light or dark driving conditions. With a resolution of 310,000 pixels, the sensor is as accurate as it is sensitive. The camera even eliminates over-exposed images by removing the white streaks as direct sunlight enters the lens.
The ND-BC8 can be hooked up to any of our systems equipped with a rear camera input. A 10-metre long connection cable is included in the package.

SPECIFICATIONS

Main Features

Dimensions (W x H x D) • Camera: 23.8 x 23.8 x 25.5 mm
• Power unit: 54 x 24 x 24 mm
Weight • Camera: 132 g / 186 g including cables
• Power unit: 110 g
kg
Other • 0.31M pixels 1/4" CMOS sensor
• Cable: 10 m (3 m + 7 m)

Viewing angle
• Horizontal: 129°
• Vertical: 105°

Power Supply: 14.4V DC (10.8 .. 15.1V)

INSTRUCTIONS

User Manual (EN).
