Pioneer  |  Barcode: 0884938502375

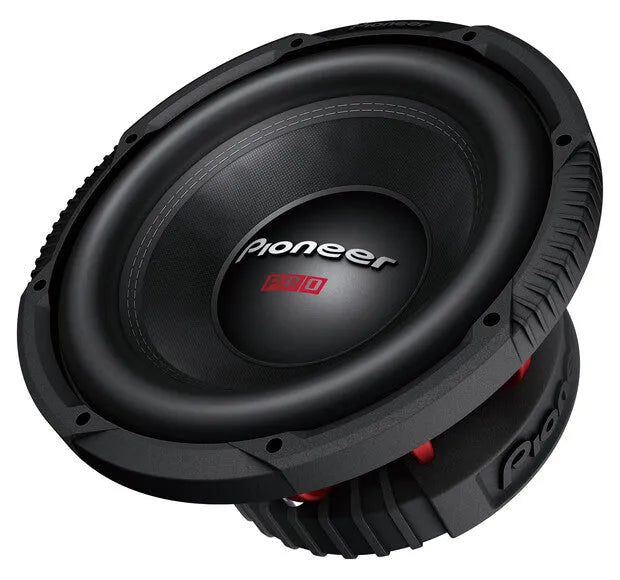

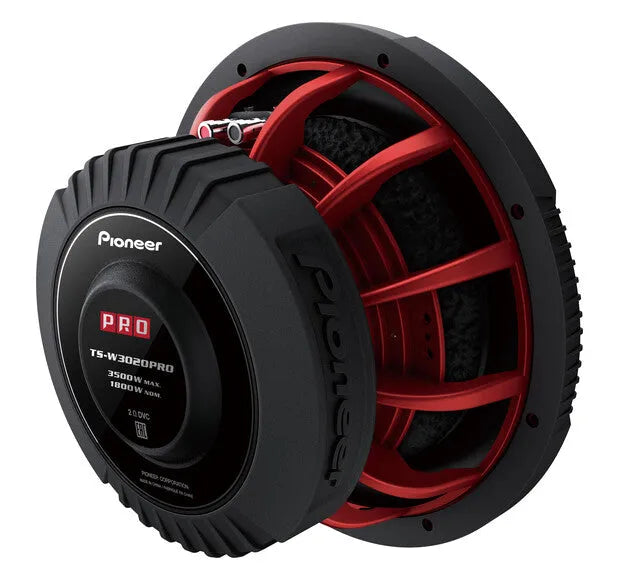

Pioneer TS-W3020PRO, subwoofer car speakers

€349.00 EUR

Pioneer TS-W3020PRO, subwoofer car speakers is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

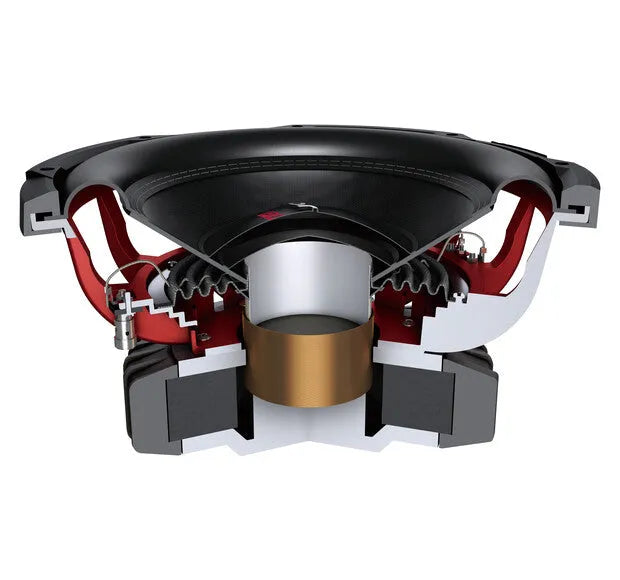

The four-layer copper-clad aluminum coil allows for reduced weight and high sensitivity. High quality aluminum basket construction dissipates heat away from the coil. Large double magnet ensures high power.

  • Recommended amplifier power: 1800-3500W.
  • Frequency band: 20 Hz - 200 Hz (In-Car).
  • Sensitivity: 86 (1 W/1 m) dB.
  • Resistance: 1-4 Ω.

PRO Samurai series TS-W3820PRO subwoofer has a nominal power 1800 W and double coil with impedance 2 + 2 ohms. The wide stitched-reinforced urethane surround provides a long cone stroke and a secure fit at high volumes. The 4-layer copper-clad aluminum voice coil allows to achieve weight reduction and high sensitivity. The high quality aluminum basket construction dissipates heat away from the voice coil. Big double magnet provides high power.

SPECIFICATIONS

Main Features

Samurai Yes
PRO Pioneer Reference for Open Show Yes
Size 30 cm
Type Subwoofer
Maximum power 3500 W
Continuous Power Output 1800 W
Frequency response 20 Hz to 200 Hz (In-Car)
Sensitivity 86 (1 W/In-car) dB
Impedance 1 Ω or 4 Ω
Dual Voice Coil (DVC) Yes
Mounting Depth 154 mm
Woofer Cut-Out Hole Φ282 mm
Woofer material Paper
Surround Urethane
Spider Polyester Fibre
Voice coil type 4-layer Long Copper
Voice Coil bobbin type Aluminium
Terminals Push
Magnets Ferrite
30cm / 12" Yes
Rec. Enclosure [l] 35 (Sealed Enclosure)
50 (Ported Enclosure)
Rec. Enclosure [ft 3 ] 1.24 (Sealed Enclosure)
1.77 (Ported Enclosure)
Weight 10.9 (Excluding accessories) kg
Dimensions Φ322 x 180 mm
Accessories Subwoofer mounting screws

Thiele/Small Parameters

Qts 1.3
Fs [Hz] 47.9 Hz
Vas [ft 3 ] 0.29
February [l] 8.30
Xmax [mm] 22.8
