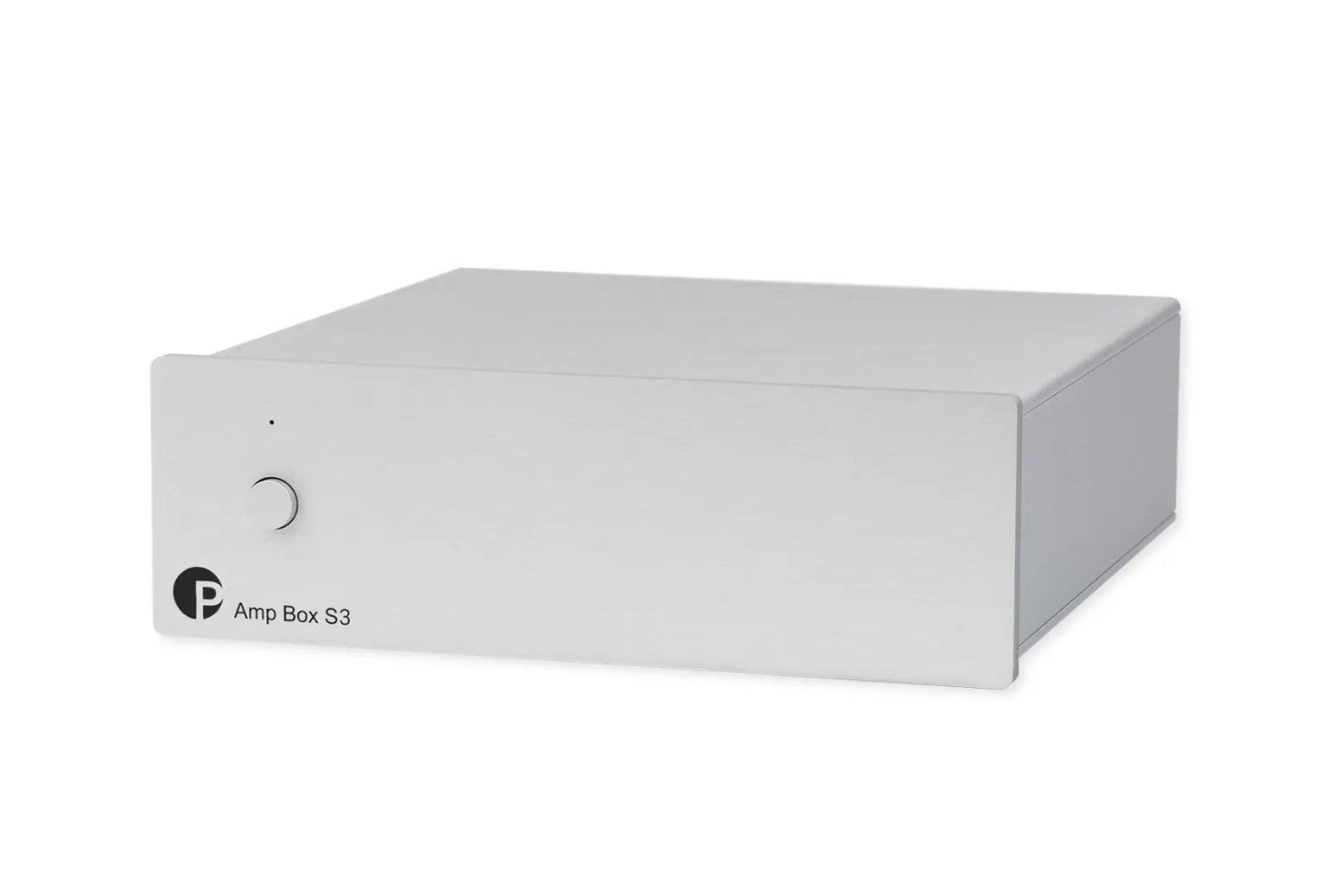

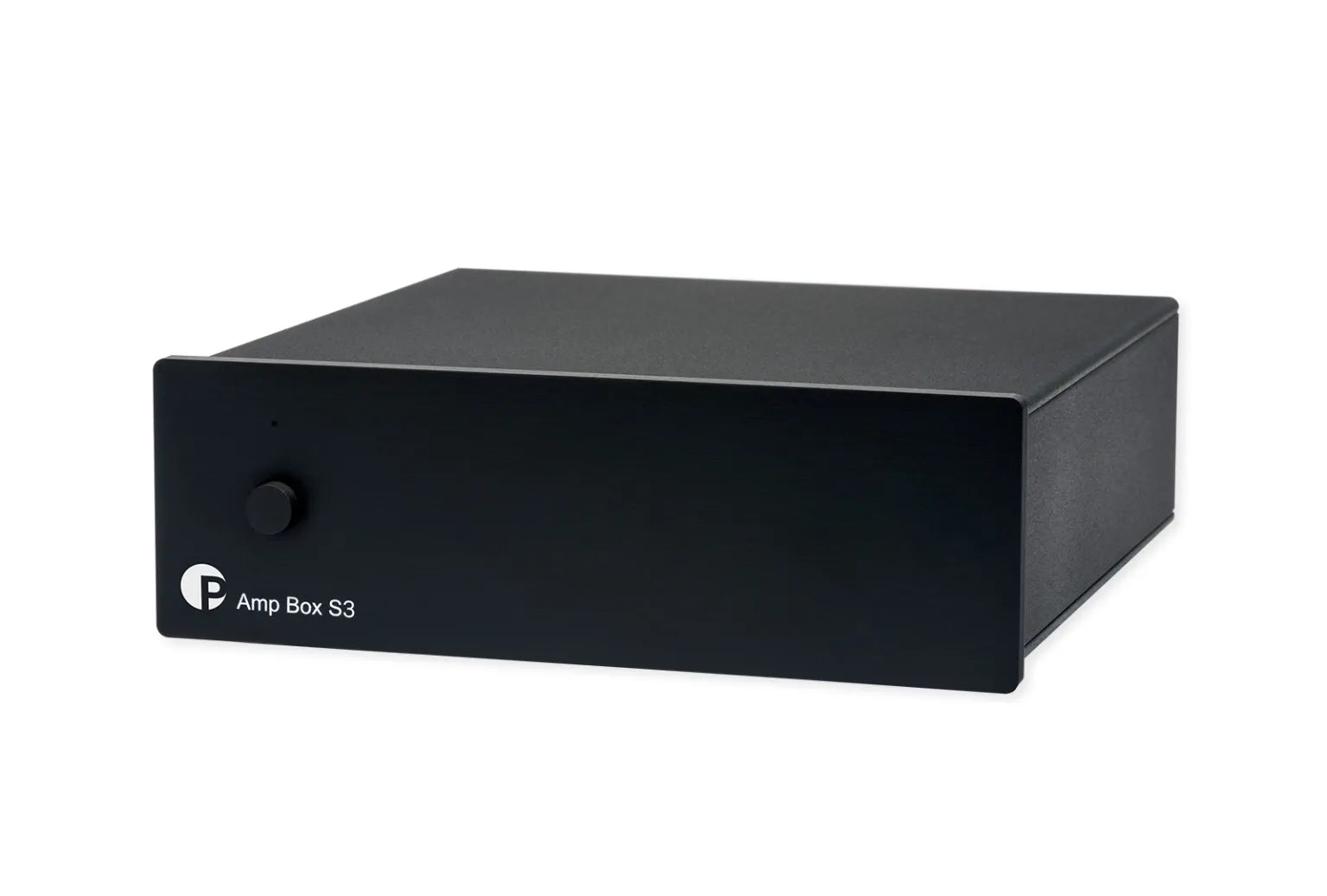

Pro-Ject Amp Box S3, Micro Stereo Audio Amplifier (Various Colors)

299.00 €

Color

Product variants

Pro-Ject Amp Box S3, Micro Stereo Audio Amplifier (Various Colors) - Black is backordered and will ship as soon as it is back in stock.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

It has been proven that the power supply is a very important part of the audio channel and contributes a lot to the sound quality of the audio product.

Maximum power 2 x 50 W at 4 ohms.
Frequency range 20 Hz - 20 kHz (- 0.7 dB / 4 ohms).
Channel separation > -68dB @ 20kHz.
THD < 0.02% @ 10 W / 4 ohms.

DESCRIPTION

Efficient, audiophile & made in Europe!

The new Amp Box S3 offers one stereo RCA input and delivers powerful and room-filling sound to every loudspeaker. The new PCB concept & sophisticated topology achieves less distortion and a better signal to noise ratio. We designed this amp to match the sound characteristics of a tube amplifier as close as possible. Amp Box S3 brings you a rich and musical sound with an analogue touch of warmth into your living room. It is also the perfect solution for your desktop nearfield monitor speakers due to its size and superior spacious sound stage.

Application examples:
• HiFi Amplifier for 10-15 m2 rooms
• Audiophile desktop nearfield monitor amp
• Streamer power amp upgrade
• Multiroom power amp solution
• Home cinema power amp upgrade
• In-wall or ceiling speaker amp

The new Amp Box S3 is designed and produced in Europe and is available in a black & silver finish.

Features

NEW PCB concept & sophisticated topology
NEW lower distortion & better SNR
Ultra compact & audiophile
Advanced amplifier module
Metal casing protects against vibration and interference
Made in Europe

TECHNICAL DATA

SPECIFICATIONS

Power output	2 x 23 W / 40 W at 8 ohms / 4 ohms
Peak power	2 x 50 W at 4 ohms
Frequency response	20Hz - 20kHz (-0.7dB / 4 ohms)
Channel separation	> -68dB @ 20kHz
Signal-to-noise ratio	87dBV (100dBV-‚A' weighted)/4ohms
THD	< 0.02% @ 10W / 4 ohms
Good	31 dB
Input	1 pair RCA sockets
Input impedance	25 kohm
Speaker sockets	4mm Ø Banana, spades. pins or bare wire
Trigger 12V DC	In&Out, 2-pole jack socket Ø 2.5mm
Power supply	20V/3A DC (universal power supply)
Dimensions W x H x D	103 x 36 x 118mm
Weight	385g without power supply
