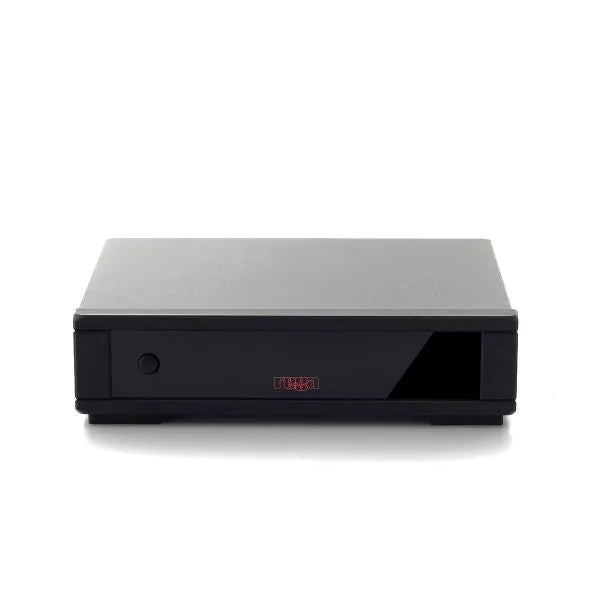

Rega Fono MM MK5, corrective amplifier

Powerful corrective amplifier from REGA. The amplifier is designed to be easy to use and extremely efficient in music production.

• Reproducible frequencies: 15 Hz (-3 dB) - 100 kHz (-0.2 dB).

• RIAA accuracy: ±0.2 dB 100 Hz -100 kHz.
• Input impedance: 200 Ω.

The Fono MM MK5 phono stage has been designed to be effective, easy to use and above all, to reproduce music. The Fono MM MK5 uses a fully discrete, cascaded, complementary amplifier input stage, a configuration designed to optimize the performance of your moving magnet cartridge. Now housed in a brand new redesigned case to match the new Fono MC and Rega's latest range of electronic components offering a modern look guaranteed to integrate in any hi-fi system.

The perfect partner

The aesthetic design of the Fono MM was as important as the quality of its electrical capabilities, so it benefits from the same updated aluminum case as the Rega Neo and Fono MC amplifier, giving it a design which offers a familiar feel and moreover brings it in line with its illustrious bigger brothers. The RIAA equalization has been split into two stages to minimize interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.

KEY FEATURES

• Dedicated Moving Magnet stage
• Simple connectivity and operation
• Custom case design
• Two stage RIAA Equalization
• What Hi-Fi? Award winner 2017/2018/2019/2020/2021
• Lifetime warranty against manufacturing defects

SPECIFICATIONS

Input Sensitivity

1.7 mV for 200 mV Output

Input Loading

47 kΩ in parallel with 100 pF

Maximum Input Level

60 mV at 1 kHz

Good

41.4 dB at 1 kHz

Output Impedance

200 Ω

Recommended Minimum Output Load Resistance

5 kΩ

Frequency response (50KΩ output load)

15 Hz (-3 dB) to 100 kHz (-0.2 dB)

RIAA Accuracy (50 kΩ Output Load)

Better than ±0.2 dB 100 Hz to 100 kHz

Power Requirements

24 V AC at 80 mA maximum

INSTRUCTIONS

User Manual (EN).
