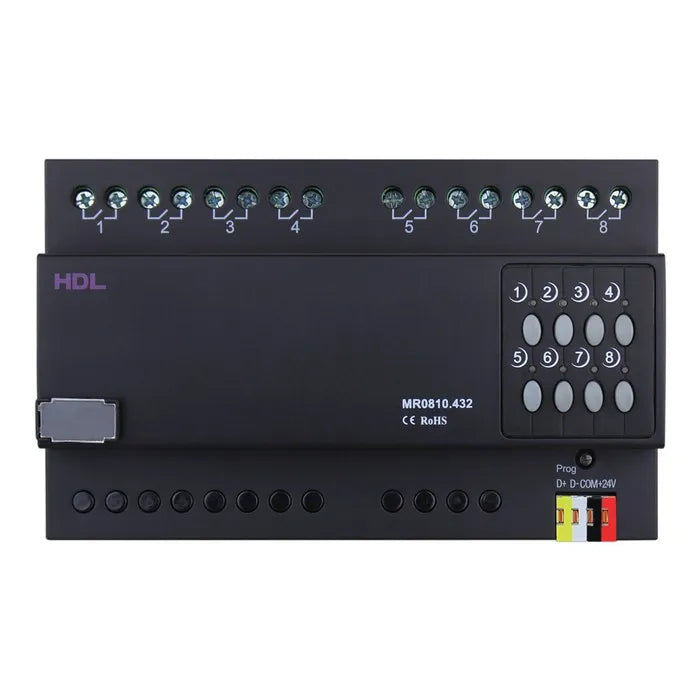

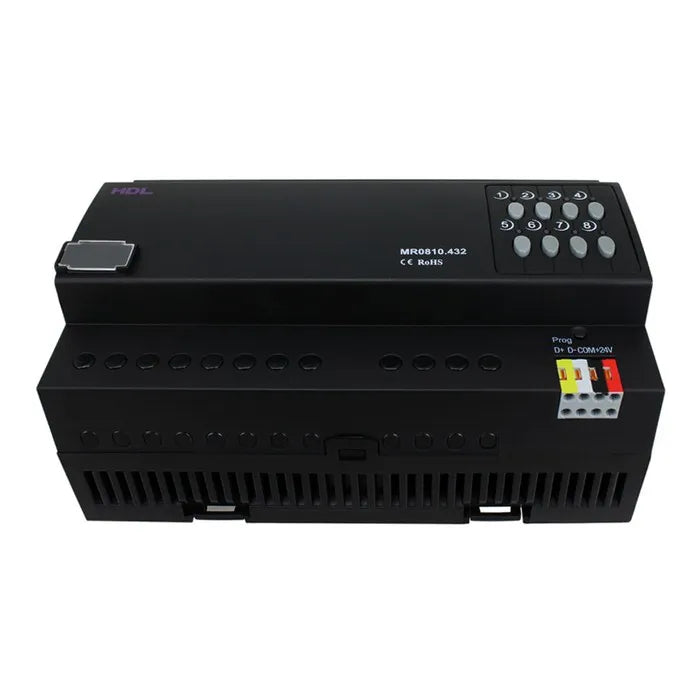

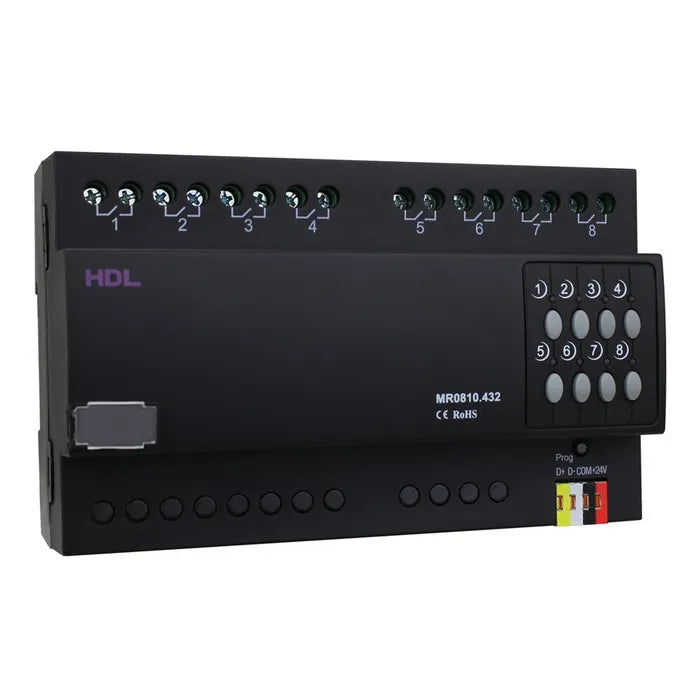

Relay module HDL-MR0810.432, 8x10A

8-channel 10A relay module for controlling various electrical devices. Programmable scenes and sequences. High-quality impulse relays are used, so the device consumes very little electricity.

• High-quality impulse relay module with low energy consumption (only during contact change);
• Static current - 15mA;
• Dynamic current - 40mA;
• 8 separate zones are supported;
• 16 scenes for each zone;
• Programmable sequences;
• The device can restore the previous or intended scene after power failure;
• Programmable channel turn-on delay to reduce instantaneous turn-on loads on the line.

• Power source: DC 24V (HDL-Bus bus)
• Operating current: 15mA
• Number of buttons: 8
• Number of output channels: 8
• Channel capacity: 10A
• Ports: HDL-BUS
• Dimensions (WxHxI): 144×90×66 mm
• Weight: 361 g
• Protection class: IP20
• Operating temperature: 0 ℃ ~ 45 ℃
• Storage temperature: -20℃ ~ +60℃
• Relative humidity: Up to 90%
• Storage humidity: Up to 93%
• Warranty period: 24 months
• Mounting method: DIN rail

The high-quality impulse relay module is designed to control various electrical devices, heating, lighting and other smart home devices. Low energy consumption (only during contact change). 8 separate zones are supported. Each zone can be assigned 16 scenes (maximum scene time - 60 minutes). Programmable sequences. It is possible to restore the previous or intended scene after a power failure. There is a channel turn-on delay to reduce instantaneous turn-on loads on the line.
