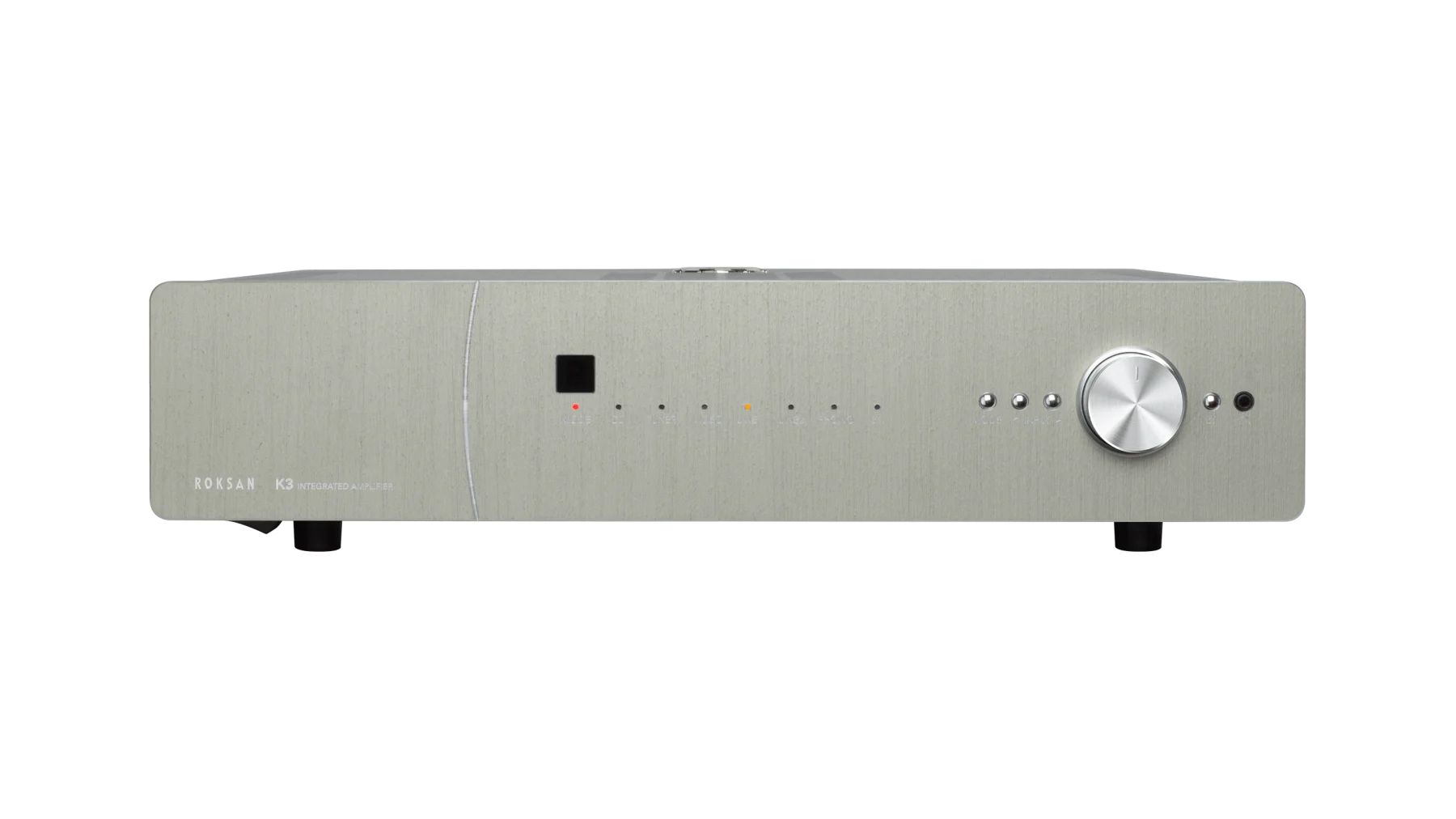

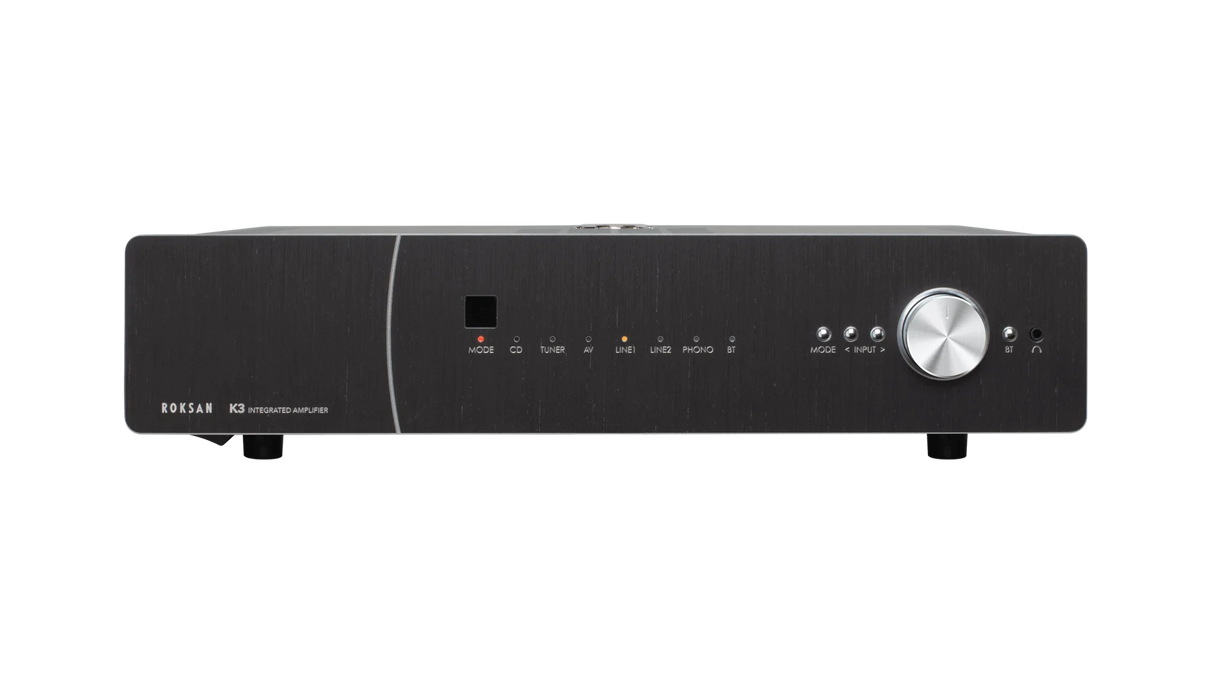

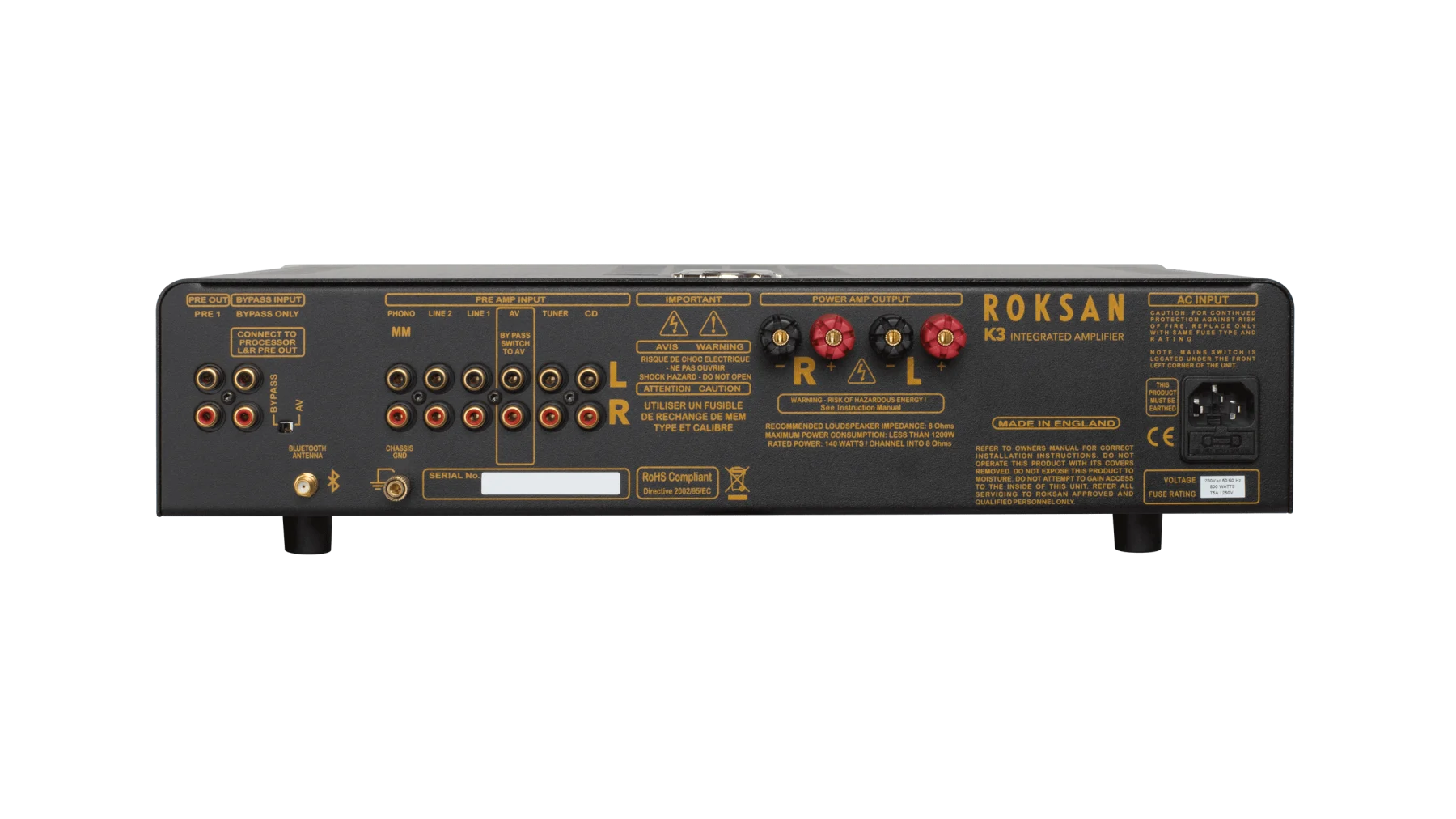

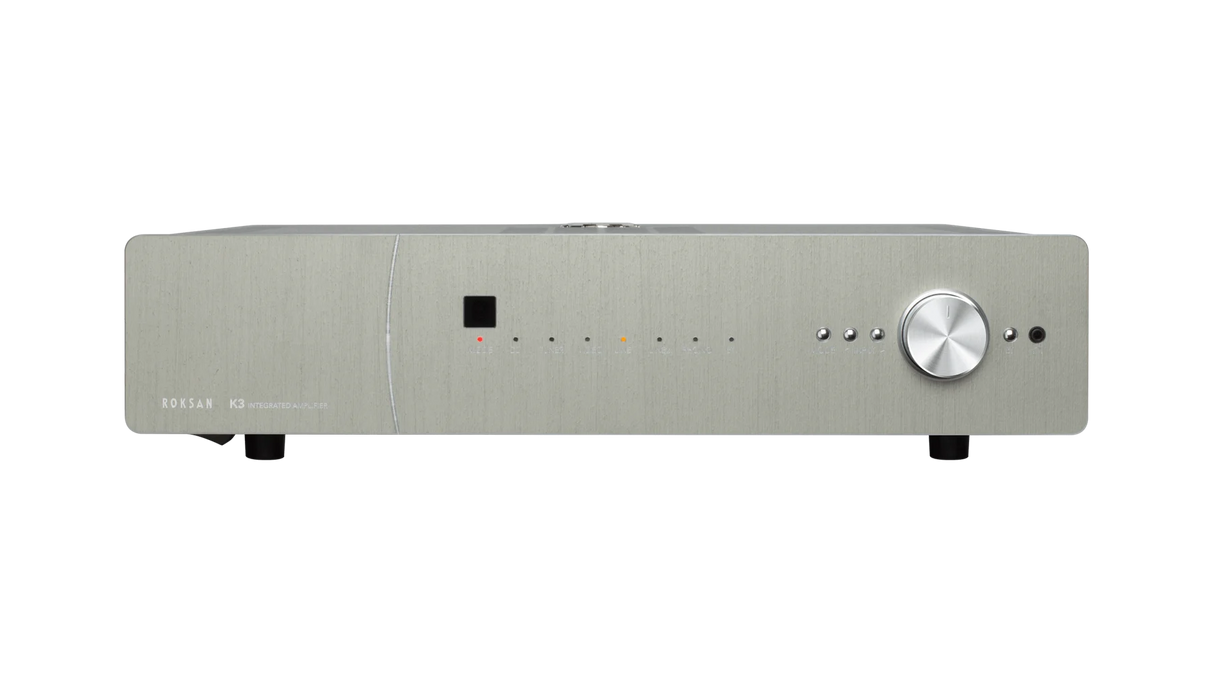

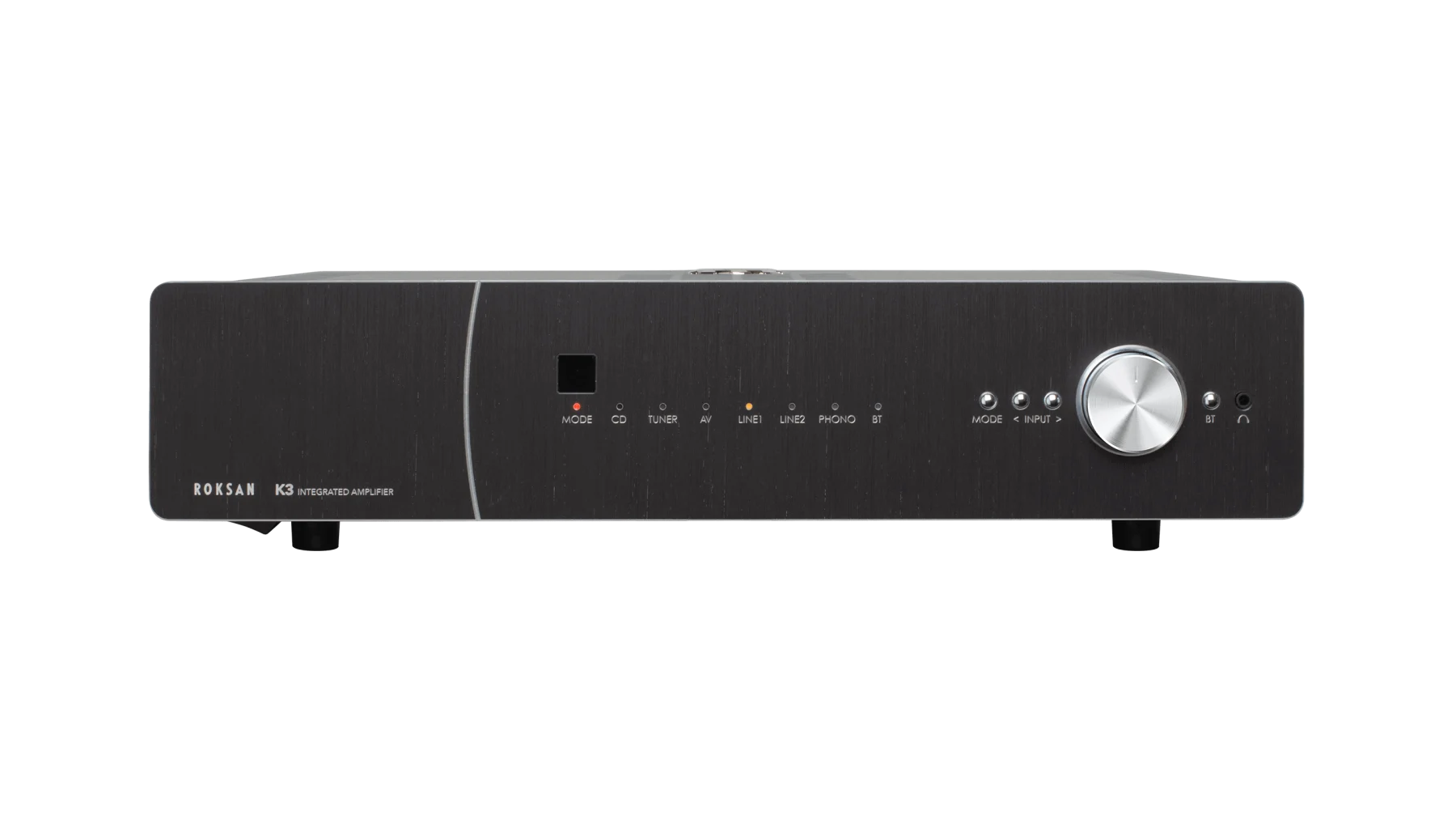

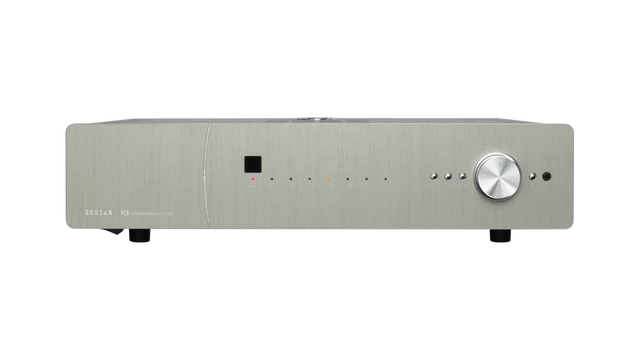

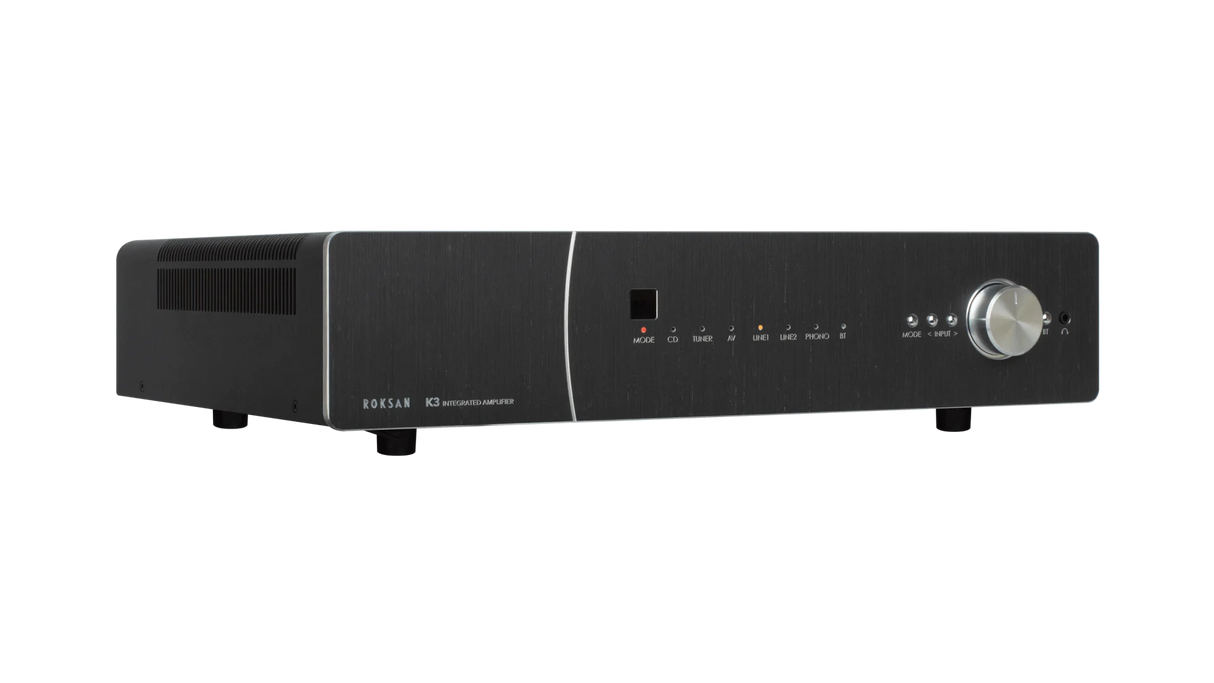

Roksan K3 INTEGRATED, integrated amplifier (various colors)

€1,735.00 EUR

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Built-in correction amplifier for MM type heads with headphone amplifier.

  • Power: 2 x 140W (8Ω); 2 x 220W (4Ω).
  • Inputs: 1 x Phono (RCA); 5 x analog (RCA),
  • Outputs: 1 x Preamplifier Out (RCA).
  • Class AB amplifier.
  • Direct power supply to the power amplifier.
  • Symmetrical construction.

The K3 Integrated Amplifier offers an elegant user-friendly answer for today's discerning music lovers.

A built-in Moving Magnet phono input, five-line inputs make it a flexible hub for all manner of audio sources.

A power output of 140 W (RMS) per channel (into 8 Ohms) and superb bass drive deliver a wide detailed sound stage for a truly engaging musical experience. High-quality components, boards and transformers are employed for optimum sound quality and reliability.

Key Features

  • Moving Magnet phono input.
  • Five additional line inputs for other sources.
  • Superior build quality.
  • Symmetrical amplifier layout.
  • High quality signal output relays.
  • Directly mains-powered power amp section.
  • Switchable bypass input.
  • Pre-amplifier outputs.
  • Headphone socket.

SPECIFICATIONS

Amplifier Type

Class-AB

Input

5 x RCA, MM phono, Bypass

Input Impedance

47 kohms

Line Input Sensitivity

440 mV @ 140 W / 8 ohms

Outputs

Speaker (L & R), pre-amp, 3.5 mm headphone

Power Output (Per Channel)

> 140 W (8 ohms) /
> 220 W (4 ohms)

Power Supply

550 VA Toroidal transformer

Frequency Response

<3 Hz - >100 kHz (-3 dB)

Good

37.5 dB (75x)

Harmonic Distortion

<0.005% (1 kHz - 14 W @ 8 ohms)

Power Consumption

Full Power 2-CH: 8 ohms = <330 W,
4 ohms = <550W

Signal to Noise Ratio

>90 dB (Line input)

Dimensions (W x H x D)

432 x 102 x 380 mm

Weight

13.5 kg



INSTRUCTIONS

User Manual (EN).
