Rotel

Rotel A14MKII, integrated audio amplifier (various colors)

€1,499.00 EUR

Rotel A14MKII, integrated audio amplifier (various colors) - Black is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The A14MKII is the flagship of Rotel's 14-series product family.

  • Power: 2 x 150W.
  • Class AB amplifier.
  • Supports MQA and MQA Studio.
  • Wireless aptX™ and AAC Bluetooth support.

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel's in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available using Ethernet, RS232, 12V-Trigger and remote IR connections.

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the AB speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

SPECIFICATIONS

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1) <0.03% DAMPING FACTOR 220 INPUT SENSITIVITY Line Level Inputs: 230mV Digital Inputs: 0dBfs Phono Input (MM): 3.4mV INPUT IMPEDANCE Line Level Inputs: 24kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ INPUT OVERLOAD Line Level Inputs: 4V Phono Input: 50mV PREOUT LEVEL 1.2V OUTPUT IMPEDANCE 470Ω TONE CONTROLS ±10dB at 100Hz / 10kHz COAX/OPTICAL DIGITAL INPUT SIGNALS SPDIF LPCM (Up to 24-bit/192kHz) PC-USB USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz) *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz) Roon Tested

Rotel A14MKII, integruotas garso stiprintuvas (įvairių spalvų)

DIMENSIONS (W × H × D) 430 × 93 × 345mm
17" × 3.6" × 13.5" FRONT PANEL HEIGHT 80mm (3.15") POWER REQUIREMENTS 230V, 50Hz POWER CONSUMPTION 280W STANDBY POWER CONSUMPTION <0.5W NET WEIGHT 8.94kg (19.71lbs.) BTU RATING (4Ω, 1/8th power) 632 BTU/h

Rotel A14MKII, integruotas garso stiprintuvas (įvairių spalvų)

MAXIMUM POWER OUTPUT 150W/Ch (4Ω) CONTINUOUS POWER OUTPUT 80W/Ch (8Ω) TOTAL HARMONIC DISTORTION (THD) <0.018% FREQUENCY RESPONSE Line Level Inputs: 10Hz - 100kHz, ±0.5dB Digital Inputs: 10Hz - 90kHz, ±2.0dB, Max Phono Input: 20Hz - 15kHz, ±0.5dB S/N RATIO (IHF "A" Weighted)
 Line Level Inputs: 100dB Digital Inputs: 103dB Phono Input: 90dB

INSTRUCTIONS

User Manual (EN).

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Rotel

Rotel A14MKII, integrated audio amplifier (various colors)

€1,499.00 EUR

The A14MKII is the flagship of Rotel's 14-series product family.

DESCRIPTION

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel's in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

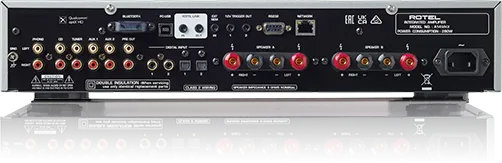

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available using Ethernet, RS232, 12V-Trigger and remote IR connections.

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the AB speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

TECHNICAL DATA

SPECIFICATIONS

INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
220
INPUT SENSITIVITY
Line Level Inputs: 230mV
Digital Inputs: 0dBfs
Phono Input (MM): 3.4mV
INPUT IMPEDANCE
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV
PREOUT LEVEL
1.2V
OUTPUT IMPEDANCE
470Ω
TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz)
Roon Tested

Rotel A14MKII, integruotas garso stiprintuvas (įvairių spalvų)

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"
FRONT PANEL HEIGHT
80mm (3.15")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
280W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8.94kg (19.71lbs.)
BTU RATING (4Ω, 1/8th power)
632 BTU/h

Rotel A14MKII, integruotas garso stiprintuvas (įvairių spalvų)

MAXIMUM POWER OUTPUT
150W/Ch (4Ω)
CONTINUOUS POWER OUTPUT
80W/Ch (8Ω)
TOTAL HARMONIC DISTORTION
(THD)
<0.018%
FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2.0dB, Max
Phono Input:
20Hz - 15kHz, ±0.5dB
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
