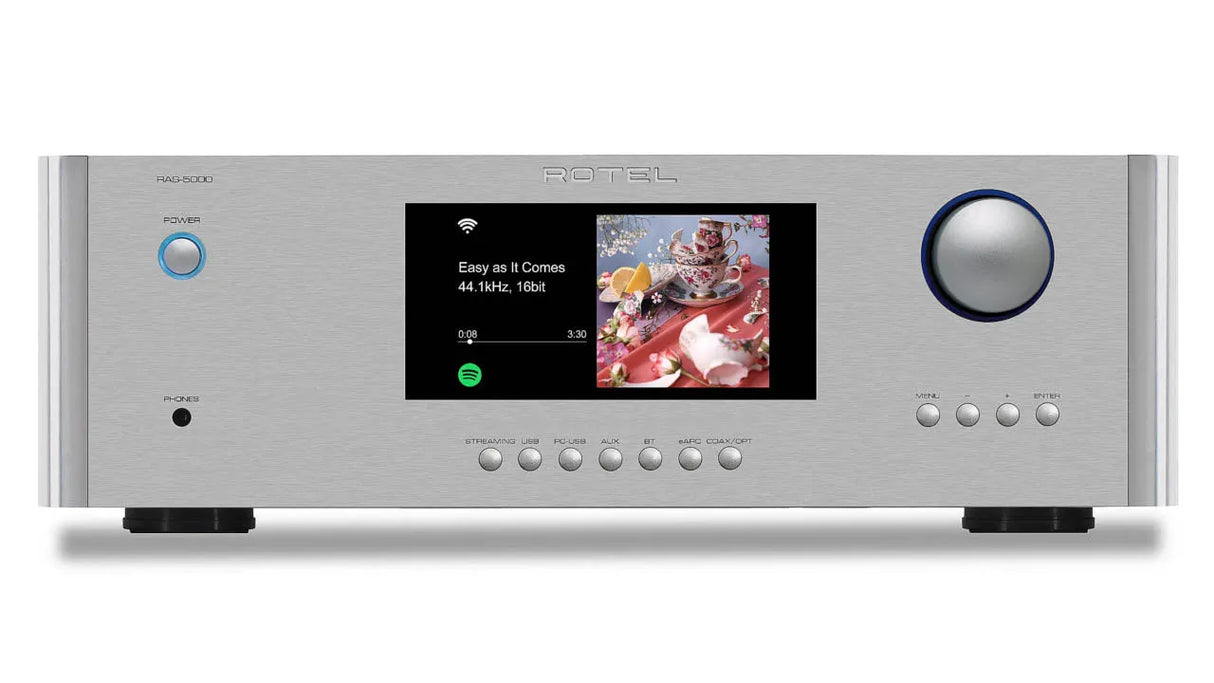

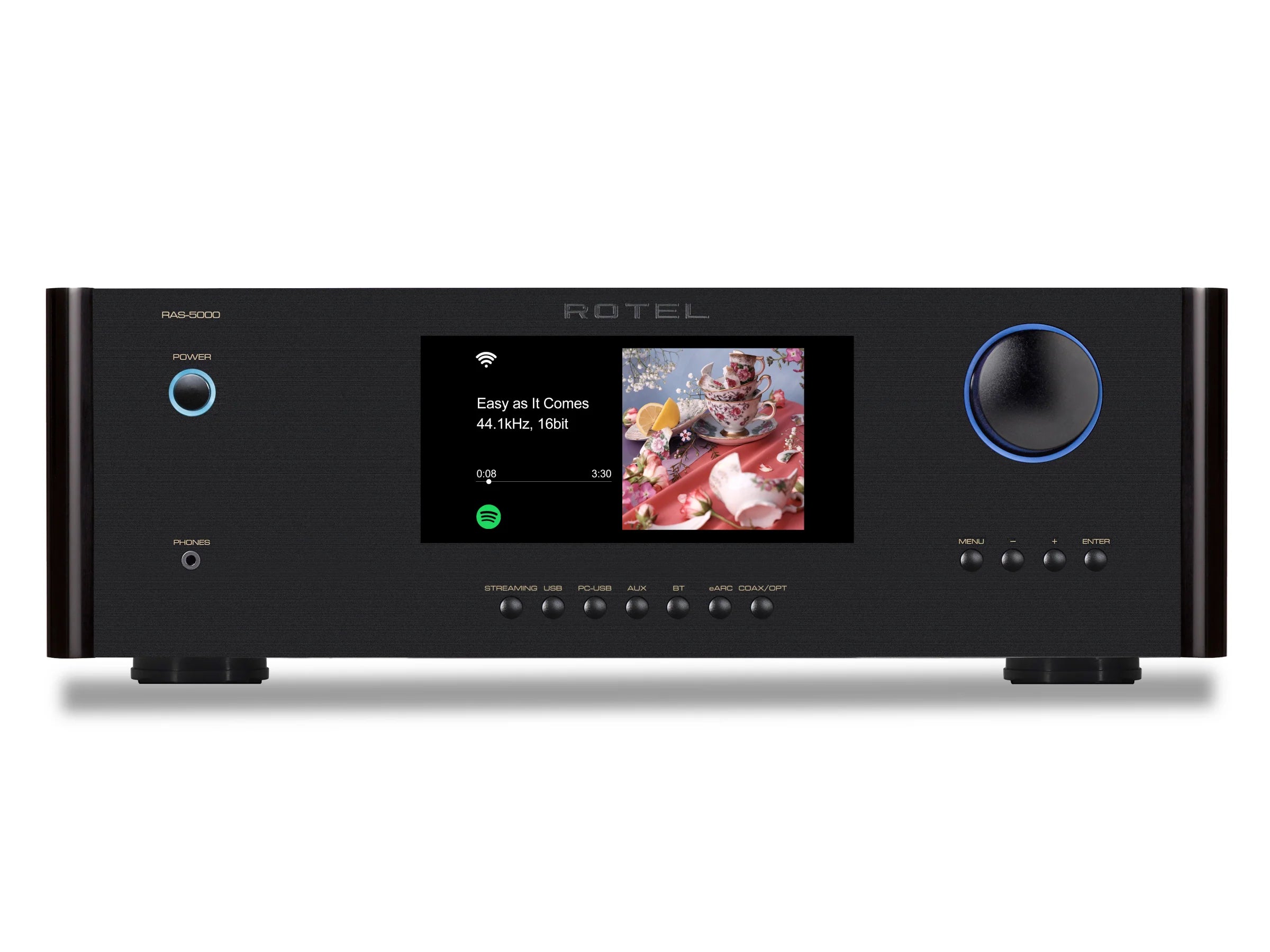

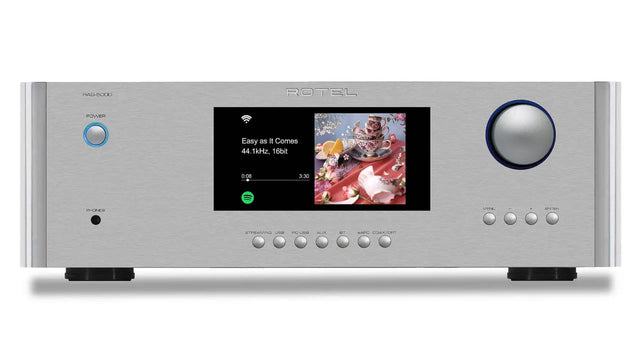

Rotel RAS-5000, 2x220W smart sound amplifier with network player

Simplicity meets performance in the Rotel RAS-5000, designed to fit your lifestyle and enhance your sense of entertainment.

• 2 x 220W solid class AB power, 4 ohms
• Frequency range: 10Hz - 100kHz (+/-0.5dB)
• Has an HDMI ARC connector
• Wireless aptX™ HD and AAC Bluetooth
• ESS premium 32-bit digital to analog converter
• Damping factor: 290

Simplicity and performance meet in the Rotel RAS-5000 designed to fit effortlessly into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.

The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.

Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.

RAS-5000 App can be downloaded by scanning the QR code below:

INTERMODULATION DISTORTION
(60Hz : 7kHz, 4:1)
<0.03%

DAMPING FACTOR
290

INPUT SENSITIVITY
Line Level Inputs: 0.78V
Digital Inputs: -8dBfs

INPUT IMPEDANCE
Line Level Inputs: 46k Ohms
Digital Inputs: 75 Ohms

INPUT OVERLOAD
Line Level Inputs: 4.1V

TONE CONTROLS
±10dB at 100Hz / 10kHz

HDMI
Support eARC function

COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz)
Roon Ready
