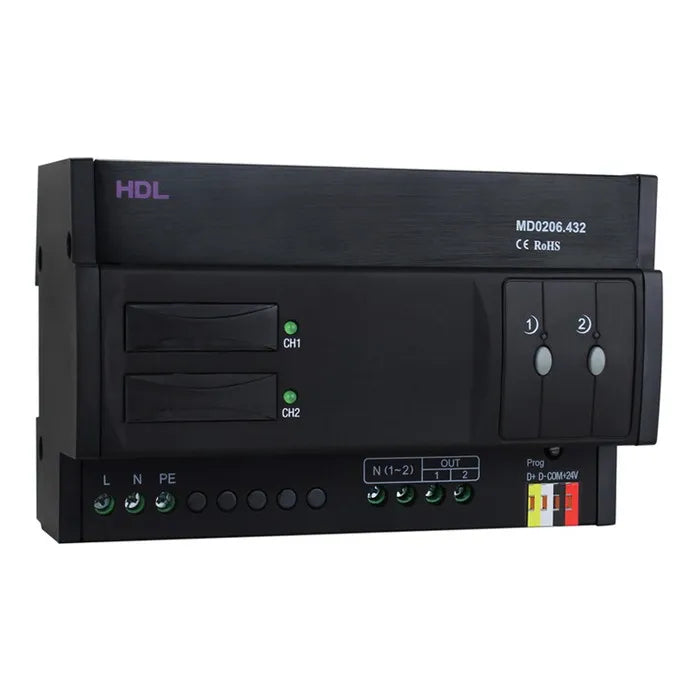

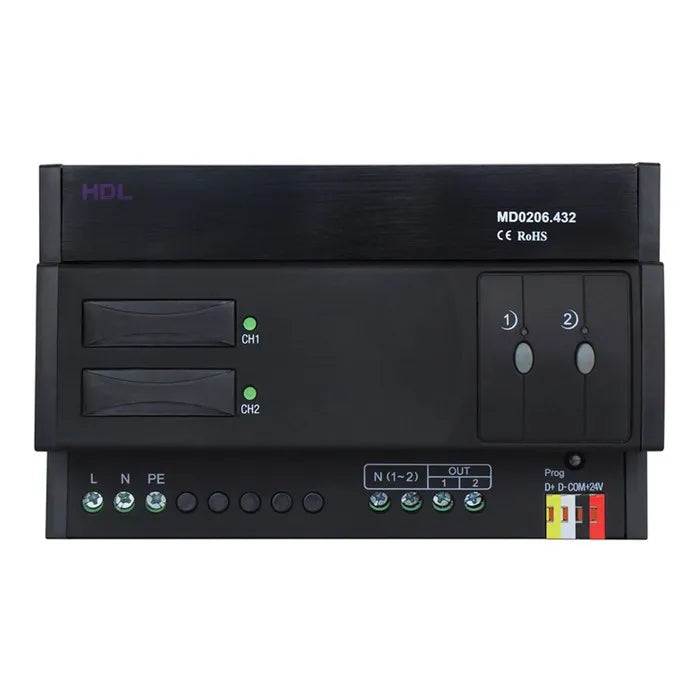

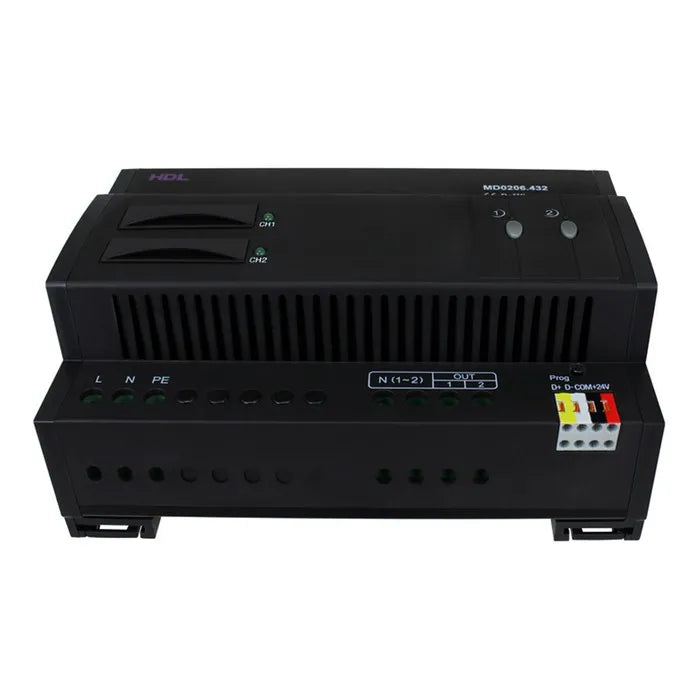

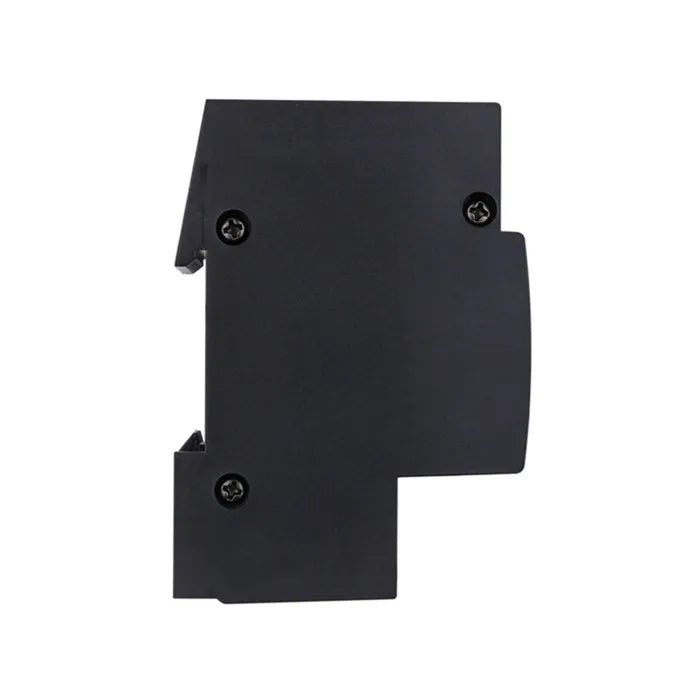

Light regulator HDL-MD0206.432, 2x6A

2-channel 6A TRIAC-type light regulator (dimmer). Programmable scenes and sequences. Leading dimerization curve. The lighting regulator allows you to choose the desired level of lighting in the room, so you can not only save electricity, but also create the desired atmosphere in the room.

• 2 zones are supported;
• 12 scenes for each zone;
• Programmable sequences, each sequence has 4 working modes: forward, backward, jump, random;
• Programmable maximum and minimum channel levels, load compatibility;
• The device can restore the previous or intended scene after power failure;
• Buttons for manual channel control;
• LED indication of channel status;
• Integrated thermometer for protection against overheating;
• Each channel has a 6A fuse.

• Power source: DC 24V (HDL-Bus bus)
• External power supply: AC 110V-220V 50Hz/60Hz
• Operating current: 28 mA
• Number of buttons: 2
• Number of output channels: 2x6A
• Channel capacity: 6A
• Maximum power: 10A over 2 channels
• Ports: HDL-BUS
• Dimensions (WxHxI): 144×90×66 mm
• Weight: 709.5 g
• Protection class: IP20
• Protection: Protection against overheating, overload and overvoltage
• Operating temperature: 0℃ ~ 45℃
• Storage temperature: -20℃ ~ +60℃
• Relative humidity: Up to 90%
• Storage humidity: Up to 93%
• Warranty period: 24 months
• Mounting method: DIN rail

2-channel 6A TRIAC-type light regulator (dimmer). Programmable scenes and sequences. Leading dimerization curve. The lighting regulator allows you to choose the desired level of lighting in the room, so you can not only save electricity, but also create the desired atmosphere in the room. Suitable for adjusting the luminous flux of incandescent, halogen and LED lamps.
