TEAC

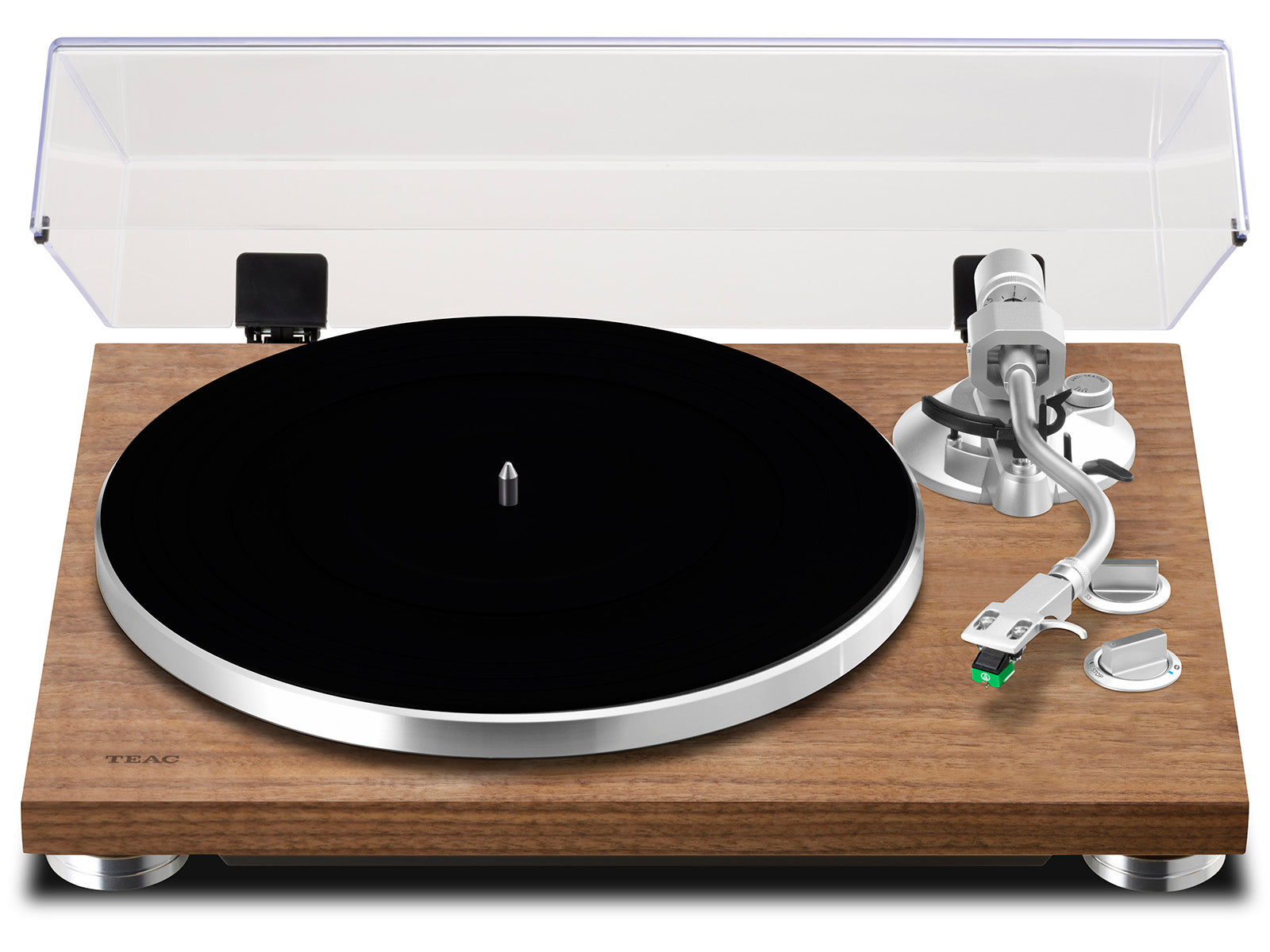

TEAC TN-400BT-X, turntable with Bluetooth®

€499.00 EUR

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.


Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Analog turntable with Bluetooth® Qualcomm® aptX™ transmitter that wirelessly streams music from LPs

Aluminum die-cast platter with 3-speed belt-drive
A die-cast, high-inertia aluminum platter is driven by a high-torque DC motor via a durable rubber flat-belt, giving immensely stable playback at 33-⅓, 45 and 78 rpm speeds.

New low-resistance spindle
A precisely-machined stainless steel spindle and durable brass bearing maintain accurate rotational speed, thanks to reduced friction.

Natural walnut veneer finish with laser-engraved logo
The TN-400BT-X is available in natural varnished walnut veneer finish with laser-engraved TEAC logo.

Built-in Phono EQ amplifier
The TN-400BT-X has an onboard Phono EQ amplifier that supports MM-type cartridges, allowing the deck to be connected to conventional amplifiers/micro systems that lack a dedicated turntable input. The Phono EQ amplifier employs a hi-fi quality NJM8080 op-amp chip (designed by JRC) which amplifies the tiny audio signal from the stylus with the minimum of distortion.

S-shaped static-balanced tone-arm
The S-shaped, static-balanced aluminum tone-arm is equipped with a counterweight and anti-skating mechanism that allows an exact setting of balance as well as tracking pressure, ensuring accurate tracking during playback. A tone-arm lifter is also fitted for smooth lowering of the tone-arm onto records.
The tone-arm takes universal-type headshells so users can change cartridges with relative ease. In order to reduce signal losses between the tone-arm and the headshell, gold-plated contact points are employed, to help deliver an uncorrupted audio signal.

Bluetooth® wireless audio streaming with Qualcomm® aptX™ Adaptive codec
The TN-400BT-X's Bluetooth® wireless transmission system supports the higher quality Qualcomm® aptX™ Adaptive codecs, as well as the conventional SBC codec. This means that even if users don't have a hi-fi system, then can still enjoy truly high-quality vinyl replay via Bluetooth®-equipped headphones or speakers. Connecting the TN-400BT-X to Bluetooth® headphones or speakers is achieved very simply, at the touch of a button. A single-function pairing key and an associated LED indicator provide simple and clear confirmation of the connection status.

Beautifully detailed
The TN-400BT-X brings elegance to the process of playing a record. The machined aluminum operation knobs ooze quality while the aluminum feet, attached to high-density MDF chassis via shock-absorbing rubber, provide a high resistance to feedback.

MM-type Cartridge from audio-technica
The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.

MM-type Cartridge from audio-technica
The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.

Turntable section
Type: Belt Drive
Motor: DC Motor
Rotation Speeds: 33-⅓, 45, 78 rpm
Wow-and-Flutters: 0.2%
S/N Ratio: more than 67dB (A-weighted), 60dB (unweighted, 20kHz, LPF)

Turntable (Platter)
Material: Aluminum Die-cast
Diameter: 30cm

Tone-arm section
Type: S-shaped, Static-balanced
Effective Length: 223mm
Needle Pressure Range: 0g to 5g
Compatible Cartridge Weight: 4g to 8g, 14g to 18g (including Head-shell)

Head-shell and Cartridge sections
Model of Cartridge: audio-technica AT95E
Type of Cartridge: MM-type (VM-type)
Frequency Response: 20Hz to 20,000Hz
Output Voltage: 3.5mV (1kHz, 5cm/sec.)
Channel Separation: 20dB (1kHz)
Output Balance: 2.0 dB (1kHz)
Needle Pressure: 1.5g to 2.5g (appropriate value: 2.0g)
Needle Life: approx. 300 hours (depends on conditions)
Coil Impedance: 2.8kohms (1kHz)
DC Resistance: 410 ohms
Loading Resistance: 47 kohms
Loading Capacity: 100 to 200pF
Coil Inductance: 400mH (1kHz)
Static Compliance: 20 × 10-6cm/dyne
Dynamic Compliance: 6.5 × 10-6cm/dyne (100Hz)
Needle Shape: Joint-oval 0.3 × 0.7mil
Cantilever: Aluminum Pipe
Vertical Tracking Degree: 20 degrees
Overall Dimensions: 17.0(W) × 17.2(H) × 30.5(D) mm
Weight: 5.7g
Head-shell Weight: 10g (including nuts, screws, and wires)

Analog Output section
Connectors: RCA jack × 1 pair (Gold-plated)
Output Voltage:
PHONO: 3.5mV +/-3dB
LINE: 155mV (-16dBV)

Bluetooth® section
Bluetooth version: 5.2 (DUAL MODE)
Profile: A2DP
Codecs: SBC, Qualcomm® aptX™ audio, Qualcomm® aptX™ Adaptive

Operation Power
AC Adapter Input: AC 100 - 240V, 50/60Hz
AC Adapter Output: DC 12V 500mA
Power Consumption: 1.5W or less
Standby Power: 0.5W or less

Dimensions
(including protrusions): 420(W) × 117(H) × 356(D) mm / 16.5"(W) × 4.6"(H) × 14.0"(D)

Weight
4.9kg / 10.8lbs

Operating temperature range
5°C to 35°C
