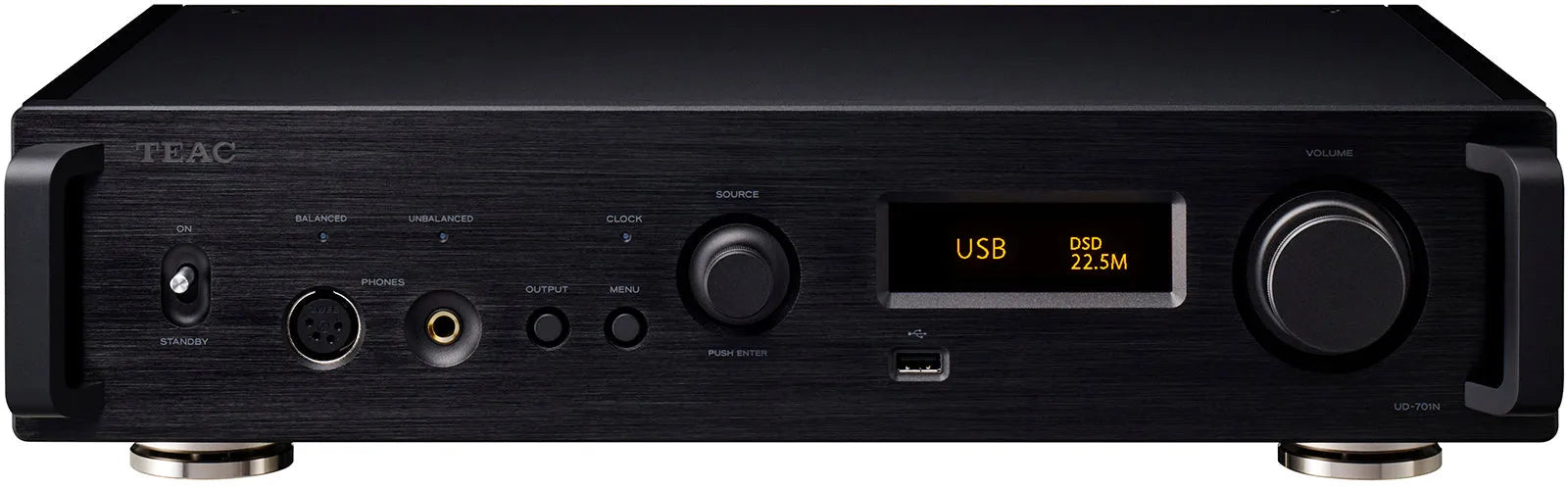

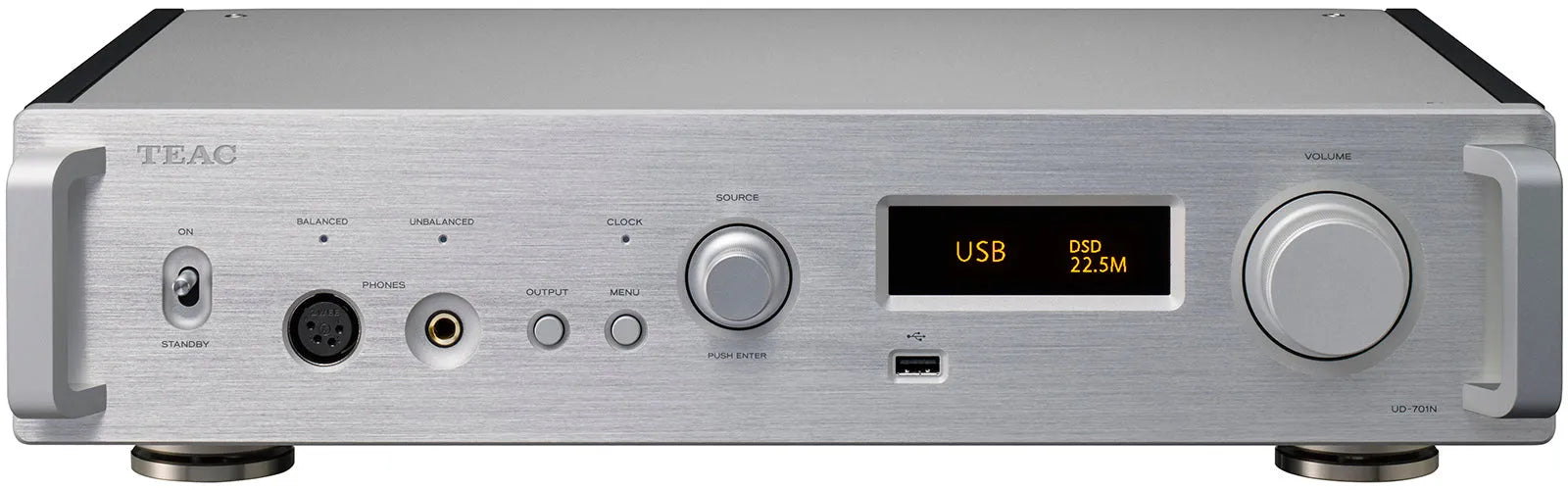

TEAC UD-701N, network player

With a newly developed original discrete DAC,
this advanced all-in-one device fascinates every audiophile as the foundation of a sound system.

Newly-developed TEAC Delta Sigma discrete DAC
Instead of using a generic DAC IC, we incorporated a newly-developed TEAC ΔΣ (Delta Sigma) discrete DAC comprised of discrete circuitry that uses FPGA incorporating our original algorithms. Analog signals are output with high audio quality. DSD signals are transmitted as is, while PCM signals are transmitted after passing through a ΔΣ modulator and conversion to either 1-bit or multi-bit signals; according to the end users choosing.
We can say that achieving this wide, perfectly clear sound field, which can be realized specifically because of the discrete design, is TEAC reaching the pinnacle of its sound objectives.
With the TEAC ΔΣ discrete DAC, playback of 22.5MHz DSD and 384kHz/32-bit PCM is possible.

Dual mono structure
We have incorporated an extravagant dual mono structure throughout the unit, from the power circuit with independent left and right toroidal core transformers to the D/A converter section and analog output stage.
This dual model structure, which has complete mono circuits for each of the two channels, prevents interference between the left and right channels, enabling the realization of rich musical expression that reproduces the sense of space and dimension.

Fully balanced transmission at every stage
The fully balanced transmission of both the left and right analog output signals from after D/A conversion through the final output stage contributes greatly to improving the signal-to-noise ratio and increasing the dynamic range. This conveys signals in a purer state without losing the sense of air that high-resolution audio sources have.
*The circuit boards in these photos are under development.

Four high-capacity toroidal core transformers
In addition to the 2 toroidal core transformers for the independent left and right analog signals, separate toroidal core transformers are also used in both the network module and digital control sections. In particular, stable electricity is supplied to the network module, which requires advanced processing, by strengthening the power supply for the network module section with linear power.

Analog preamplifier function with 2 line inputs via RCA/XLR and 4 digital inputs
Not only as a USB DAC/Network player that employs two sets of coaxial and optical digital inputs, the UD-701N also works as a high-quality analog preamplifier by employing additional analog audio inputs via RCA and XLR connectors that allow users to connect conventional audio sources.

Our TEAC-QVCS (Quad Volume Control System) is a variable gain amp volume control with four independent circuits for left, right, positive and negative (L+, L−, R+ and R−). Placing this in the audio signal route makes it as short as possible, preventing the degradation of audio signals caused by drawing them through signal lines. Moreover, since the volume can be adjusted in extremely fine 0.5dB intervals, you can achieve the ideal volume for the audio system or headphones that you are using.

Improved TEAC-HCLD2 enhanced-current output buffer circuits
We used TEAC-HCLD2 circuits, which are improved versions of our TEAC-HCLD (TEAC High Current Line Driver) enhanced-current output buffer circuits. These raise the current transmission capabilities that are important in analog output circuits. Each channel has a positive and negative two-circuit structure with diamond buffer amplifiers, which have high current transmission capabilities, used as line drivers. Drive is differential for balanced output and parallel for unbalanced output. By increasing the current supply ability, transmitting the dynamism of audio signals without loss becomes possible.

4-pin XLR headphone amplifier that can be switched between balanced and active ground
A total of four diamond buffers, one in each of the left, right, positive and negative circuits, are used in the dedicated headphone amplifier, enabling the connection of balanced drive headphones. Moreover, even during single-end use, by driving these amps in parallel, they can provide stronger drive than ordinary single-end headphone amplifiers. This enables the potential of many types of headphones, including 600Ω high-impedance headphones, to be realized.

Active ground is a drive method, based on the principles of a balance connection, that approaches 0 V by connecting the COLD connector to the ground and driving the ground forcibly using an amplifier circuit. Not only can a more ideal ground be realized than when using an ordinary ground, the impact of humming noise coming from the power can also be suppressed. Moreover, by lowering the noise floor, we can expect silence to be deepened, allowing the breathing of the artists and the texture of sounds to be felt more intimately.

MQA full decoder that also supports digital inputs
MQA (Master Quality Authenticated) is a high-quality audio codec that enables playback at the same quality level as studio masters. The UD-701N has an MQA decoder that controls D/A-converted waveforms with a precision as fine as 5 ms in order to achieve analog waveforms that are true to the original recordings. Playback sound that seems like the original to the human ear can be achieved by greatly reducing the "sound blurring" that occurs easily when sounds start suddenly and at other times when sound pressure differences are extreme.

Since a full decoder is included, in addition to file and network playback, MQA data from digital inputs can also be decoded. Playback of MQA CDs is possible by connecting the digital output of a CD player to the UD-701N.
* When you MQA decode a signal from a digital input, the signal must be received bit-perfect. For this reason, please use the CLOCK SYNC setting as "OFF" or "ON (DIN SYNC)". Also, if the CD player is set to ON (DIN SYNC) without clock synchronization, skipping or choppy sound may occur.

Upconversion
The upconversion function uses RDOT-NEO (Refined Digital Output Technology NEO) to smoothly augment PCM digital audio signals and upconvert their sampling frequencies 2, 4 or 8 times (384kHz maximum). RDOT, which applies an analog interpolation method using fluency logic, is a technology that was developed to enable reproduction and playback of frequencies higher than 20 kHz that are lost by 44.1kHz/48kHz digital signals. Based on the information read, analogous data is generated between the waveform samples, which also results in data above 20 kHz.

Bluetooth® receiver supports LDAC, aptX™ HD and other high-resolution transmission formats
In addition to the LDAC™ and LHDC codecs, which can transmit audio data with quality that is considered high resolution (96kHz/24-bit), it also supports Qualcomm® aptX™ HD, which is capable of 48kHz/24-bit transmission. Of course, the popular AAC, Qualcomm® aptX™ and SBC codecs are also supported, so you can easily enjoy high-quality wireless playback from smartphones and digital audio players.

Support for popular and convenient network functions, including OpenHome and Roon Ready
Common control apps that support OpenHome can be used with the UD-701N, which also supports this platform. Moreover, playlists on the UD-701N can be managed using TEAC HR Streamer and other control apps that support OpenHome. Gapless playback is also supported.
With support for Roon Ready, functions provided by RAAT (Roon Advanced Audio Transport), including high-quality audio playback, easy and convenient operation using apps, and multi-room synchronized playback, can be used without limits.

Spotify Connect, Tidal Connect, Qobuz, and TuneIn (Internet Radio)
Along with Spotify Connect, this model also supports Tidal and Qobuz, which are subscription music streaming services that enable listening to lossless CD-quality (44.1kHz/16-bit) recordings.

Bulk Pet USB transfer technology enables stable data transmission
When transmitting large amounts of digital data by USB cable from high-resolution audio sources, large inconsistencies arise in the processing loads of both the sending computer and the receiving USB DAC, and audio dropouts and other problems can occur. Using the Bulk Pet USB transfer technology, however, the same amount of data is transmitted at a steady rate, leveling the processing loads of both sides and realizing stable data transmission. Since changes in computer load conditions can also affect audio quality, you can select from four preset transmission modes to choose the preferred audio quality.

Design features to prevent vibration
A floating structure is used to keep transformers, which can easily cause vibrations, isolated from the bottom panel. The lengths of all the side fins, which are for heat dispersion, have also been adjusted to prevent sympathetic vibrations.

In addition to using the minimum number of circuit board attachment screws, TEAC original pinpoint feet that utilize a new mechanism to provide play where they contact the bottom panel are used to thoroughly suppress vibrations that affect audio quality.

TEAC HR Audio Player, which supports 22.5MHz DSD playback with both Windows and Mac, provided for free
This free dedicated software can be used to easily play 22.5Mhz DSD and 384kHz/32-bit PCM, which represent the next generation of high-resolution audio sources, from Windows and Macintosh computers. By simply starting the software and selecting the UD-701N connected by a USB cable, digital audio data can be transmitted reliably with optimal conditions.
Since this software is designed for use with this model, there is no need to worry about the troubles that often occur with USB audio settings, including "no sound being output even when the USB DAC is recognized" and "sound being down-converted when it is output.”

DAC TEAC ΔΣ Discrete DAC × 2
Upconvert 2xFs / 4xFs / 8xFs (maximum 384kHz)

Analog audio inputs
Balanced
Connectors XLR × 1 pair
Input impedance 50kΩ
Maximum input level 5Vrms
Unbalanced
Connectors RCA Pin (gold-plated) × 1 pair
Input impedance 25kΩ
Maximum input level 2.5Vrms

Digital audio inputs
USB
Connectors USB B-type × 1, (USB2.0 compliant)
Supported formats
PCM 16 / 24 / 32bit, 44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384kHz
DSD 2.8M / 5.6M / 11.2M / 22.5MHz

Coaxial
Connectors RCA Pin (gold-plated) × 2 pairs
Input level 0.5Vp-p
Input impedance 75Ω
Supported formats
PCM 16 / 24bit, 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD 2.8MHz (176.4kHz/24bit DoP format)

Optical
Connectors Rectangular (TOS) × 2 pairs
Input level -24.0 to -14.5dBm peak
Supported formats
PCM 16 / 24bit, 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD 2.8MHz (176.4kHz/24bit DoP format)

ETHERNET
Connector RJ-45 × 1 (1000Base-T)
Supported formats
PCM 16 / 24 / 32bit, 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz / 352.8k / 384kHz (Stereo)
DSD 2.8M / 5.6M / 11.2M / 22.5MHz (Stereo)

Supported formats
PCM lossless FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD lossless DSF, DSDIFF (DFF), DoP
Compressed audio MP3, AAC (m4a container)

USB flash drive
Connectors USB A-type × 2 (Front × 1, Rear × 1, USB2.0 compliant)
Supported file system FAT32, exFAT and NTFS single partition
Supported file formats
PCM 16 / 24 / 32bit, 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz / 352.8k / 384kHz (Stereo)
DSD 2.8M / 5.6M / 11.2M / 22.5MHz (Stereo)

Supported file formats
PCM lossless FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD lossless DSF, DSDIFF (DFF), DoP
Compressed audio MP3, AAC (m4a container)

Bluetooth®
Bluetooth® version 4.2
Output class Class2 (range: 10m)
Supported profile A2DP, AVRCP
Supported A2DP codec LDAC, LHDC, AAC, SBC, Qualcomm® aptX™ audio/HD audio
A2DP content protection SCMS-T
Number of saved pairings Maximum 8

Analog audio outputs
Balanced
Connectors XLR (gold-plated pins) × 1 pair
Output impedance 220Ω
Output level settings Selectable from Fixed (0dB), Fixed (+6dB), Variable, or Off
Maximum output level 2.0Vrms (1kHz, Full-scale, 10kΩ loaded, Fixed at 0dB), 4.0Vrms (1kHz, Full-scale, 10kΩ loaded, Fixed at +6dB), 12Vrms (1kHz, Full-scale, 10kΩ loaded, Variable )
Unbalanced
Connectors RCA Pin (gold-plated) × 1 pair
Output impedance 180Ω
Output level settings Selectable from Fixed (0dB), Fixed (+6dB), Variable, or Off
Maximum output level 2.0Vrms (1kHz, Full-scale, 10kΩ loaded, Fixed at 0dB), 4.0Vrms (1kHz, Full-scale, 10kΩ loaded, Fixed at +6dB), 6.0Vrms (1kHz, Full-scale, 10kΩ loaded, variable)

Headphone outputs
Balanced
Connector 4-pin XLR × 1
Pin assign Pin1: L+, Pin2: L–, Pin3: R+, Pin4: R–
Unbalanced
Connector 6.3mm Stereo jack (gold-plated) × 1
Maximum output power
Balanced 700mW + 700mW (32Ω loaded)
Unbalanced 500mW + 500mW (32Ω × 1 loaded)
Supported impedance 16 to 600Ω

Clock sync input
Connector BNC (gold-plated) × 1
Input frequency 10MHz
Input impedance 50Ω
Input level
Rectangle wave Equivalent to TTL
Sine wave 0.5 to 1.0Vrms

External control
Trigger Input (12V TRIGGER IN)
Connector 3.5mm Mono mini jack × 1
Input level 12V, 1mA
Trigger output (12V TRIGGER THRU)
Connector 3.5mm Mono mini jack × 1
Output level 12V
Maximum current supply 100mA

Audio performance
Frequency response 5Hz to 80,000Hz (+1dB/–5dB)
Total harmonic distortion 0.002%
S/N ratio 108dB (A-Weight, 1kHz)

Power
AC120V, 60Hz / AC220 - 240V, 50/60Hz
Power consumption 40W
Standby power 0.4W

Overall dimensions 444 (W) × 111 (H) × 334 (D) mm (including protrusions)
Weight 11.8 kg

Operating Temperature ＋5℃ to ＋35℃
Operating Humidity Range 5% to 85% (no condensation)
Storage Temperature Range -20℃ to ＋55℃
