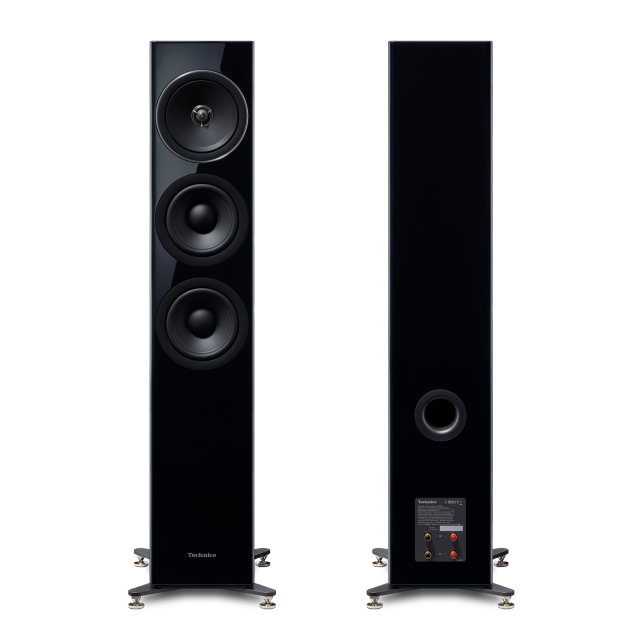

Technics SB-G90M2, mid-range speakers
is backordered and will ship as soon as it is back in stock.
▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas. 📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.
Home delivery from €4.99
Venipak courier within 1-2 working days.
Collect in store €0
Armaturininkai str. 1, Kaunas Working hours: IV 9:00-18:00
The SB-G90M2 bi-directional coaxial speaker unit is designed to reproduce the mid-range and high frequencies for clear sound imaging, localization and high sound quality for smooth, emotive music, while utilizing the concepts of point sound source and linear phase that Technics " tirelessly strives.
PRICE PER PAIR!
DESCRIPTION
Playback of a point sound source
In order to create accurate and surround sound, the Technics uses a coaxial speaker configuration in which the tweeters and mid-range speakers are aligned to reproduce the sound as close as possible to a point sound source. This allows for a wider, more natural soundstage, regardless of the listener's location.
Line phase plug
This innovation is designed to reduce distortion and increase sound clarity. The plug at the front of the tweeter diaphragm is made of brass, a material that effectively dampens vibrations. This allows for greater clarity and less sound distortion.
Smooth flow diaphragm
The midrange diaphragm in the coaxial speaker unit is designed to reduce sound reflections. This allows for extremely accurate frequency responses and improves phase characteristics and directivity, ensuring rich and natural reproduction of mid and high frequencies.
Stationary design and balanced drive mounting architecture
This speaker design is designed to reduce unwanted vibration and noise by using optimized vents and separating the coaxial speaker baffle from the woofer. These technologies increase the stiffness of the cabinet and provide greater response and clearer sound, especially in the bass range.
Standing wave elimination design
To eliminate resonance caused by standing waves inside the speaker cabinet, Technics developed a unique sound channel design. This technology reduces the effect of standing waves with minimal sound absorption, thus maintaining maximum dynamism and clarity.
These advanced technologies allow the Technics SB-G90M2 speakers to provide impeccable sound quality, reproducing spatial, clear and rich sound with minimal distortion.
TECHNICAL DATA
Speaker Type:
3-way, 4-speaker system
Bass Reflex (uses air movement to enhance low-frequency response)
Coaxial Configuration for the midrange and tweeters (this enhances sound alignment and clarity)
Speaker Units:
Woofer : 16 cm (6½") cone-type x 2 (handles low frequencies)
Midrange : 16 cm (6½") cone-type x 1 (handles midrange frequencies)
Tweeter : 2.5 cm (1") dome-type x 1 (handles high frequencies)
Performance Specifications:
Impedance : 4Ω (for matching with amplifiers)
Input Power : Rated: 100W (IEC standard), Maximum: 200W
Recommended Amplifier Power : 40-200W (tested under IEC60268-5 Short Term Max Test)
Sound Pressure Level (SPL) :86 dB / 2.83 V (m) (sensitivity)83 dB / W(m)
Frequency Range : 33Hz to 90kHz (-10dB), offering a wide sound spectrum that includes deep bass and high treble frequencies.
Crossover Frequencies : 500Hz, 3.4kHz (ensures smooth transition between the woofer, midrange, and tweeter for different frequencies)
Physical Dimensions:
Size : 292 mm (W) × 1114 mm (H) × 366 mm (D) (including spikes for stability)
