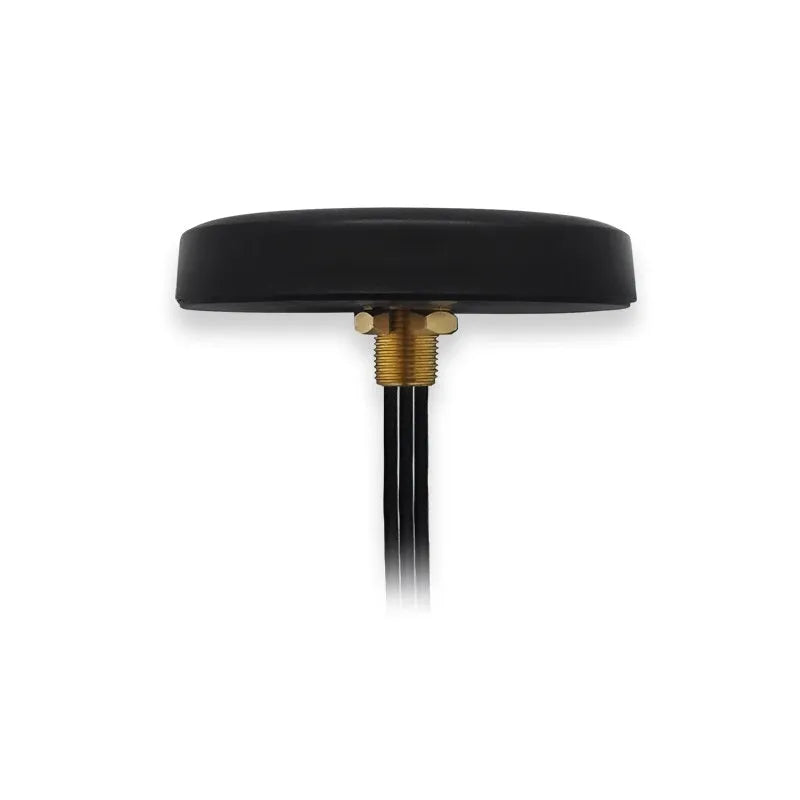

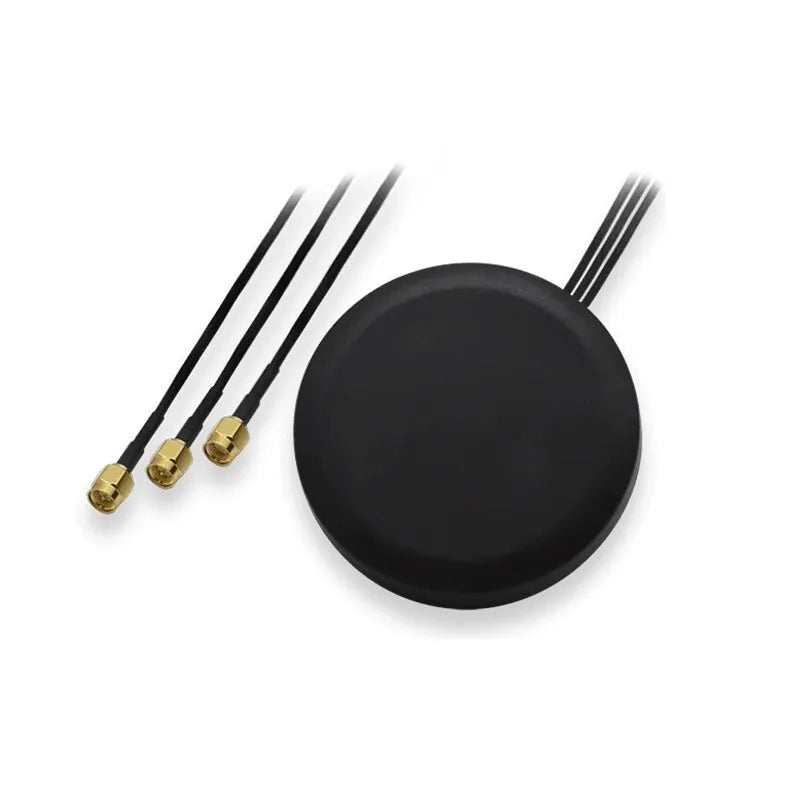

TELTONIKA COMBO SISO Mobile/GNSS/WiFi ROOF SMA, antenna

Powerful and resistant to harsh environmental factors antenna from the well-known Lithuanian manufacturer TELTONIKA.

• Frequency band: 1575.42-1610 MHz.
• Resistance standard: IP67
• RoHS Compliant.
• Resistance: 50 Ω.

Compatible with RUTX09, RUT230, RUT240, RUT900, RUT950, RUT955 and other Teltonika products.

Product specifications:

GNSS Antenna

• Frequency Range: 1575.42-1610 MHz
• Polarization: RHCP
• Impedance: 50 Ω
• LNA Gain: 28 dB
• LNA Noise Figure: < 1.5 dB
• Supply Voltage: 2.7-5 ±0.5 VDC
• Current Consumption: < 15 mA
• LNA VSWR: <1.65
• Connector: SMA Male

LTE Antenna

• Frequency Range: 850/900/1800/1900/2170 MHz
• Bandwidth/: ±90/280 MHz
• Polarization: Vertical
• Gain: 3.5 dBi
• VSWR: <1.5:1
• Impedance: 50 Ω
• Connector: SMA Male

WiFi Antenna

• Frequency Range: 2350-2500 MHz
• Bandwidth: ±100 MHz
• Polarization: Vertical
• Gain: 2.5 dBi
• VSWR: <1.5:1
• Impedance: 50 Ω
• Connector: RP SMA Male

Mechanical/Environmental

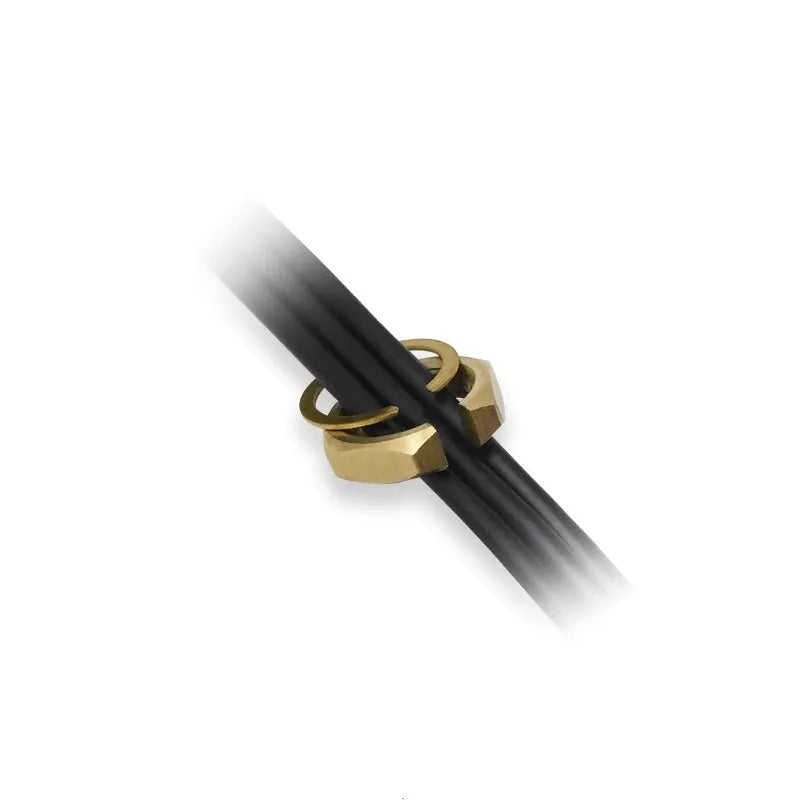

• Mounting Method: Screw
• We found Ingress Protection rating: IP67
• Found Material: ABS
• Weight: <250g
• Housing Dimensions: Ø 80x15 mm
• Cable: 3x RG174, 3000 mm
• RoHS Compliant: Yes

User Manual / User Manual.
