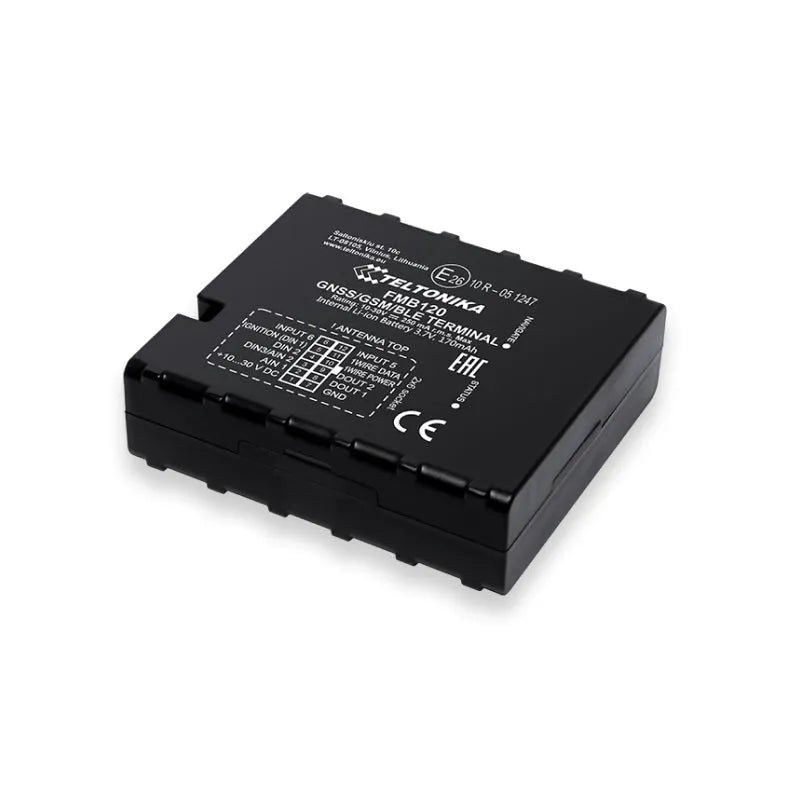

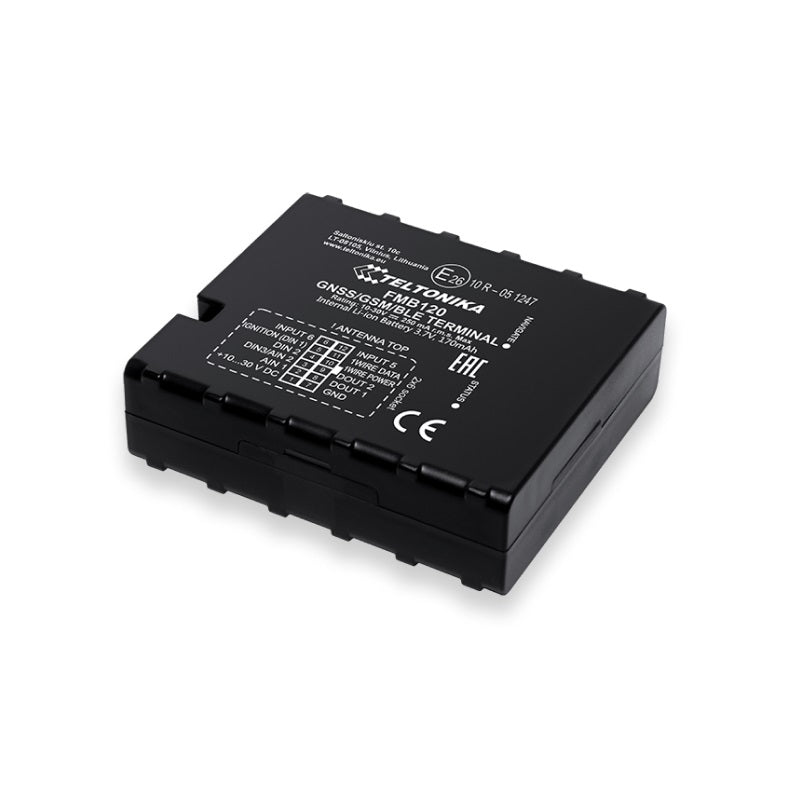

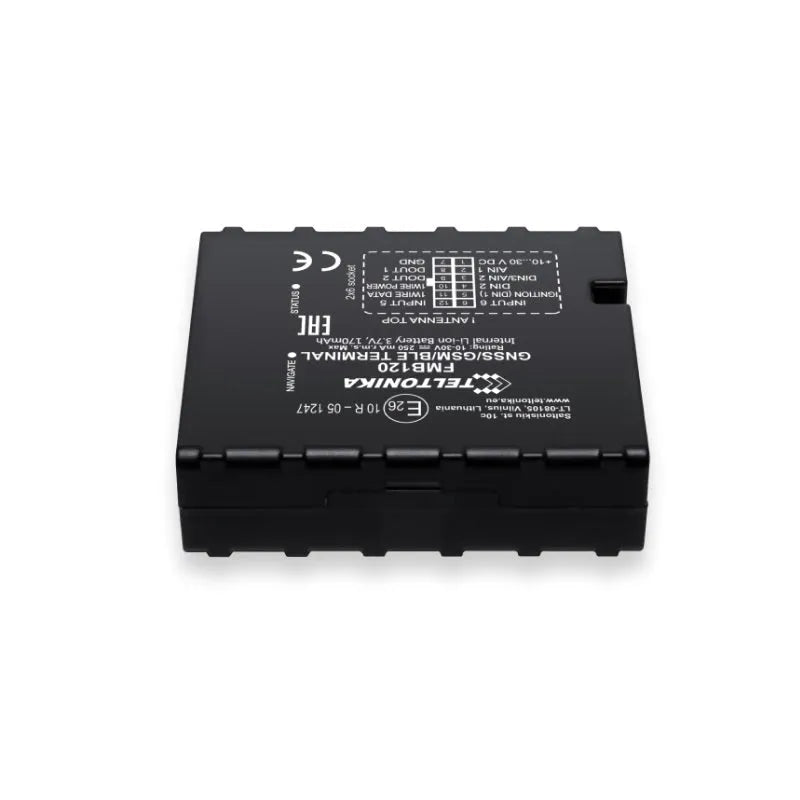

TELTONIKA FMB120 GNSS/GSM/Bluetooth, tracker

A professional tracker with internal high-strength GSM and GNSS antennas that can collect device coordinates and other useful data and transmit them to a server via the GSM network.

• Bluetooth.
• Internal GNSS/GSM antennas.
• Internal battery.
• 1-Wire® interface for temperature data

 

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquisition of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door, etc.

Properties

• Sensors: Accelerometer
• Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
• SMS: Configuration, Events, DOUT control, Debug
• GPRS commands: Configuration, DOUT control, Debug
• Time Synchronization: GPS, NITZ, NTP
• Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle
• Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Certificates

• Regulatory: CE/RED, E-Mark, EAC, RoHS, REACH

Specifications

Module

• House: TM2500
• Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver: 33 channels
• Tracking sensitivity: -165 dBM
• Accuracy: < 3 years
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s

Cellular

• Technology: GSM
• 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
• Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
• Data support: SMS (text/data)

Power

• Input voltage range: 10 - 30 V DC with overvoltage protection
• Back-up battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power consumption:

• At 12V < 6 mA (Ultra Deep Sleep)
• At 12V < 8 mA (Deep Sleep)
• At 12V < 11 mA (Online Sleep)
• At 12V < 20 mA (GPS Sleep)
• At 12V < 35 mA (nominal)

Bluetooth

• Specification: 4.0 + LE
• Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

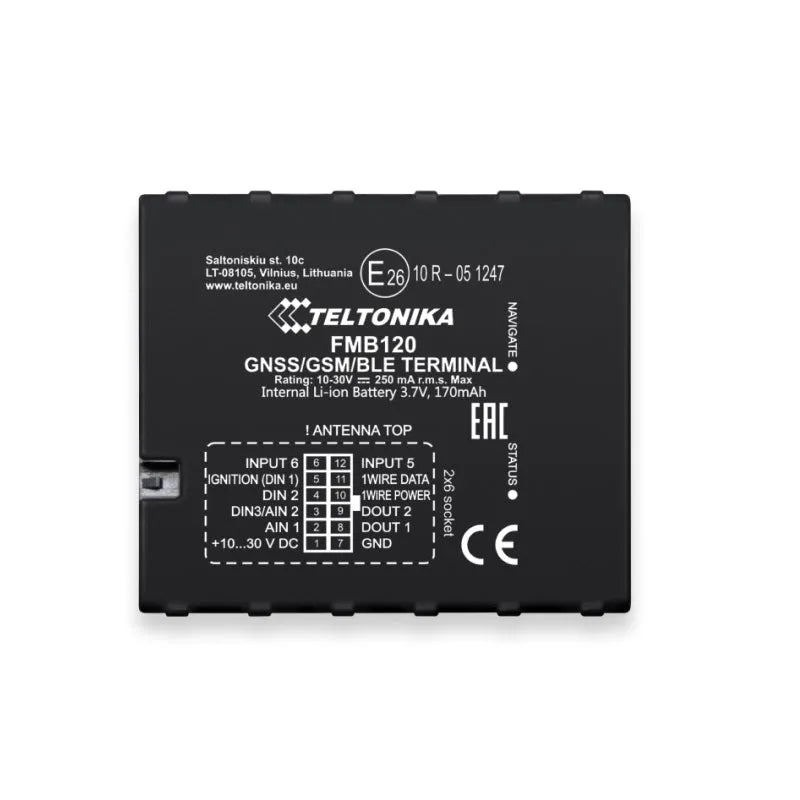

Interface

• Digital Inputs: 3
• Digital Outputs: 2
• Analog Inputs: 2
• CAN Adapter inputs: 1
• 1-Wire: 1
• GNSS antenna: Internal High Gain
• GSM antenna: Internal High Gain
• USB: 2.0 Micro-USB
• LED indication: 2 status LED lights
• SIM: Micro-SIM + eSIM
• Memory: 128MB internal flash memory

Physical specification

• Dimensions: 65 x 56.6 x 18.9 mm (L x W x H)
• Weight: 55 g

Operating environment

• Operating temperature (without battery): -40 °C to +85 °C
• Storage temperature (without battery): -40 °C to +85 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP41
• Battery charge temperature: -0 °C to +45 °C
• Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature:

• -20 °C to +45 °C for 1 month
• -20 °C to +35 °C for 6 months

User Manual / User Manual.
