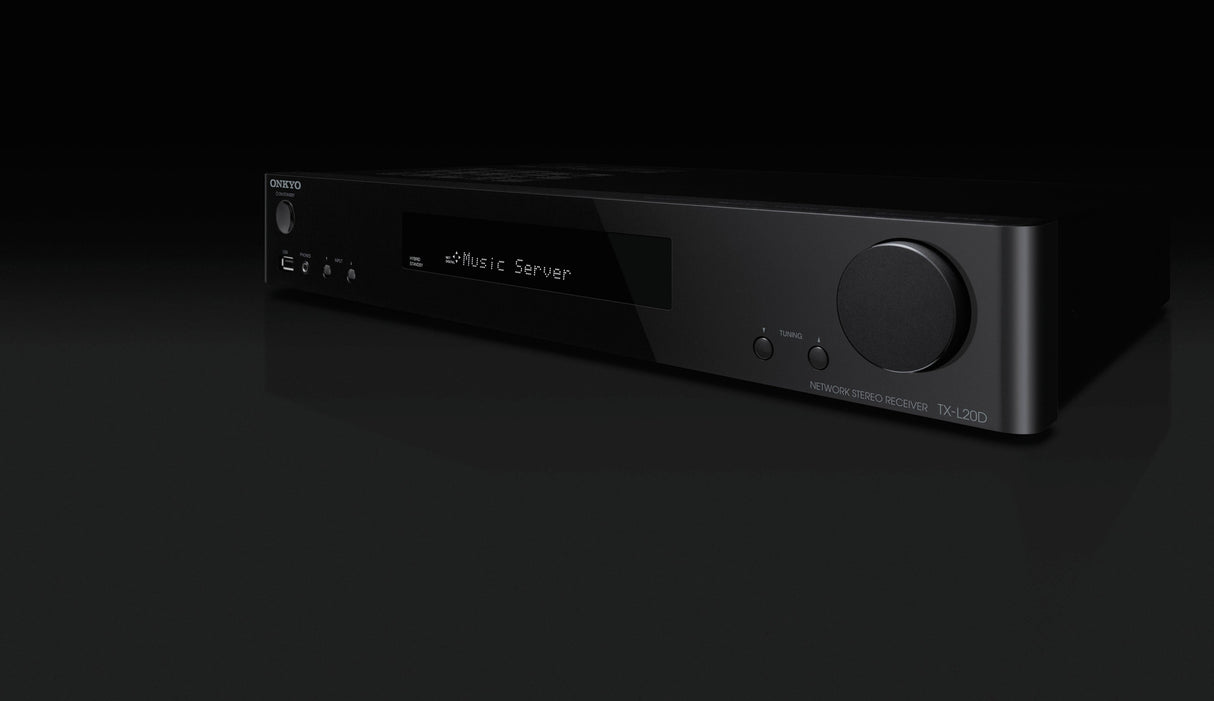

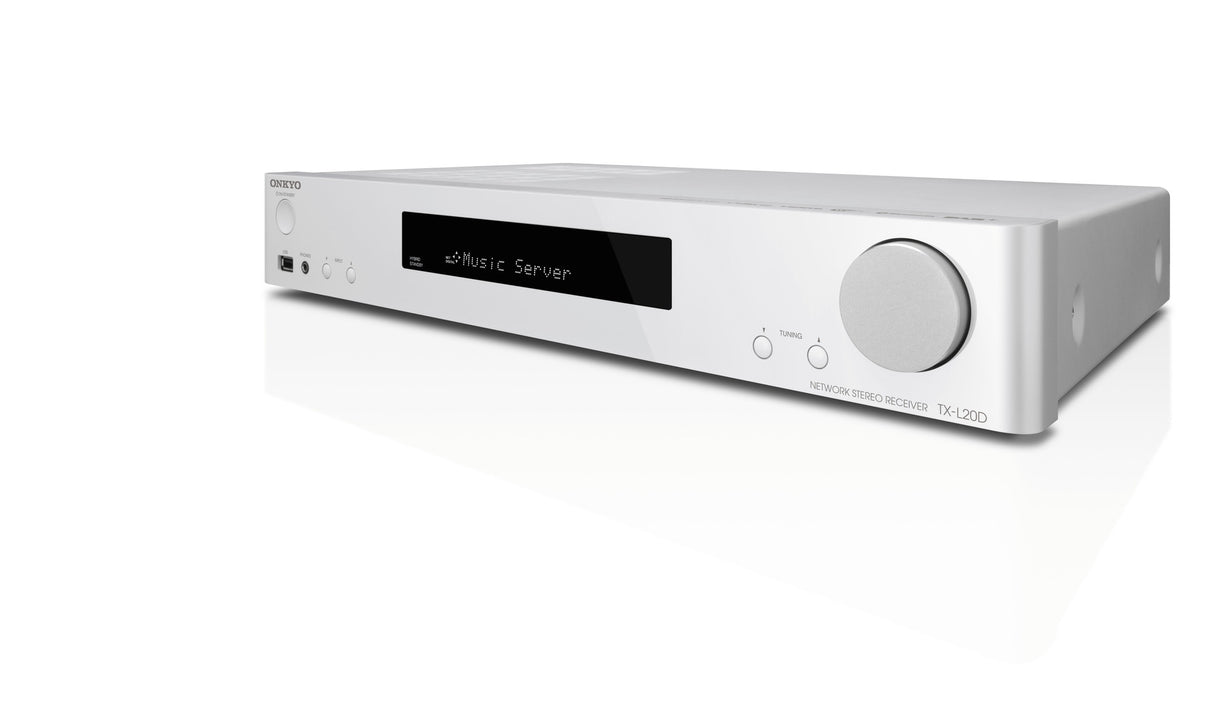

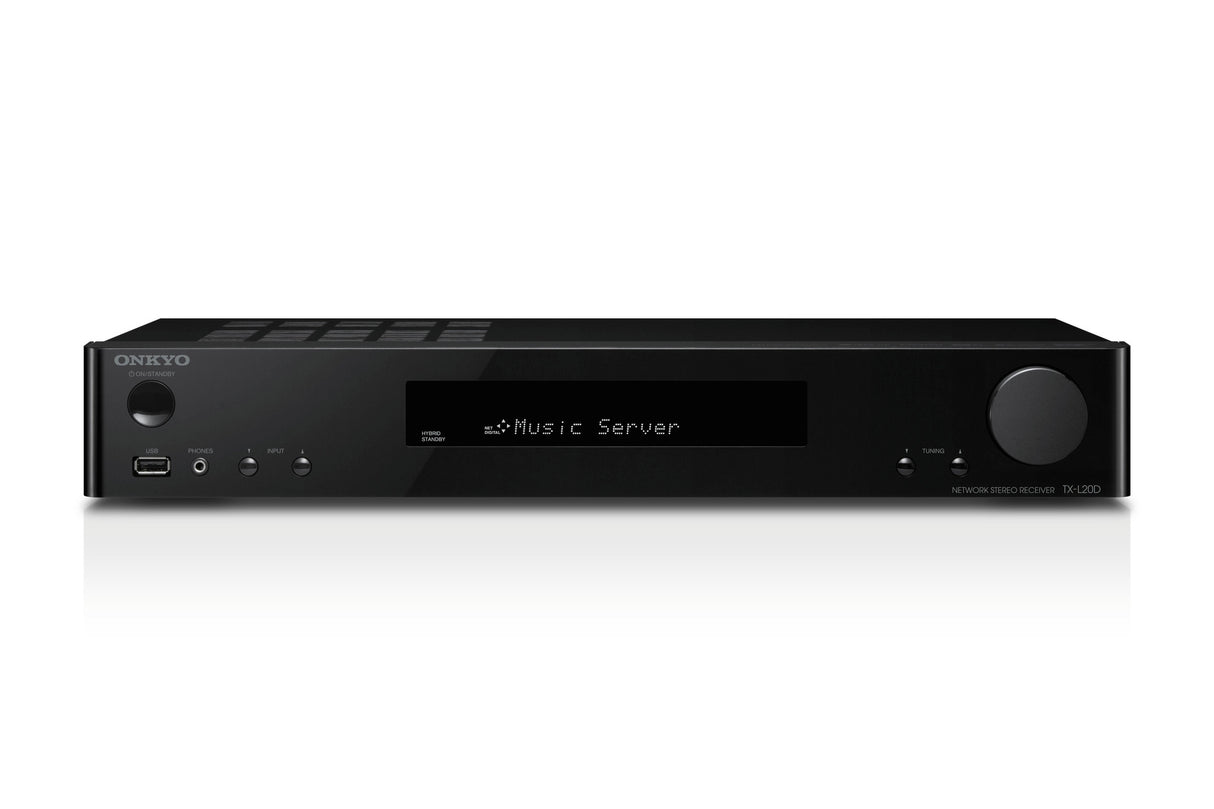

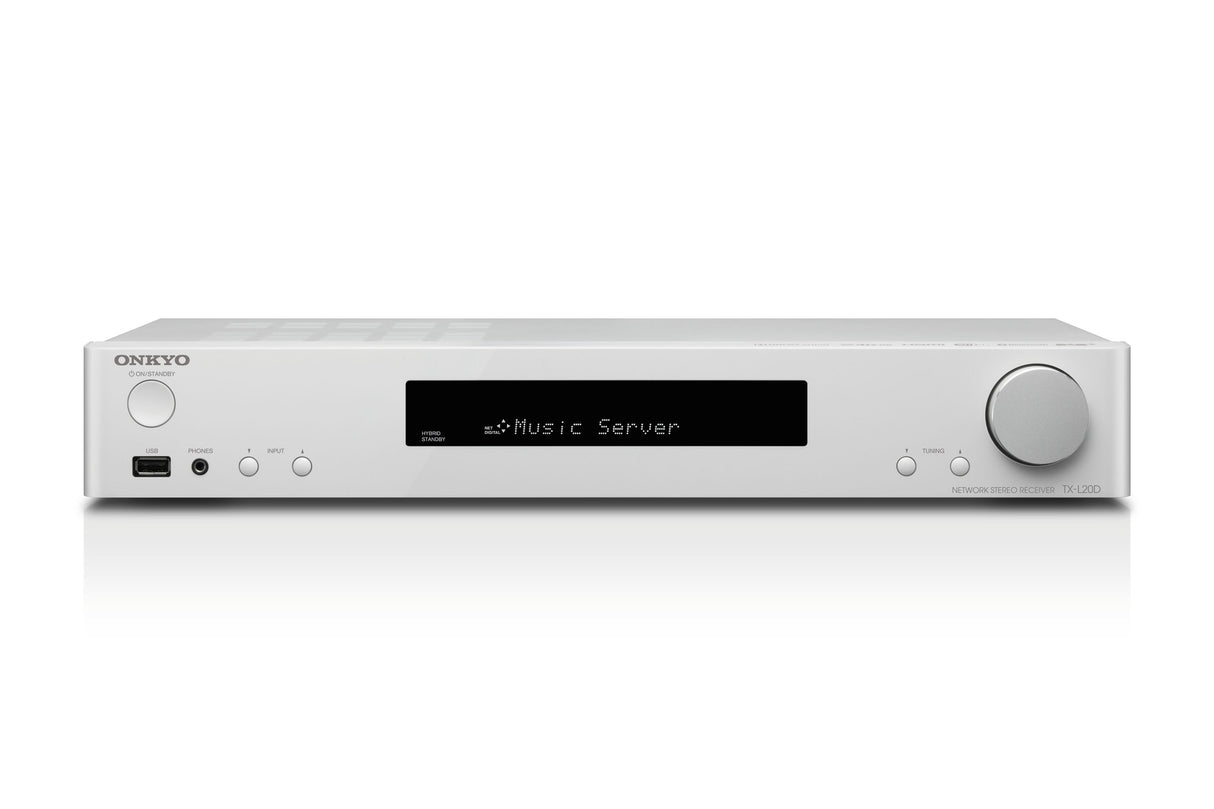

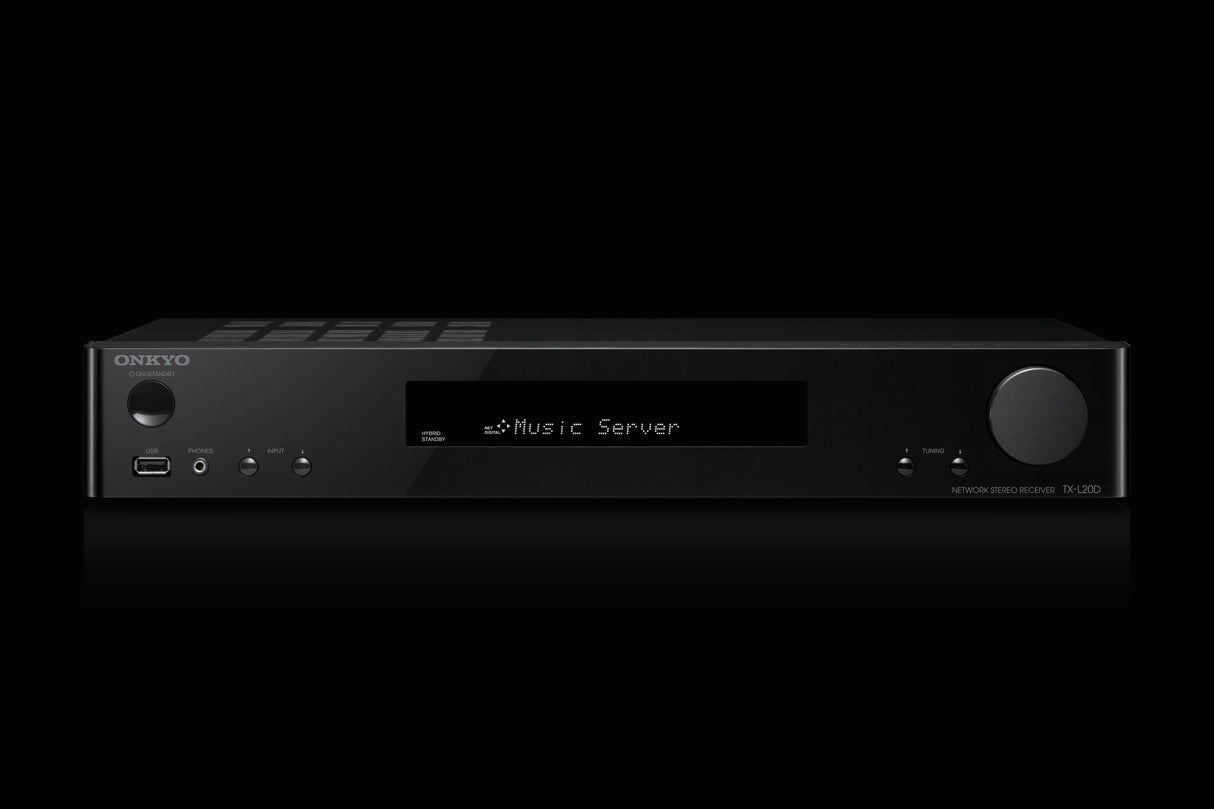

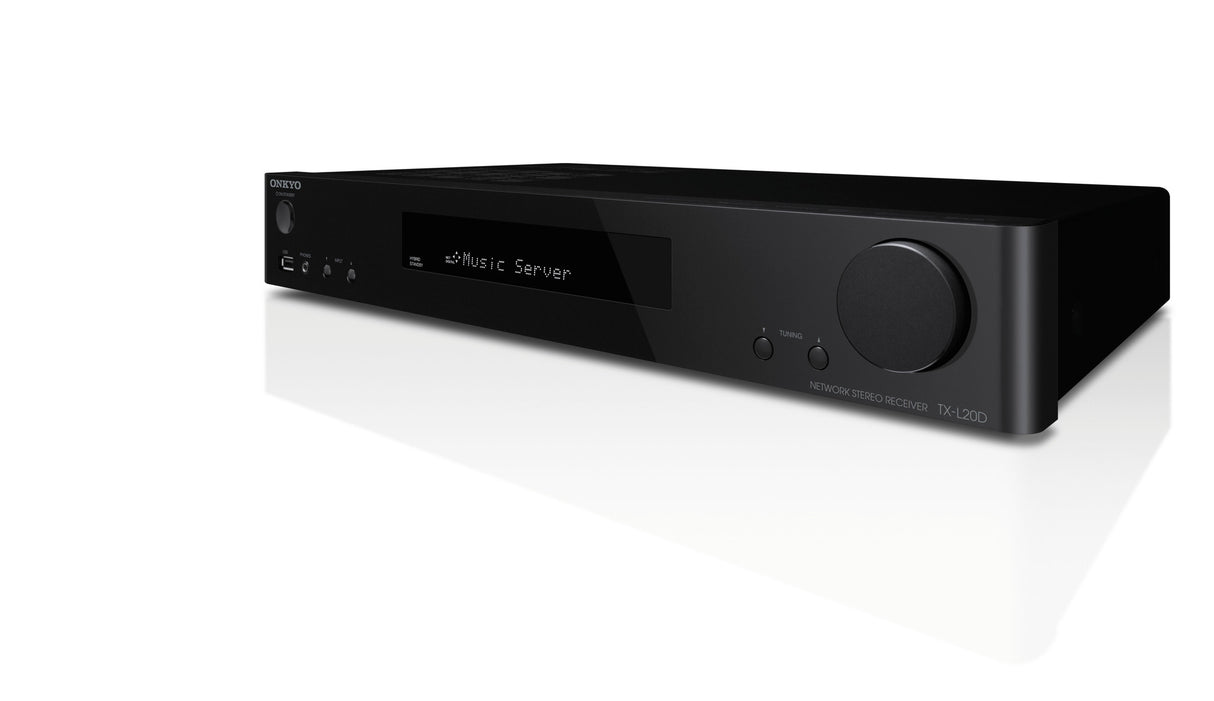

Network stereo receiver Onkyo TX-L20D, 2x85W

Extremely thin and compact stereo receiver TX-L20D, with digital tuner DAB/DAB+. Supports Google Cast, AirPlay and Spotify streaming applications, and has FireConnect multi-room technology.

• Power: 85W (4 Ω, 1 kHz, 1%)
• Resistance: 4 - 8 ohms
• Frequency range: 10 Hz - 40 kHz
• Supports applications: Google Cast, AirPlay, Spotify, TIDAL, Deezer, TuneIn
• Integrated: Wi-Fi and Bluetooth
• Digital tuner DAB/DAB+
• AccuEQ room acoustic calibration
• Onkyo control apps (app) for iPhone/iPod touch and Android devices
• Dimensions: 435 x 70 x 331.5 mm / Weight: 4 kg

At last, a slimline stereo solution that offers universal audio casting while adding 85 W x 85 W of musical power to any audio source... just add speakers. The TX-L20D packs high-value features into a stylish and unobtrusive amp that's smaller than some BD decks. A wealth of music is at your fingertips courtesy of Google Cast™, Spotify®, AirPlay®, and Bluetooth® wireless technologies. Select an album from a popular inbuilt streaming service, tune in to DAB+ and FM radio, or enjoy the simple pleasure of vinyl and CD with rich and powerful stereo sound. And with a single-cable HDMI® connection, you can bring TV entertainment to life with performance and usability that both sides of the couch will love.

• 85W x 85W (IEC)
• Google Cast™*1, AirPlay®, Wi-Fi®, and Bluetooth®
• Spotify®, TIDAL*1, Deezer, and TuneIn*2
• 4 HDMI® Inputs / 1 Output (4K/60p, HDCP 2.2)
• FireConnect™ Wireless Multiroom Audio

• 85 W x 85 W (4 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
• Google Cast™*1, Wi-Fi®, AirPlay®, Spotify®, TuneIn, Deezer, and TIDAL*2
• Bluetooth® Wireless Technology (Version 4.1+LE, Compatibility Profile A2DP 1.2/AVRCP 1.4)
• HDMI® Supports HDCP 2.2, 4K/60p UltraHD, 4:4:4 Color Space, HDR (High Dynamic Range), BT.2020 Color, Audio Return Channel, and CEC/CEC Multilink Control for Compatible Components
• Onkyo Controller App for iPhone®/iPod touch®*3 and Android™ Devices*4
• FireConnect™ Wireless Multi-room Capability with Optional Speakers*5
• 1080p Video Upscaling to 4K Resolution
• DAB+ and FM/RDS Tuners (40 FM/RDS Presets)
• *1 Service enabled via firmware update TBA. *2 Some services may require a subscription. Service availability may vary depending on region. *3 Requires iOS 8.0 or later. *4 Requires Android 4.0.3 or later. *5 FireConnect™ technology is enabled via firmware update. Details TBA. FireConnect™-compatible speakers required. Speakers are scheduled for release. Details TBA.

• Efficient 85 W x 85 W High-Power Amplification System
• Phase Matching Bass Technology for Cohesive Sound Reproduction

• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, xvColor™, LipSync, Dolby® TrueHD,
• Dolby® Digital Plus, Dolby® Surround, DTS-HD Master Audio™, DTS High Resolution, DTS 96/24, DTS-HD Express, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC/CEC Multilink
• DSD Decoding (5.6 MHz) via Network, HDMI, and USB
• SACD Playback via HDMI (5.6 MHz)
• CIRRUS 32-bit Digital Signal Processor
• Listening Enhancement Modes Including Late Night Mode and Loudness Management
• Pure Audio Mode
• Custom DSP Audio Modes for Movies, Music, and Games
• Double Bass Mode

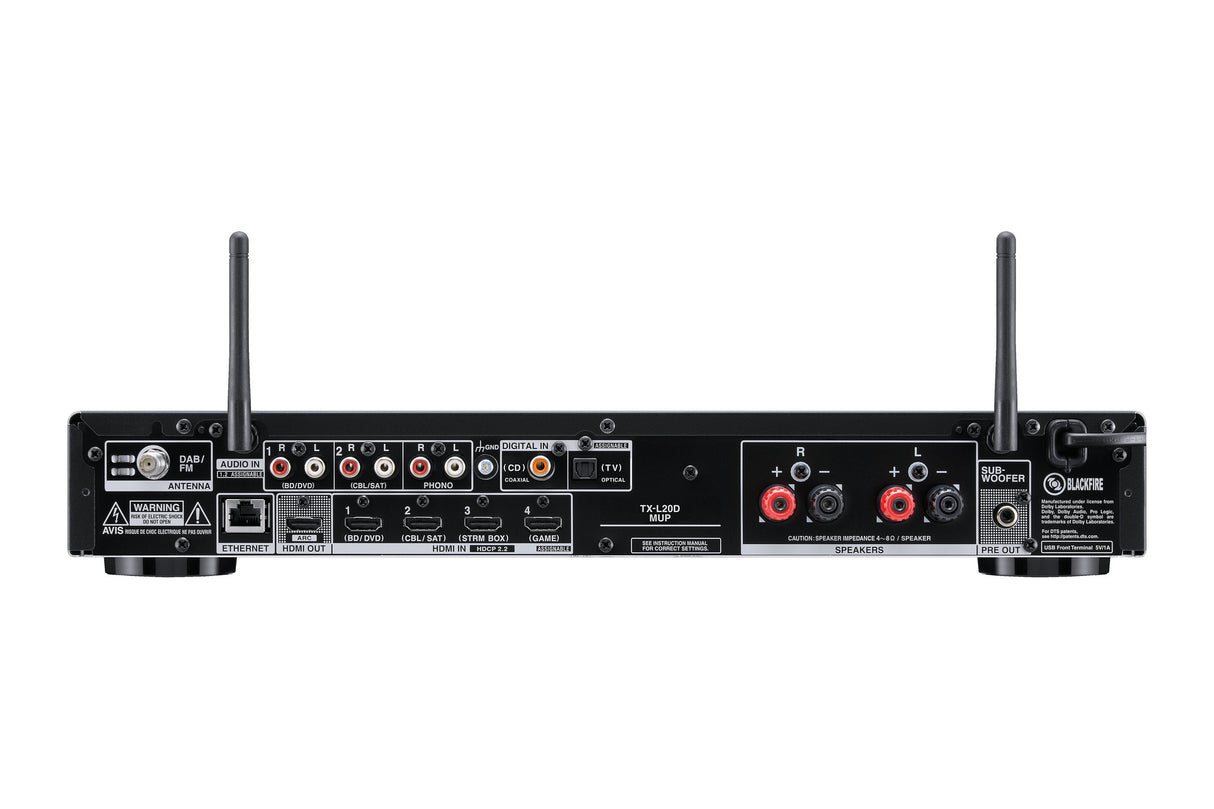

• 4 HDMI Inputs / 1 Output
• 2 Analog Audio Inputs (Rear)
• 2 Digital Audio Inputs (Optical/Coaxial)
• Subwoofer Pre-out
• USB Type-A Input (Front) for Audio Playback via Compatible USB Memory Devices
• MM Phono Input and Equalizer for Turntable Connection (Rear)
• Banana-plug-compatible Speaker Posts
• 3.5 mm Headphone Output (Front)

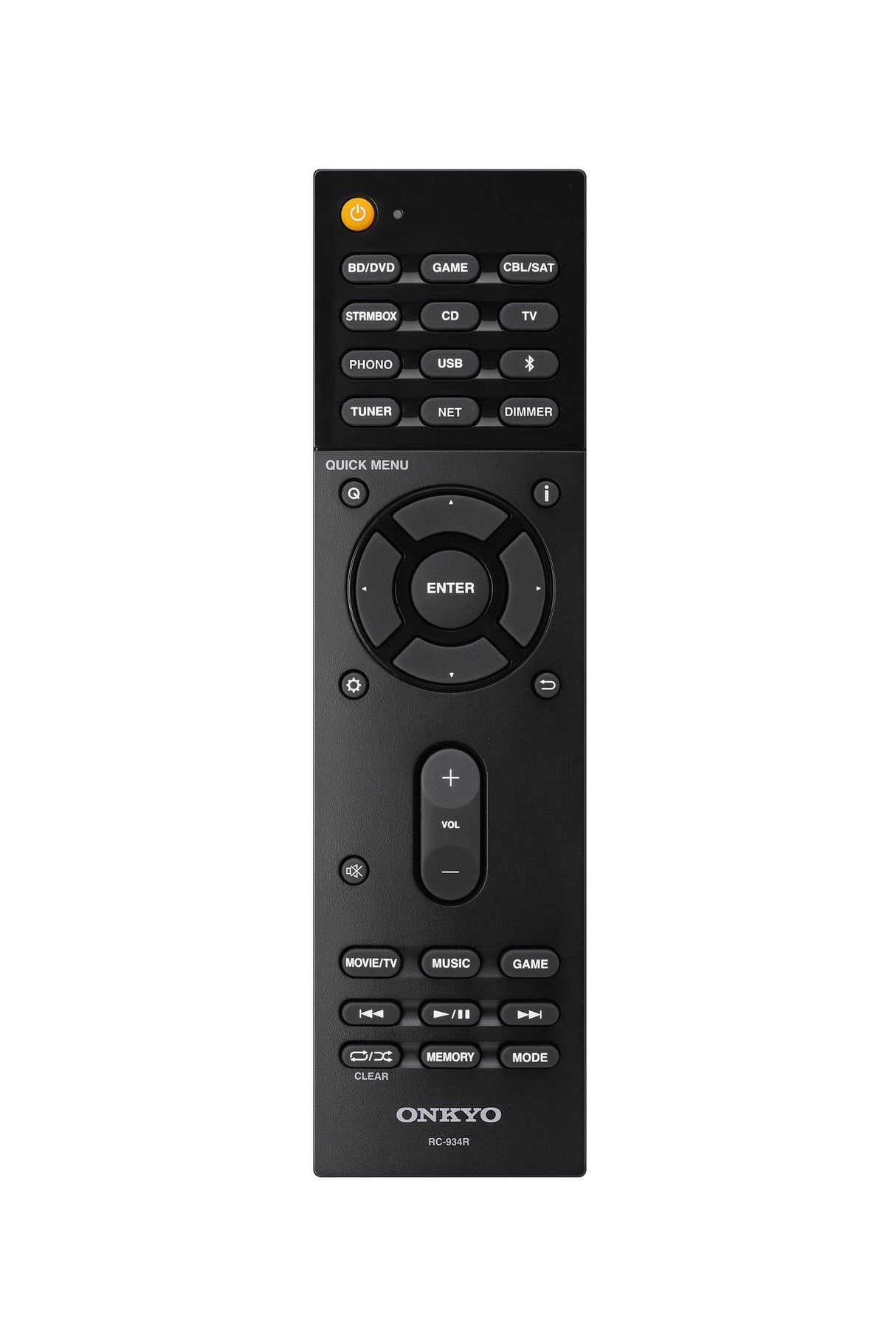

• Graphical User Interface and Simple Remote Controller
• Tone Control (Bass/Treble) ±10 dB for Front L/R Channels
• A/V Sync Function (500 ms at 48 kHz in 5 ms Steps)
• Sleep Timer and Auto Power Off
• Single-line Dimmable FL Display

• 4 HDMI inputs / 1 output / HDCP 2.2, 4K/60p UltraHD
• FM/RDS Tuner with 40 stations
• CIRRUS 32-bit digital signal processor
• HDMI supports 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, xvColor™, LipSync, Dolby® TrueHD
• Dolby® Digital Plus, Dolby® Surround, DTS-HD Master Audio™, DTS High Resolution, DTS 96/24, DTS-HD Express, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC/CEC Multilink
• Supports audio formats: FLAC 192/24, 192/24 WAV, ALAC 96/24, AAC, WMA, MP3 HD DSD (DSF / DSDIFF)
• CIRRUS 32-bit processor
• Power Output: Front L/R 85 W/Ch (4 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
• THD+N (Total Harmonic Distortion + Noise) 1% (Rated Power)
• Input Sensitivity and Impedance:
  200 mV/47 kΩ (Line)
  6 mV/47 kΩ (Phono MM)
• Rated RCA Output Level and Impedance: 1.0 V/470 Ω (Subwoofer Pre Out)
• Phono Overload 30 mV (MM, 1 kHz, 1%)
• Frequency Response 10 Hz–40 kHz/+1 dB, -3 dB (DSP Bypass)
• Tone Control:
  ±10 dB, 90 Hz (Bass)
  ±10 dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio:
  80 dB (Line, IHF-A)
  70dB (Phono MM, IHF-A)
• Speaker Impedance 4 Ω - 8 Ω
