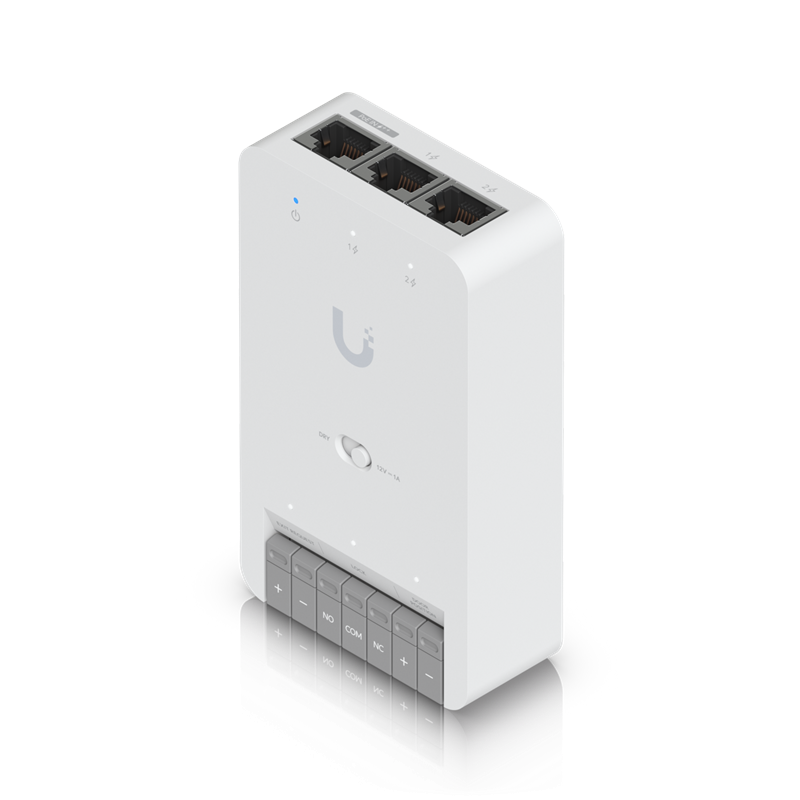

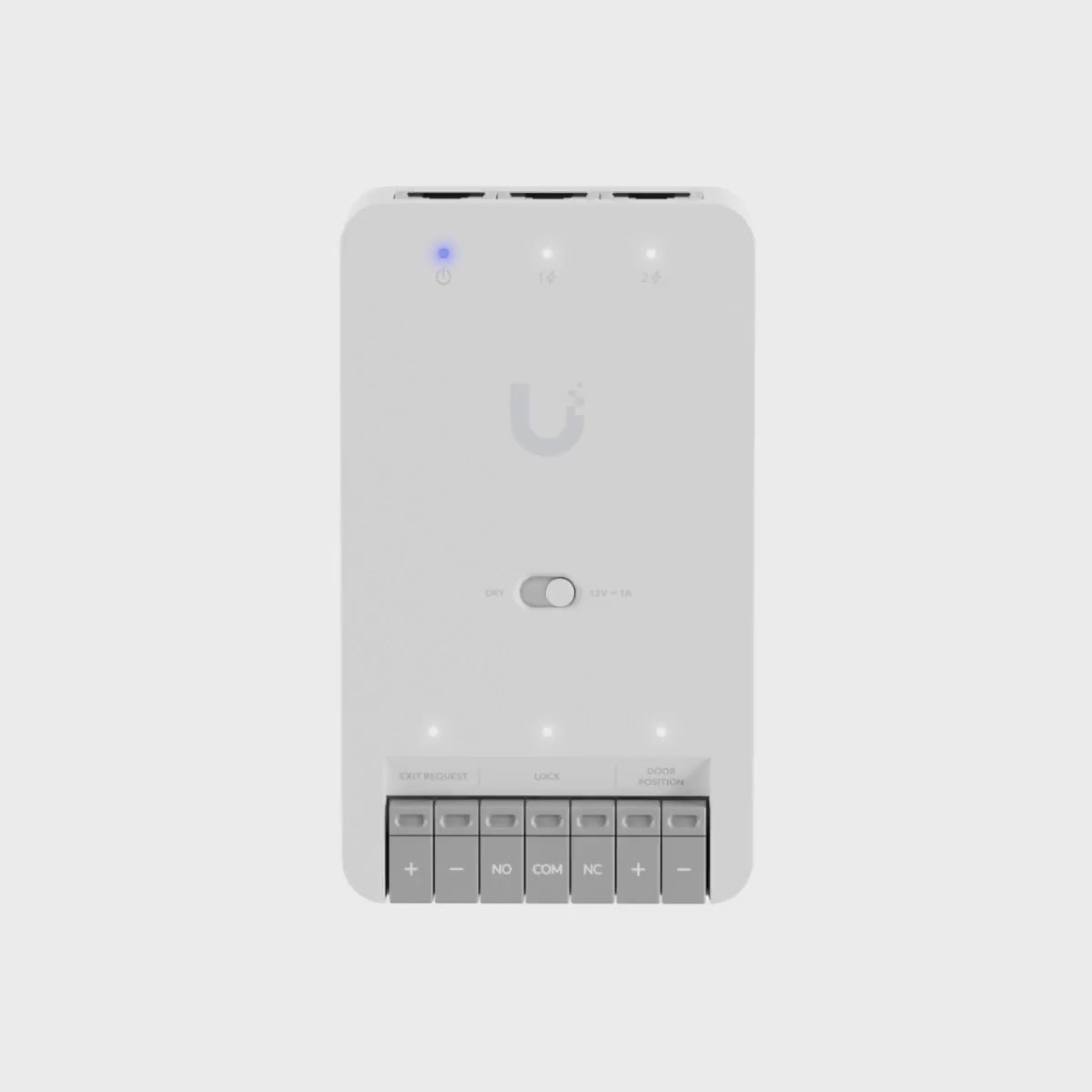

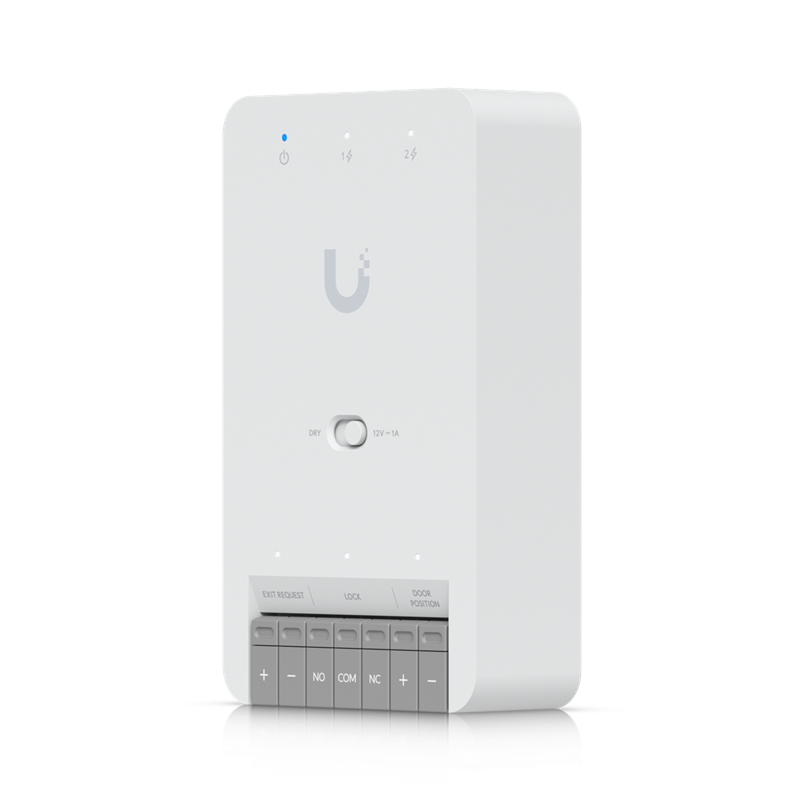

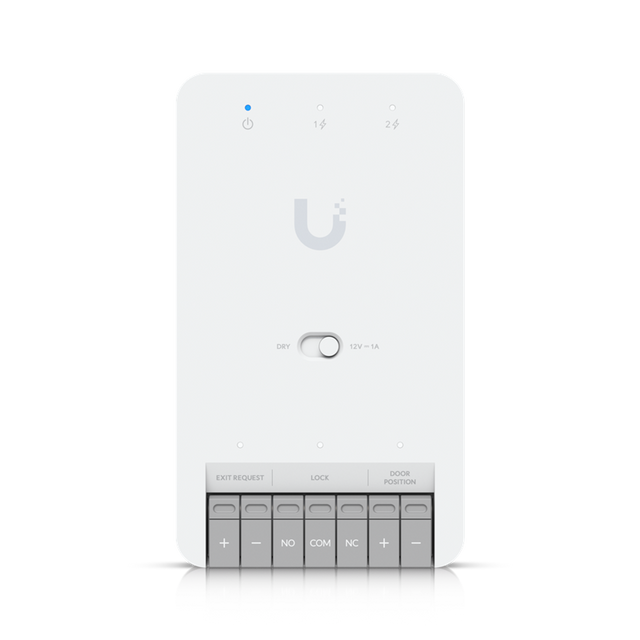

UBIQUITI UniFi Door Hub Mini, door control device

€126.00 EUR 129.00 €

UBIQUITI UniFi Door Hub Mini, door control device - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

The UBIQUITI UniFi Door Hub Mini is a compact and innovative solution for modern access control needs. Designed with integrated cutting-edge features, this device offers high reliability and ease of use, adapting to a wide range of business or home environments.

Compact Access Control Hub for a single door.

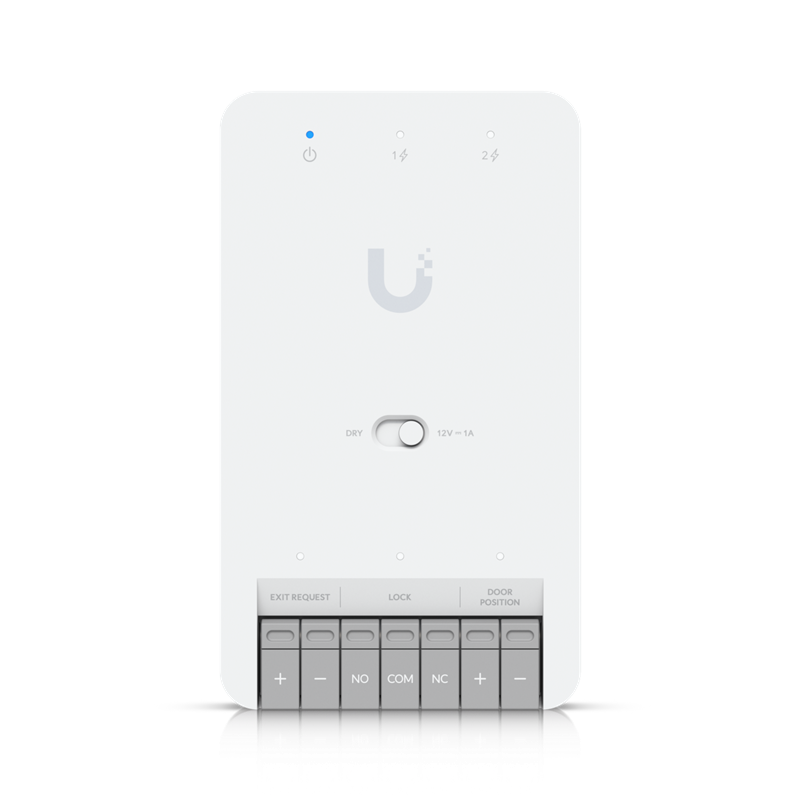

(1) Lock terminal (12V and Dry switchable)
(2) Additional inputs (sensor and button)
Connect and power via PoE++
Connect up to two UniFi Access Readers or Protect Cameras

Dimensions 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Weight 190 g (6.7 oz)
Enclosure material Polycarbonate, metal

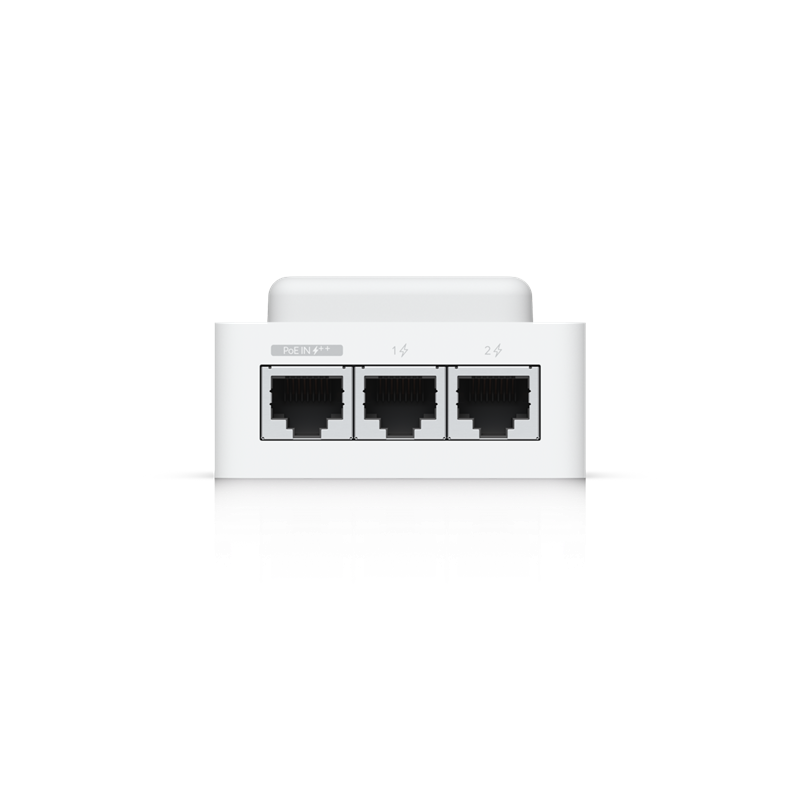

Networking interface (3) GbE RJ45 ports
Power method PoE++
Max. power consumption Without PoE output: 19W
With PoE output: 50W
PoE input 50V DC, 1A
PoE output (2) PoE ports, total 31W
LEDs White/blue

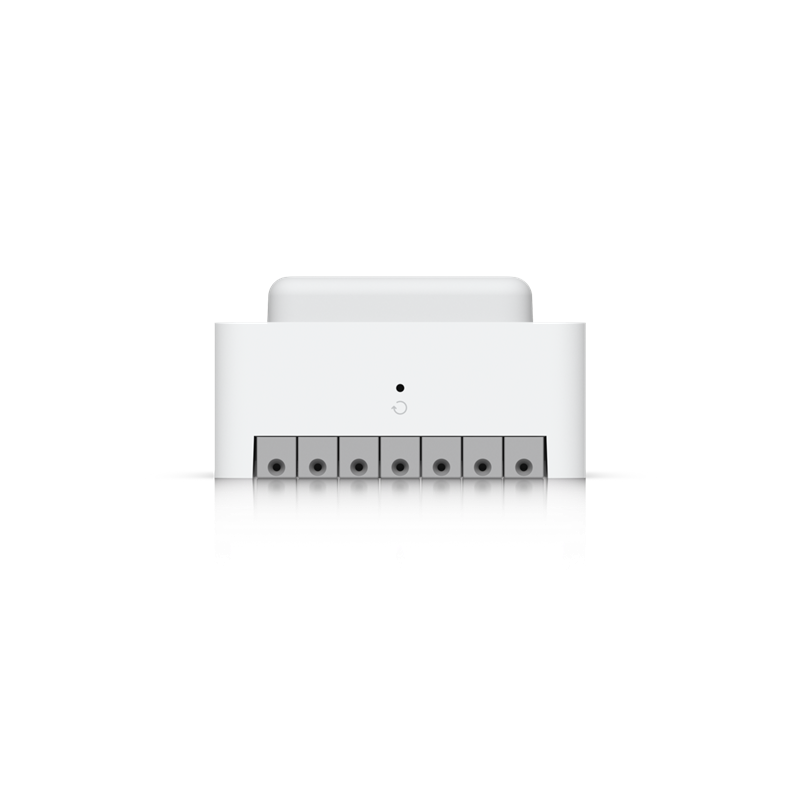

Button (1) Factory reset
(1) Dry/Wet switch
Digital input Request to exit/door position sensor
Output relay Dry: 30V DC, 1A
Wet: 12V DC, 1A
Recommended max. cable length
18 AWG
UACC-Cable-DoorLockRelay length 20
AWG length 22
AWG length 24
AWG length
UA-Lock-Electric
(400mA) 100m
(328 ft) 66 m
(217 ft) 42 m
(138 ft) 25 m
(82 ft)
UA-Lock-Magnetic-270kg
(800mA) 46m
(151 ft) 30 m
(98 ft) 20 m
(66 ft) 12 m
(29 ft)
UA-Lock-Magnetic-540kg
(500mA) 80m
(262 ft) 51 m
(167 ft) 32 m
(105 ft) 20 m
(66 ft)
Other locks
(1A) 36 m
(118 ft) 24 m
(79 ft) 15 m
(49 ft) 9 m
(30 ft)
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site.
The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
Operating environment Indoor use only
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 90% non-condensing
Software information The software version of a product can be checked at https://unifi.ui.com
Certifications CE, FCC, IC
Document number, and issue date and/or revision level UA-Hub-Door-Mini, V01
Management application UniFi Access: Version 2.5.2 and later
