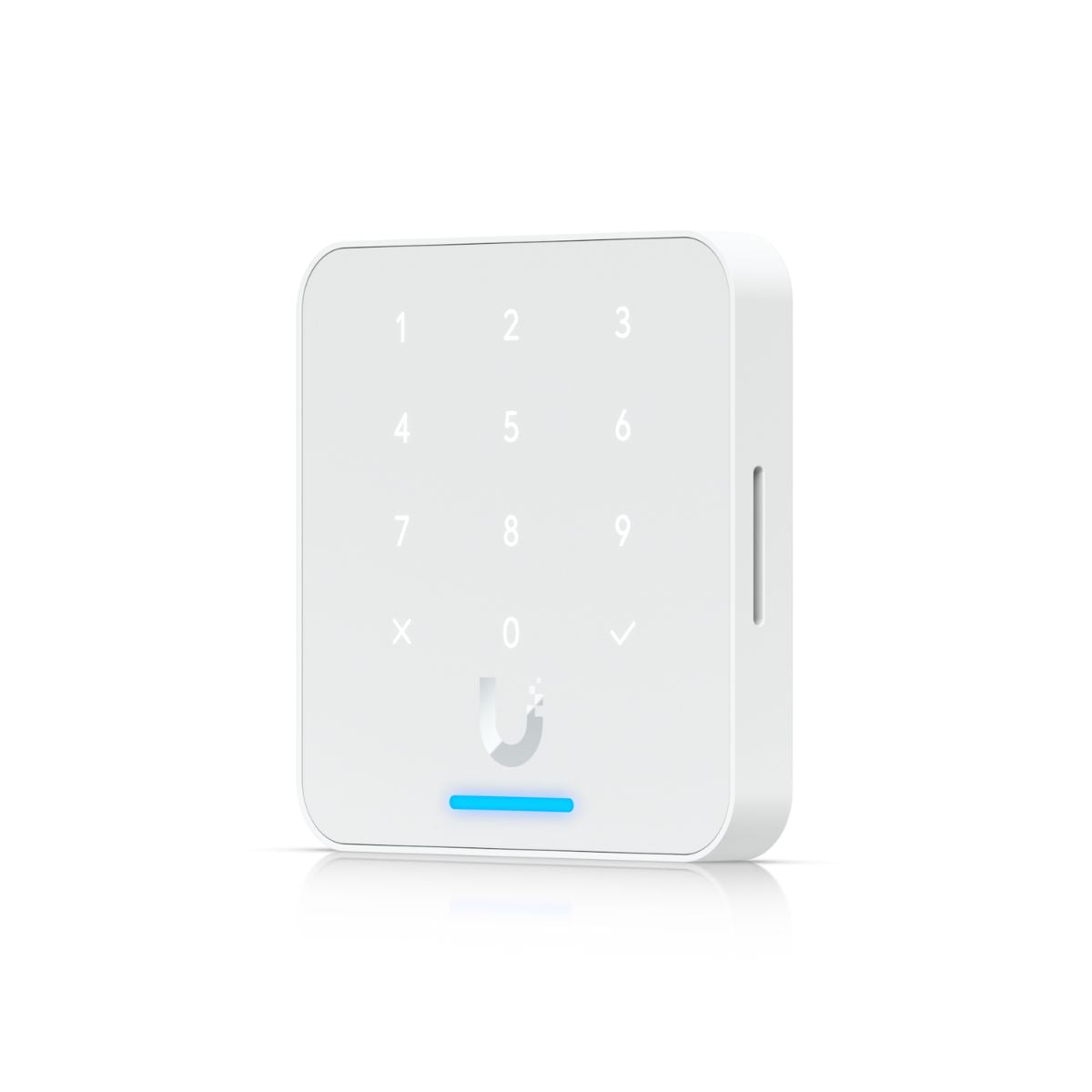

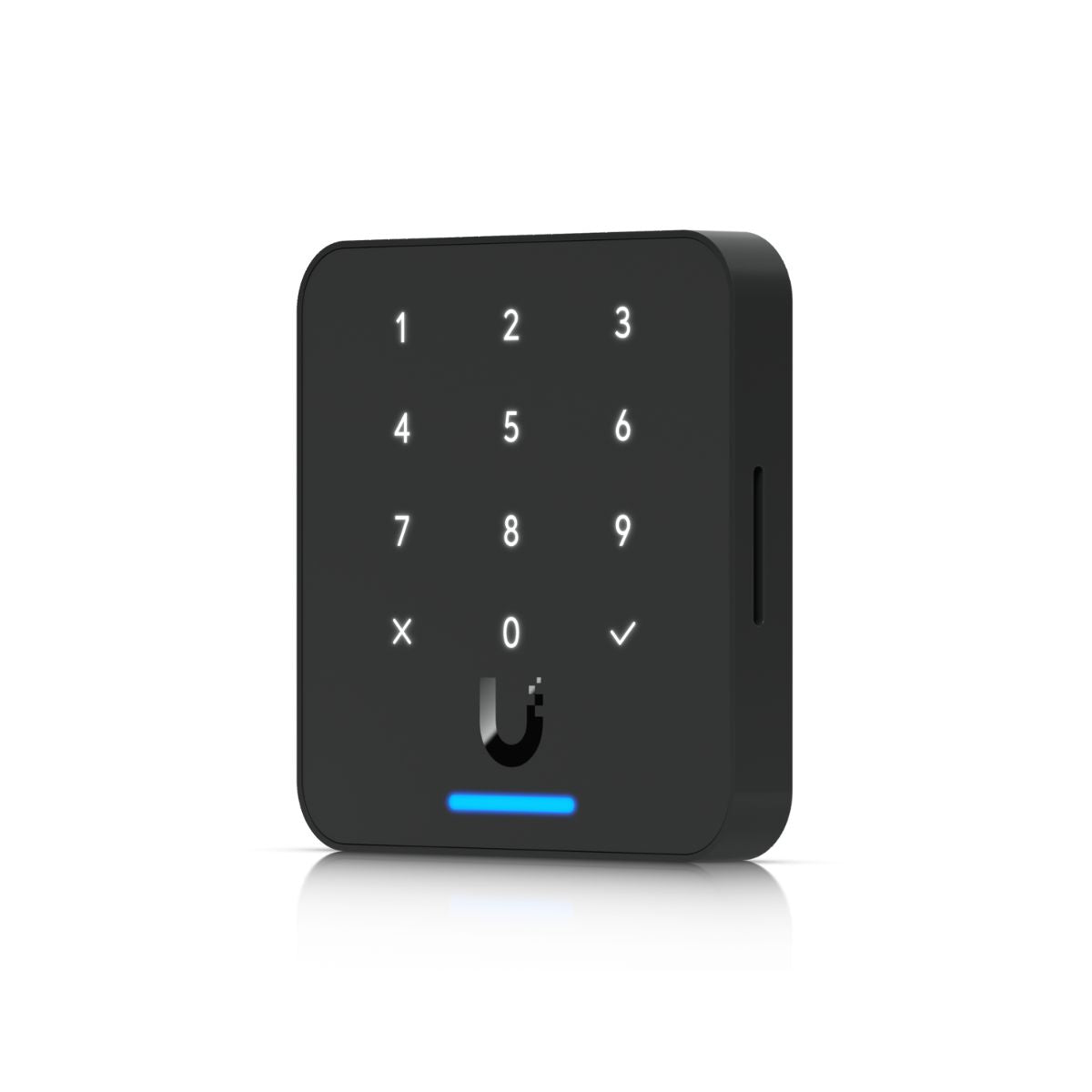

UBIQUITI UniFi Reader Flex, NFC card reader with built-in keyboard

The UBIQUITI UniFi Reader Flex is a reliable, third-generation NFC card reader with a built-in keypad for increased security and versatility. The reader supports multiple unlocking methods: PIN code, NFC cards, UniFi Identity mobile app, and Apple Touch Pass. Designed to For maximum convenience, the device provides entry and exit notifications, and its performance remains high even in wet conditions or when using gloves.

Third-generation NFC card reader with a keypad and Apple Touch Pass support.
Unlock with the keypad, NFC card, UniFi Identity mobile app, or Touch Pass
Provides entry and exit greeting messages
Push button performance (Usable with moisture or most gloves)
IP55-rated weather resistance (-30 to 60°C)
Connects to UniFi Access Hub via PoE

Dimensions 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6")
Weight 165 g (5.8 oz)
Enclosure material Polycarbonate, glass, aluminum alloy
Mounting material Polycarbonate, aluminum alloy
Mounting Wall, gang box, junction box
Weatherproofing IP55
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
NFC
Power method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 44–57V DC
Max. power consumption 5W
Sensor (12) Capacitive buttons
Speaker (1) 8 ohm, 1W
LEDs R/G/B/W (Learn more)
Button (1) Factory reset
NFC frequency 13.56 MHz
NFC reading range < 30 mm
NFC technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Operating environment Outdoor use
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 90% non-condensing
Software information The software version of a product can be checked at https://unifi.ui.com
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site.
The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G3-Flex V01
Management application UniFi Access: Version 3.0.15 and later
