Video recorder - Radar detector Neoline X-COP 9100s GT, Free installation

• GATSO type radar detection (Latvia)
• MULTIRADAR (MULTA RADAR CD/CT) DETECTION!!!

This device is the most advanced of all devices available in Europe.

Even fewer fake deals.
It also reports on Unmarked cars and Caddies, as well as other radars.

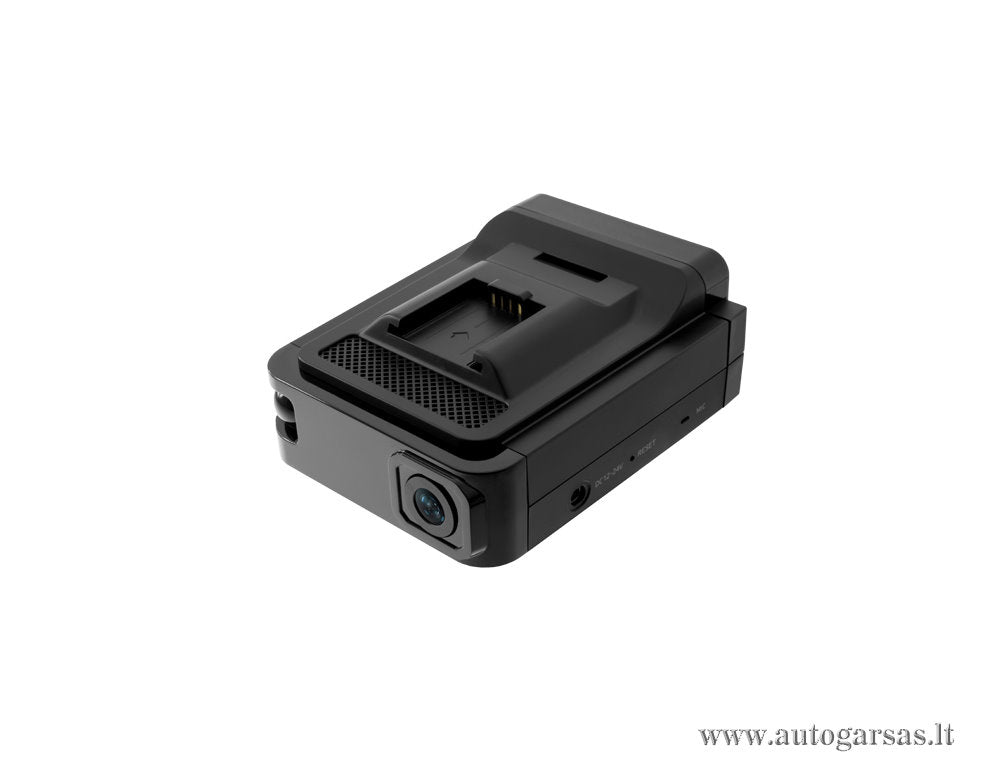

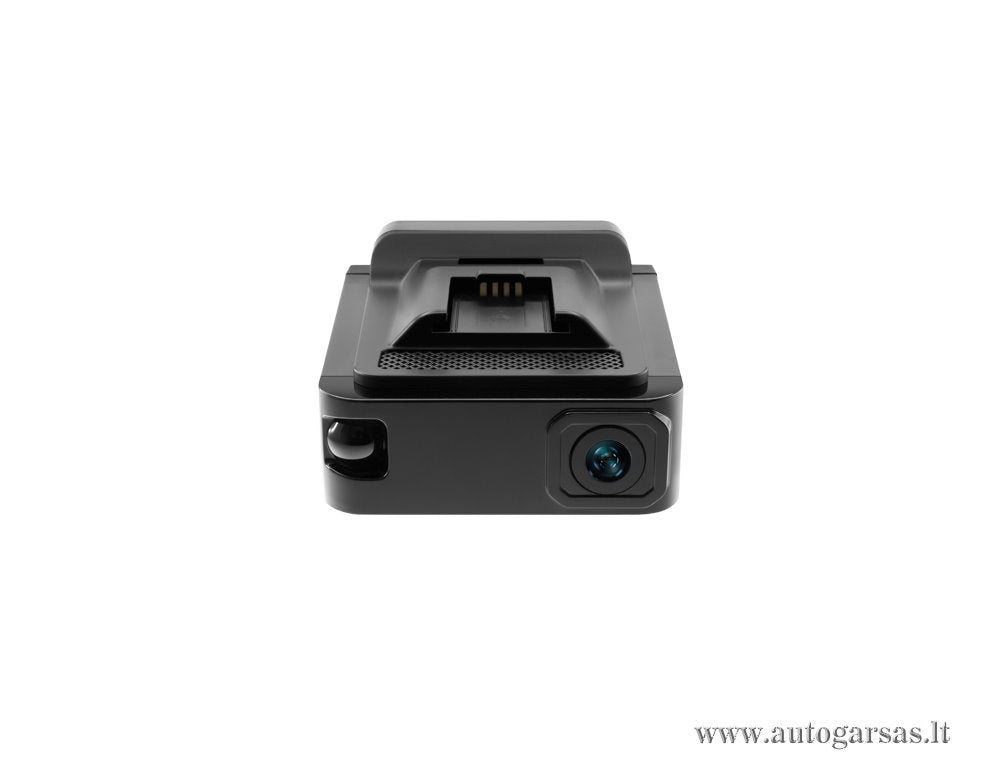

Neoline X-COP 9100s - This is a hybrid device Video recorder with GPS database and radar detector. It is characterized by a unique Z filter that will reduce the number of false signals. Recognizes and blocks false signals such as car blind zone detectors, etc. The main difference between this technology and similar systems is that the Z-signature filter does not block real police radars. The extremely sensitive EXD Plus module is an internal module that allows you to detect radars from a maximum distance in the K and Ka ranges, and also detects "back-firing" radars!

• IPS screen 2 inches
• Video resolution: Full HD 1920x1080 (30 k/s)
• Viewing angle: 135° - 6 glass lenses
• Ambarella processor, SONY matrix
• Long-range ultrasonic module EXD Plus (K and Ka range)
• GATSO radar detection (G band)
• Multa Radar CD, CT and CD motion detection (M range)
• Detection of signals of many frequency ranges (K, M, Ka, Laser, Strelka).
• The video recorder is fixed with a 3m bracket that has an active power connection "Smart click +"
• Realistic and clear video with maximum detail during day and night
• Quick menu on the main screen
• The device supports Micro SD memory cards up to 128 GB, class 10
• DETECTION and WARNING about average speed measuring sections

Software Update (RevM67)

GPS database update 05/11/2023

PRODUCT IS IN LITHUANIA!

Recommended settings for the X-COP 9100s to make the detector work as efficiently as possible!!!

How to update GPS databases? For Neoline X-COP holders

Quick User Guide.

Neoline X-COP 9100s presentation.

 

 

EXCEPTIONAL DAY AND NIGHT FILMING QUALITY

Powerful Ambarella processor, multi-lens glass optics and Sony matrix ensure high-quality videos. A wide viewing angle of 135 degrees allows you to see 4 traffic lanes and roadsides in the video. Automatic night mode helps you see all the details in dark areas of the road. This mode is activated based on the time settings in the menu.

UNIQUE EXD PLUS MODULE

The device has an integrated sensitive module EXD Plus, which ensures the maximum distance when detecting police radars in the K, Ka and M wave ranges. This detector is especially effective in Turbo mode as it reports low power radars facing the rear of the car such as Gatso, Multanova 6F, Multa Radar, etc. Turbo mode will automatically turn on when a certain speed is reached.

MULTIRADAR (MULTA RADAR CD/CT) DETECTION

Neoline X-COP 9100s is the world's first hybrid device that detects Multa Radar CD and CT. These radars are widely used in Europe. They have a unique signal structure that requires a special platform for their detection. For the convenience of the user, the device detects the Multiradar with a special M wave, so that the user is informed as accurately as possible which radar is being used.

DISABLING THE RADAR MODULE

When developing the Neoline X-COP 9100s, we took into account the legislation of different countries regarding the use of radar detectors. Therefore, the radar module can be easily turned off with a simple hand movement, then the device will continue to function as a GPS informant. In addition, this device has very effective protection against Specter 4 and Specter Elite Radar Detector Detector (RDD) devices or otherwise known as scanners widely used in Europe.

Z FILTER

In order to eliminate false reports, especially those caused by other cars' blind spot sensors, Neoline's has implemented a Z filter. Unlike similar filter technology, this one does not block real reports of real police radars at the same time.

INTERNATIONAL GPS DATABASE

Neoline devices have an integrated database of stationary radars, which includes more than 100,000 radars worldwide (Europe, USA, Israel, Middle East, Turkey, Australia, etc.). The database is regularly updated on the manufacturer's website neoline.com. The hybrid has integrated GPS and GLONASS modules for faster and more accurate positioning.

TRAFFIC CAMERAS

Neoline X-COP 9100s reports all traffic cameras and provides advance warning for the following control types:
- When driving in a public transport lane
- Rear-viewing radars
- Driving out on a curve
- When driving through intersections/traffic lights
- When driving on pedestrian crossings

HAND LEVER CONTROL

Simply hold your hand in front of the hybrid's display while leaving the radar module running to turn off the audible notifications. Motion Control technology responds to gestures and will turn on the sound again 6 seconds after the message ends.

FREQUENCY SELECTION

The hybrid menu has a frequency selection function. Depending on the country in which you will use the hybrid, it will change the settings on different frequency bands and filter false messages more effectively. For advanced users, detailed customization of the hybrid is possible by adding and disabling some frequencies using a setup file.

NEW X-COP MODE

The new X-COP mode is closely related to the automatic switching of frequency ranges, sensitivity modes and false alarm filters depending on the speed of the car.

SMART PROCESSING OF TRIP TRACK CAMERAS

A unique feature of Neoline X-COP 9100s is the intelligent processing of Trip Track cameras.
The algorithm installed in the hybrid notifies you when you leave the monitored zone, reports speeding, correctly processes other GPS points in the monitored zone, etc.

К WAVE SETTINGS

Experienced users can adjust the K-wave settings depending on knowing what frequencies officers work in the region they are using.
Wide - Frequency 23.900 to 24.250 GHz - Standard setting to detect all police radars in K wave.
Narrow - frequency from 24.050 to 24.195 GHz - reduce the amount of false reports.
Super narrow - frequency from 24.050 to 24.125 GHz - reduce the amount of false reports to a minimum.

K WAVE OFF IN CITY MODE

User can disable K-wave in city mode. This is relevant when driving in large cities where there are no mobile radar systems, but there are many false reports. After turning off the K-wave in city mode, you will receive information only from the GPS database. Don't forget to switch to highway or turbo mode when you leave the city.

VOICE ANNOUNCEMENTS ON 45 TYPES OF POLICE RADARS

Neoline X-COP 9100s will report the type of police radar, the speed limit for this section, provide information about the distance to the radar and the average speed where it is measured.
The database includes 45 different radar types. Each new radar is immediately added to the database and will be displayed after the database is updated on the device.

SILENT AND DANGEROUS ZONES

You can add special zones in the hybrid database. A silent zone is an area with a large number of false reports. Such areas are often found near gas stations and shops with automatic doors.
A dangerous zone is an area where there are police radars and is not yet marked in the database, heavily loaded intersections, speed bumps, etc.
After marking these places, the hybrid will immediately notify you next time. The radius of these zones can be set in the device menu.

SPEED BASED MESSAGES

GPS without sound notification - when the car speed will be lower than the permitted speed, with this parameter sound and voice notifications will not be played.
RD without sound notification - if the car's speed will be lower than the permitted speed after enabling this parameter, the messages from the radio module will not be reported.

ENABLING AND DISABLING SPECIFIC GPS POINTS

The flexibility of the settings allows you to enable or disable specific GPS points, such as traffic control posts, Trip Track system cameras, standard Strelka radars, inactive radars, etc.

MAXIMUM SPEED

This function helps you not to exceed the speed limit set by you. You set a speed limit and when you exceed it, you get an audio warning about speeding. This function is not connected to the GPS base and works without the detection of police radars.

GPS MESSAGE DISTANCE

The distance of the warning messages to the radars in the GPS database can be set according to your wishes: 1) Based on the value of the database - the manufacturer assigns a suitable value in meters to each camera in the GPS database that is responsible for the warning. 2) According to this set value, a value will be assigned to each camera in the GPS base - 300-900m 3) Depending on the speed of the car - the faster you drive, the greater the distance of the radar report.

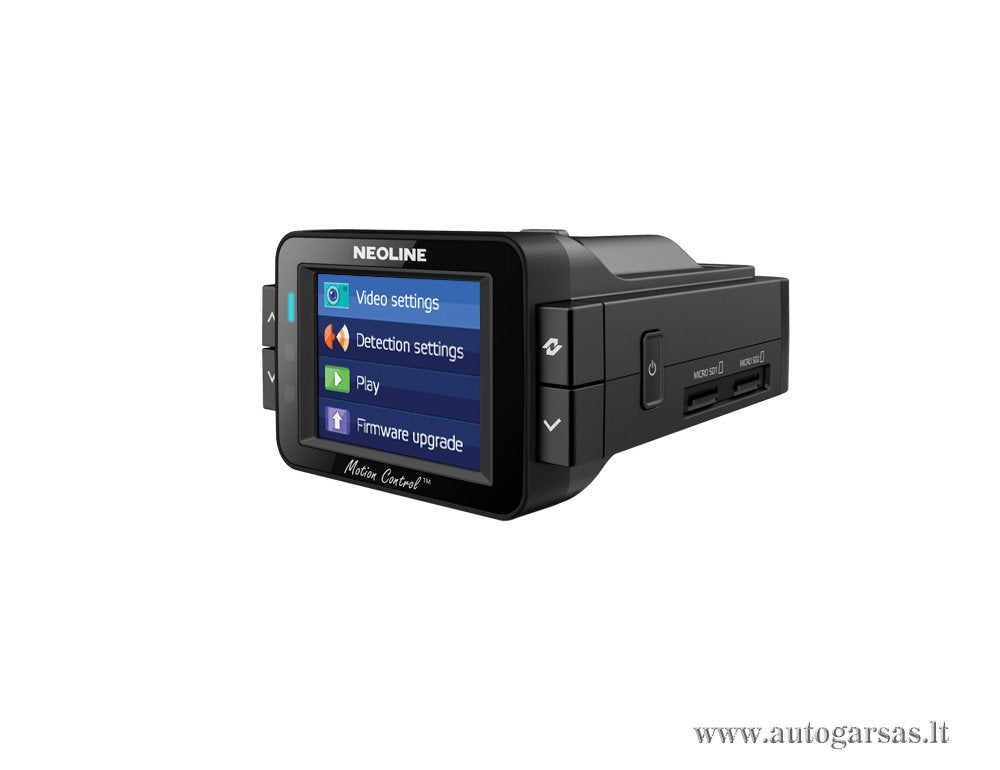

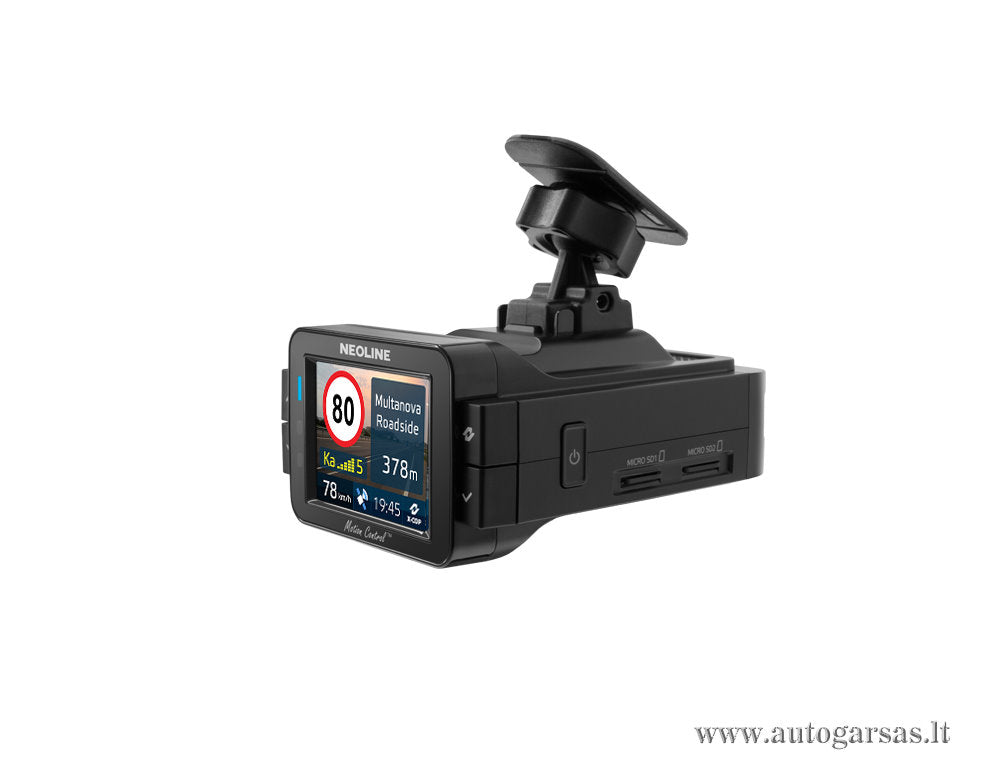

IPS SCREEN AND EASY TOUCH CONTROLS

The Neoline X-COP 9100s has a new bright IPS display that is perfectly readable from any angle.
The EASY TOUCH interface ensures the ability to view and manage videos. In detection mode, the user receives complete information about:
- type of police radar
- the type of traffic control
- the distance to the GPS point
- average speed
- speed limit
- type of incoming signal
- signal strength
- speed the current speed of the vehicle
- current time
- a dangerous and quiet zone

HIDDEN CONFIRMATION

Mounting the hybrid at the top of the windshield makes it almost invisible from the outside. At the same time, the power cable is connected directly to a compact holder with contacts. This determines the convenience of removing the device and the possibility of avoiding any vibrations when driving on a rough road.

PARKING MODE

Neoline X-COP 9100s can automatically switch to parking mode when you turn off the ignition. This function requires an active cigarette lighter socket or a special cable and direct connection to the car's electrical source.

DEMO MODE

For the convenience of the user, the demo mode shows the functions of the hybrid (sound and voice messages, indications on the screen).
The device will exit demo mode when all warnings and indication cycles are displayed.

MADE IN KOREA

The Neoline X-COP 9100s is a product of Korea's leading automotive electronics experts to improve driver safety.
Neoline X-COP 9100s is a perfect combination of Korean quality and reliability.

OUTSTANDING DAY AND NIGHT FILMING QUALITY

Powerful Ambarella CPU, multi-lens glass optics and a Sony sensor provide high quality video. A wide viewing angle of 135 degrees allows four road lanes and a roadside to fit into the frame. Automatic Night mode helps to see all the details on the dark sections of the road. The mode is activated based on the time settings in the menu.

UNIQUE EXD PLUS MODULE

The device has an integrated ultrasensitive module EXD Plus, which provides maximum distance of police radar detection in K, Ka and M bands. The device is particularly effective in the Turbo mode, warning about low-power radars directed towards the back of the car, such as Gatso, Multanova 6F, Multa Radar, etc. Turbo mode will turn on automatically when a particular speed is reached.

MULTA RADAR CD/CT DETECTION

Neoline X-COP 9100s is the world's first hybrid which detects Multa Radar CD and CT. This kind of radar is widely used in Europe. These radars have a unique signal structure requiring a specific platform for its detection. For the user's convenience, the device detects Multa Radar in a special M band, so that the user will be warned of such radar.

SWITCHING OFF THE RADAR MODULE

Creating the Neoline X-COP 9100s, we took into account the legislation limitations of different countries regarding the use of radar detectors. Thereby, the radar unit can be easily disconnected by a simple hand movement and the device will continue to work as a GPS informer. Additionally, the device has a highly effective protection against Specter 4 and Specter Elite RDD devices, widely used in Europe.

Z-SIGNATURE FILTER

To eliminate false alerts, particularly from the blind spot detection sensors of other cars, Neoline's own development is used - Z-signature filter. Unlike similar technologies there is no false blocking of real police radars.

WORLDWIDE GPS DATABASE

Neoline devices have built-in radar and camera database which includes data of more than one hundred thousand radars around the world (Europe, USA, Israel, Middle East, Turkey, Australia, etc.). The database is updated regularly on neoline.com. The hybrid has built-in GPS and GLONASS modules for the fastest and most accurate locating.

TRAFFIC CONTROL CAMERAS

Neoline X-COP 9100s notifies about all traffic control cameras and warns in advance about such types of control as:
- Driving on a public transport lane
- Radars detecting «in the back»
- Driving out on a curve
- Driving on a crossroads / traffic light
- Driving on a pedestrian crossing

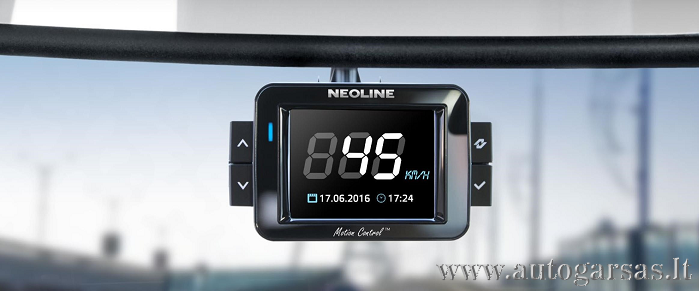

MOTION CONTROL

To turn off the audio and voice alerts when approaching the radar, one must simply hold a hand in front of the hybrid screen. The Motion Control technology reacts to gestures and will turn on the sound again in 6 seconds after the notification is complete.

FREQUENCY SELECTION

The hybrid's menu contains a frequency selection function. Depending on the country of use, the hybrid changes the detection settings in different frequency ranges, and also cuts off false signals more effectively. For expert users, a detailed adjustment of the hybrid is possible, up to and including the disconnection of particular frequencies within the K and Ka ranges, using the Setup file.

NEW X-COP MODE

The new X-COP mode is closely interrelated with automatic switching of frequency ranges, sensitivity modes and false response filters, depending on the speed of the car.

INTELLIGENT PROCESSING OF TRIP TRACK CAMERAS

A distinctive feature of Neoline X-COP 9100s is the intelligent processing of Trip Track cameras.
The algorithm installed in the hybrid sounds an alert when you leave the monitored area, notifies about speeding, correctly processes other GPS-points in the controlled area, etc.

К BAND SETTINGS

Experienced user can adjust K band based on knowledge of the frequencies in which police radars work in the region of use.
Wide – frequency from 23.900 to 24.250 GHz – the standard setting for detecting all police radars in the K band.
Narrow – frequency from 24.050 to 24.195 GHz – to reduce the number of false responses.
Super narrow - frequency from 24.050 to 24.125 GHz - to minimize the number of false responses.

SWITCHING OFF К BAND IN THE CITY MODE

The user can turn off the K band in the CITY mode. This is actual for driving in big cities where there are no mobile radar systems, but there are many false responses. By switching off K band in the CITY mode you will get information only from the GPS database. Do not forget to switch to HIGHWAY or TURBO mode when driving outside the city.

VOICE NOTIFICATION ABOUT 45 POLICE RADAR TYPES

Neoline X-COP 9100s will notify about a police radar type, allowed speed for the road segment, provide information about distance to a radar and average speed (in case of detection of «Trip track»).
Database includes 45 different radar types. Every new radar is promptly added to the database and is available in new updates.

SILENT AND DANGEROUS ZONE

You can add special zones into the hybrid. Silent zone - a zone with a large number of false responses. Such zones are often located close to petrol stations and shops with automatic doors.
Dangerous zone – a zone which includes the location of police radars (if they are not stored in the current database), busy intersection, speed bumps, etc.
The next time in this place a hybrid will promptly notify you with an alert signal. The radius of the zones can be set in the device menu.

SPEED BASED NOTIFICATIONS

GPS without sound alert – in case the car speed is lower than the speed limit in this parameter, sound and voice alerts for radars from the GPS database will not be made.
RD without sound alert – in case the car speed is lower than the speed limit in this parameter, sound and voice alerts for radars will not be made by the radio module.

SWITCHING ON OF SPECIFIC GPS POINTS

Settings flexibility allows to switch on and off specific GPS points like traffic control posts, "Trip track" system cameras, standard Strelka radars, dummy radar complexes and so on.

MAXIMUM SPEED

This function helps not to exceed the speed limit you set. You set the speed and when you exceed it, you get the audio warning on overspeeding. This function is not connected with GPS base and works without any police radar detection.

GPS NOTIFICATIONS DISTANCE

Alert Message Distance to police radars in GPS base may be set due to your preferences: 1) According to the database value – the manufacturer assigns a due value in meters to each cam in GPS base responsible for the alert. 2) According to this value set in the settings each cam in GPS base will be assigned an optional value: 300 m - 900 m. 3) Per a motor car current velocity – the more your velocity is, the more distance you're aware of police radar.

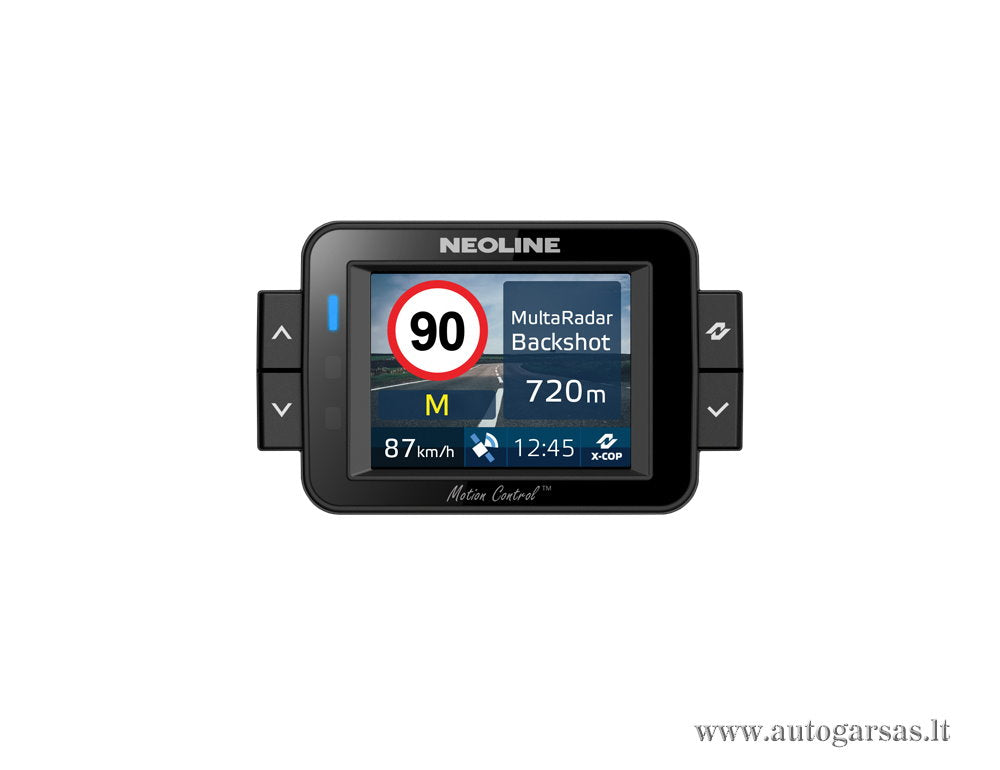

IPS DISPLAY AND EASY TOUCH INTERFACE

Neoline X-COP 9100s has a new bright IPS display that is perfectly readable from any angle of view.
EASY TOUCH interface provides the opportunity of viewing and managing video recordings. In the detection mode, the user gets full information about:
- type of police radar
- type of traffic control
- distance to the GPS point
- average speed
- speed limit
- type of incoming signal
- signal power
- current vehicle speed
- current time
- dangerous zone and silent zone

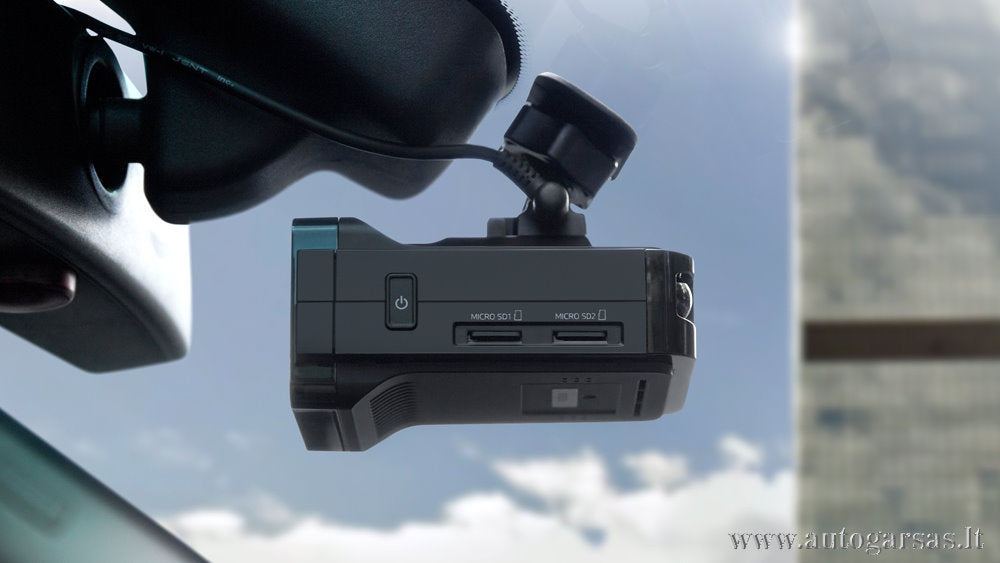

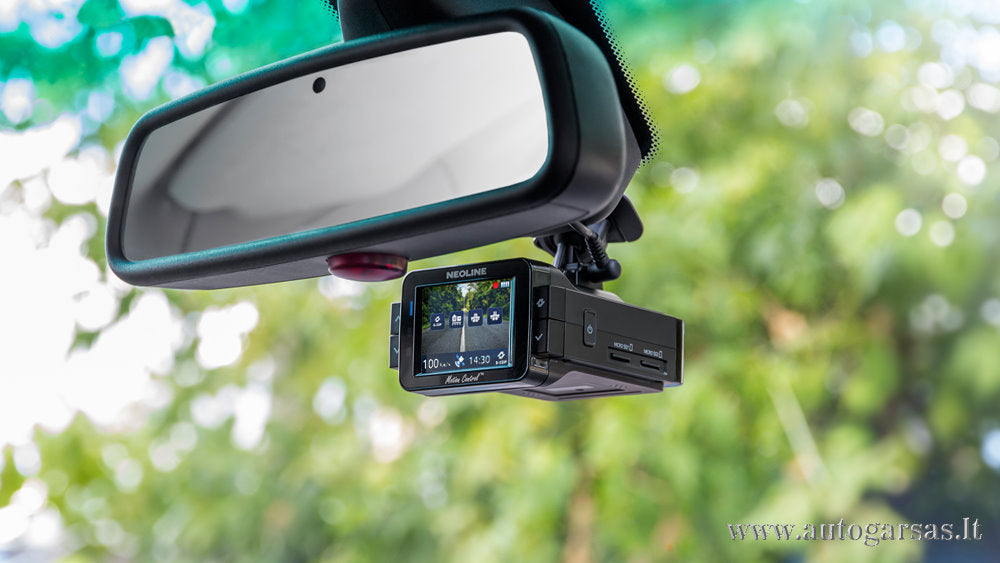

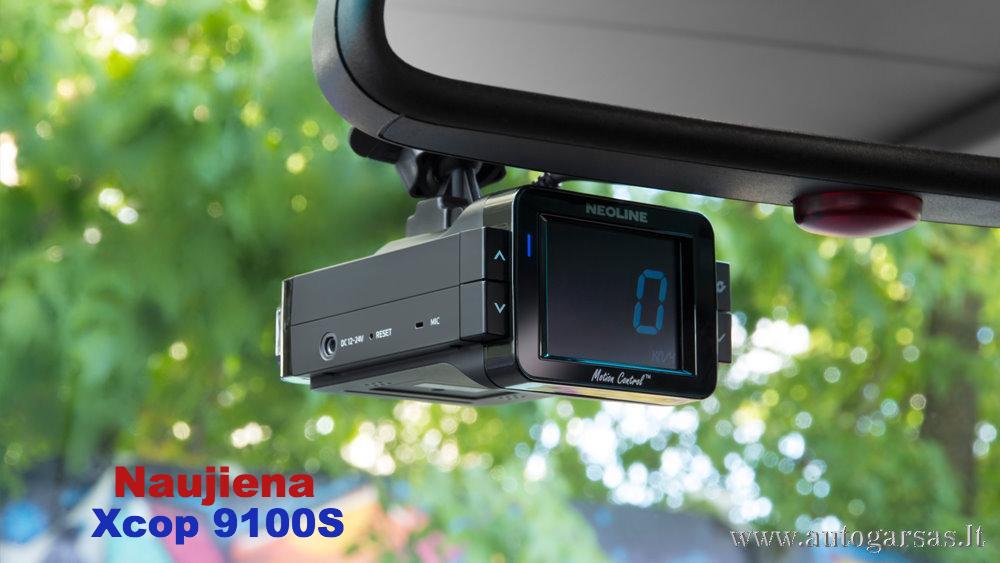

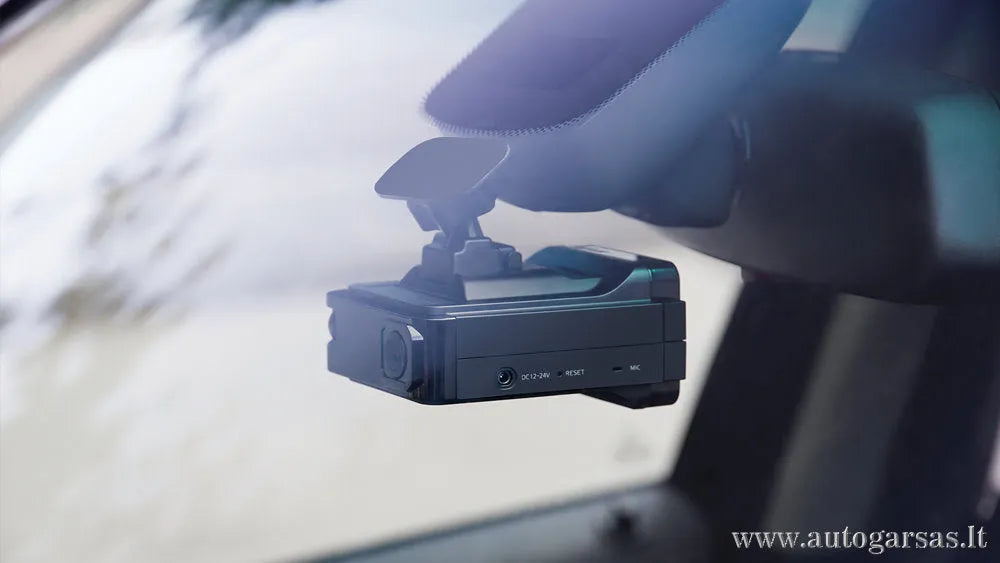

HIDDEN INSTALLATION TYPE

Placing a hybrid at the top edge of the windshield makes it almost invisible from the outside. Along with this, the power cable is connected directly to a compact mount with power charging Smart Click Plus. This allows you to avoid any vibration when driving on a dirt road.

PARKING MODE

Neoline X-COP 9100s can automatically switch to parking mode when the engine is stopped.
This requires a special cable and direct connection of the hybrid to the car's power supply.

IN DEMO MODE

For the user's convenience, a DEMO mode demonstrates the hybrid's functions (sound and voice alerts, indications on the screen).
The device will exit the DEMO mode after all notifications and indications cycle will be finished.

MADE IN KOREA

Neoline X-COP 9100s is the product of leading Korean experts in the field of automotive electronics, aimed at improving driver safety.
Neoline X-COP 9100s is the perfect combination of Korean quality and reliability.

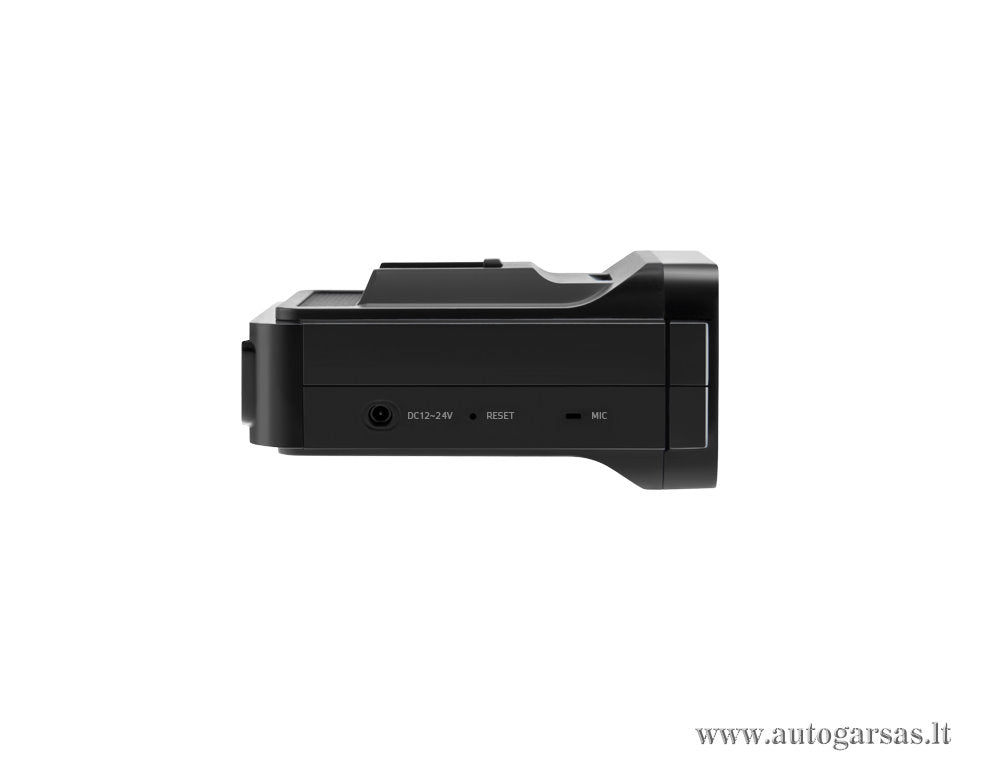

• Input power: DC 12V ~ 24V
• Power consumption: 400μA ~ 500μA
• Dimensions (mm): 94 (length) * 73 (width) * 46 (height)
• Operating temperature: -10°C ~ 60°C

PROPERTIES

• Processor: Ambarella
• Sensor: Sony
• Screen: 2 inch IPS
• Resolution: Full HD 1920*1080 (30 fps)
• Viewing angle: 135°, 6 glass lenses
• Long distance ultra-sensitive EXD Plus module (К and Ка wave)
• Multa Radar CD, CT and CD motion detection (M range)
• Wide detection of other frequencies (К, М, Ка, Laser, Strelka)
• The possibility of choosing frequencies depending on the region of use of the hybrid (Europe, World, USA, Israel, CIS, PRO1, PRO2)
• Z filter
• Ka filter
• К-wave application: wide, narrow, very narrow
• Almost worldwide police radar GPS database: Europe, USA, Israel, CIS region, Turkey, Middle East, Australia. (See neoline.com for a full list of countries)
• Messages from traffic control cameras (bus lane, rear-view and rear-view radars, intersection, traffic light, pedestrian crossing, etc.)
• Smart notifications for Trip Track cameras
• The display shows the current distance to the radar, speed, speed limit, average speed, signal strength, radar type, etc.
• Modes: City, highway, turbo, Х-СОР
• AUTOTURBO – automatic activation of the TURBO mode
• Disabling K-wave in urban mode
• GPS or RD module priority
• Setting the speed up to which the GPS and radio module will not report on existing radars
• Maximum speed
• Speed ​​limit
• Ability to add a silent or dangerous zone
• Ability to customize the range of silent and dangerous zone
• Enabling/disabling specific GPS points
• Voice announcements for 45 types of police radars
• Sound/brightness settings
• Automatic mute
• Measurement system: km/h or mph
• Detection distance: up to 2.5 km
• Protection against scanners Specter 4 / Specter Elite
• Automatic lighting screen
• Audible warnings
• Customizing sound settings (9 levels)
• Sound recording inside the vehicle
• Battery charging indicator
• Brightness, contrast, exposure and image quality are adjustable
• 3 recording modes (standard, event, parking)
• Loop recording
• Device video settings: play record / lock / rewind and copy
• Application of G sensor and motion sensor
• Parking mode
• Voice alerts about satellites
• Accurate time synchronization based on GPS
• Speed, time, and date information "on" the video
• 2 types of screensaver: "speedometer" and "dark"
• Automatic night recording mode
• Car battery protection: the hybrid turns off when the battery voltage drops below a set value
• Voice messages in Russian, English, Lithuanian
• Formatting the memory card
• The software version is displayed on the screen
• Battery (220mA, 5C, 3.7V)
• Video format: MP4
• Frame rate: 30 fps
• Recording time: 1-5 min
• Record time occurred: 10 seconds before event, ~50 seconds after event

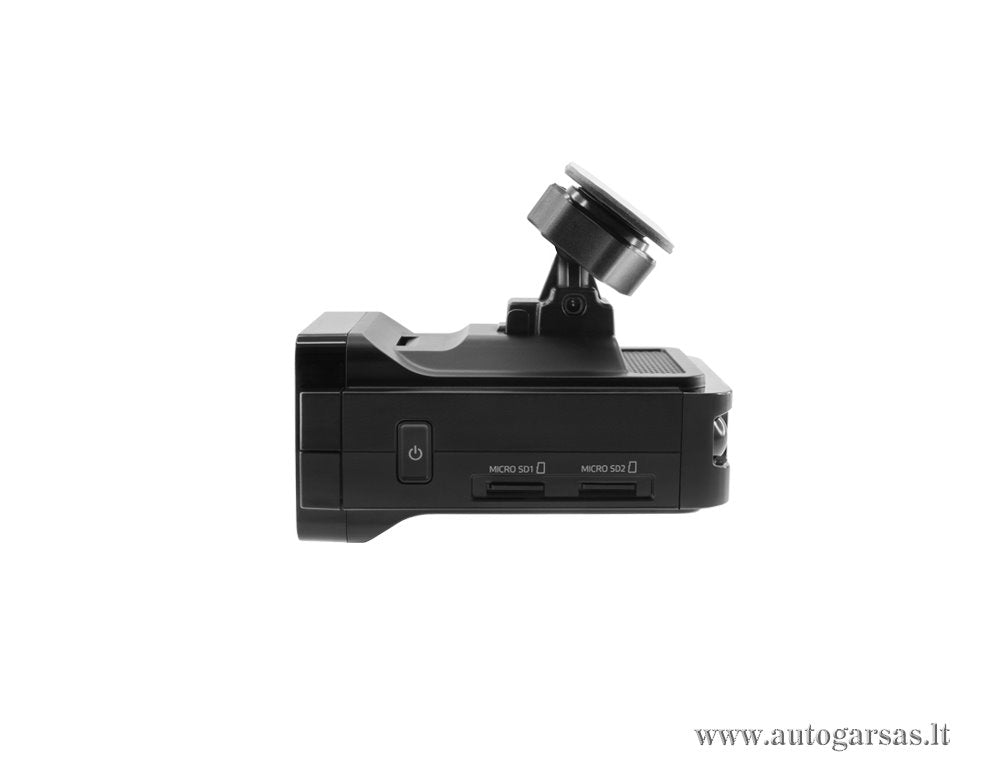

• 2 memory card slots: MicroSD (SDHC: 2 GB ~ 32 GB, SDXC: 128 GB), class 10
• G-sensor
• Motion sensor
• DEMO mode

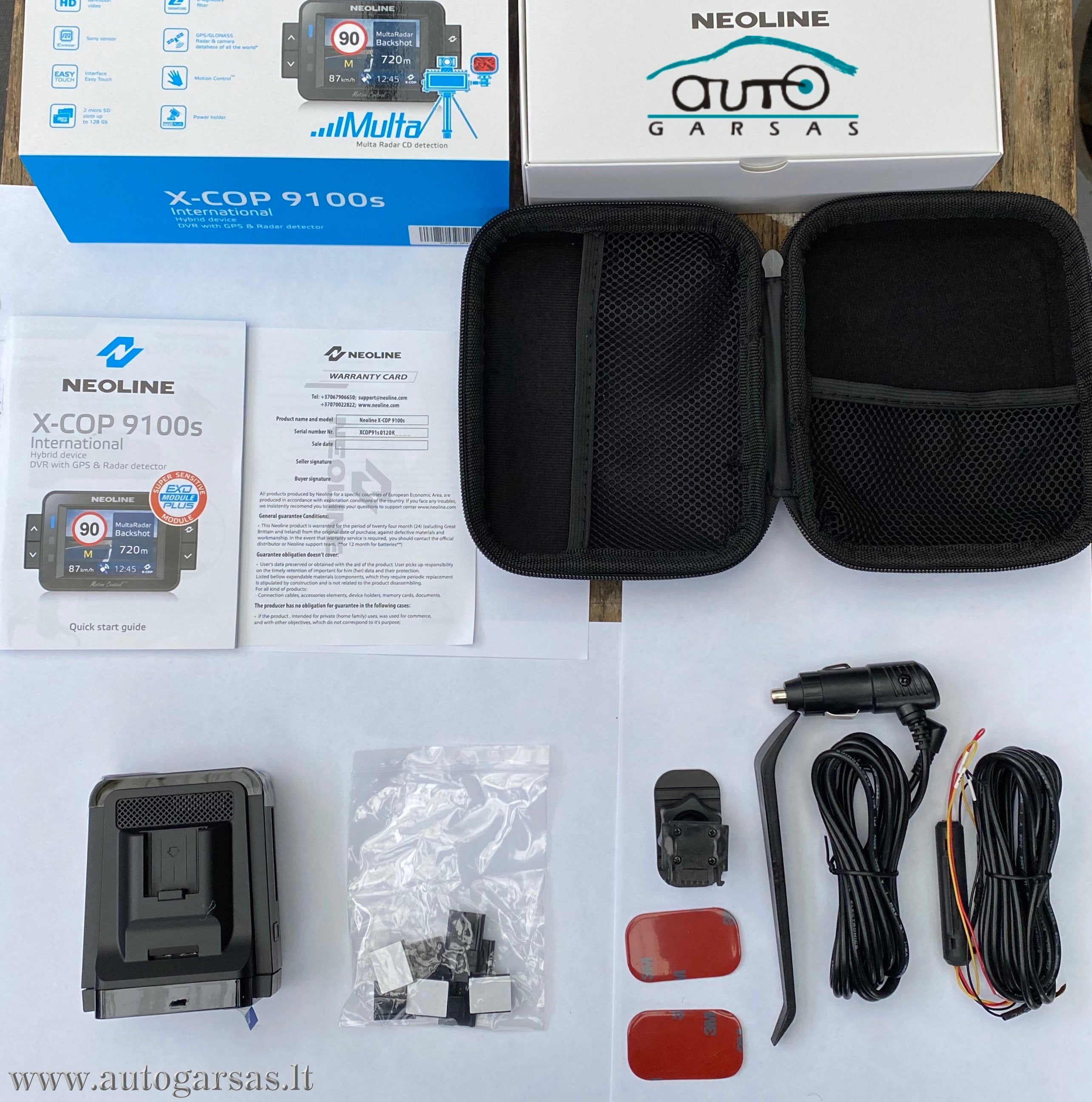

COLLECTION

• Neoline X-COP 9100s
• Smart Click Plus fastening with active loading and 3M double adhesive tape
• The power cord lit up the cigarette socket
• Direct connection power cord Neoline Fuse Cord 3 pin
• Tray
• Fastening details for cables
• Additional 3M stickers
• Tool for removing 3M double-sided adhesive tape
