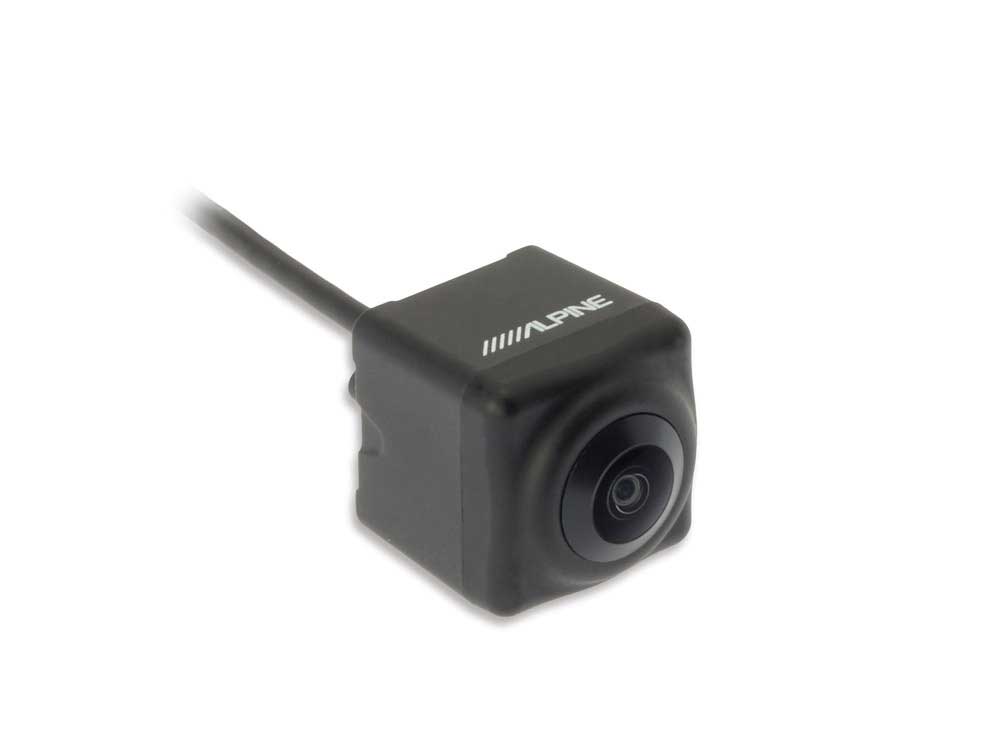

Alpine HCE-C1100D, HDR rear view camera
Alpine HCE-C1100D, HDR rear view camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
Alpine HCE-C1100D, HDR rear view camera
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
Small and extremely "good seeing" Alpine rear view camera. It will ensure a clear and transparent image when maneuvering.
- CMOS image sensor.
- HDR video resolution.
- Power consumption: 0.5W.
- Cable extension 10.5 m.
- Cable length: 0.5 m.
All New Alpine HDR Cameras
Alpine's all new HDR cameras are simply amazing and offer many new technologies that make maneuvering your vehicle easier and safer.
- High-resolution camera for great picture quality and high details
- Amazing night-view capabilities in low-light environments
- Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc.)
- New, small connectors for easy installation of cameras and cables
Distance Guides
This camera includes convenient distance guides that can be fully adjusted to match the width of your vehicle. This makes parking safer and more convenient compared to a regular rear-view camera.

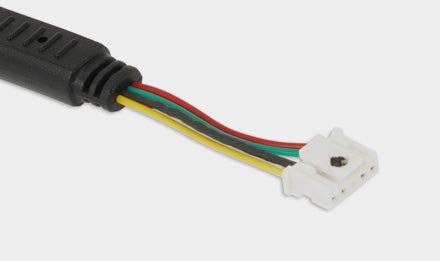

Works with Alpine products featuring Direct Camera Input
This high performance camera connects via cable directly to the head unit (no black-box) for quick and easy installation.
SPECIFICATIONS
Dimensions
- Camera: 23.6x 23.6x 24.0mm (excluding projection on the rear)
- Camera Cable Length: 0.5 m
- Camera Extension Cable Length: 10.5 m
General
- Power Requirement: 6.0 V.DC
- Negative Ground
- Max. Power Consumption: 0.5W
- Weight Camera: 27g (including cable)
Camera
- Output Image: Mirror Image, Composite Video (NTSC Color Signal System)
- Image Output: 1 Vp-p (75 Ohms)
- Image Sensor: 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
- Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
- Lens Focal Length: f=1.34mm
- Lens Brightness: F=1:2.0
- Angle of Field: Horizontal = 131°, Vertical = 103°
- S/N Ratio: 40.5 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C - +70°C
- Illumination Range: Approximately 1.5 to 100klx
