AMPIRE HEAT301, car seat heating

The HEAT301 kit is for one seat. Due to its features, the set is easily adapted to seats of various sizes and shapes.

• 3 heating levels (18/35/50 watts)
• Thermostat controlled system
• Thermal protection
• Installation under seat fabric or leather
• Power supply 12VDC / 5A max.
• Heating element dimensions: 480 x 270 mm (L x W)
• Complete set with switches and necessary cables.

SPECIFICATIONS

FEATURES

• - Set for 1 seat
• - Fast and steady heating elements
• - Heating elements for any seat geometry
• - Suitable for cloth and leather seat covers
• - 3 heating levels (18/35/50 watts)
• - Thermostat controlled system
• - Thermal protection
• - Installation under seat cloth or leather
• - Power supply 12VDC / 5A max.
• - Dimensions of heating elements: 480 x 270mm (D x W)
• - Complete set incl. switches and wire harness

CONTENT

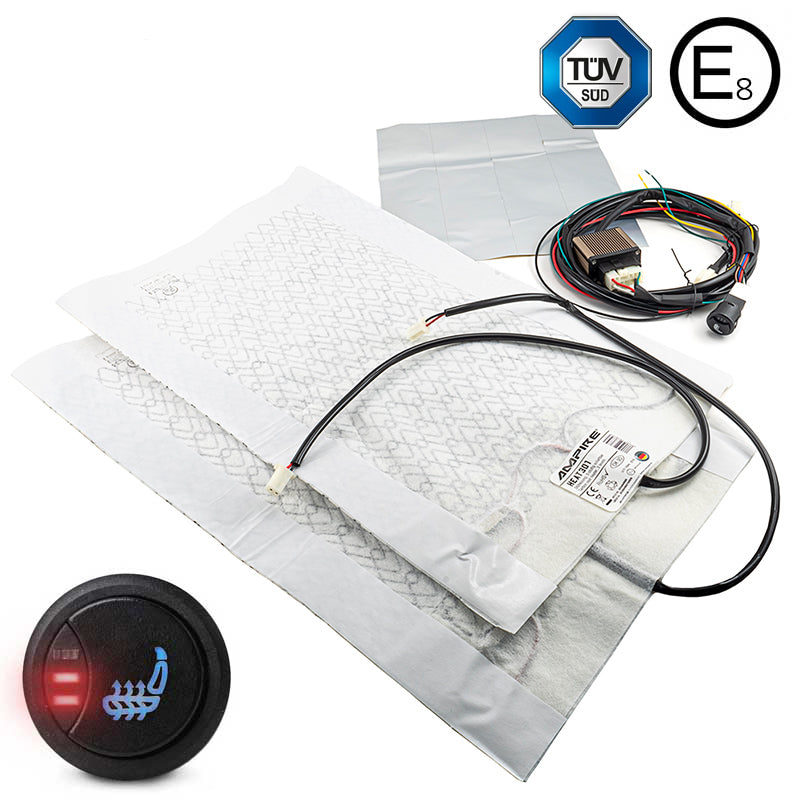

• - Universal heating elements (2x)

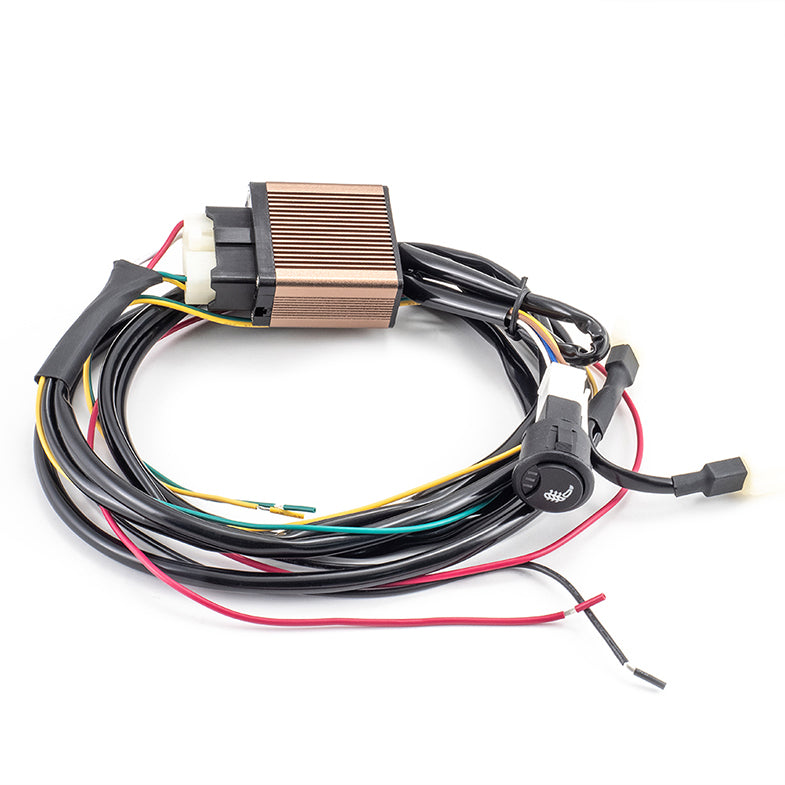

• - Wire harness with relay
• - illuminated Switch (1/2/3/OFF) with red LED
• - 4 pcs. of double-sided adhesive tape for installation
• - Installation manual and accessories

REGISTRATION

• - CE - E8N 09 04 69744 001
• - IATF 16949:2016
• - E8-10R-0310152

WIRING

• Black: GND (Chassis)
• Ed: +12V (Kl. 30)
• Yellow: Ignition (Q. 15)
• Green: Illumination
