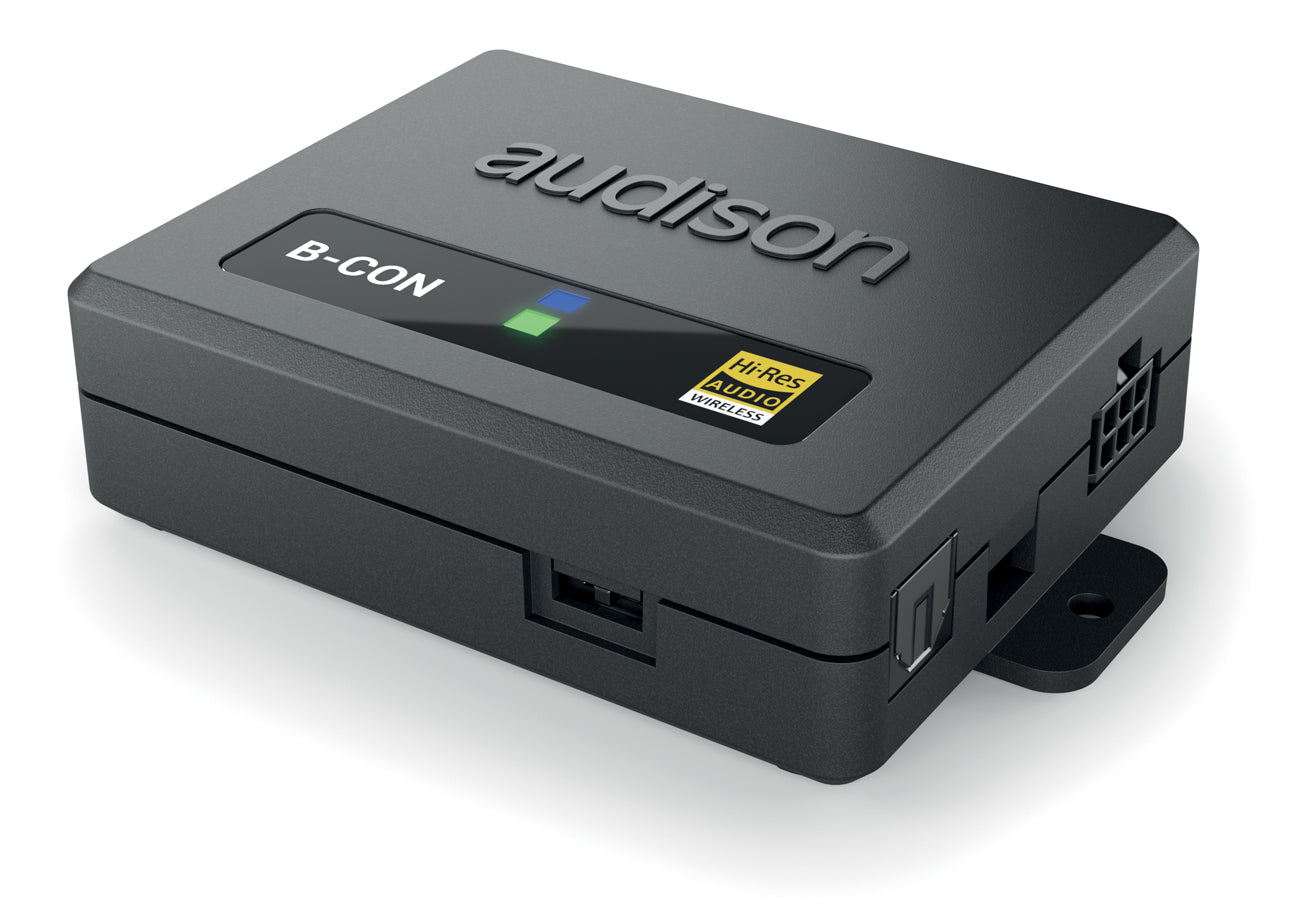

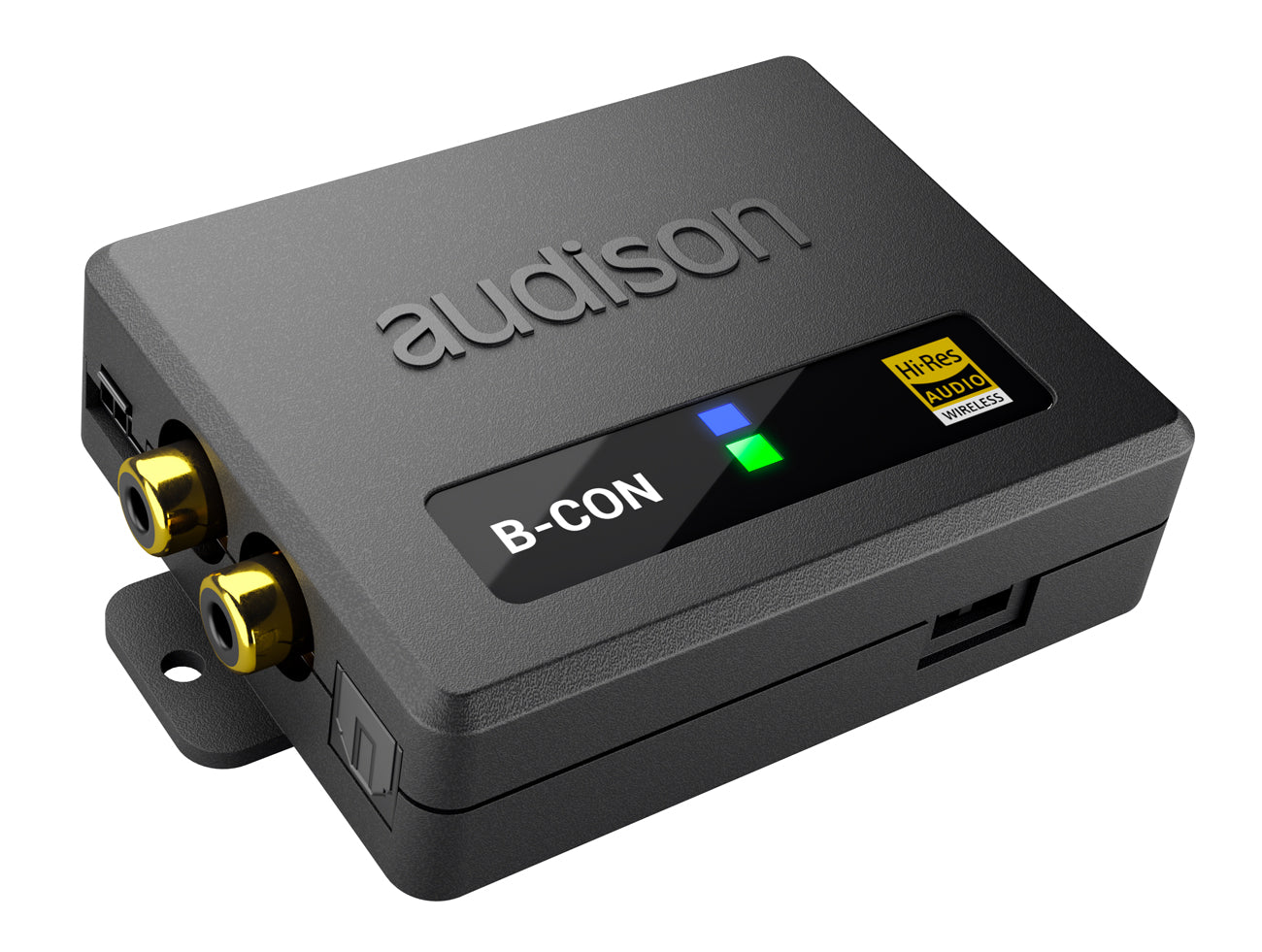

Audison B-CON, Hi-Res Bluetooth receiver

€167.00 EUR

Audison B-CON, Hi-Res Bluetooth receiver is backordered and will ship as soon as it is back in stock.

▪️ Do you have any questions about this product? We can advise you by phone +370 683 90000 or come to our salon at Armatūrinininkų g. 1, Kaunas .

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The Audison B-CON is the only Bluetooth 5.0® car receiver to receive JAS (Japan Audio Society) certification.

  • Bluetooth 5.0 + EDR
  • Codecs: LDAC, AAC, SBC.
  • Profile: Bluetooth A2DP 1.3, AVRCP 1.6.

The Audison B-CON is the only Bluetooth 5.0® receiver designed for automotive use that has obtained the “ Hi-Res audio wireless ” certification from JAS ( Japan Audio Society ) . B-CON is the ideal choice for streaming audio from a Hi-Res player (FIIO, Sony Walkman...) and from the latest generation Android/Apple mobile devices, fully supporting the car's Hands-Free Bluetooth profile.

B-CON is compatible with all audio formats and reaches maximum performance with uncompressed BT streaming (max 96kHz / 24bit , only with Android LDAC devices), both playing local files and with Apps that provide Hi-Res streaming (Tidal, Qobuz...)

Full DA HD

Pure digital signal transfer with a resolution up to 24 bit / 96 kHz

Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), B-CON achieves the 24 bit / 96 kHz digital to analog conversion processing requirement.

SPECIFICATIONS

POWER SUPPLY
Voltage: 6 ÷ 24 VDC
Idling current: 70mA @ 12V
Remote IN voltage: 3 ÷ 12 VDC (0.5 mA)
+ 12 Remote IN voltage: /td> 6 ÷ 12 VDC (70 mA)
USB Micro 5V (500mA)
BLUETOOTH
Type: Bluetooth 5.0 + EDR
Codec: LDAC, AAC, SBC
Profile: Bluetooth A2DP 1.3, AVRCP 1.6
INPUT
Optical digital: S/PDIF Optical (Max 24 bit/192 kHz)
INPUT/OUTPUT MANAGEMENT
Digital IN delay switch: 1 sec.
Power Connector: AUX SEL wire, MASTER ENABLE wire
ADC: Serial RS232, to manage other Audison devices that support this standard
Mode Switch: Absolute volume ON/OFF, upgrade mode
OUTPUT
Optical digital: From Optical input: 24 bit/192 kHz
From Streaming Bluetooth: 24 bit 96 kHz max.
analog: Bandwith (MAX) 20 ÷ 48 kHz
Output Level 2 VRMS
Distortion - THD @1 kHz, 1 VRMS 0.003%
S/N RATIO (A weighted) 100 dBA
SIZE
W x H x D mm / In. 90 x 60.4 x 23 / 3.54 x 2.38 x 0.91
Weight 0.054 / 0.119

INSTRUCTIONS

User Manual (EN).
