Audison AP 8, subwoofer

€150.00 EUR

Audison AP 8, subwoofer is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.


Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

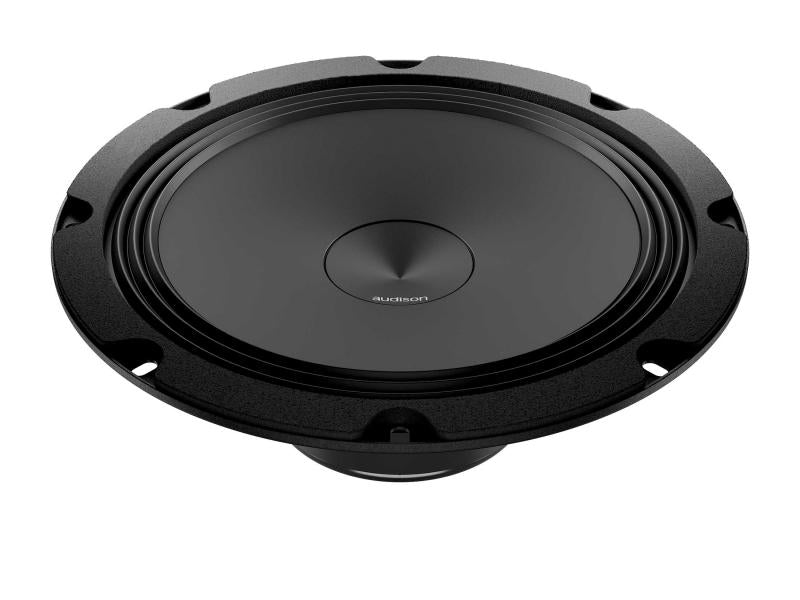

Compact but powerful Prima series car subwoofer.

  • Power: 300W.
  • Frequency band: 35-3K Hz.
  • Sensitivity: 93.5 dB/Spl.
  • Resistance; 4 ohms.

1 Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.

2 No passive crossover required to maximize efficiency: dome profile optimized with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.

3 Reduced mounting depth, providing ease of installation in OEM placements.

4 TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow "Triple Wave" profile, for maximum excursion linearity.

5 Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.

6 High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.

7 Developed with the KLIPPEL suite.

SPECIFICATIONS

Comp Woofer
Size 200mm (8″)
Power Handling 100 W Continuous Power
300 W Peak Power
Impedance 4 Ω
Frequency Response 35 ÷ 3k Hz
Sensitivity 93.5 dB/Spl
Magnetic High density flux ferrite
In the house Water-repellent pressed paper


INSTRUCTIONS

User Manual (EN).
