Car USB/SD adapter CTATYUSB002 for Toyota (6+6 pin)

This device connects to the factory tape recorder via the CD changer connector and works as a virtual CD changer. The USB adapter preserves the full functionality of the tape recorder and its control on the steering wheel (if available) and is controlled like a regular CD changer. What's more, any external audio sources can be connected to the adapter via the AUX input.

• Plays MP3 and WMA files from USB storage devices, SD memory cards and any other audio sources via AUX input
• The USB adapter is controlled by standard tape recorder buttons or steering wheel control (if available)
• The tape recorder display shows the number of the file being played and the playing time
• All standard MP3 files up to 320Kbps are supported
• The adapter does not require additional external power supply
• Devices that support charging (mobile phones, MP3 players, etc.) can be charged through the USB connection.
• USB keys and SD memory cards up to 4GB are supported

FITS: Toyota All Models (2004-2013) (Except Toyota Aygo 2005-2013)

• The audio signal to the tape recorder is transmitted by wires, thus guaranteeing the quality of the transmitted sound, which is significantly lost when using any FM modulators.
• Tracks are stored in directories CD01, CD02... (up to max. CD10 - depending on the capabilities of the tape recorder) with max. With 99 songs in each, you can choose from up to 900 songs at once!
• The functions of repeating songs (Repeat) and playing in random order (Random) are supported
• After removing the adapter, there is no sign of its presence
• The extension cable of the USB connection is brought to a place convenient for the driver
• The device installation procedure is extremely simple
• The USB adapter is installed in an invisible place, so the factory appearance of the car interior is preserved and the possibility of theft is reduced to a minimum.
• The memory of the last position is saved, so the playback of the recording continues from the point where it was interrupted
• Loading/unloading new music tracks to a USB stick is much faster and more convenient than burning them to a CD

In the package:

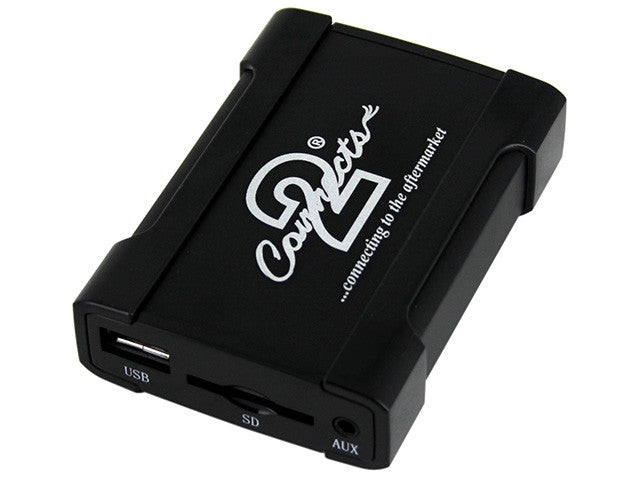

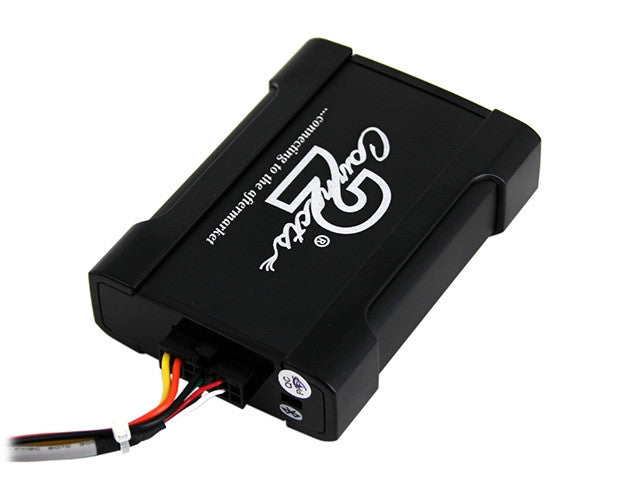

• USB/SD MP3 Adapter (Virtual Digital CD Changer)

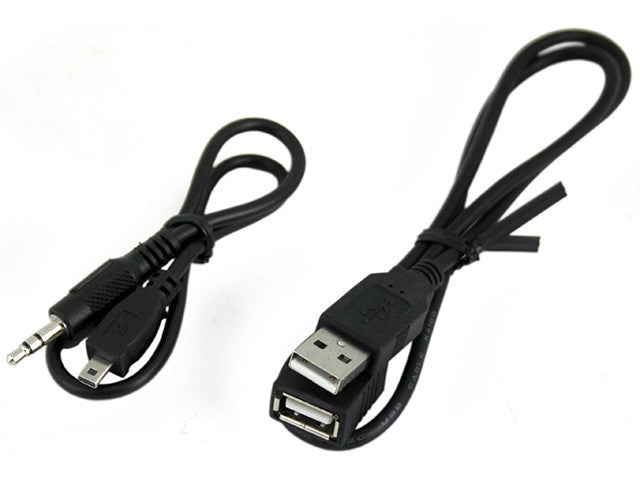

• AUX cable (3.5 mm plug)
• USB extension cable
• Installation instructions

Manufacturer: Connects2, Great Britain

IMPORTANT! The file system of the USB key or SD memory card must be in FAT/FAT32 format. The internal directory structure must be: CD01, CD02, CD03... up to max. CD10, depending on the capabilities of the tape recorder/cd changer. Each directory can upload max. 99 songs. File names must consist of only Latin letters (Lithuanian, Russian, German, etc. cannot be used) and numbers. Also, don't use dots in the title, like "feat." or "01.". In this case, use space " ", underscore "_" or minus "-" in the name. All adapter connections must be connected as they belong or as indicated in the instructions. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN THE ADAPTER NOT WORKING OR WORKING PROPERLY!

Installation instructions
