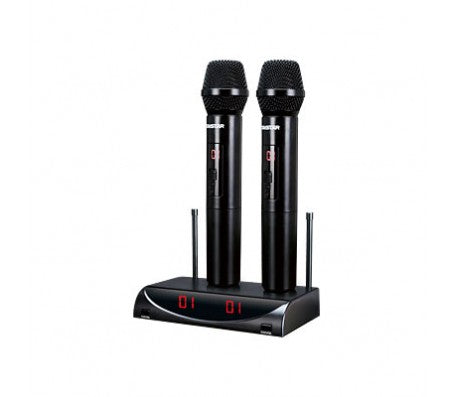

Wireless microphone system Takstar X3HH

• UHF wireless microphone frequencies are selected to avoid interference with other frequencies used in the industry
• D-PLL RF frequency locking technology ensures accurate signal transmission and stability
• Professional components for a large dynamic frequency range and minimal noise transmission
• Long operating range - up to 50m in open areas
• The microphone is powered by 2x 1.5V batteries, so it is easy to replace them
• Advanced direct signal locking technology reduces the chance of interference and eliminates on/off mechanical noise

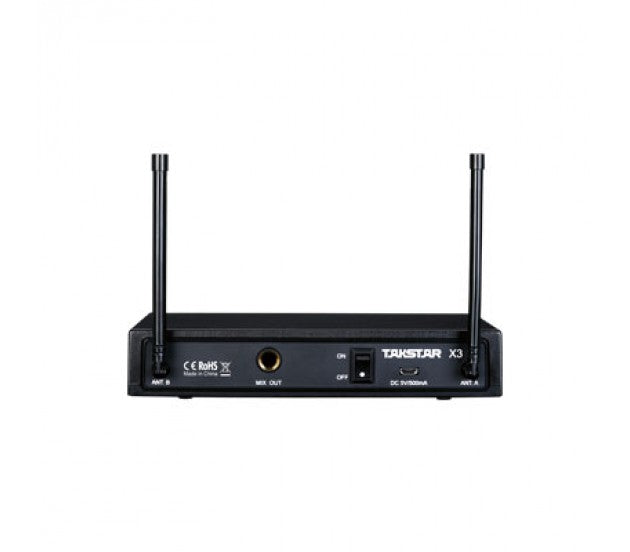

• Mixed (6.35mm) output for convenient connection with audio processing and amplification equipment
• The receiver can be powered via a USB socket

Application: In the classroom, at home, for outdoor events, KTV

• Operating frequency band: 740MHz-790MHz
• Modulation: FM
• Number of channels: 16(R)+16(L)
• Frequency uniformity: ±0.005%
• Sensitivity: -85dBm
• Transmission power: ＜10mW
• Frequency deviation: ±45kHz
• Frequency range: 60Hz-15kHz
• S/N Ratio: ＞85dB(A+)
• Total Harmonic Distortion: ＜1%
• Operating distance: 50m in open areas
• Microphone power supply: 3V (2 pcs. AA batteries)
• Continuous operation: ~10 hours (depending on battery capacity)
• Receiver power supply: DC5V/500mA (USB)
• Output Type: Unbalanced Mixed Output

Package Contents:

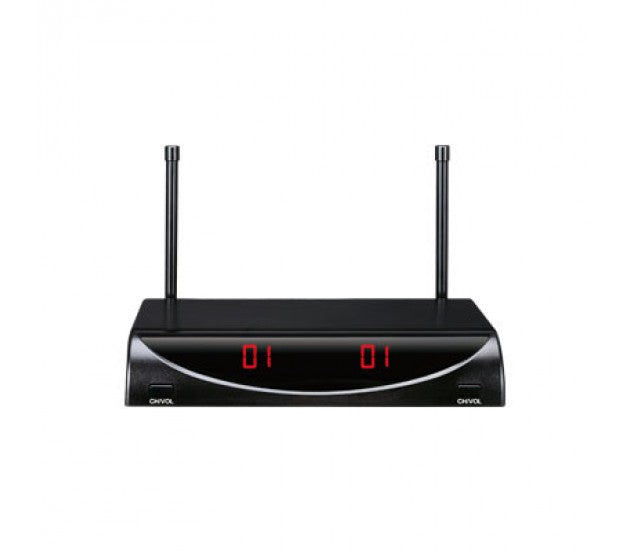

• Receiver: 1 pc.

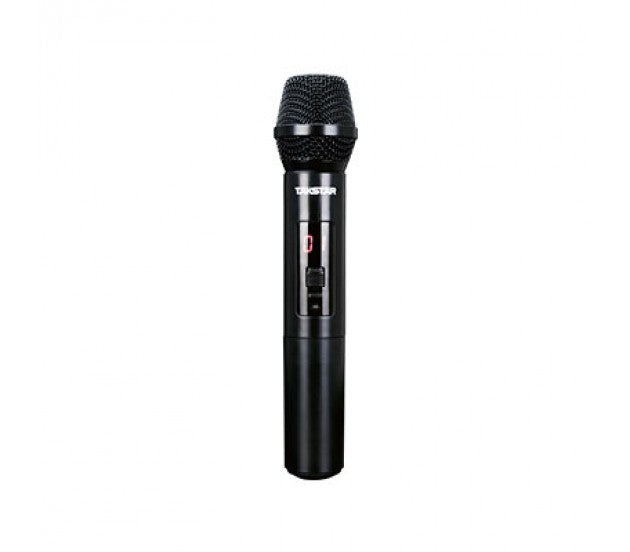

• Microphones: 2 pcs.
• Audio connecting cable: 1 pc.
• USB cable: 1 pc.
• USB power supply: 1 pc.
• Anti-slip rings: 2 pcs.
• 1.5V AA battery: 4 pcs.
