BOWERS & WILKINS CCM7.3 S2, in-ceiling speaker

3-way, PREMIUM class in-ceiling loudspeaker. Sound that lives up to the brand's quality will engage even seasoned audiophiles.

• Power: 200W.
• Frequency range: 55-28,000 Hz (±3dB).
• Sensitivity: 90 dB.
• Resistance: 8 ohms.

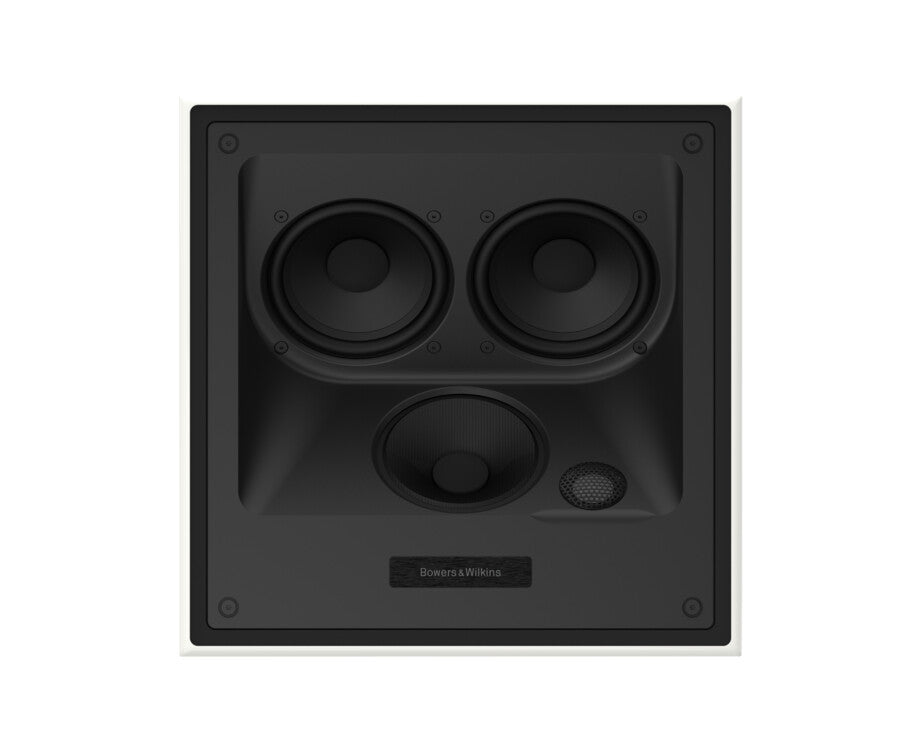

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theater and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimizes sound quality

SPECIFICATIONS

• ideal for an elite in-ceiling music system, or as part of a Bowers & Wilkins home theater system
• built-in back-box ensures well-balanced sound in any installation and protects against dust and dirt
• 3-way, angled-baffle design
• drivers are angled for better off-axis response compared to drivers that point straight down
• 1" carbon dome tweeter
• 4" FST™ (Fixed Suspension Transducer) Continuum™ cone midrange driver
• dual 5" Aerofoil Profile bass drivers
• frequency response: 55-28,000 Hz (±3dB)
• recommended amplifier power: 25 to 200 watts
• nominal impedance: 8 ohms
• sensitivity: 90 dB

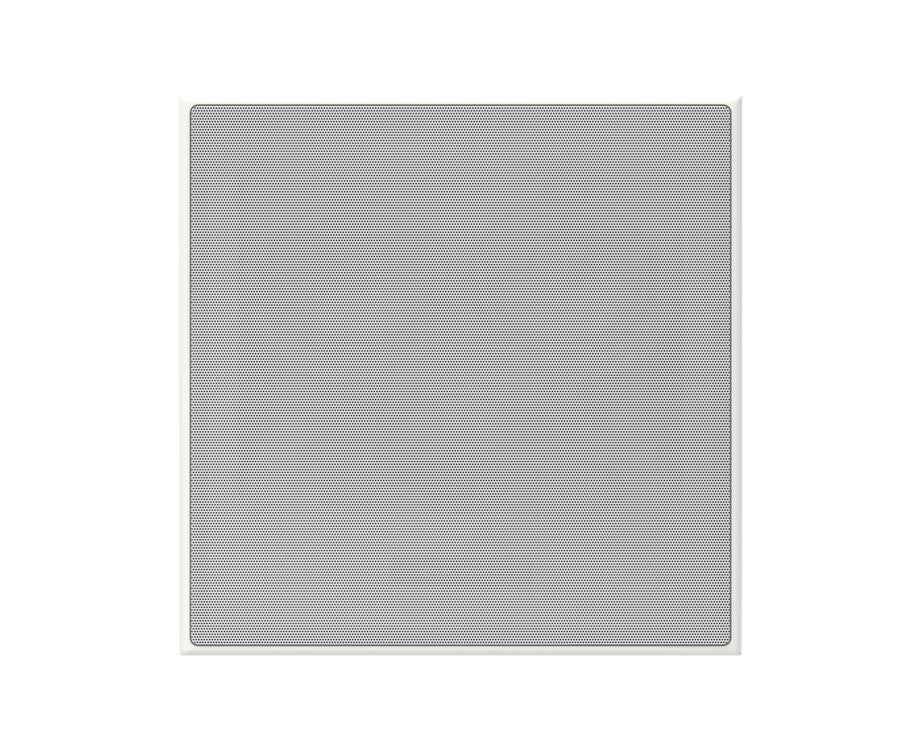

• magnetic grille is paintable to match your decor
• speaker cutout diameter: 13-1/4"W x 13-1/4"H
• overall diameter: 14"W x 14"H
• mounting depth: 7-11/16"

User Manual (EN).
