Clearaudio Innovation Compact, patefonas (įvairių spalvų)

Clearaudio Innovation Compact - yra kompaktiškas, bet itin pažangus aukštos klasės patefonas, siūlantis išskirtinį tikslumą, stabilumą ir ilgaamžiškumą. Dėl optinės sukimosi kontrolės (OSC) šis modelis pasiekia ypač tikslias apsukų reikšmes.

Greičio diapazonai: 33 ⅓, 45 ir 78 aps./min
Greičio tikslumas (išmatuotas):  < ± 0,08 %
Galimybė montuoti antrą tonarmą – daugiau lankstumo ir įvairovės.
Korpusas: Iš panzerholz („šarvuotos“ medienos) ir aliuminio – labai tvirtas, atsparus rezonansams.

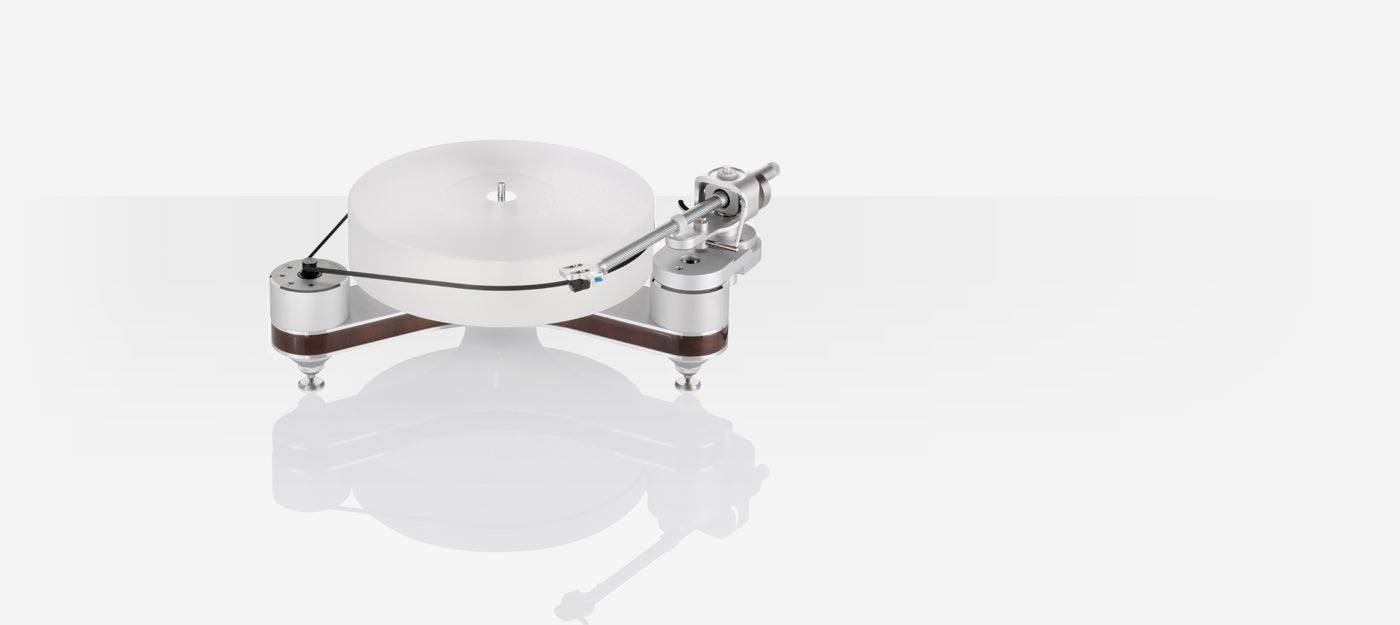

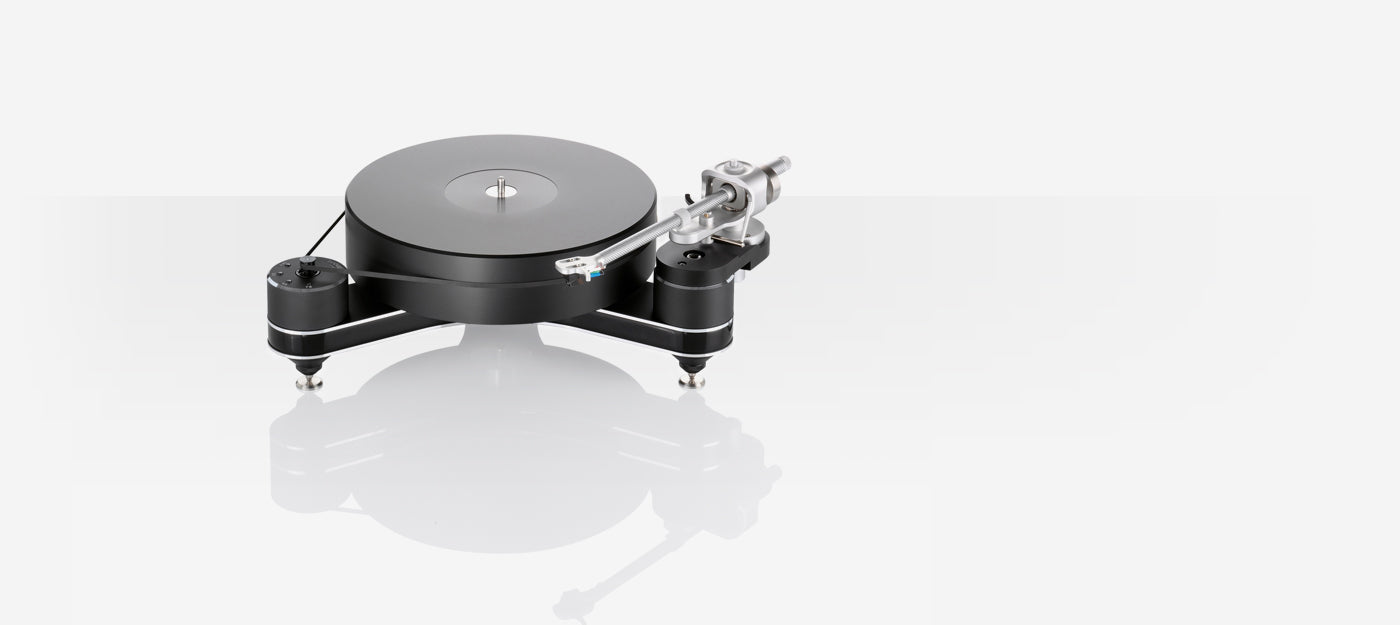

The Innovation Compact turntable with its very efficient design is nothing less than an audiophile revelation. Thanks to optical speed control (OSC), speed stability values are obtained that lift this turntable into the global highend class.

Perfectly matched materials meet patented Clearaudio technology. The 70mm-thick platter of the Innovation Compact consists of dynamically balanced polyoxymethylene (POM) and is powered by a high-torque DC motor with precision bearings, developed exclusively for Clearaudio.

The optimally designed chassis keeps resonances out of the audible range and guarantees maximum stability in a housing made of a massive panzerholz (bulletproof wood) and aluminium sandwich. Timeless design with quality built to last for decades. The option to mount a second tonearm makes it possible to play a rich variety of music from across the decades.

Construction details:
Resonance-optimised chassis shape
Made of bullet proof wood and aluminium with precision CNC machined surface

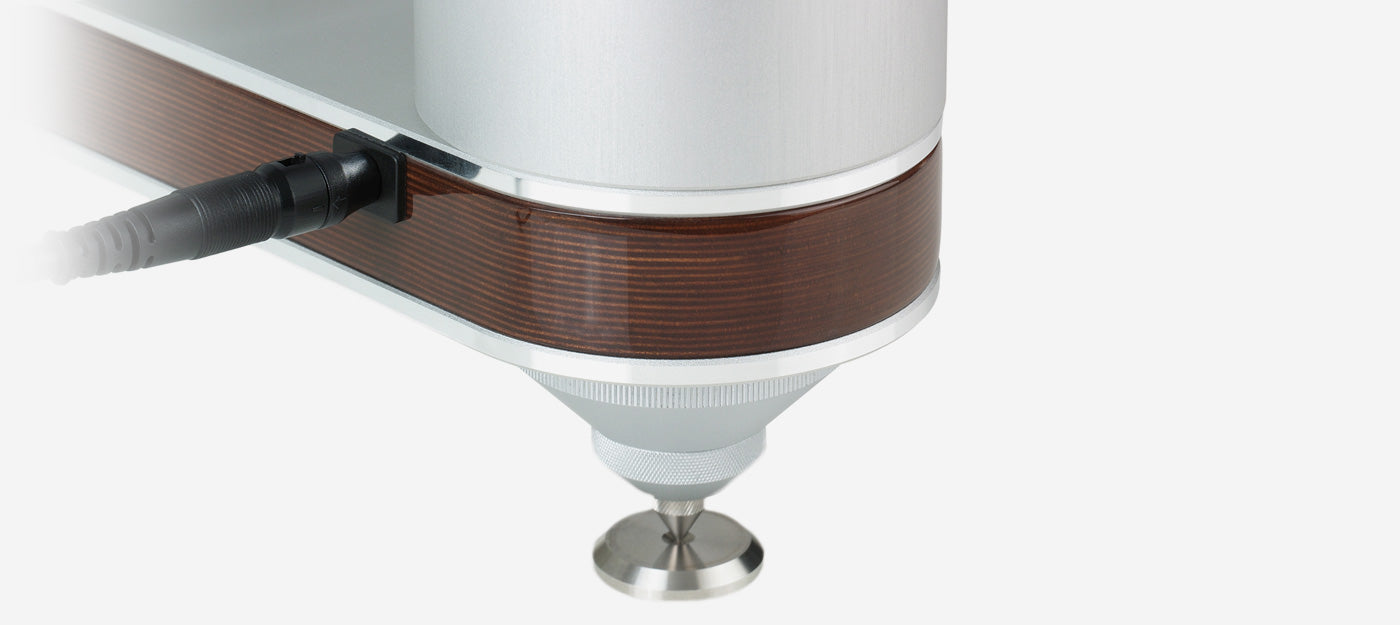

All turntable feet are finely adjustable

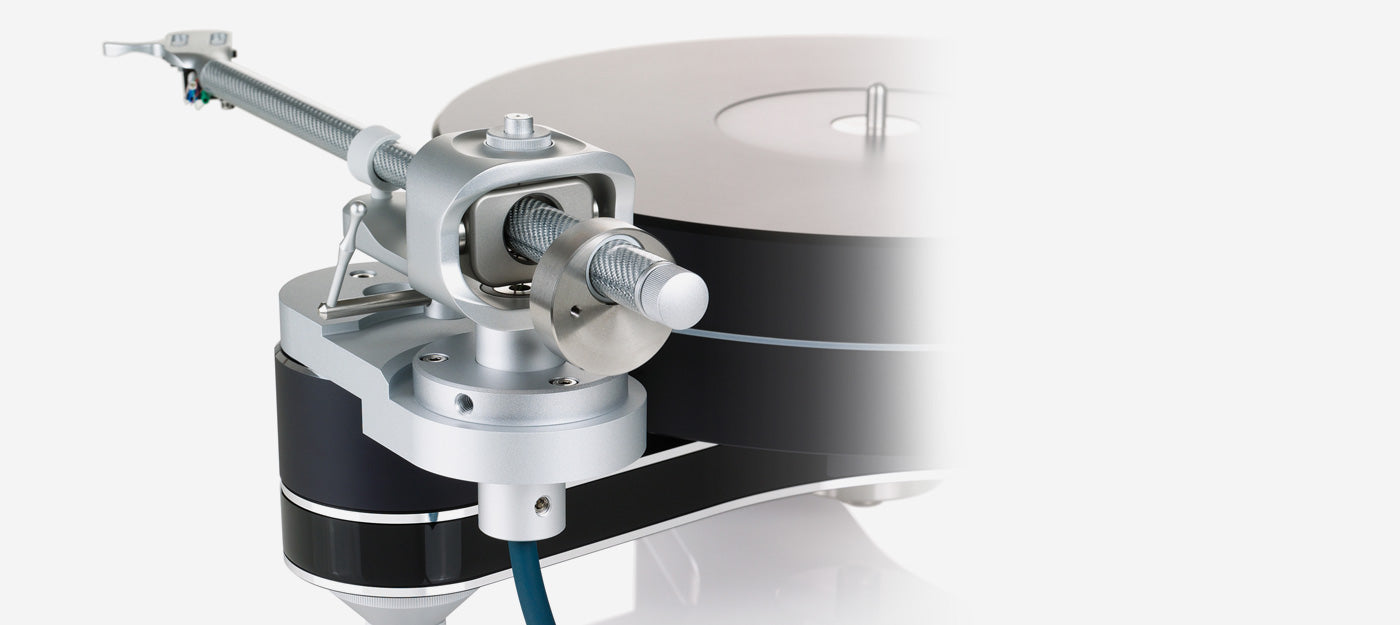

Playback with two tonearms possible
Speed options:    33 ⅓, 45, 78rpm
Drive unit:

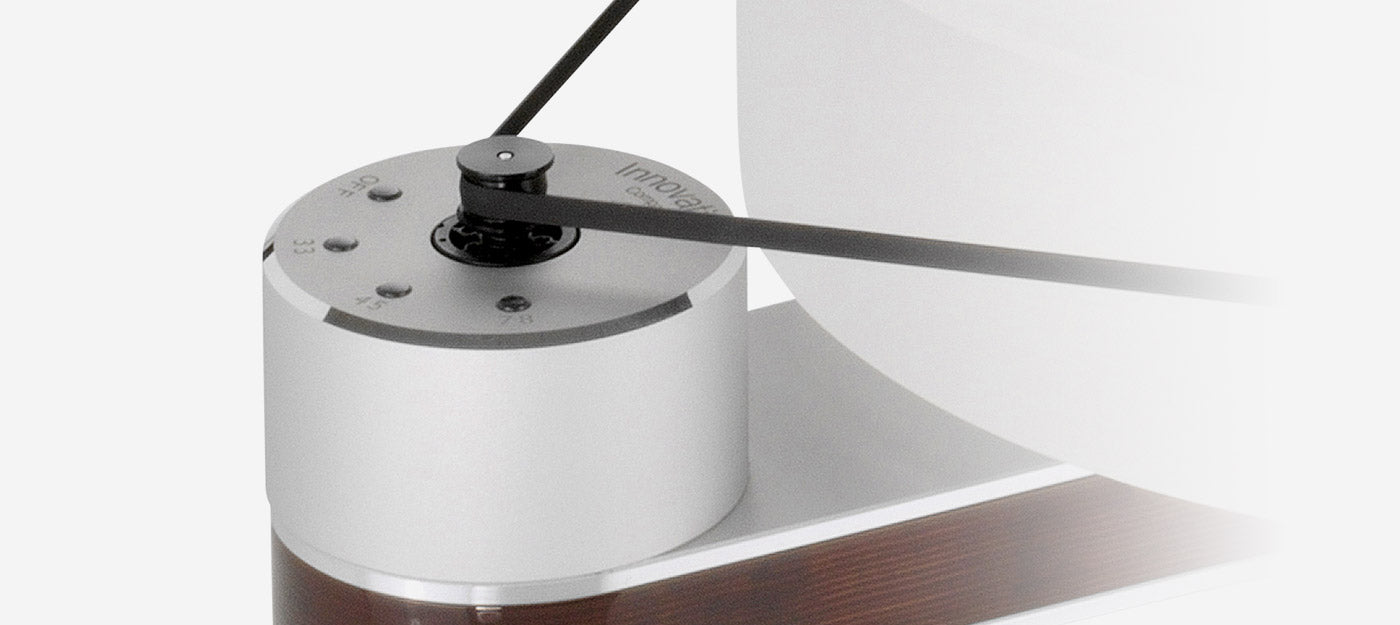

High torque 24V DC motor exclusively made for Clearaudio; Optical Speed Control (OSC) in real time through infrared sensor
Decoupled DC motor in chassis; resonance damping device; belt-drive
Bearing:    Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
Platter:    70mm / 2.75 inch main platter, made out of synthetic material with high-density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced
Speed accuracy (measured):    < ± 0.08%
Power consumption:    Max. consumption: 9.3 watts
Consumption in operation: 2.5 watts
Standby mode: 2.5 watts
Off mode: 0.0 watts
Total weight:    Approx. 12kg (without tonearm and power supply)
Dimensions (W/D/H):    Approx. 18.11 × 19.09 × 6.18 inches (with tonearm base, without tonearm)
Dimensions (W/D/H):    Approx. 460 × 485 × 157mm (with tonearm base, without tonearm)

Vartotojo vadovas (EN)
