Clearaudio statement phono, phono korektorius

Clearaudio statement phono -  yra aukščiausio lygio phono korektorius, sukurtas analoginės muzikos entuziastams, siekiantiems maksimalios garso kokybės. Tai prietaisas, kuris tiksliai perduoda garsus nuo žemiausių žemųjų dažnių iki aukščiausių aukštų dažnių, nepridedant ir nepašalinant nieko nuo originalaus garso.

Režimai: MM / MC (galima perjungti)
Subsoninio filtro funkcija: Perjungiamas
Išvestys: nesubalansuotas (RCA), subalansuotas (XLR), ausinių išvestis (Jack 6.3mm)
Išėjimo įtampa: > 12V
RIAA filtras: 75μs / 318μs / 3180μs, 2 pasyvūs filtrai
Kanalų atskyrimas: > 80dB (1kHz)
Išvesties varža: 10Ω

The statement phono is at home at the absolute top – where the air is thin, but the sound quality reaches its maximum density. From the deepest bass to the highest treble, from the additional bass octave of an imperial grand piano to the piccolo flute of a full church organ and beyond, the statement phono presents sounds exactly as they are. It takes nothing away and does not add anything, but embodies the ideal of pure music reproduction.

Silver mica capacitors ensure that the signals are handled without loss. Only the most noise-free resistors and capacitors, carefully selected, are worthy to take their place on the circuit boards of this monumental twelve kilogram phonostage.
This phonostage does not compromise. But it does allow you to connect and control the volume of all major sources via two phono inputs and two additional analogue inputs. For power, an external battery power supply is used, so that interference from the mains electricity grid does not exist.

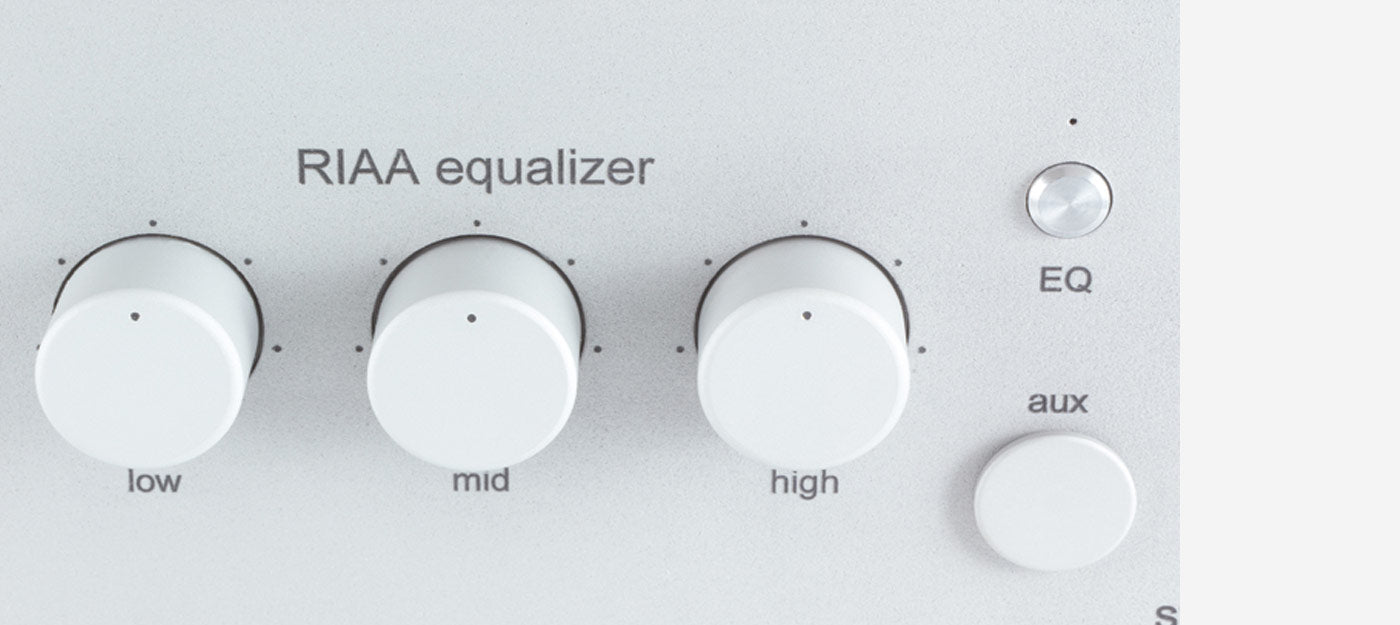

The statement phono embodies the ultimate truth of listening, and with its switchable input resistors and freely adjustable equalisation curves, addresses the needs of discerning analogue fans that want to extract the best sound from their records. This sound laboratory in miniature is unique and unmatched in the analogue world.

Mode:    MM / MC switchable
Subsonic filter switchable
Amplification:     + 34dB (MM mode)
 + 54dB (MC mode)
Input load:    47kΩ (MM mode)
25Ω - 10kΩ (MC mode)
RIAA accuracy:    ± 0.05dB / 20 - 100kHz
THD:    5mV / 1kHz / +50dB: < 0.0035%
0.5mV / 1kHz / +70dB: < 0.0015%
Signal to noise ratio:    5mV / 1kHz / +50dB: -82dB / -90dB (A-weighted)
0.5mV / 1kHz / +70dB: -72dB / -80dB (A-weighted)
Headroom:     + 25dB
Max. output voltage:    > 12V
RIAA:    75μs / 318μs / 3180μs, 2 passive filter
Channel seperation:    > 80dB (at 1kHz)
Output impedance:    10Ω
Inputs:    Phono 1: balanced XLR (rear)
Phono 2: unbalance RCA (rear)
Line 1: balanced XLR (rear)
Line 2: unbalanced RCA (rear)
AUX: Jack 3.5mm (front)
Outputs:    unbalanced (RCA)
balanced (XLR)
headphone output (Jack: 6.3mm)
Power consumption:    Max. consumption: 200 watts
In operation: 50 - 100 watts
Standby mode: < 0.5 watts
Off mode: 0.0 watts
Power supply:    Fully symmetrical line and Accu - power supply
Main power / channel:    2 × 2 × 22V / 1A
Battery power / channel:    2 × 18V / 3.2Ah
Total weight preamplifier:    Approx. 12kg
Total weight power supply:    Approx. 22kg
Dimensions preamplifier (W/D/H):    Approx. 435 × 350 × 100mm
Dimensions preamplifier (W/D/H):    Approx. 17.13 × 13.78 × 3.94 inches
Dimensions power supply (W/D/H):    Approx. 435 × 350 × 100mm
Dimensions power supply (W/D/H):    Approx. 17.13 × 13.78 × 3.94 inches

Vartotojo vadovas (EN)
