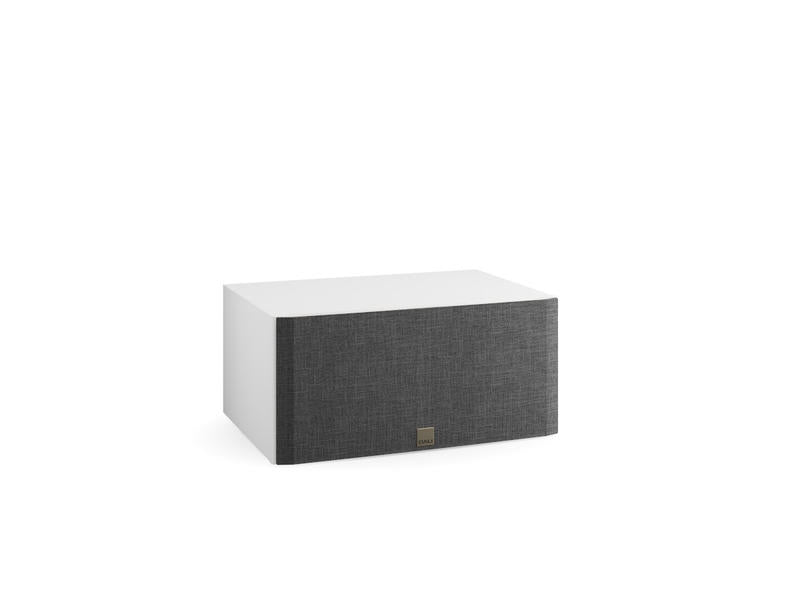

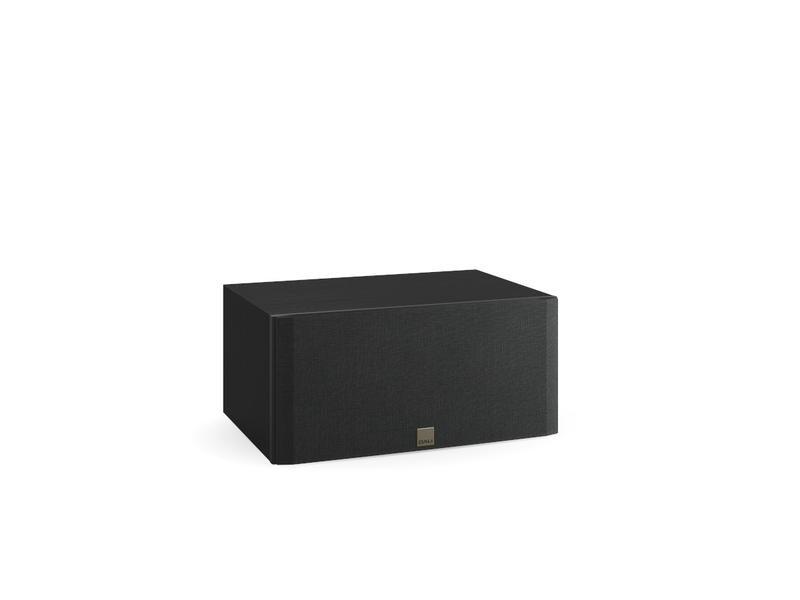

DALI OPTICON VOKAL MK2, central speaker (various colors)

€799.00 EUR

DALI OPTICON VOKAL MK2, central speaker (various colors) - Black is backordered and will ship as soon as it is back in stock.

Can't choose speakers for your home? We have a solution for you!
We invite you to come for an audition of the audio equipment .


Neišsirenkate garso kolonėlių?

Display general product information or specific product information using metafields.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Ergonomic and stylish Vokal Mk2 center speaker. High-quality materials and the latest technologies are used in the production of the column. Therefore, good sound is guaranteed!

  • Power: 150 W.
  • Frequency band: (+/-3 dB) [Hz] 47 - 30.000.
  • Sensitivity: (2.83V/1m) [dB] 88.
  • Resistance: 4 Ohms.

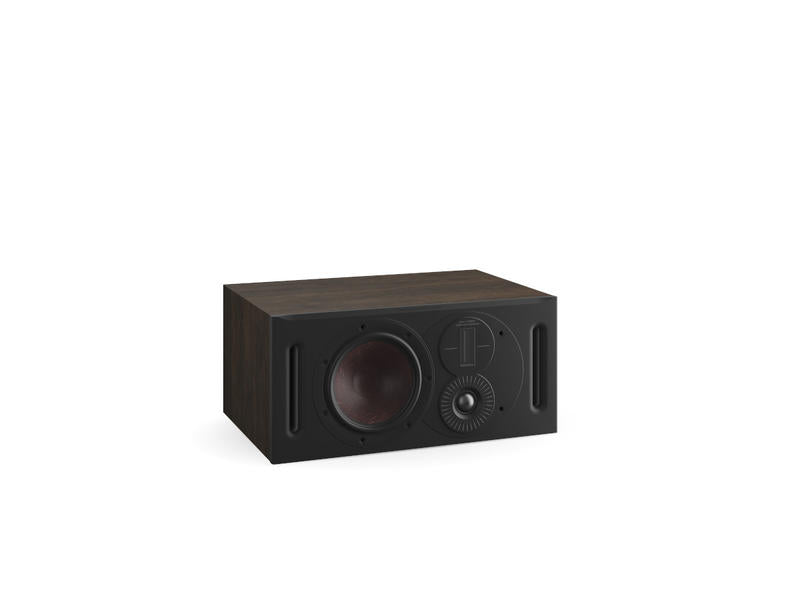

The OPTICON VOKAL MK2 brings a 6½” Wood Fiber diaphragm, SMC magnet bass/midrange driver and the DALI hybrid tweeter together in an enclosure format designed specifically for center channel applications in multi-channel audio-visual systems. The OPTICON VOKAL MK2 enclosure dimensions and proportions are specifically configured to enable its installation in audio-visual furniture units, and its front facing reflex ports mean that even fully enclosed mounting is feasible. The OPTICON VOKAL MK2 is specifically voiced to play the center channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.

SMC TECHNOLOGY

The SMC used in OPTICON MK2's magnet motor system has very high magnetic permeability and very low electrical conductivity. It works primarily by minimizing eddy currents in the magnet system pole piece. This improves flux linearity, reducing the magnetic hysteresis. Resulting in a significant reduction of electro-acoustic distortion.

REFLEX PORTS

The newly introduced OPTICON MK2 Dual Flare technique brings port design into the realm of aerodynamics - with exit and entry flares carefully designed to minimize turbulence. Dual Flare enables OPTICON MK2 reflex ports to remain laminar and work effectively to reinforce low frequency performance to a significantly higher volume level than would otherwise be possible.

ASSEMBLED IN PAIRS

Speakers used and enjoyed in pairs should also be built as pairs! Our manufacturing process is designed to ensure that stereo pairs of speakers are built and tested sequentially by a single manufacturing technician, using components taken in the same order from the same batch. It's a process that helps ensure ultimate visual and acoustic pair matching.

MADE IN DENMARK

Manufacture of the OPTICON MK2 series has been retained firmly at our Danish factory. Our in-house woodworking facility handles everything from cutting the MDF enclosure panels to applying the surface finishes. Assembly by hand, testing and quality approval on each and every speaker is also handled on our own assembly lines.

SPECIFICATIONS

  • Frequency range (+/-3 dB) [Hz] 47 - 30,000
  • Sensitivity (2.83V/1m) [dB] 88
  • Nominal Impedance [ohm] 4
  • Maximum SPL [dB] 109
  • Recommended Amplifier Power [Watt] 30-150
  • Crossover frequency [Hz] 2.400 / 14.000
  • Crossover principle 2+½-way
  • High frequency driver 1 x 29 mm soft dome + 1 x 17 x 45 mm ribbon
  • Low Frequency / mid-range Driver(s) 1 x 6½”
  • Enclosure type Bass reflex
  • Bass Reflex Tuning Frequency [Hz] 44

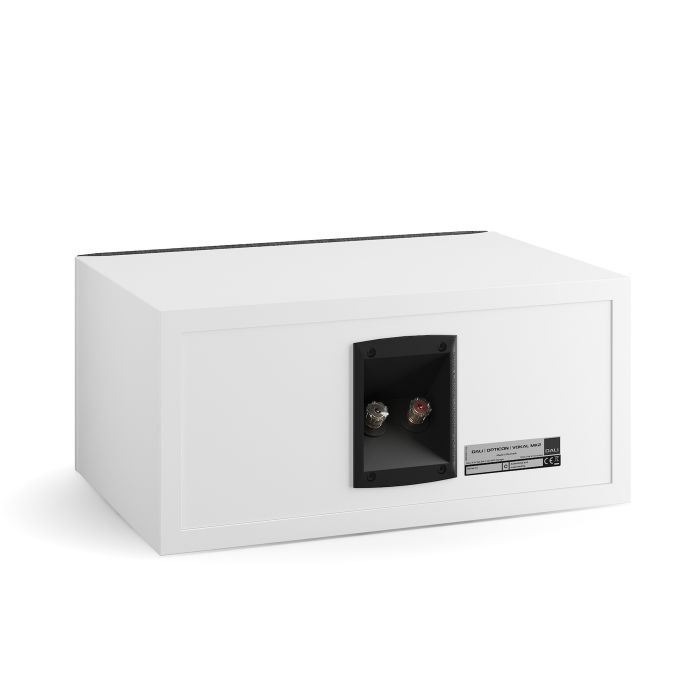

  • Connection Input(s) Single
  • Recommended placement Shelf
  • Recommended distance from rear wall to speaker's rear panel [cm] 0 - 30
  • Dimensions (H x W x D) [mm] 201 x 435 x 312
  • Dimensions (H x W x D) [inches] 7.9 x 17.1 x 12.3
  • Weight [kg/lb] 10.6/ 23.4
  • Included accessories Rubber feet, manual

PHYSICAL DATA

  • product dimensions: 435 x 312 x 201 mm
  • net weight: 10.60 kg



  • INSTRUCTIONS

    User Manual (EN).
