Speakers Helix B 62C.2, 180W, component, 2-way

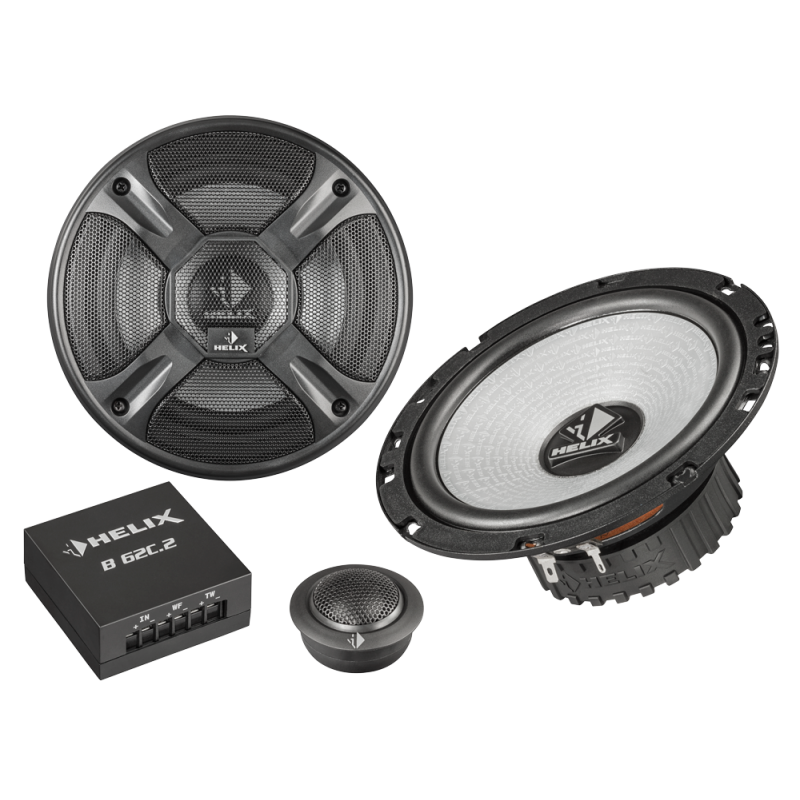

2-way component system, 6.5 inch / 165 mm woofer with injected PP-cone, 1 inch / 25 mm silk dome tweeter with neodymium magnet and separate crossover with 6/12 dB slope and tweeter protection.

• Power: RMS 60W / MAX 180W
• Frequency range: 55 Hz - 22,000 Hz
• Sensitivity: 91 dB 1 W / 1 m
• Resistance: 4 Ohms

The new B-loudspeaker series (formerly known as "BLUE") have never been as good as today!

Especially with its unique sound characteristics, the new B-loudspeakers set a course and not only by their individual HELIX-design. Numerous detail improvements and the use of proven components guarantee a maximum of power and longevity. The elaborately coordinated crossovers ensure a precise separation of the audio spectrum and a flat frequency response – full, deep bass, gentle middles and detailed heights.

Furthermore, all speakers are designed for easy installation with low effort. Therefore there is nothing standing in the way of a listening experience at the highest stage.

• Diameter: woofer / tweeter 165 mm / 25 mm; 6.50" / 1"
• Installation depth: woofer / tweeter 61 mm / 17.5 mm; 2.40" / 0.70"
• Installation diameter: woofer / tweeter 143 mm / 47 mm; 5.63" / 1.85"
• Cone material: woofer / tweeter Injected PP / silk dome
• Crossover: Separate, 6/12 dB slope and tweeter protection

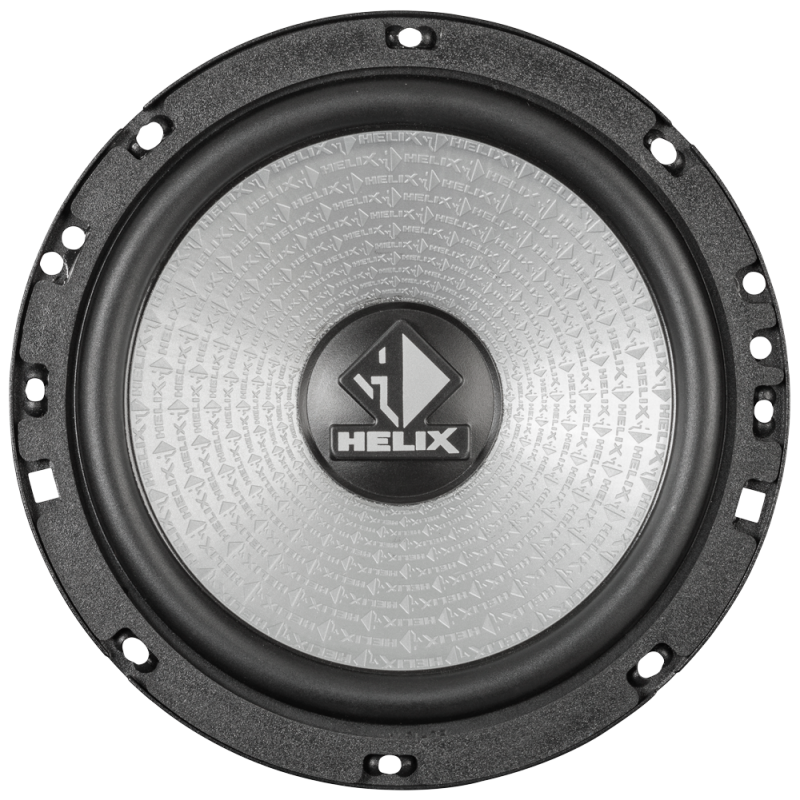

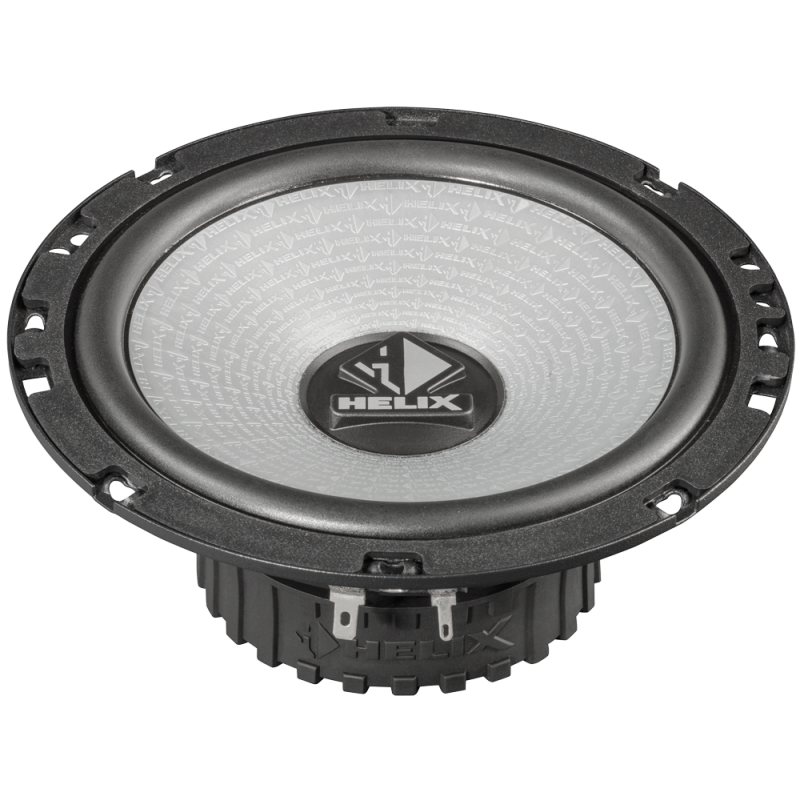

• 6.5" / 165 mm woofer with low resonant cones made from injected polypropylene and unique HELIX-logos

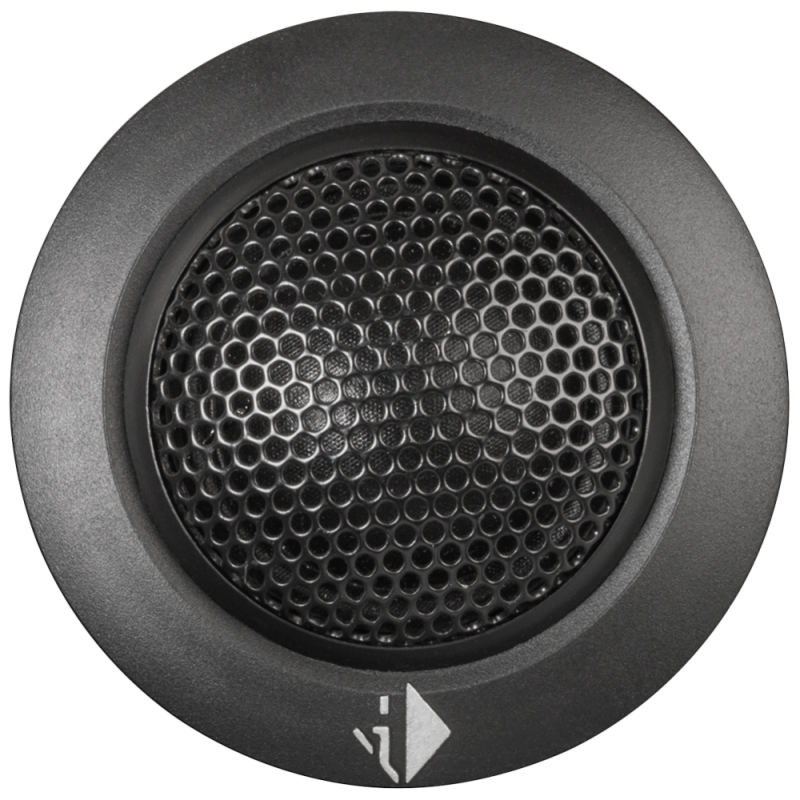

• 1 inch / 25 mm silk dome tweeter with neodymium magnet for crispy and clear treble response
• Individual HELIX design basket with additional ventilation holes for better voice coil cooling and high power handling
• Solid rubber magnet protection ring with HELIX-logo

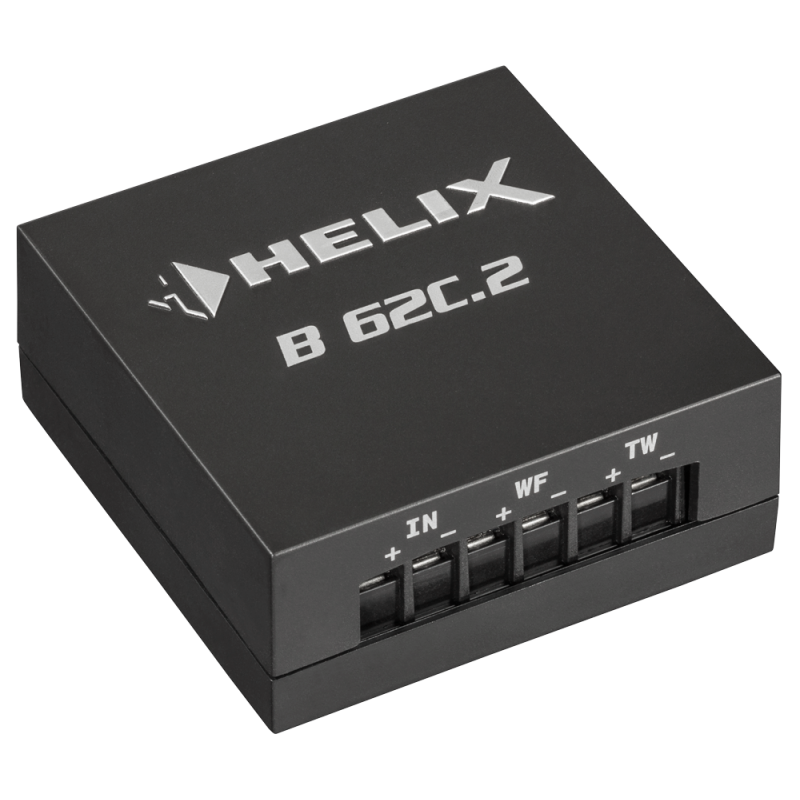

• Separate crossover with 6/12 dB slope and tweeter protection

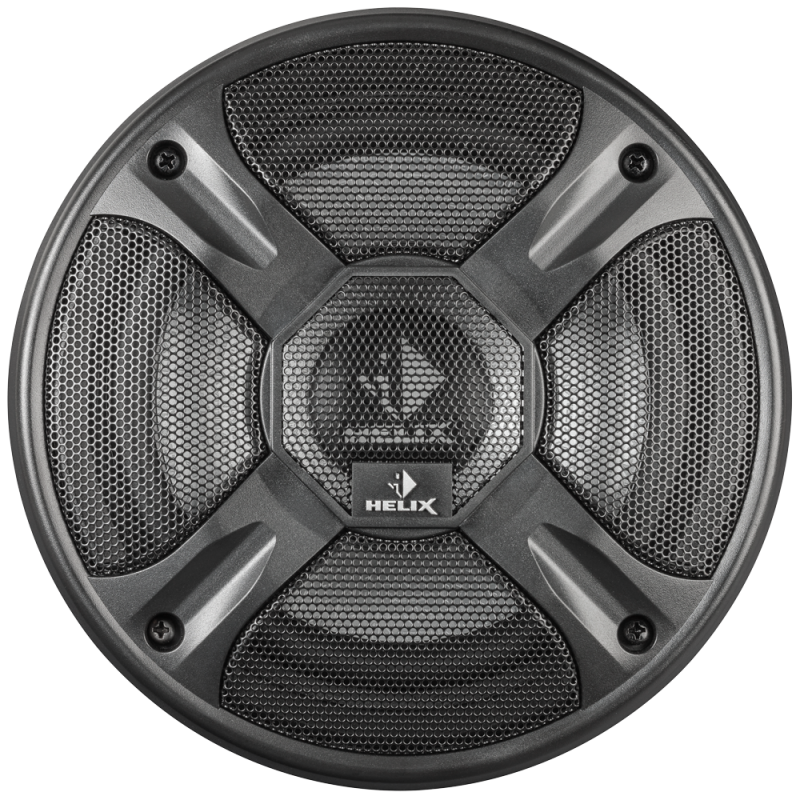

• Grill included
