Loudspeakers Helix S 4B, 140W, medium/low frequencies
Loudspeakers Helix S 4B, 140W, medium/low frequencies - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
Loudspeakers Helix S 4B, 140W, medium/low frequencies
- INFORMACIJA
- DESCRIPTION
- PROPERTIES
- TECHNICAL DATA
- Power: RMS 70W / MAX 140W
- Frequency range: 75 Hz - 6000 Hz
- Sensitivity: 89 dB 1W/1m
- Resistance: 4 Ohms
- Installation depth: 46.5 mm
- Installation diameter: 92.3 mm
- Outer diameter: 102 mm
Set includes 2 pcs.

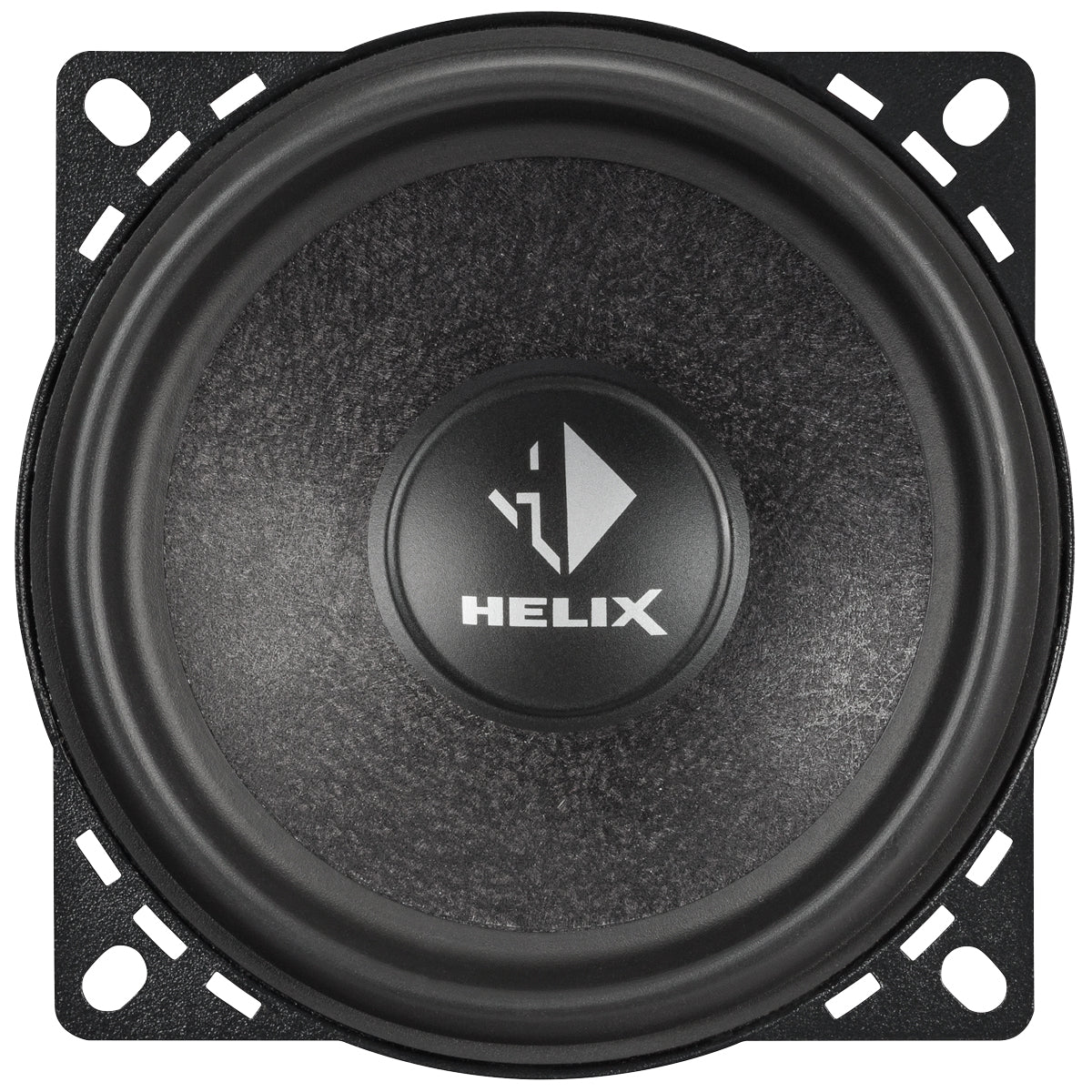

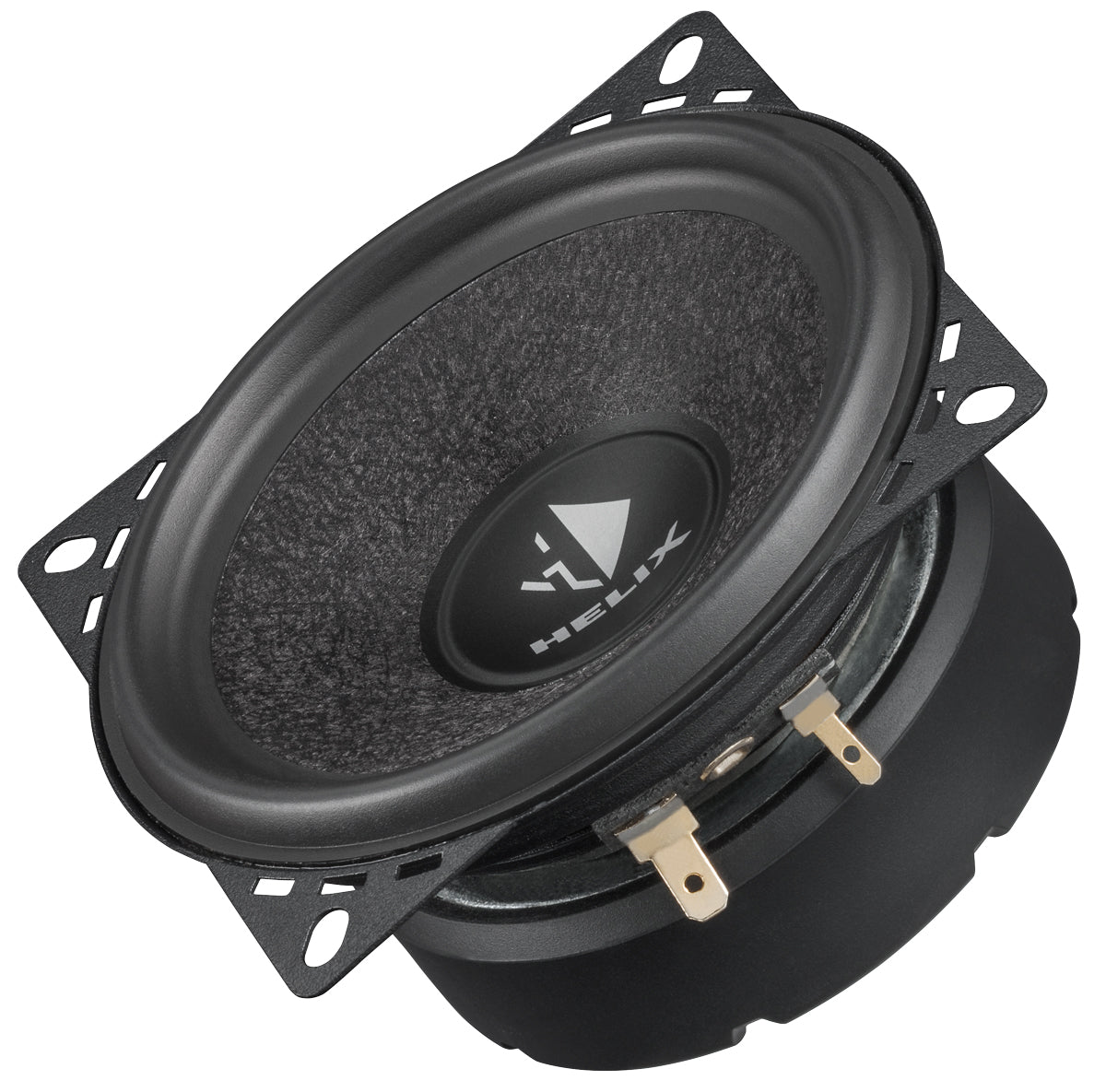

Elegantly designed mid-woofer trimmed for maximum sound quality.
The extremely rigid cone consists of a novel basalt-fiber-paper compound – the perfect combination to guarantee clear and straight sound even at high volume levels. Beside a powerful bass reproduction and peerlessly neutral mids, the S 4B impresses with exceptionally low distortion.
A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!
4” / 100 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
Specially shaped rubber surround for larger effective cone area and increased maximum excursion
Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
Rugged rubber magnet boot with HELIX-logo
Gold-plated terminals
| Power RMS / max. | Mr | 70 / 140 Watts |
| Impedance | Z | 4 Ω |
| DC resistance | Re | 3.4 Ω |
| Frequency response | 75 Hz - 6,000 Hz | |
| Resonance frequency | Fs | 120 Hz |
| Mechanical Q factor | Qms | 4.24 |
| Electrical Q factor | Qes | 1.11 |
| Total Q factor | Qts | 0.88 |
| Compliance | Cms | 232 μm/N |
| Equivalent air volume | February | 1.2 L |
| Force factor | B*I | 4.1 Vol |
| Efficiency 1 W / 1 m | SPL | 89 dB |
| Cone area | Sd | 61 cm² |
| Moving mass | Mmm | 5.9 g |
| Cone material | Basalt-fiber-paper compound | |
| Mechanical resistance | Rs | 1.19 kg/s |
| Voice coil diameter | ø | 25 mm |
| Voice coil winding height | 12 mm | |
| Max. linear excursion | Xmax | +/- 3 mm |
| Outer diameter | ø | 102mm / 4.01" |
| Installation diameter | ø | 92.3mm / 3.63" |
| Installation depth | 46.5mm / 1.83" | |
| Recommended enclosure volumes | ||
| Sealed box | ||
| Even in volume | 3L | |
| Lower limiting frequency (-3dB) | 100 Hz | |
