Loudspeakers Hertz Energy EV 165L.5, 210W, medium/low frequencies

€82.00 EUR

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

  • Power RMS 70 W / MAX 210 W
  • Sensitivity 92 dB SPL
  • Reproducible frequency band 50hz - 4000hz
  • Resistance 4 Ω

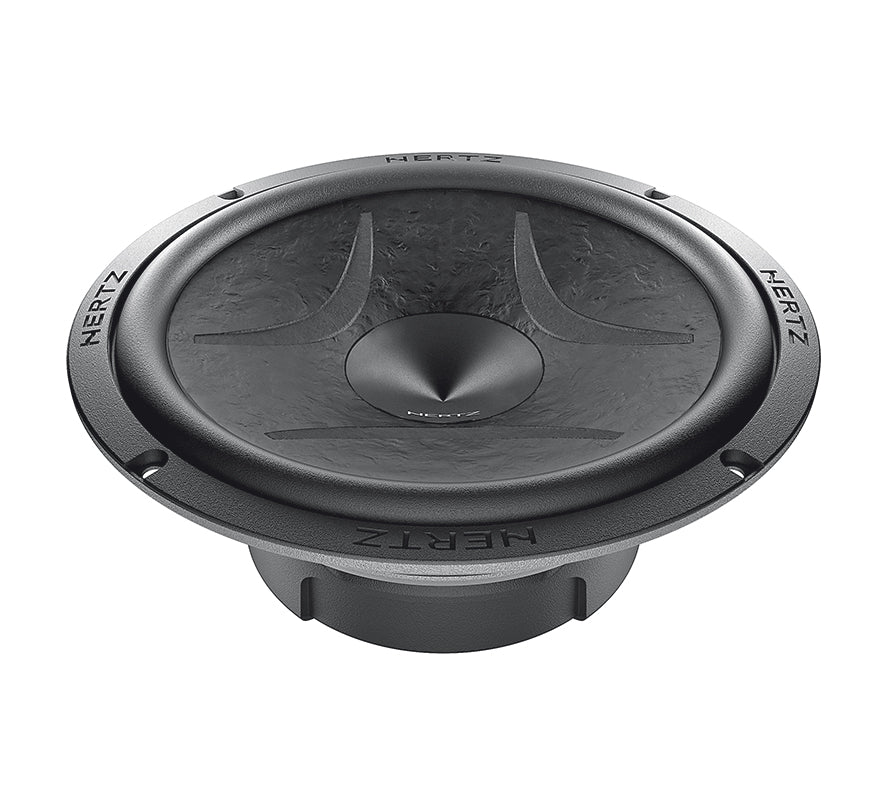

EV 165L.5 car audio woofers provide extreme control relating to sound quality, ensured with the use of a large motor assembly along with the proprietary V-cone® membrane, with increased rigidity thanks to deep surface ribbings. The DIN size basket, the lower profile surround as well as the compact size make them easy to install in any factory system. The natural rubber protection ring plays an important role, preventing basket and motor assembly from corrosion and cosmetic damage, ensuring the acoustic damping of the basket and mobile assembly.
The EV 165L.5 features an original non-pressed paper cone providing the ability to get powerful, solid bass, even without the support of a subwoofer.

Features

1. V-cone® for best off-axis response and clear mid-high frequency detail.
2. Water-repellent non-pressed paper cone provides deep, tight and dynamic bass output.
3. Pure copper voice coil, wound on aluminum former, for very good thermal and mechanical capacity.
4. Large motor assembly for excellent mobile voice coil control.
5. Low carbon content plates for maximum magnetic permeability and high heat dissipation.
6. Rubber magnet cover provides damping to the basket and motor structure and protects from abrasions and damages.
7. DIN size basket coated with scratch-proof, corrosive-resistant material.
8. Tin-plated, high current terminals.
9. Silver-plated lead wires, for maximum reliability and conductivity.
10. Epoxy glue for basket and motor system provides perfect coupling.
11. Curve memory Nomex spider for consistent, reliable performance.

Technologies

V-CONE®
The exponential profile gets very close to the perfect one, providing exceptional dispersion.

KLIPPEL
The Klippel quality control system is our guarantee to always produce a product entirely in compliance with the most challenging international standards.

  • Power Handling - Peak W: 210
  • Power Handling - Continuous W: 70
  • Impedance Ω: 4
  • Frequency response Hz: 50 ÷ 4k
  • Sensitivity dB SPL: 92
  • Voice coil Ø mm (in.): 25 (1)
  • Magnet: High density flux ferrite
  • Cone/Dome: Water repellent non-pressed paper
