Integrated sound amplifier Naim Nait XS 2

• Power: 70W per channel
• The NAIT XS 2 can be enhanced by connecting external power supplies
• Input sensitivity: 130mV
• Input impedance: 47kΩ

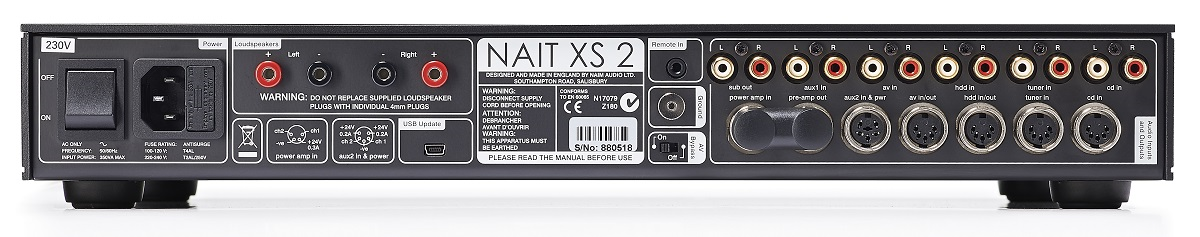

• Audio outputs: Speakers, record, preamp and variable sub
• Analog inputs: 4 x DIN/RCA pair, 1 x RCA pair, 1 x DIN (for Naim phono amplifier)
• Dimensions: 70 x 432 x 301 mm / Weight: 8.4 kg

Technology & Craft
At 70 Watts per channel, the NAIT XS 2 is more powerful than its NAIT XS predecessor. It also features numerous refinements to enhance its music making still further: ceramic heatsink technology, constant current source drive electronics, a reconfigured internal layout to optimize signal paths and custom manufactured film style capacitors in all audio critical locations.

Constructed in a slimline aluminum enclosure, the NAIT XS 2 provides six analogue inputs and the same innovative Class A headphone amplifier as the SUPERNAIT 2. With any amplifier, however, the proof of its technology is in the listening. The NAIT XS 2 is both powerful and delicate, dynamic and even-handed. It does everything the music asks and delivers everything that a Naim Audio amplifier should.

• 70W per channel power output
• Six inputs with support for both DIN and RCA connections
• 1/4” (6.35mm) headphone output and high quality class-A headphone amplifier
• Ceramic heat sink isolation for improved sound quality on power and preamp section
• AV bypass mode for simple connection to an existing AV system
• Preamplifier, power amplifier and subwoofer connections

• Input Sensitivity 130mV
• Input Impedance 47kΩ
• Analogue Input 4 x DIN/RCA pair, 1 x RCA pair, 1 x DIN (for Naim phono amplifier)
• Line Outputs Fixed (level) 130mV, 600Ω
• Line Outputs Variable (level) 775mV, <50Ω
• Audio Outputs Speakers, record, preamp and variable sub
• Other Outputs Headphone, 1/4" jack
• Power Output 70W/channel, 8Ω
• Remote Control Infra Red (RC5)
• Remote Input 1 x 3.5mm jack on rear (RC5 modulated/unmodulated)
• Updates 1 x USB Type Mini-B
• Front Panel Volume Control, seven button matrix
• Mains Supply 100V, 115V, 230V; 50 or 60 Hz
• Power Consumption (quiescent) 20VA
• Power Consumption (max.) 290VA (max.)
• Dimensions (HxWxD) 70 x 432 x 301 mm
• Weight 8.4 kg
• Shipping Dimensions 200 x 590 x 500 mm
• Shipping Weight 10.35 kg
• Supplied with NARCOM-4 Remote Control, Power-Line Lite mains cable (UK denominations only)
• FinishFront
• Brushed and black anodised
• Case Black powder coated
