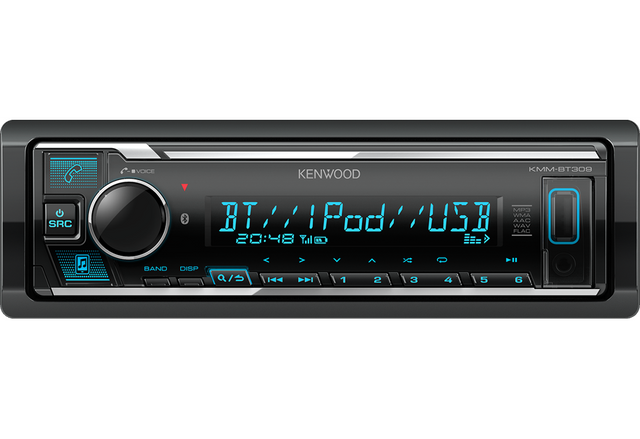

Kenwood KMM-BT309, car radio

Name: Kenwood KMM-BT309, car radio
Brand: Kenwood
SKU: KMM-BT309
Price: 113.56 EUR
Availability: InStock

€113.56 EUR

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

Car stereo with Bluetooth technology for hands-free phone calls and music streaming.

Dual phone connection automatically switches between 2 paired phones when you need to make a call.
Enjoy audio streams by simply switching between 5 connected BT devices with the Music Mix feature.
Use your smartphone as a wireless remote control with the KENWOOD Remote app.
Playback of MP3/WMA/AAC/WAV/FLAC music files.

DESCRIPTION

Digital Media Receiver with Bluetooth technology for hands-free phone calls & music streaming.

Enjoy convenient control. Built-in Bluetooth technology for hands-free calls and music streaming and the ability to use your smartphone like a wireless remote control. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.

Key Features

Bluetooth technology for hands-free calls and music streaming.

Dual Phone Connection switches automatically between the 2 paired phones for incoming calls.

Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix.

Use your smartphone like a wireless remote control with the KENWOOD Remote app.

MP3 / WMA / AAC / WAV / FLAC music file playback.

Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.

3 high power (2.5V) RCA preouts to connect multiple power amplifiers.

Wide 1.5 line LCD display with high contrast, wide viewing angle & variable-color backlight.

Menu language in English (default), Russian, Spanish, French or German.

Short body (100mm) for easy installation

TECHNICAL DATA

SPECIFICATIONS

General Features

DIN Size	1 DIN
Detachable Faceplate	Yes
Key Illumination	Variable LED
Rotary Encoder & Control Knob	Yes
Dual Accent Key	Handsfree & Audio Streaming
Backup Memory	Tuner presets & menu settings
Attenuator with Smooth Volume Return	Yes
Touch Sensor Tone	Yes
Digital Clock (24H)	Yes
Clock display when power-off	default off
All-off Select (20/40/60 minutes)	Yes
Built-in Connector	Mitsumi, pin 16
ISO connector	Yes, Mitsumi to ISO cable
Bluetooth unit built-in	Yes
USB interface x 1	Yes, (Front)
Firmware upgradeable	Yes
Mechless receiver	Yes
Short body	Yes

Display Features

Display Type	Liquid Crystal Display (LCD)
Display Layout	2 line text + custom icons
Vertical Alignment Liquid Crystal Display	Yes
Display Illumination	Variable by RGB LED
Dimmer Control	Manual / Set by Timer
Brightness control	0 - 31 steps
Demo Mode	Yes
Menu text in selectable language	English(default) / Spanish / French / German / Russian

Cosmetics features

Dress plate	Piano Black
Preset key finish	Piano Black
Escutcheon finish	Piano Black
Volume & operation knob or wheel	Transparent Lighting & Chrome Finished Ring
Triangle Illumination	Red LED
Front terminals dust cover	Yes
Key illumination	Variable by RGB LED
Illuminated front USB port	Variable by RGB LED
Brightness Control (Key)	0 - 31 steps
Dimmer Control (Key)	Manual / Set by Timer
Variable color illumination	Yes
Color Zone Concept	2 zone color control
Brightness zone concept	2 zone brightness control
Chrome-finished accents	Volume knob & faceplate

Tuner Features

Station Select	Manual / Preset
FM Reception	Yes
AM (MW/LW) Reception	Yes
Tuner Presets (FM/AM)	24 Presets (18FM / 6AM)
Preset memory w/o back-up power	Yes
Mixed preset memory (FM & AM)	6 presets
Up/Down Seek/Scan	Yes
Automatic Memory Entry (AME)	Yes
FM Stereo / Mono Selector	Yes
Radio Data System	Yes
Radio Text Plus	Yes
Traffic Information	Yes
Local search	Yes
AF Regional	Selectable: AF/AF Reg/OFF
Auto TP search	Yes
Enhanced Other Networks Function (EON)	Yes
Program Type Function (PTY)	Yes

Playable Audio File

AAC (*.m4a) files are playable	USB
AAC (*.aac) files are playable	USB
MP3 files are playable	USB
WMA (.wma) files are playable	USB
WAV (.wav) files are playable	USB
FLAC files are playable	USB

USB Features

USB terminal	Yes, Front with dust cover
USB Type	2.0 High speed
MP3, WMA, AAC, WAV, FLAC playback	Yes
Repeat/Scan/Random search	Yes
Repeat / Random Play	Yes
Direct search	Yes
Resume play	Yes
Time code display	Yes
1.5A Smartphone Quick Charge	Yes

iPod Features

Made for iPod & iPhone *	Yes
USB Direct Control (Audio, 1 wire, Lightning-connector)	with optional cable KCA-iP103
Music playback	Yes
Alphabet search	Yes
Skip search	Yes
Related search	Yes
Direct Search	Yes
iPod EQ Mode	Yes
Control by hand	Yes
App & iPod control mode	Yes
Spotify App Link	Yes
iAP over Bluetooth	Yes
iTunes Radio App	yes iAP2
Reverse browsing	Yes
Battery charge + power control	Yes
* Always update to the latest Apple firmware

Audio Features

Maximum Output Power	50W x 4
MOSFET Power ICs	Yes
Auxiliary Type	Mini-jack, front panel
Pre-out	3 RCA
Pre-out Output Level	2.5V
Subwoofer Reference Level Adj.	Yes
2-Way X'over network	Yes
3-Way x'over (bi-amp connection)	Yes
Tone Control / Easy EQ	13 bands, 8 presets
Balance/Fader/Loudness Control	Yes
Bass Boost Circuit	Off/+1/+2/+3/+4/+5
Att.(-20dB) with smooth Volume Return	Yes
Easy 3-band EQ mode	Yes
Graphic Equalizer + Preset	13-Bands Graphic Equalizer with 8 Presets.
Digital Sound Processor (DSP) Built-in	Yes
Digital Time Alignment (DTA)	Yes
Low- & High-pass Filter	Yes
Speaker Size Control	Yes, Front/rear/subwoofer independently
Kenwood Sound Reconstruction	Yes
Sound Reconstruction	Yes
Space Enhancer	Yes
Realizer	Yes
Stage EQ	Yes
Drive EQ	Yes

Bluetooth General Features

Max no. of reg. phones for HFP & A2DP	5 phones
Hands Free Profile with High Sound Quality	HFP V1.7.1
Max no. of reg. phones for HFP	5 phones
2 phones full time connection	Yes
Audio Streaming (A2DP)	Yes
High Quality Audio Streaming	SBC/AAC
Max no. of reg. units for A2DP	5 units
Serial Port Profile (SPP)	Yes
Phonebook Access Profile (PBAP)	Yes
iPhone & Android automatic pairing via USB	Yes

KENWOOD Remote App Ready
KENWOOD Music Mix Support	Yes
Catchphone / Call Waiting	Yes
Private mode	Yes
Alphabet Search (Phonebook)	Yes
Noise Canceller	Yes
Echo Canceller	Yes
Phone device status display	Yes
Audio device status display	Yes
Signal strength display	Yes
Remaining battery display	Yes
Bluetooth Pairing Indicator	Yes
High-quality noise canceling microphone	Rear Wired
Bluetooth firmware upgradeable	Yes
* depends on phone model/make	& Kenwood unit

Connectivity

Front USB & AUX Input	Yes
OEM Wired Remote Control ready	Yes
DC-Cord	Mitsumi to ISO
Power Control (P.CON) wire	Yes
Amplifier pre-out	3 x RCA: Front/Rear/Subwoofer
FM Antenna Input	JASO connector
External microphone input	3.5mm mini-jack

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)	Yes
FM Usable Sensitivity	0.56μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity	1.58μV/75ohm (S/N 46dBf)
FM Frequency Response	30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)	68dB
FM Stereo Separation (1kHz)	40dB
MW range: 531kHz - 1611kHz (9kHz step)	Yes
MW Usable Sensitivity	28.5μV
LW range: 153kHz - 279kHz (9kHz step)	Yes
LW Usable Sensitivity	45μV

Codec Specs

MP3 format	MPEG 1/2 Audio Layer 3-Files
WMA Format	in accordance with Windows Media Audio
AAC Format	AAC-LC “.aac”(CD&USB) and “.m4a”(USB) files
WAV Format	RIFF waveform Audio Format (only for LinearPCM)
FLAC Format	FLAC files (up to 96kHz/24bit)

USB Specifications

USB Version compatibility	USB 1.1 / 2.0 full speed
File System	FAT 32 / 16 / 12
Maximum Supply current	1500mA
D/A Converter	24 bit
MP3 Decoder	Compliant with MPEG-1/2 Audio Layer-3
WMA Decode	Compatible with Windows Media Audio
AAC Decode	"m4a" & "aac" file encoded by AAC-LC format
WAV Decode	Linear - PCM Files
flac Decode	FLAC files up to 96kHz/24bit

Audio Specifications

Maximum Power	50W x 4
Output Power (DIN45324,+B=14.4v)	22W x 4
Preout Level	2500mV / 10kOhm,
Preout Impedance	≤ 600 Ohms
Speaker Impedance	4Ohm ~ 8Ohm
AUX Frequency Response	20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage	1000mV
AUX Input Impedance	30 kOhm

DSP Specifications

Frequency band - Front	62.5Hz~16kHz
Equalizer Gain	-9db ~ +9db
Q Control	0.25/ 0.50/ 1.00/ 2.00
High Pass Filter frequency	Through/50 ~ 220 (Hz)
High Pass Filter Slope	-12/-18/-24 dB/Oct
Low Pass Filter frequency	50~120(Hz)/Through
Low Pass Filter Slope	-12/-18/-24 dB/Oct
Time Alignment	0 — 610cm (2 cm step)
Car type control	► OFF ► COMPACT ► FULL SIZE CAR ► WAGON ► MINIVAN ► SUV ► MINIVAN LONG
Equalizer Type	Graphic
Frequency band	13 tries

Bluetooth specifications

Technology	Bluetooth V4.2
Frequency	2.402 - 2.48 GHz
Output power	+4dBm(max), 0dBm (AVE) power class 2
Maximum range	Line of sight approx. 10 meters
Handsfree profile (HFP)	Yes
Serial port profile (SPP)	Yes
Advanced audio distribution profile (A2DP)	Yes
Audio Codec	SBC/AAC
Audio/Video remote control profile (AVRCP)	Yes
Phonebook access profile (PBAP)	Yes

Accessories

Release keys	2 pieces
Escutcheon	Yes
Installation Sleeve	Yes
DC cord (Mitsumi to ISO)	15 cm
Handsfree Microphone	with 3 m cable

General Specifications

Operating voltage	14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption	10A
Dark Current Consumption	Below 1mA
Dimensions (WxHxD)	182 x 53 x 100mm
Weight	600 gr.
Operation Temperature Range	-10°C ~ 60°C
Instruction Manuals	Multi-language quick guide
