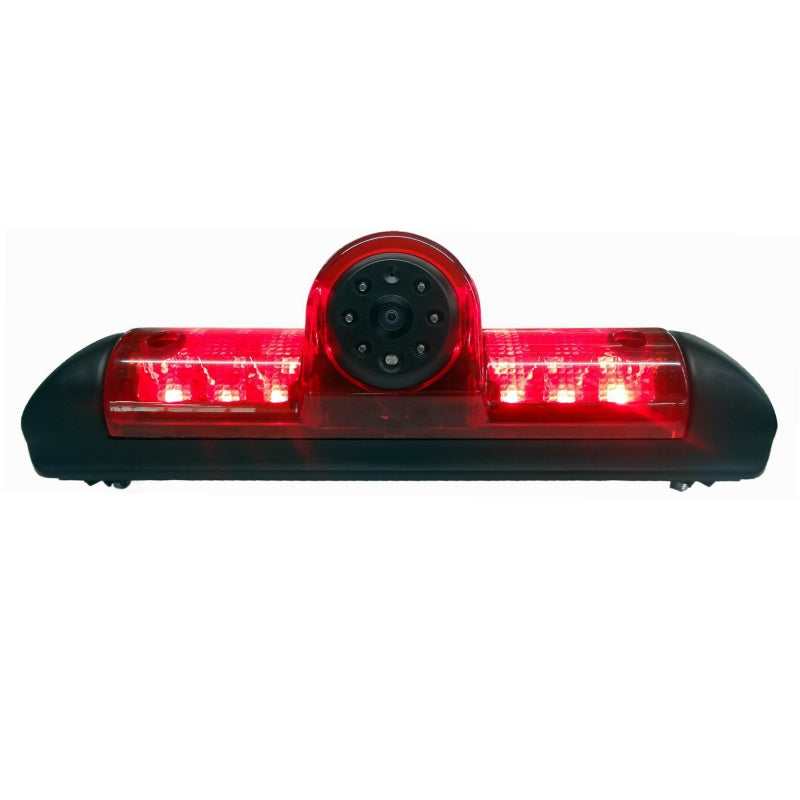

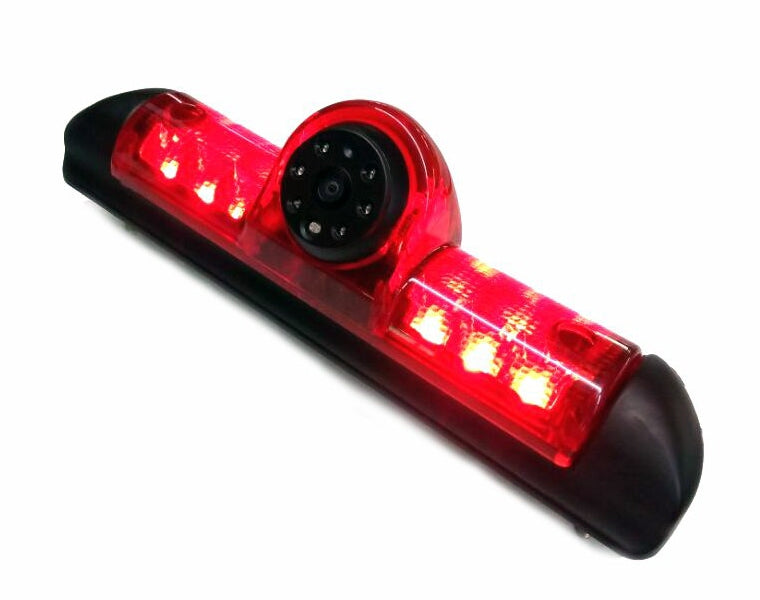

LaviLane LAFITCM06, rear view camera for Fiat Ducato

A rear view camera that facilitates reverse parking. Suitable for all non-factory multimedia systems with a linear video signal input for the rear view camera.

• FIAT Ducato 2006-2017
• Peugeot Boxer 2006-2017
• Citroen Jumper 2006-2017

Fiat Ducato Reversing Camera 3rd Generation 2006 - 2015

This camera fits so well it looks like original equipment. Designed specifically for the Fiat Ducato Van and Motorhome Conversions this reversing camera provides a unique solution for drivers requiring a high quality rear view camera solution that also has the benefit of looking, without doubt the most aesthetically pleasing product available on the market.

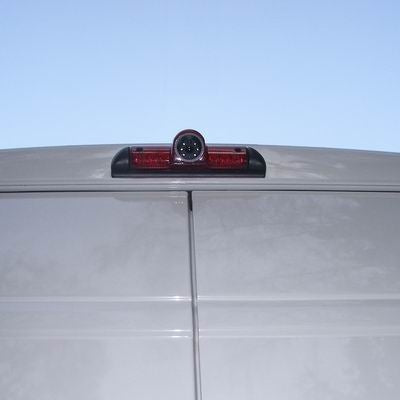

This bespoke camera replaces the high level brake light, thus keeping the height of the camera below the roof line and saves drilling any holes, which may cause corrosion and water ingress at a later date so warranty issues to worry about! With camera's becoming more common on these vehicles owing to health and safety requirements, duty of care and limitations with conventional park assist where the rear step is installed, this is the ideal solution.

The ball socket only moves in one plane so it is easy to setup and can be adjusted by the end user who would like to fine tune the image to suit their individual requirements. The camera comes with a 10 meter extension cable and DIN to RCA cable adapter, allowing trouble free installation to suit even the longest wheelbase models. This is a completely sealed unit incorporating the brake light and reversing camera so you just unscrew your current high level brake light cluster and screw this one in in its place. Connect the brake light to the wires currently powering it as normal and wire the camera to a reversing light feed to switch it on when you select reverse gear. The camera also incorporates reversing guidelines to help you reverse.

Includes
10m Video Extension Cable
1.5m Camera Power Supply Lead
1.5m Brake Light Power Supply Lead
35cm Composite to Phono/RCA Adapter Cable

You can buy the camera on its own or, in addition, we also offer a range of monitor solutions depending on your needs and budget. All our range of cameras and monitors are compatible with each other so you just need to decide if you want a dash mounted or mirror mounted monitor - if you have a rear view mirror present - and the screen size.

Maintenance
No routine maintenance or adjustment is required. Dirt, frost or snow accumulated on the camera may be cleaned off carefully with a soft cloth. Do not use chemicals or spirits. Applying hot water in frozen conditions may damage the camera. The camera can be washed carefully with warm soapy water.

SPECIFICATIONS

• Image sensor: color
• TV color system: PAL
• Matrix: 1/3" CCD
• Resolution: 650 TV lines, 752×582 pixels.
• No parking lines
• Lens visibility angle: 170 degrees
• Minimum illumination: 0.1 - 0.5 lux
• Operating temperature: -20C to 70C
• Waterproof: IP67
• Cable length 10m
• Power supply 12V
• Parking lines - none
