Portable audio system LD Systems Roadbuddy 10, SD/USB/MP3/BT

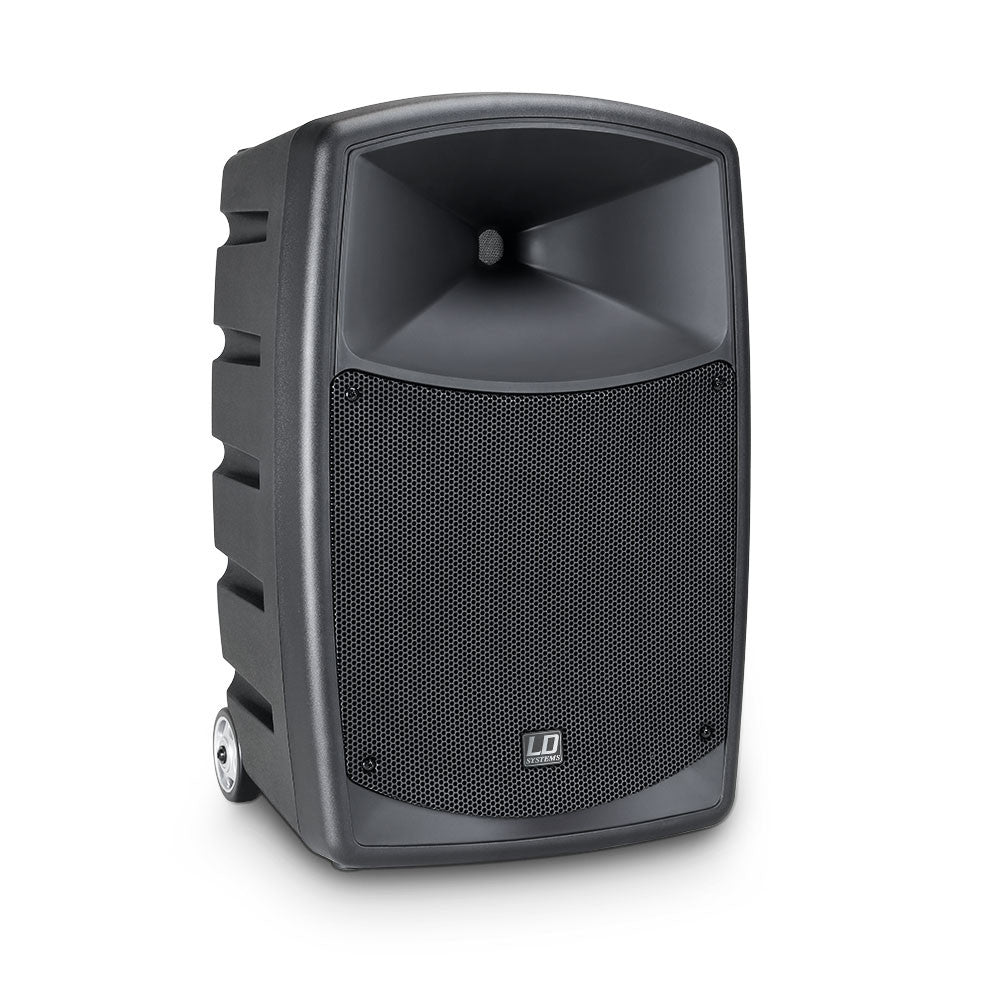

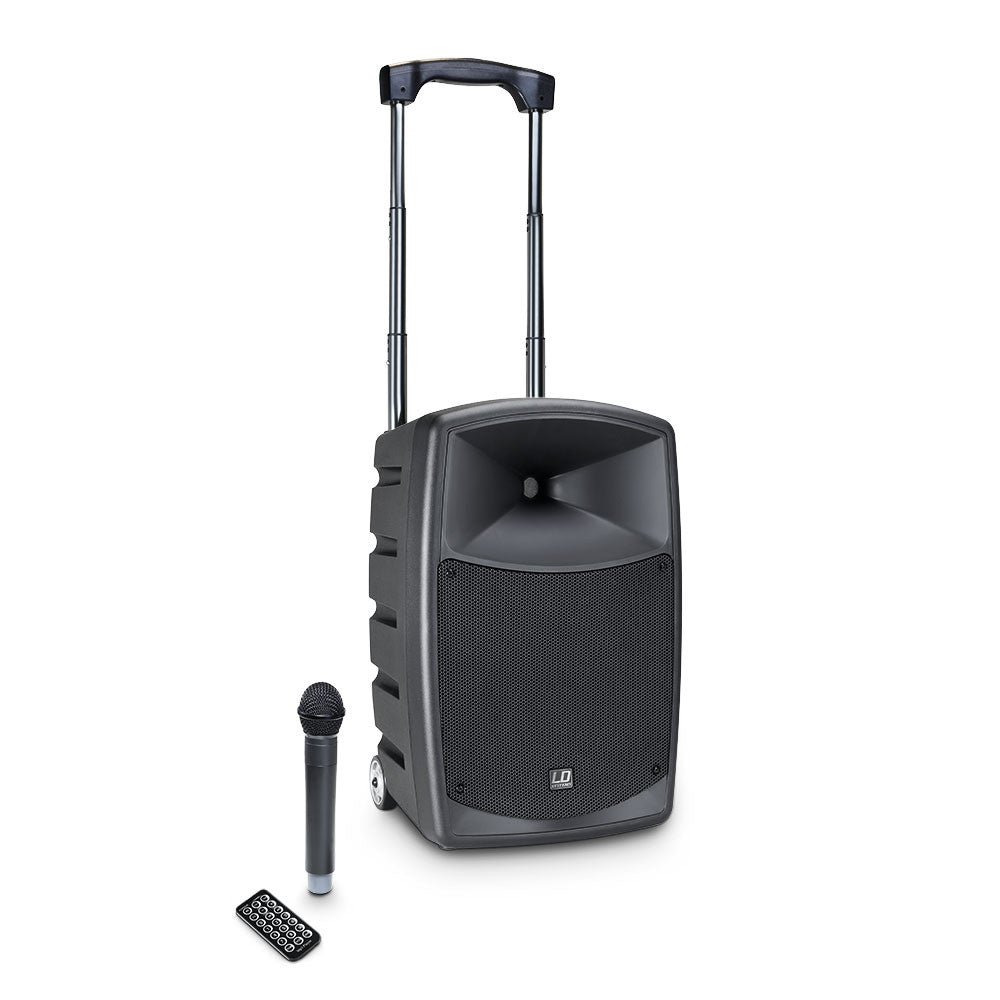

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power .

• Power: 120W RMS / 480W Peak
• Frequency range: 55 - 18000Hz
• Sensitivity: 96 dB
• Dimensions: 415 x 525 x 328mm / Weight: 16.5kg

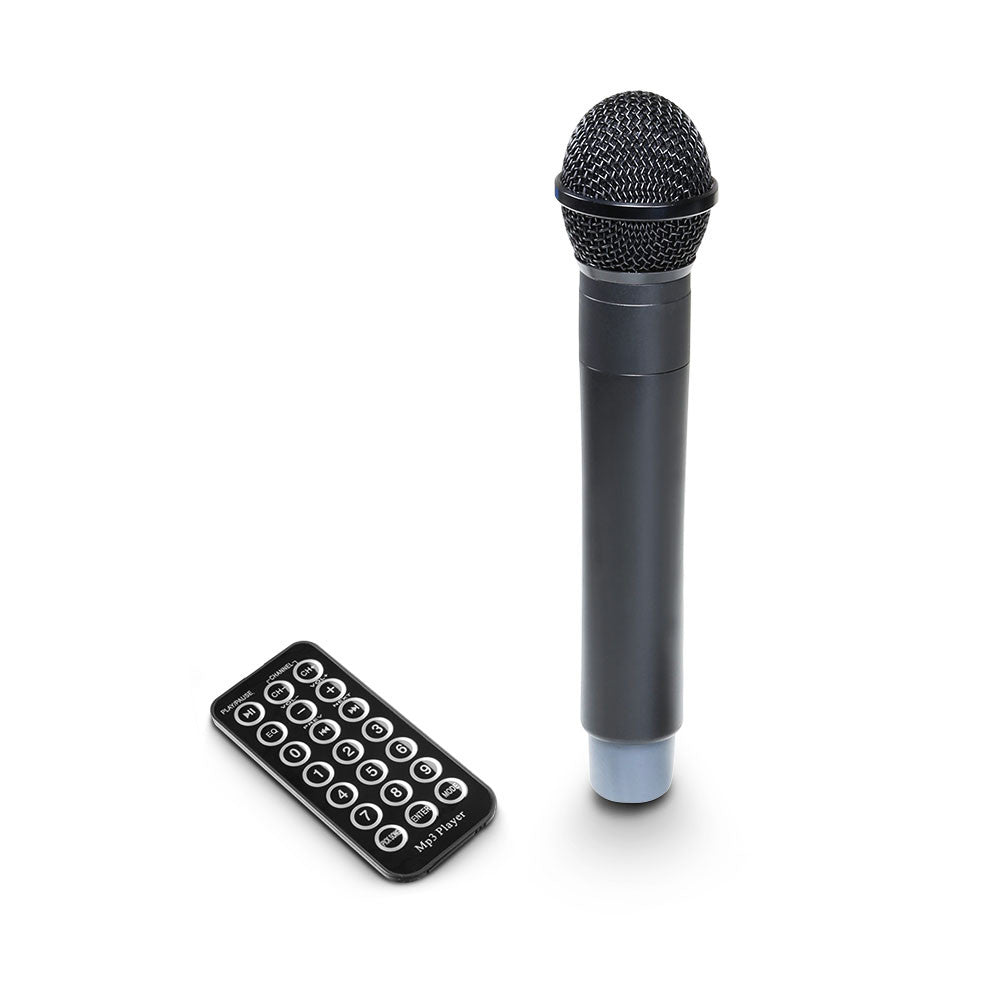

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 - 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display, equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power (LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.

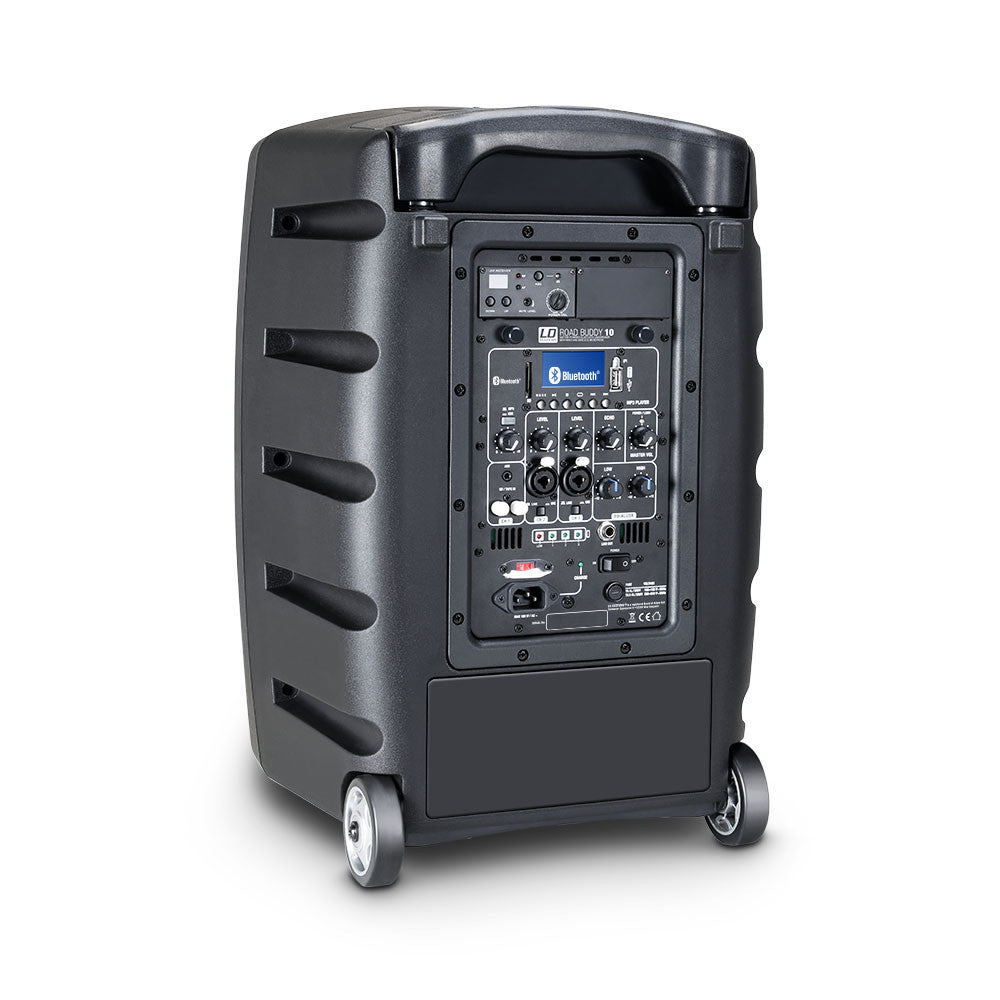

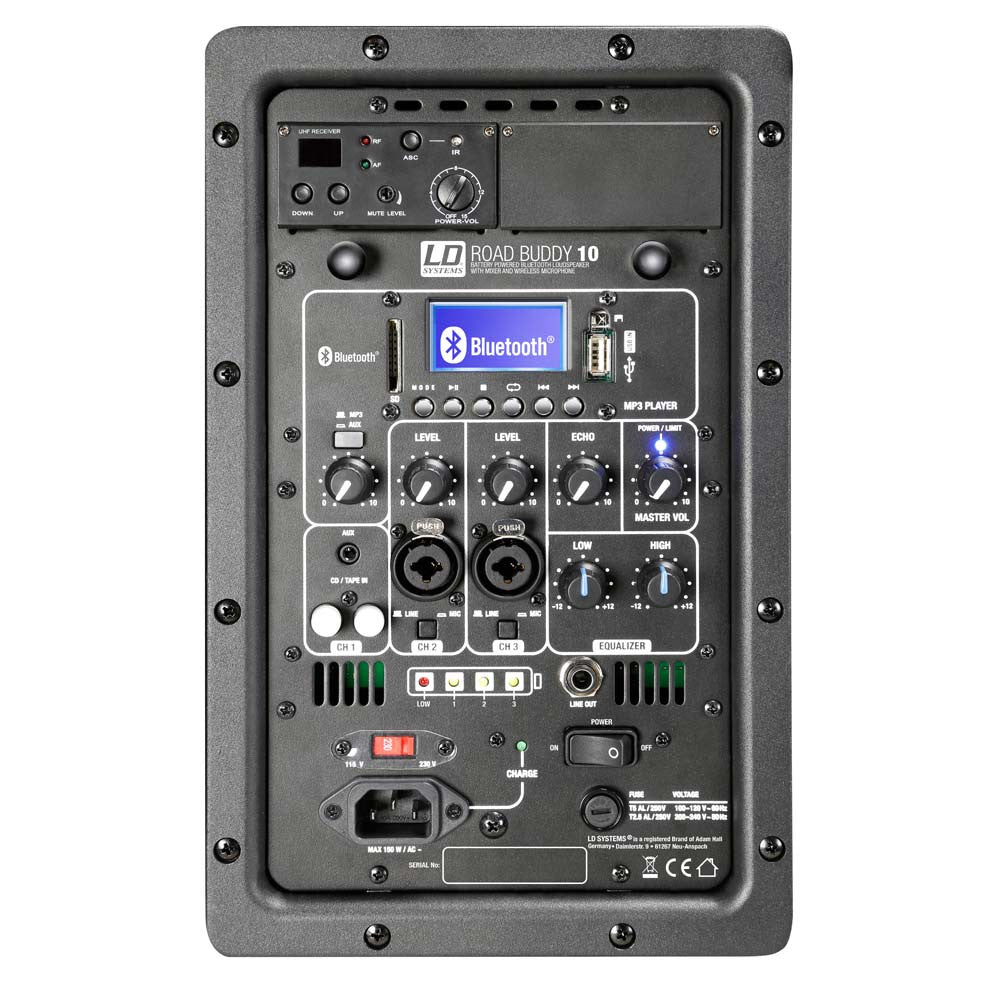

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

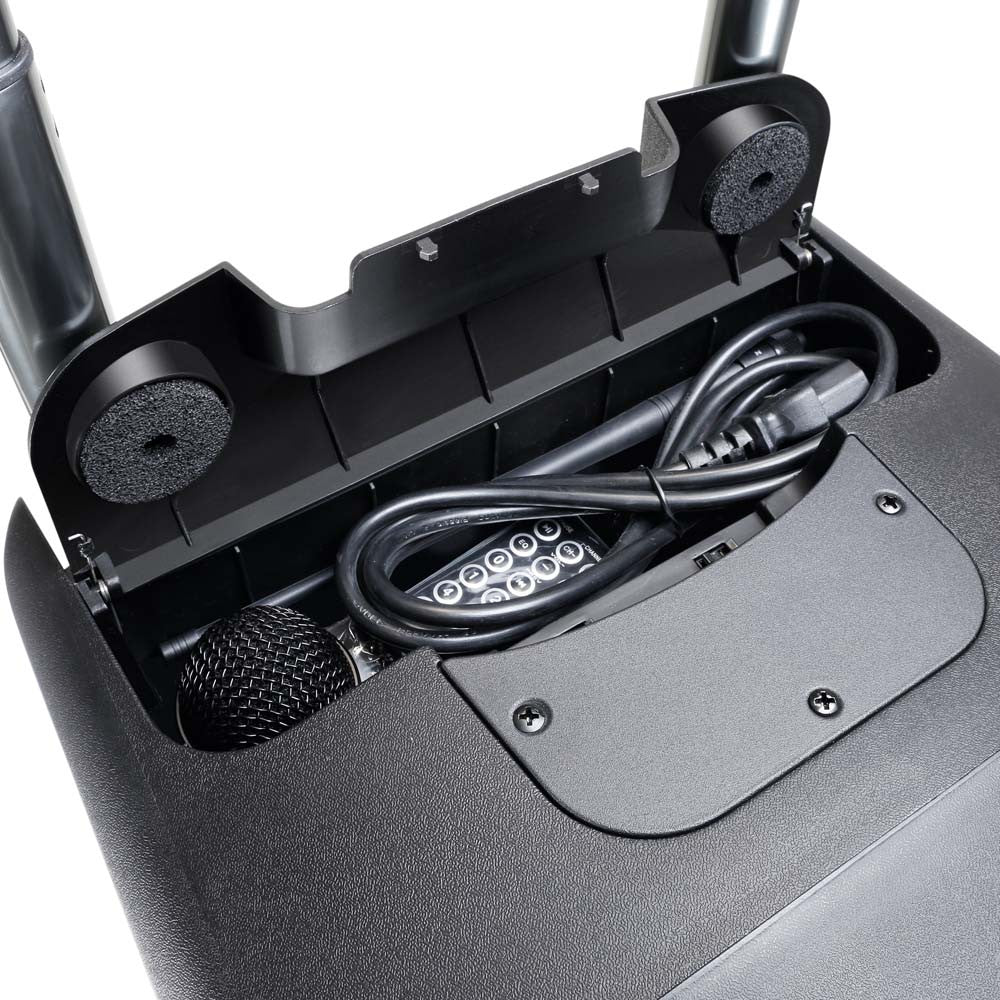

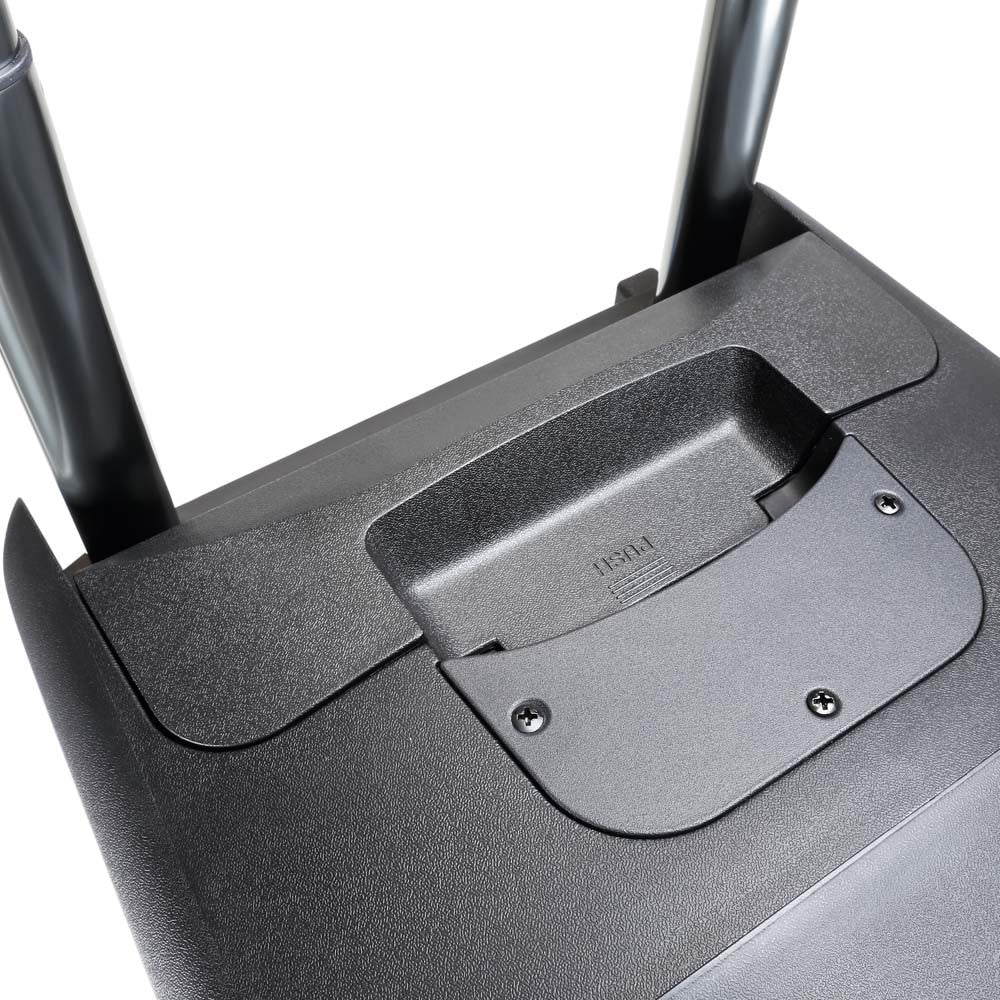

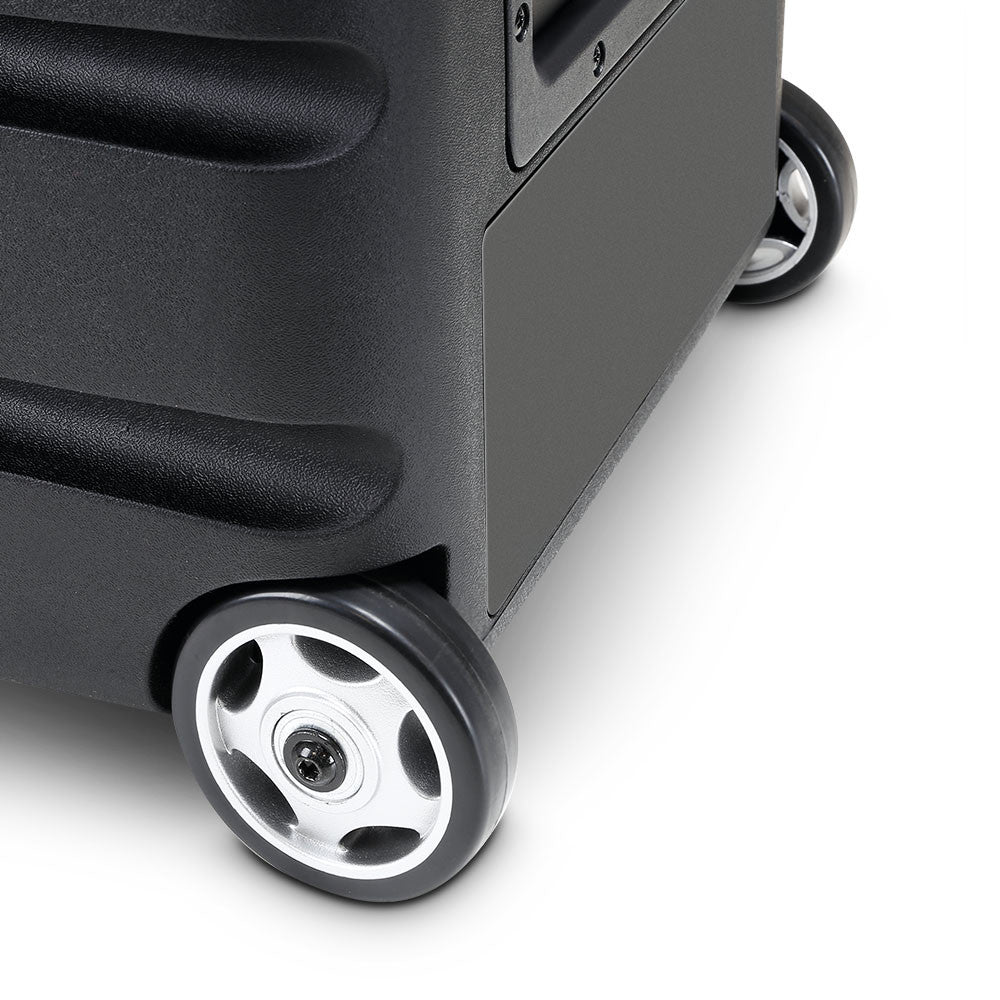

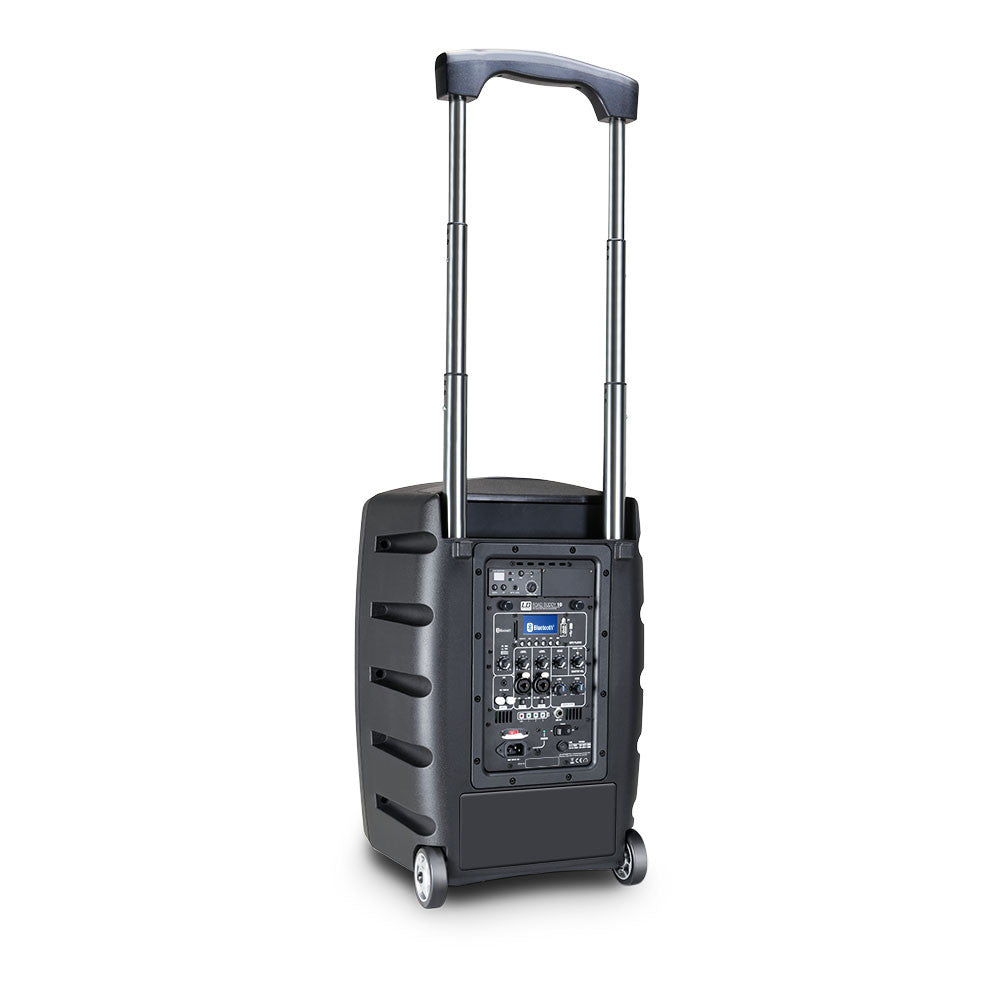

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

• Product Type: Battery powered PA speakers
• Size Woofer: 10 & quot;
• Size Woofer: 254mm
• Magnet Woofer: ferrite
• Brand Woofer: Custom Made
• Size HF Driver: 1"
• Size HF Driver: 25.4mm
• Magnet HF Driver: ferrite
• Brand HF Driver: Custom Made
• Amplifier: Class D
• SPL (1 W / 1 m): 96dB
• Max. SPL: 115dB
• Protective circuits: Short circuit, overload protection, overvoltage
• Operating elements: Low, CD / Tape IN Level, AUX / MP3 Switch, Total Volume, Mic Level, High, Mic Level, Echo
• Display elements: Power, charge / battery status
• Media player
• Supported media: SD card, Bluetooth, USB stick
• Supported formats: MP3 file, WAV file, WMA file
• Controls Media Player: Previous track, Stop, Next track, Mode (Menu / Bluetooth / SD / USB), Play / Pause, Repeat, Equalizer
• Display Media Player: Illuminated multifunctional LC display
• Line Inputs: 1
• Line Input Connectors: 2 x XLR, 6.3 mm jack, 3.5 mm jack, 2 x RCA connectors
• Mic Inputs: 2
• Mic Input Connectors: 6.3 mm jack, 2 x XLR
• Wireless Unit
• Radio frequency range: 863 - 865MHz
• Modulation type: FM
• Channels: 16
• Frequency response Wireless Unit: 50 - 17000lx @ 1mHz
• Controls Wireless Unit: Value Up, Value Down, Mute Level (squelch), Power / Volume, ASC
• Indicators Wireless Unit: LED Display, AF (LED), RF (LED)
• Connections Wireless Unit: NTNC for receiver antenna
• RF Output Transmission Power: 10mW
• Hand microphone Weight: 0.285kg
• Hand microphone Material: aluminum
• Power supply: Switching power supply
• Operating Voltage: 220 V - 240 V AC / 50 Hz, 100 V - 120 V / 60 Hz
• rechargeable batteries: 12 V / 5 Ah
• Housing material: Polypropylene
• Housing: Bass reflex
• Other features: Tripod flange 36 mm, transport rollers, IR remote control for media player, carrying handle, pull-out handle
