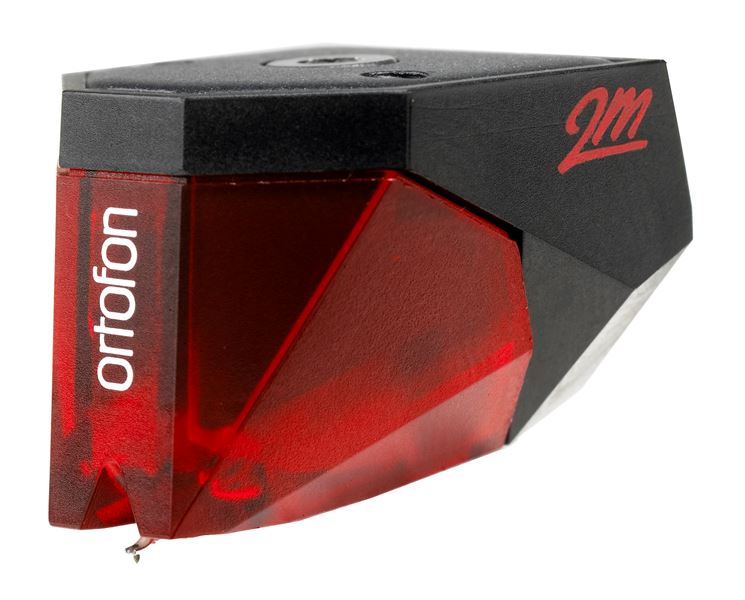

Ortofon 2M Red, turntable head

2M red has an elliptical diamond tip and split pole pins with copper wire.

• Frequency range: 20-20,000 + 2 / - 1 dB .
• Stylus type: Nude Shibata.
• The recommended tracking force is 1.5-1.7 g (15-17 mN) .
• Tracking angle - 20°.

Step into the music with the 2M Red

With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Features:
The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.
The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red delivers an open, dynamic sound with a slight touch of warmth .

SPECIFICATIONS

• Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
• Channel balance at 1 kHz - 1.5 dB
• Channel separation at 1 kHz - 22 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20,000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force - 70 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.6-2.0 g (16-20 mN)
• Tracking force, recommended - 1.8 g (18 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 1.3 kOhm
• Internal inductance - 700 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Cartridge color, body/stylus - Black/Red
• 2M standard and 2M Verso cartridges weight - 7.2 g
• Premounted cartridge weight - 16.7 g

INSTRUCTIONS

User Manual (EN).
