Ortofon

Ortofon Concorde MKII Twin Digital, replacement stylus

€289.00 EUR

Ortofon Concorde MKII Twin Digital, replacement stylus - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

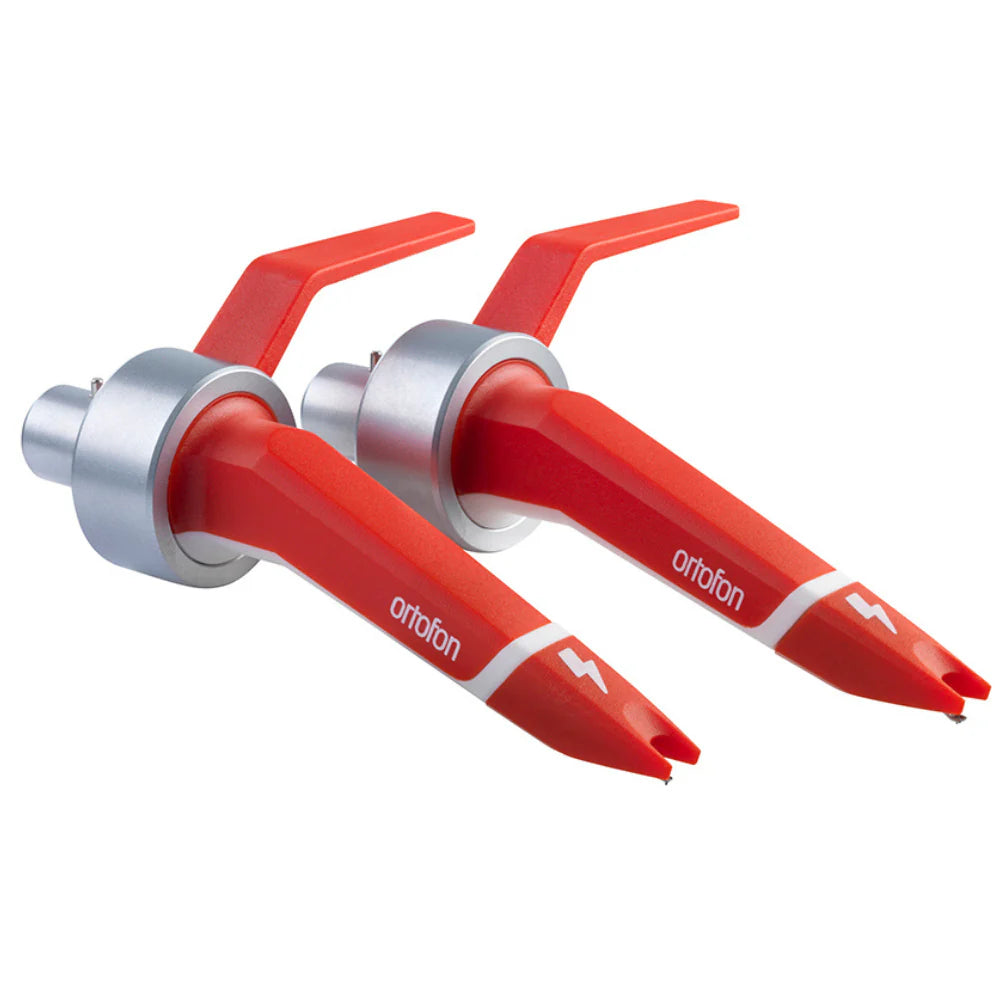

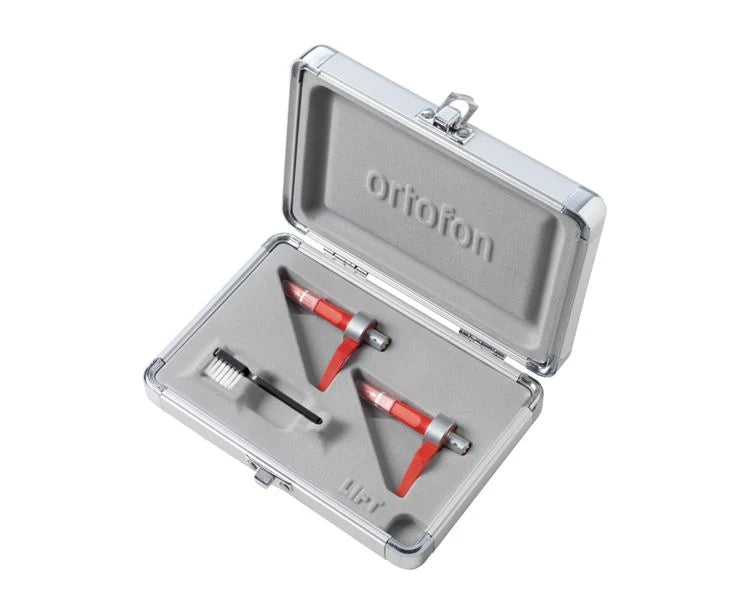

The Concorde MKII Twin Digital is an innovative solution for DJs who use timecode vinyl and regular vinyl. The set includes two Concorde MKII Digital cartridges with pre-installed styluses, conveniently packaged in a sturdy case.

This cartridge is designed to extend the life of clockwork vinyl records, reduce decoding errors, and ensure optimal sound.

Durability and protection

  • Concorde MKII Digital extends the life of clockwork vinyls by reducing their wear and tear.
  • Reduces errors in interpreting clock signal data, ensuring smooth operation.

High sound quality

  • Optimized 10 mV output voltage improves signal-to-noise ratio.
  • Ensures smooth and accurate transmission of the clock signal to the software.

Spherical stylus – less wear and tear

  • The spherical stylus not only perfectly reproduces the soundtrack, but also reduces vinyl wear while maintaining optimal sound quality.
  • Stylus type: Spherical diamond
  • Stylus tip radius: R 18 μm
  • Output voltage (1 kHz, 5 cm/s): 10 mV
  • Channel balance (1 kHz): 1 dB
  • Channel separation (1 kHz): 22 dB
  • Tracking capability (315 Hz): 100 μm
  • Internal resistance: 1200 Ohm
  • Internal inductance: 850 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200–400 pF
  • Weight: 18.5 g
  • Recommended tracing force: 4 g
  • Tracking force range: 3-5 g
  • Interchangeable stylus: Stylus CC MKII Digital
