Ortofon

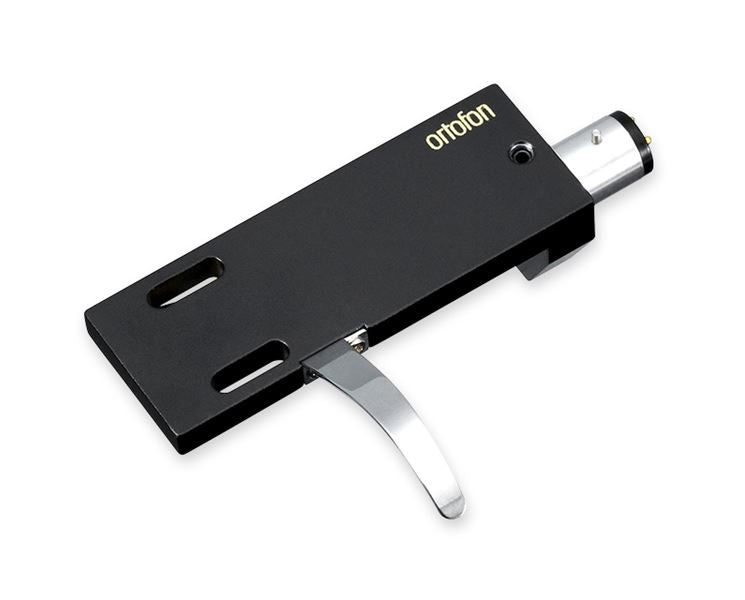

Ortofon LH-4000, head cap

€103.95 EUR

Ortofon LH-4000, head cap is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The LH-4000 is a premium high-quality headphone enclosure designed specifically for HiFi devices.

The LH-4000 comes with leadwires for easy and convenient connection

All Ortofon cartridges have a color coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.



SPECIFICATIONS

Features and technical data

  • Universal mount
  • Japanese oak tree with Urushi lacquer finish
  • Weight without screws - 8.5 grams
  • Mounting distance min. - 33.0 mm
  • Mounting distance max. - 42.2 mm
  • Headshell length - 50.3 mm
  • Headshell width - 18.8 mm

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

HEADSHELL MODEL A
Headshell length
 		B
Headshell width
 		C
Mounting distance max.
 		D
Mounting distance min.
 		E
Screw diameter max.
SH-4 51.5 mm 20.0 mm 45.4 mm 36.4 mm 3.0 mm
LH-2000 50.3 mm 20.0 mm 43.4 mm 35.3 mm N/A
LH-4000 51.9 mm 19.1 mm 45.6 mm 39.5 mm N/A
LH-6000 47.5 mm 19.1 mm 42.4 mm 36.6 mm N/A
LH-8000 50.3 mm 18.8 mm 42.2 mm 33.0 mm N/A
LH-9000 52.0 mm 20.0 mm 44.9 mm 38.1 mm N/A
LH-10000 50.0 mm 19.4 mm 42.4 mm 42.4 mm 2.7 mm
