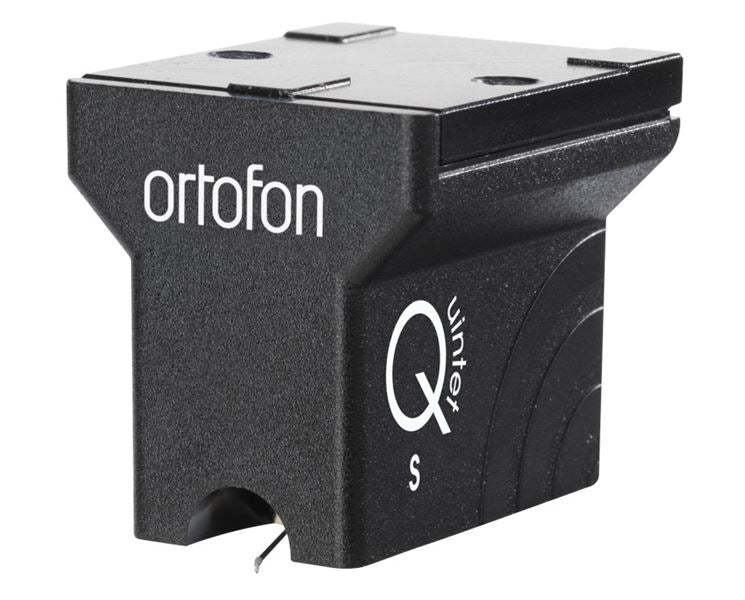

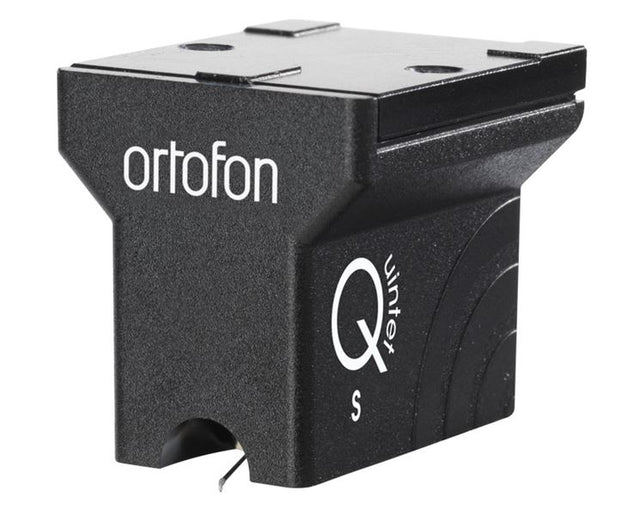

Ortofon MC Quintet Black S, turntable head

€999.00 EUR

Ortofon MC Quintet Black S, turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

The Quintet Black S is the ultimate example of Quintet craftsmanship

  • Stylus type: Nude Shibata on Sapphire cantilever .
  • Frequency band: 20-20.000 Hz - +/- 1.5 dB .
  • Pressure power: 2.1-2.5 g (21-25 mN) .

The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Sapphire cantilever.

The Shibata's slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the most high frequency groove information.


SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
  • Channel balance at 1 kHz - < 1.0 dB
  • Channel separation at 1 kHz - > 23 dB
  • Channel separation at 15 kHz - > 15 dB
  • Frequency response 20-20,000 Hz - +/- 1.5 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 80 µm
  • Compliance, dynamic, lateral - 15 µm/mN
  • Stylus type - Nude Shibata on Sapphire cantilever
  • Stylus tip radius - r/R 6/50 µm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
    *) Typical value
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - > 20 Ohm
  • Cartridge body material - ABS/Aluminium
  • Coil wire material - Aucurum
  • Cartridge color - Black
  • Cartridge weight - 9 g

INSTRUCTIONS

User Manual (EN).
