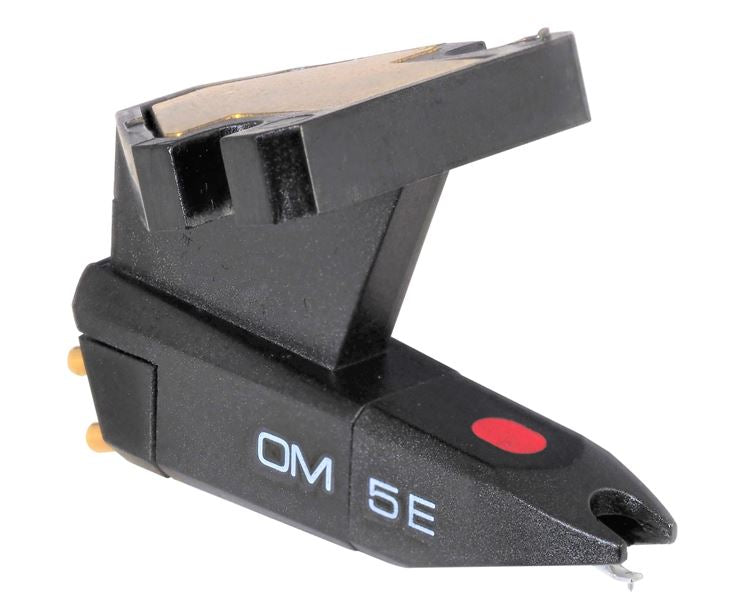

Ortofon OM 5E, turntable head
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
OM 5 series turntable head from Ortofon.
- Stylus type: Elliptical.
- Frequency band: - 20-20.000 Hz + 3 / -3.
- Channel balance: 1 kHz - 2 dB.
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM's. A glance at any of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
OM 5E features an Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.
SPECIFICATIONS
- Output voltage at 1000 Hz, 5cm/sec. - 4 mV
- Channel balance at 1 kHz - 2 dB
- Channel separation at 1 kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at - 3dB - 20-25.000 Hz
- Frequency response - 20-20,000 Hz ± 2 dB
- Tracking ability at 315Hz at recommended tracking force *) - 65 µm
- Compliance, dynamic, lateral - 20 µm/mN
- Stylus type - Elliptical
- Stylus tip radius - r/R 8/18 µm
- Tracking force range - 1.5-2.0 g (15-20 mN)
- Tracking force, recommended - 1.75 g (17.5 mN)
- Tracking angle - 20°
- *) Typical value
- Internal impedance, DC resistance - 750 Ohm
- Internal inductance - 450 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-500 pF
- Cartridge color, body/stylus - Black/Black
- Cartridge weight incl. extra weight - 5 g
- Cartridge weight excl. extra weight - 2.5 g
- Replacement stylus unit - Stylus 5E
