Ortofon

Ortofon SPU Royal G MKII, turntable head

€2,728.95 EUR

Ortofon SPU Royal G MKII, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

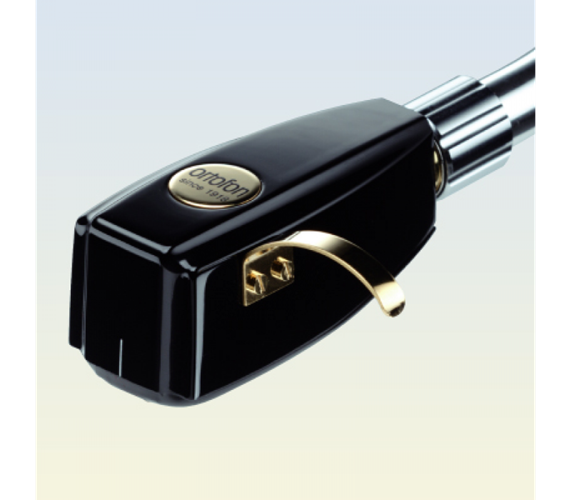

The SPU Royal G is a Moving Coil (MC) cartridge with an elliptical profile stylus that provides more detailed sound reproduction.

  • Frequency range - 20-20 000 Hz + 1.5/- 0 dB .
  • Stylus type- Nude.
  • The recommended tracking force is 2.5-3.5 g (25-35 mN).
  • Tracking angle - 20°.

The SPU Royal G model was released in 1998 to celebrate the Ortofon 80 year anniversary

The SPU Royal G MkII provides a playback experience that embodies the essence of analog, with generous refinements that bring the legendary SPU cartridges into the realm of unrivaled perfection.
The addition of Ortofon's unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provide uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. 0.2 mV
  • Channel balance at 1 kHz < 1 dB
  • Channel separation at 1 kHz > 25 dB
  • Channel separation at 15 kHz > 20 dB
  • Frequency response - 20-20.000 Hz + 1.5/- 0 dB
  • Tracking ability at 315Hz at recommended tracking force *) > 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Ortofon Replicant 100
  • Stylus tip radius - r/R 5/100 µm
  • Tracking force range - 2.5-3.5 g (25-35 mN)
  • Tracking force, recommended - 3.0 g (30 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 7 ohm
  • Recommended load impedance > 100 ohm
  • Cartridge body material - Ground wood and resin composite
  • Coilwire material - Gold plated silver
  • Cartridge color - Shiny black
  • Cartridge weight - 28 g

INSTRUCTIONS

User Manual (EN).
